singleProcessorFaceSets Class Reference

Constraint to keep all cells connected to face or point of faceSet on a single processor. More...

#include <singleProcessorFaceSetsConstraint.H>

Inheritance diagram for singleProcessorFaceSets:
Inheritance graph
[legend]
Collaboration diagram for singleProcessorFaceSets:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("singleProcessorFaceSets")
 Runtime type information.
 singleProcessorFaceSets (const dictionary &dict)
 Construct with constraint dictionary.
 singleProcessorFaceSets (const List< Tuple2< word, label > > &setNameAndProcs)
 Copy construct from components.
 singleProcessorFaceSets (Istream &is)
 Read construct a List of (setName processor).
virtual ~singleProcessorFaceSets ()=default
 Destructor.
virtual void add (const polyMesh &mesh, boolList &blockedFace, PtrList< labelList > &specifiedProcessorFaces, labelList &specifiedProcessor, List< labelPair > &explicitConnections) const
 Add this constraint to list of constraints.
virtual void apply (const polyMesh &mesh, const boolList &blockedFace, const PtrList< labelList > &specifiedProcessorFaces, const labelList &specifiedProcessor, const List< labelPair > &explicitConnections, labelList &decomposition) const
 Add this constraint post-decomposition.
Public Member Functions inherited from decompositionConstraint
 TypeName ("decompositionConstraint")
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, decompositionConstraint, dictionary,(const dictionary &dict),(dict))
 decompositionConstraint (const dictionary &constraintDict)
 Construct with constraint dictionary.
 decompositionConstraint (const dictionary &constraintDict, const word &modelType)
 Construct with constraint dictionary and model type.
virtual ~decompositionConstraint ()=default
 Destructor.

Additional Inherited Members

Static Public Member Functions inherited from decompositionConstraint
static autoPtr< decompositionConstraint > New (const dictionary &constraintDict)
 Return a reference to the selected decompositionConstraint.
static autoPtr< decompositionConstraint > New (const dictionary &constraintDict, const word &modelType)
 Return a reference to the selected decompositionConstraint.
Protected Member Functions inherited from decompositionConstraint
void getMinBoundaryValue (const polyMesh &mesh, const labelList &decomposition, labelList &destProc) const
 Get minimum label across coupled boundary faces.
 decompositionConstraint (const decompositionConstraint &)=delete
 No copy construct.
void operator= (const decompositionConstraint &)=delete
 No copy assignment.
Protected Attributes inherited from decompositionConstraint
dictionary coeffDict_
 Constraint coefficients dictionary.

Detailed Description

Constraint to keep all cells connected to face or point of faceSet on a single processor.


Dictionary parameters

Property Description Required Default
type singleProcessorFaceSets yes
sets List of sets and processers yes

Example,

    constraints
    {
        procs
        {
            type    singleProcessorFaceSets;
            sets
            (
                (faceSet1   0)
                (faceSet5   12)
                (faceSet25 510)
            );
        }
    }
Source files

Definition at line 90 of file singleProcessorFaceSetsConstraint.H.

Constructor & Destructor Documentation

◆ singleProcessorFaceSets() [1/3]

singleProcessorFaceSets ( const dictionary & dict)
explicit

Construct with constraint dictionary.

Definition at line 59 of file singleProcessorFaceSetsConstraint.C.

References decompositionConstraint::coeffDict_, decompositionConstraint::decompositionConstraint(), dict, and Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName.

Here is the call graph for this function:

◆ singleProcessorFaceSets() [2/3]

singleProcessorFaceSets ( const List< Tuple2< word, label > > & setNameAndProcs)
explicit

Copy construct from components.

Definition at line 81 of file singleProcessorFaceSetsConstraint.C.

References decompositionConstraint::decompositionConstraint(), Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, and Foam::type().

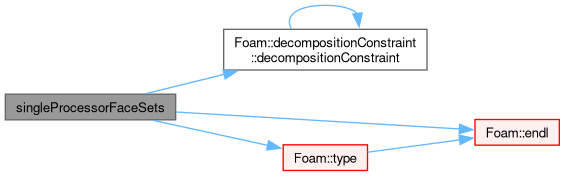

Here is the call graph for this function:

◆ singleProcessorFaceSets() [3/3]

singleProcessorFaceSets ( Istream & is)
explicit

Read construct a List of (setName processor).

Definition at line 100 of file singleProcessorFaceSetsConstraint.C.

References decompositionConstraint::decompositionConstraint(), Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, and Foam::type().

Here is the call graph for this function:

◆ ~singleProcessorFaceSets()

virtual ~singleProcessorFaceSets ( )
virtualdefault

Destructor.

References mesh.

Member Function Documentation

◆ TypeName()

TypeName ( "singleProcessorFaceSets" )

Runtime type information.

References dict.

◆ add()

void add ( const polyMesh & mesh,
boolList & blockedFace,
PtrList< labelList > & specifiedProcessorFaces,
labelList & specifiedProcessor,
List< labelPair > & explicitConnections ) const
virtual

Add this constraint to list of constraints.

Implements decompositionConstraint.

Definition at line 121 of file singleProcessorFaceSetsConstraint.C.

References List< T >::append(), PtrList< T >::append(), Foam::endl(), f(), faceLabels(), forAll, Foam::Info, mesh, pFaces, List< T >::resize(), Foam::returnReduce(), Foam::returnReduceOr(), HashTable< T, Key, Hash >::size(), UPtrList< T >::size(), HashTable< T, Key, Hash >::sortedToc(), syncTools::syncFaceList(), syncTools::syncPointList(), Foam::type(), WarningInFunction, and Foam::Zero.

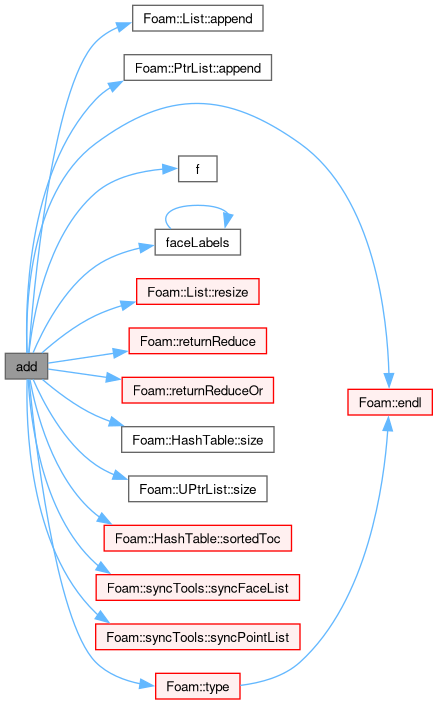

Here is the call graph for this function:

◆ apply()

void apply ( const polyMesh & mesh,
const boolList & blockedFace,
const PtrList< labelList > & specifiedProcessorFaces,
const labelList & specifiedProcessor,
const List< labelPair > & explicitConnections,
labelList & decomposition ) const
virtual

Add this constraint post-decomposition.

Reimplemented from decompositionConstraint.

Definition at line 253 of file singleProcessorFaceSetsConstraint.C.

References Foam::endl(), f(), forAll, Foam::Info, mesh, pFaces, Foam::reduce(), Foam::returnReduce(), syncTools::syncPointList(), and Foam::type().

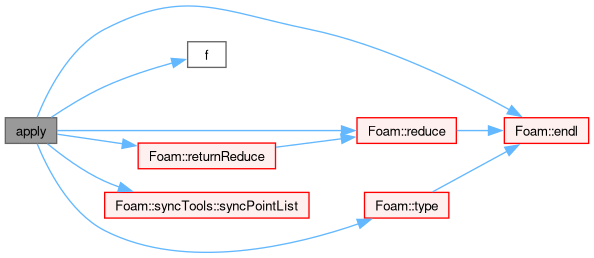

Here is the call graph for this function:
The documentation for this class was generated from the following files:
