engineValve Class Reference

Foam::engineValve. More...

#include <engineValve.H>

Public Member Functions

 engineValve (const word &name, const polyMesh &mesh, const autoPtr< coordinateSystem > &valveCS, const word &bottomPatchName, const word &poppetPatchName, const word &stemPatchName, const word &curtainInPortPatchName, const word &curtainInCylinderPatchName, const word &detachInCylinderPatchName, const word &detachInPortPatchName, const labelList &detachFaces, const graph &liftProfile, const scalar minLift, const scalar minTopLayer, const scalar maxTopLayer, const scalar minBottomLayer, const scalar maxBottomLayer, const scalar diameter)
 Construct from components.
 engineValve (const word &name, const polyMesh &mesh, const dictionary &dict)
 Construct from dictionary.
 ~engineValve ()=default
 Destructor.
const word & name () const
 Return name.
const coordinateSystem & cs () const
 Return coordinate system.
const graph & liftProfile () const
 Return lift profile.
scalar diameter () const
 Return valve diameter.
const polyPatchID & bottomPatchID () const
 Return ID of bottom patch.
const polyPatchID & poppetPatchID () const
 Return ID of poppet patch.
const polyPatchID & stemPatchID () const
 Return ID of stem patch.
const polyPatchID & curtainInCylinderPatchID () const
 Return ID of curtain in cylinder patch.
const polyPatchID & curtainInPortPatchID () const
 Return ID of curtain in port patch.
const polyPatchID & detachInCylinderPatchID () const
 Return ID of detach in cylinder patch.
const polyPatchID & detachInPortPatchID () const
 Return ID of detach in port patch.
const labelList & detachFaces () const
 Return face labels of detach curtain.
scalar minTopLayer () const
scalar maxTopLayer () const
scalar minBottomLayer () const
scalar maxBottomLayer () const
scalar lift (const scalar theta) const
 Return valve lift given crank angle in degrees.
bool isOpen () const
 Is the valve open?
scalar curLift () const
 Return current lift.
scalar curVelocity () const
 Return valve velocity for current time-step.
labelList movingPatchIDs () const
 Return list of active patch labels for the valve head.
void writeDict (Ostream &os) const
 Write dictionary.

Detailed Description

Foam::engineValve.

Source files

Definition at line 53 of file engineValve.H.

Constructor & Destructor Documentation

◆ engineValve() [1/2]

engineValve ( const word & name,
const polyMesh & mesh,
const autoPtr< coordinateSystem > & valveCS,
const word & bottomPatchName,
const word & poppetPatchName,
const word & stemPatchName,
const word & curtainInPortPatchName,
const word & curtainInCylinderPatchName,
const word & detachInCylinderPatchName,
const word & detachInPortPatchName,
const labelList & detachFaces,
const graph & liftProfile,
const scalar minLift,
const scalar minTopLayer,
const scalar maxTopLayer,
const scalar minBottomLayer,
const scalar maxBottomLayer,
const scalar diameter )

Construct from components.

Definition at line 62 of file engineValve.C.

References detachFaces(), diameter(), liftProfile(), Foam::max(), maxBottomLayer(), maxTopLayer(), mesh, Foam::min(), minBottomLayer(), minTopLayer(), name(), Foam::refCast(), and x.

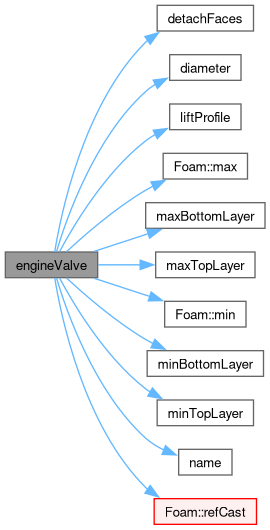

Here is the call graph for this function:

◆ engineValve() [2/2]

engineValve ( const word & name,
const polyMesh & mesh,
const dictionary & dict )

Construct from dictionary.

Definition at line 108 of file engineValve.C.

References dict, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::max(), mesh, Foam::min(), name(), Foam::New(), Foam::refCast(), and x.

Here is the call graph for this function:

◆ ~engineValve()

~engineValve ( )
default

Destructor.

Member Function Documentation

◆ name()

const word & name ( ) const
inline

Return name.

Definition at line 242 of file engineValve.H.

Referenced by engineValve(), and engineValve().

Here is the caller graph for this function:

◆ cs()

const coordinateSystem & cs ( ) const
inline

Return coordinate system.

Definition at line 250 of file engineValve.H.

◆ liftProfile()

const graph & liftProfile ( ) const
inline

Return lift profile.

Definition at line 258 of file engineValve.H.

Referenced by engineValve().

Here is the caller graph for this function:

◆ diameter()

scalar diameter ( ) const
inline

Return valve diameter.

Definition at line 266 of file engineValve.H.

Referenced by engineValve().

Here is the caller graph for this function:

◆ bottomPatchID()

const polyPatchID & bottomPatchID ( ) const
inline

Return ID of bottom patch.

Definition at line 277 of file engineValve.H.

◆ poppetPatchID()

const polyPatchID & poppetPatchID ( ) const
inline

Return ID of poppet patch.

Definition at line 285 of file engineValve.H.

◆ stemPatchID()

const polyPatchID & stemPatchID ( ) const
inline

Return ID of stem patch.

Definition at line 293 of file engineValve.H.

◆ curtainInCylinderPatchID()

const polyPatchID & curtainInCylinderPatchID ( ) const
inline

Return ID of curtain in cylinder patch.

Definition at line 301 of file engineValve.H.

◆ curtainInPortPatchID()

const polyPatchID & curtainInPortPatchID ( ) const
inline

Return ID of curtain in port patch.

Definition at line 309 of file engineValve.H.

◆ detachInCylinderPatchID()

const polyPatchID & detachInCylinderPatchID ( ) const
inline

Return ID of detach in cylinder patch.

Definition at line 318 of file engineValve.H.

◆ detachInPortPatchID()

const polyPatchID & detachInPortPatchID ( ) const
inline

Return ID of detach in port patch.

Definition at line 326 of file engineValve.H.

◆ detachFaces()

const labelList & detachFaces ( ) const
inline

Return face labels of detach curtain.

Definition at line 334 of file engineValve.H.

Referenced by engineValve().

Here is the caller graph for this function:

◆ minTopLayer()

scalar minTopLayer ( ) const
inline

Definition at line 342 of file engineValve.H.

Referenced by engineValve().

Here is the caller graph for this function:

◆ maxTopLayer()

scalar maxTopLayer ( ) const
inline

Definition at line 347 of file engineValve.H.

Referenced by engineValve().

Here is the caller graph for this function:

◆ minBottomLayer()

scalar minBottomLayer ( ) const
inline

Definition at line 352 of file engineValve.H.

Referenced by engineValve().

Here is the caller graph for this function:

◆ maxBottomLayer()

scalar maxBottomLayer ( ) const
inline

Definition at line 357 of file engineValve.H.

Referenced by engineValve().

Here is the caller graph for this function:

◆ lift()

Foam::scalar lift ( const scalar theta) const

Return valve lift given crank angle in degrees.

Definition at line 172 of file engineValve.C.

References Foam::interpolateXY().

Referenced by curLift(), curVelocity(), and isOpen().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ isOpen()

bool isOpen ( ) const

Is the valve open?

Definition at line 183 of file engineValve.C.

References lift().

Here is the call graph for this function:

◆ curLift()

Foam::scalar curLift ( ) const

Return current lift.

Definition at line 189 of file engineValve.C.

References lift(), and Foam::max().

Referenced by curVelocity().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ curVelocity()

Foam::scalar curVelocity ( ) const

Return valve velocity for current time-step.

Definition at line 199 of file engineValve.C.

References curLift(), lift(), and Foam::max().

Here is the call graph for this function:

◆ movingPatchIDs()

Foam::labelList movingPatchIDs ( ) const

Return list of active patch labels for the valve head.

(stem is excluded)

Definition at line 213 of file engineValve.C.

References List< T >::setSize().

Here is the call graph for this function:

◆ writeDict()

void writeDict ( Ostream & os) const

Write dictionary.

Definition at line 236 of file engineValve.C.

References token::BEGIN_LIST, token::END_LIST, name, Foam::nl, and os().

Here is the call graph for this function:
