ensightCells Class Reference

Sorting/classification of cells (3D) into corresponding ensight element types. More...

#include <ensightCells.H>

Inheritance diagram for ensightCells:
Inheritance graph
[legend]
Collaboration diagram for ensightCells:
Collaboration graph
[legend]

Public Types

enum  elemType {
  TETRA4 = 0 , PYRAMID5 , PENTA6 , HEXA8 ,
  NFACED
}
 Supported ensight 'Cell' element types. More...

Public Member Functions

 TypeName ("ensightCells")
 Declare type-name, virtual type (with debug switch).
 ensightCells ()
 Default construct, with part index 0.
 ensightCells (const string &description)
 Default construct, with description/partName.
virtual ~ensightCells ()=default
 Destructor.
bool manifold () const noexcept
 Manifold mesh cells detected? Globally consistent quantity.
label size (const elemType etype) const
 Processor-local size of the specified element type.
labelRange range (const elemType etype) const
 Processor-local offset/size of element type.
label totalSize () const noexcept
 The global size of all element types.
label total () const noexcept
 Same as totalSize().
label total (const elemType etype) const
 The global size of the specified element type.
const FixedList< label, nTypes > & totals () const
 The global sizes for each element type.
FixedList< label, nTypes > sizes () const
 Processor-local sizes per element type.
const labelList & cellIds () const
 Processor-local cell ids of all elements.
const labelUList cellIds (const elemType etype) const
 Processor-local cell ids of the specified element type.
Map< label > meshPointMap (const polyMesh &mesh) const
 Mesh point map.
void classify (const polyMesh &mesh)
 Classify cell types and set the element lists.
void classify (const polyMesh &mesh, const labelUList &cellIds)
 Classify cell types and set element lists, using a subgroup of cells (eg, from a cellZone etc).
void classify (const polyMesh &mesh, const bitSet &selection)
 Classify cell types and set element lists, using a subgroup of cells.
void clearOut ()
 Clear any demand-driven data.
void clear ()
 Set addressable sizes to zero, free up addressing memory.
void reduce ()
 Sum element counts across all processes.
void sort ()
 Sort element lists numerically.
void incrCellIds (const label off)
 Increase cell ids by specified offset value.
void decrCellIds (const label off)
 Decrease face ids by specified offset value.
InfoProxy< ensightCells > info () const noexcept
 Return info proxy, used to print information to a stream.
label uniqueMeshPoints (const polyMesh &mesh, labelList &uniqueMeshPointLabels, bool parallel) const
 Globally unique mesh points. Required when writing point fields.

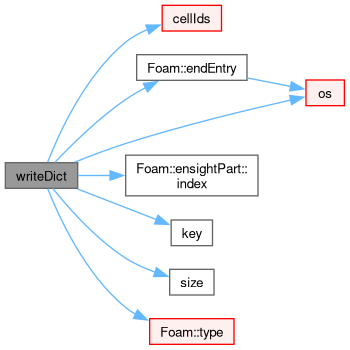

virtual void writeDict (Ostream &os, const bool full=false) const
 Write information about the object as a dictionary, optionally write all element addresses.

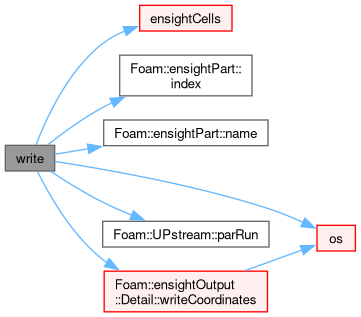

virtual void write (ensightGeoFile &os, const polyMesh &mesh, bool parallel) const
 Write geometry, using a mesh reference (serial only) No beginGeometry() marker.
label size () const noexcept
 Processor-local size of all elements.
Public Member Functions inherited from ensightPart
 TypeNameNoDebug ("ensightPart")
 Declare type-name, virtual type (without debug switch).
 ensightPart ()
 Default construct. Index=0, identifier = -1.
 ensightPart (const string &description)
 Default construct, with description/partName.
virtual ~ensightPart ()=default
 Destructor.
label index () const noexcept
 The index in a list (0-based).
label & index () noexcept
 The index in a list (0-based).
label identifier () const noexcept
 OpenFOAM identifier (patch, zone, etc), -1 when not in use.
label & identifier () noexcept
 OpenFOAM identifier (patch, zone, etc), -1 when not in use.
bool empty () const noexcept
 Processor-local test for any elements.
label size () const noexcept
 Processor-local size of all elements.
const string & name () const noexcept
 The part name or description.
void rename (const string &value)
 Change the part name or description.
void rename (string &&value)
 Change the part name or description.
label operator[] (const label i) const
 Processor-local element id from linear-list of addresses.

Static Public Member Functions

static const char * key (const elemType etype) noexcept
 The ensight element name for the specified 'Cell' type.

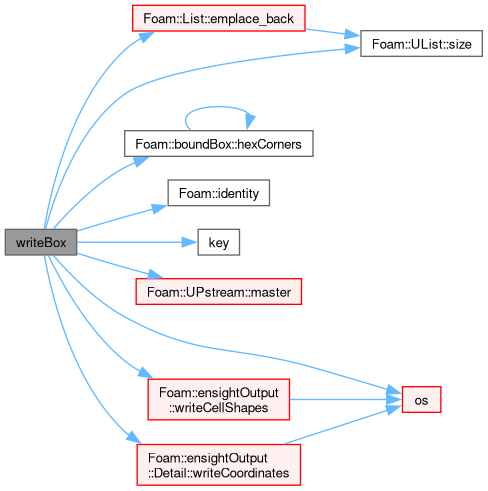

static void writeBox (ensightGeoFile &os, const boundBox &bb, const label partIndex=0, const word &partName="geometry-box")
 Write bounding box geometry. All parameters are only relevant on master No beginGeometry() marker.

Static Public Attributes

static constexpr int nTypes = 5
 Number of 'Cell' element types (5).
static const char * elemNames [nTypes]
 The ensight 'Cell' element type names.

Additional Inherited Members

Protected Member Functions inherited from ensightPart
const labelList & addressing () const noexcept
 Element addressing.
labelList & addressing () noexcept
 Element addressing.
void clear ()
 Clear element addressing.
void incrAddressing (const label off)
 Increase addressing by specified offset value.
void decrAddressing (const label off)
 Decrease addressing by specified offset value.

Detailed Description

Sorting/classification of cells (3D) into corresponding ensight element types.

Definition at line 50 of file ensightCells.H.

Member Enumeration Documentation

◆ elemType

enum elemType

Supported ensight 'Cell' element types.

Must be zero-based since they are also for internal bookkeeping.

Enumerator
TETRA4

"tetra4"

PYRAMID5

"pyramid5"

PENTA6

"penta6"

HEXA8

"hexa8"

NFACED

"nfaced"

Definition at line 63 of file ensightCells.H.

Constructor & Destructor Documentation

◆ ensightCells() [1/2]

ensightCells ( )

Default construct, with part index 0.

Definition at line 72 of file ensightCells.C.

References ensightPart::ensightPart(), and Foam::Zero.

Referenced by ensightCells(), and write().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ ensightCells() [2/2]

ensightCells ( const string & description)
explicit

Default construct, with description/partName.

Definition at line 81 of file ensightCells.C.

References ensightCells(), and ensightPart::rename().

Here is the call graph for this function:

◆ ~ensightCells()

virtual ~ensightCells ( )
virtualdefault

Destructor.

References ensightPart::ensightPart(), Foam::noexcept, range(), size(), and totalSize().

Here is the call graph for this function:

Member Function Documentation

◆ key()

const char * key ( const elemType etype)
inlinestaticnoexcept

The ensight element name for the specified 'Cell' type.

Definition at line 42 of file ensightCellsI.H.

References elemNames.

Referenced by writeBox(), and writeDict().

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "ensightCells" )

Declare type-name, virtual type (with debug switch).

◆ manifold()

bool manifold ( ) const
inlinenoexcept

Manifold mesh cells detected? Globally consistent quantity.

Definition at line 36 of file ensightCellsI.H.

References Foam::noexcept.

◆ size() [1/2]

Foam::label size ( const elemType etype) const
inline

Processor-local size of the specified element type.

Definition at line 60 of file ensightCellsI.H.

Referenced by reduce(), sizes(), writeDict(), and ~ensightCells().

Here is the caller graph for this function:

◆ range()

Foam::labelRange range ( const elemType etype) const
inline

Processor-local offset/size of element type.

Definition at line 66 of file ensightCellsI.H.

Referenced by ~ensightCells().

Here is the caller graph for this function:

◆ totalSize()

Foam::label totalSize ( ) const
noexcept

The global size of all element types.

This value is only meaningful after a reduce operation.

Definition at line 104 of file ensightCells.C.

References n, and Foam::noexcept.

Referenced by total(), and ~ensightCells().

Here is the caller graph for this function:

◆ total() [1/2]

label total ( ) const
inlinenoexcept

Same as totalSize().

Definition at line 232 of file ensightCells.H.

References Foam::noexcept, total(), and totalSize().

Referenced by total().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ total() [2/2]

Foam::label total ( const elemType etype) const
inline

The global size of the specified element type.

This value is only meaningful after a reduce operation.

Definition at line 54 of file ensightCellsI.H.

◆ totals()

const Foam::FixedList< Foam::label, 5 > & totals ( ) const
inline

The global sizes for each element type.

This value is only meaningful after a reduce operation.

Definition at line 48 of file ensightCellsI.H.

◆ sizes()

Foam::FixedList< Foam::label, 5 > sizes ( ) const

Processor-local sizes per element type.

Definition at line 91 of file ensightCells.C.

References nTypes, and size().

Here is the call graph for this function:

◆ cellIds() [1/2]

const Foam::labelList & cellIds ( ) const
inline

Processor-local cell ids of all elements.

Definition at line 72 of file ensightCellsI.H.

References ensightPart::addressing().

Referenced by classify(), meshPointMap(), and writeDict().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ cellIds() [2/2]

const Foam::labelUList cellIds ( const elemType etype) const
inline

Processor-local cell ids of the specified element type.

Definition at line 79 of file ensightCellsI.H.

References ensightPart::addressing(), and range.

Here is the call graph for this function:

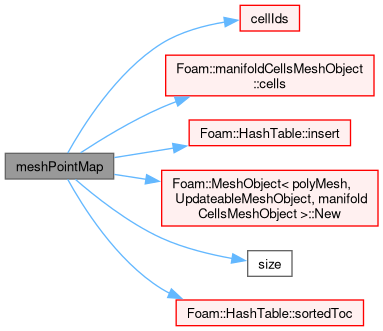

◆ meshPointMap()

Foam::Map< Foam::label > meshPointMap ( const polyMesh & mesh) const

Mesh point map.

Map mesh point index to local (compact) point index

const cellList& meshCells = mesh.cells();

Definition at line 31 of file ensightCellsAddr.C.

References cellIds(), manifoldCellsMeshObject::cells(), HashTable< T, Key, Hash >::insert(), mesh, MeshObject< polyMesh, UpdateableMeshObject, manifoldCellsMeshObject >::New(), nPoints, size(), and HashTable< T, Key, Hash >::sortedToc().

Here is the call graph for this function:

◆ classify() [1/3]

void classify ( const polyMesh & mesh)

Classify cell types and set the element lists.

Definition at line 235 of file ensightCells.C.

References mesh.

Referenced by ensightMesh::correct().

Here is the caller graph for this function:

◆ classify() [2/3]

void classify ( const polyMesh & mesh,
const labelUList & cellIds )

Classify cell types and set element lists, using a subgroup of cells (eg, from a cellZone etc).

Definition at line 242 of file ensightCells.C.

References cellIds(), and mesh.

Here is the call graph for this function:

◆ classify() [3/3]

void classify ( const polyMesh & mesh,
const bitSet & selection )

Classify cell types and set element lists, using a subgroup of cells.

Definition at line 252 of file ensightCells.C.

References mesh.

◆ clearOut()

void clearOut ( )

Clear any demand-driven data.

Definition at line 127 of file ensightCells.C.

Referenced by clear().

Here is the caller graph for this function:

◆ clear()

void clear ( )

Set addressable sizes to zero, free up addressing memory.

Definition at line 115 of file ensightCells.C.

References ensightPart::clear(), clearOut(), and Foam::Zero.

Referenced by ensightMesh::correct().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ reduce()

void reduce ( )

Sum element counts across all processes.

Definition at line 131 of file ensightCells.C.

References nTypes, Foam::reduce(), and size().

Referenced by ensightMesh::correct().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ sort()

void sort ( )

Sort element lists numerically.

Definition at line 141 of file ensightCells.C.

References ensightPart::addressing(), IntRange< IntType >::empty(), nTypes, range, and Foam::sort().

Here is the call graph for this function:

◆ incrCellIds()

void incrCellIds ( const label off)
inline

Increase cell ids by specified offset value.

Eg, to change zone local Ids to global Ids

Definition at line 85 of file ensightCellsI.H.

References ensightPart::incrAddressing().

Here is the call graph for this function:

◆ decrCellIds()

void decrCellIds ( const label off)
inline

Decrease face ids by specified offset value.

Eg, to change global Ids to zone local Ids

Definition at line 91 of file ensightCellsI.H.

References ensightPart::decrAddressing().

Here is the call graph for this function:

◆ info()

InfoProxy< ensightCells > info ( ) const
inlinenoexcept

Return info proxy, used to print information to a stream.

Definition at line 339 of file ensightCells.H.

References Foam::noexcept.

Referenced by ensightMesh::correct().

Here is the caller graph for this function:

◆ uniqueMeshPoints()

Foam::label uniqueMeshPoints ( const polyMesh & mesh,
labelList & uniqueMeshPointLabels,
bool parallel ) const

Globally unique mesh points. Required when writing point fields.

Definition at line 220 of file ensightCellsAddr.C.

References mesh, and List< label >::null().

Here is the call graph for this function:

◆ writeDict()

void writeDict ( Ostream & os,
const bool full = false ) const
virtual

Write information about the object as a dictionary, optionally write all element addresses.

Reimplemented from ensightPart.

Definition at line 262 of file ensightCells.C.

References cellIds(), Foam::endEntry(), ensightPart::index(), key(), name, nTypes, os(), size(), and Foam::type().

Here is the call graph for this function:

◆ write()

void write ( ensightGeoFile & os,
const polyMesh & mesh,
bool parallel ) const
virtual

Write geometry, using a mesh reference (serial only) No beginGeometry() marker.

< Collective write?

Definition at line 261 of file ensightCellsIO.C.

References ensightCells(), ensightPart::index(), mesh, ensightPart::name(), NFACED, nPoints, nTypes, os(), UPstream::parRun(), and Foam::ensightOutput::Detail::writeCoordinates().

Here is the call graph for this function:

◆ writeBox()

void writeBox ( ensightGeoFile & os,
const boundBox & bb,
const label partIndex = 0,
const word & partName = "geometry-box" )
static

Write bounding box geometry. All parameters are only relevant on master No beginGeometry() marker.

Definition at line 328 of file ensightCellsIO.C.

References List< T >::emplace_back(), cellModel::HEX, HEXA8, boundBox::hexCorners(), Foam::identity(), key(), UPstream::master(), os(), points, UList< T >::size(), Foam::ensightOutput::writeCellShapes(), and Foam::ensightOutput::Detail::writeCoordinates().

Referenced by ensightMesh::write().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ size() [2/2]

label size ( ) const
inlinenoexcept

Processor-local size of all elements.

Definition at line 193 of file ensightPart.H.

Referenced by meshPointMap().

Here is the caller graph for this function:

Member Data Documentation

◆ nTypes

int nTypes = 5
staticconstexpr

Number of 'Cell' element types (5).

Definition at line 75 of file ensightCells.H.

Referenced by Foam::operator<<(), reduce(), sizes(), sort(), write(), and writeDict().

◆ elemNames

const char * elemNames
static
Initial value:
=
{
"tetra4", "pyramid5", "penta6", "hexa8", "nfaced"
}

The ensight 'Cell' element type names.

Definition at line 35 of file ensightCells.H.

Referenced by key(), and Foam::operator<<().

The documentation for this class was generated from the following files:
