A variant of ensightFaces that holds references to contiguous points/faces with its own encapsulated write methods. The surface is assumed to have been merged prior, thus the output is serial-only. More...

#include <ensightOutputSurface.H>

Inheritance diagram for ensightOutputSurface:

[legend]

Collaboration diagram for ensightOutputSurface:

[legend]

Public Member Functions
	ensightOutputSurface (const ensightOutputSurface &)=delete
	No copy construct.
void	operator= (const ensightOutputSurface &)=delete
	No copy assignment.
	ensightOutputSurface (const pointField &points, const faceList &faces, const string &description="surface")
	Construct from points and faces. Part receives the specified name (default: "surface").
virtual	~ensightOutputSurface ()=default
	Destructor.

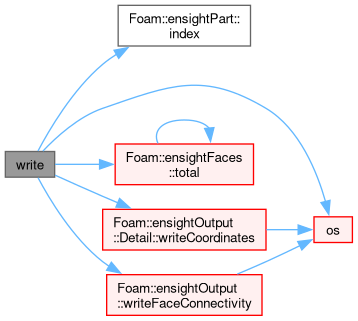

void	write (ensightGeoFile &os) const
	Write processor-local geometry (serial-only). No beginGeometry() marker.
template<class Type>
void	writeData (ensightFile &os, const Field< Type > &fld, const bool isPointData=false) const
	Write a field of face or point values (serial-only).
template<class Type>
void	writeFaceData (ensightFile &os, const Field< Type > &fld) const
	Write a field of face values (serial-only).
template<class Type>
void	writePointData (ensightFile &os, const Field< Type > &fld) const
	Write a field of point values (serial-only).
virtual void	write (ensightGeoFile &, const polyMesh &, bool) const
	Cannot write geometry with a mesh reference. No beginGeometry() marker.
Public Member Functions inherited from ensightFaces
	TypeName ("ensightFaces")
	Declare type-name, virtual type (with debug switch).
	ensightFaces ()
	Default construct, with part index 0.
	ensightFaces (const string &description)
	Default construct, with description/partName.
virtual	~ensightFaces ()=default
	Destructor.
label	size (const elemType etype) const
	Processor-local size of the specified element type.
labelRange	range (const elemType etype) const
	Processor-local offset/size of element type.
label	totalSize () const noexcept
	The global size of all element types.
label	total () const noexcept
	Same as totalSize.
label	total (const elemType etype) const
	The global size of the specified element type.
const FixedList< label, nTypes > &	totals () const
	The global sizes for each element type.
FixedList< label, nTypes >	sizes () const
	Processor-local sizes per element type.
const labelList &	faceIds () const noexcept
	Processor-local face ids of all elements.
const labelUList	faceIds (const elemType etype) const
	Processor-local face ids of the specified element type.
const boolList &	flipMap () const
	Processor-local flip-map of all elements.
bool	usesFlipMap () const
	True for non-zero flip-map that spans the addresses.
const labelList &	faceOrder () const noexcept
	Processor-local face order (where applicable).
const labelUList	faceOrder (const elemType etype) const
	Processor-local face order of specified element type (where applicable).
void	classify (const UList< face > &faces)
	Classify the face types and set the element lists.
void	classify (const UList< face > &faces, const labelRange &range)
	Classify face types (for a sublist) and set element lists.
void	classify (const UList< face > &faces, const labelUList &addr, const boolList &flipMap=boolList(), const bitSet &exclude=bitSet())
	Classify the face types and set the element lists.
void	clearOut ()
	Clear any demand-driven data.
void	clear ()
	Set addressable sizes to zero, free up addressing memory.
void	reduce ()
	Sum element counts across all processes.
void	sort ()
	Inplace sort element lists numerically.
void	incrFaceIds (const label off)
	Increase face ids by specified offset value.
void	decrFaceIds (const label off)
	Decrease face ids by specified offset value.
InfoProxy< ensightFaces >	info () const noexcept
	Return info proxy, used to print information to a stream.
label	uniqueMeshPoints (const polyMesh &mesh, labelList &uniqueMeshPointLabels, bool parallel) const
	Globally unique mesh points. Required when writing point fields.
virtual void	writeDict (Ostream &os, const bool full=false) const
	Write information about the object as a dictionary, optionally write all element addresses.
label	size () const noexcept
	Processor-local size of all elements.
Public Member Functions inherited from ensightPart
	TypeNameNoDebug ("ensightPart")
	Declare type-name, virtual type (without debug switch).
	ensightPart ()
	Default construct. Index=0, identifier = -1.
	ensightPart (const string &description)
	Default construct, with description/partName.
virtual	~ensightPart ()=default
	Destructor.
label	index () const noexcept
	The index in a list (0-based).
label &	index () noexcept
	The index in a list (0-based).
label	identifier () const noexcept
	OpenFOAM identifier (patch, zone, etc), -1 when not in use.
label &	identifier () noexcept
	OpenFOAM identifier (patch, zone, etc), -1 when not in use.
bool	empty () const noexcept
	Processor-local test for any elements.
label	size () const noexcept
	Processor-local size of all elements.
const string &	name () const noexcept
	The part name or description.
void	rename (const string &value)
	Change the part name or description.
void	rename (string &&value)
	Change the part name or description.
label	operator[] (const label i) const
	Processor-local element id from linear-list of addresses.

Additional Inherited Members
Public Types inherited from ensightFaces
enum	elemType { TRIA3 = 0 , QUAD4 , NSIDED }
	Supported ensight 'Face' element types. More...
Static Public Member Functions inherited from ensightFaces
static const char *	key (const elemType etype) noexcept
	The ensight element name for the specified 'Face' type.
Static Public Attributes inherited from ensightFaces
static constexpr int	nTypes = 3
	Number of 'Face' element types (3).
static const char *	elemNames [nTypes]
	The ensight 'Face' element type names.
Protected Member Functions inherited from ensightPart
const labelList &	addressing () const noexcept
	Element addressing.
labelList &	addressing () noexcept
	Element addressing.
void	clear ()
	Clear element addressing.
void	incrAddressing (const label off)
	Increase addressing by specified offset value.
void	decrAddressing (const label off)
	Decrease addressing by specified offset value.

Detailed Description

A variant of ensightFaces that holds references to contiguous points/faces with its own encapsulated write methods. The surface is assumed to have been merged prior, thus the output is serial-only.
