Ensight format surface reader. More...

#include <ensightSurfaceReader.H>

Inheritance diagram for ensightSurfaceReader:

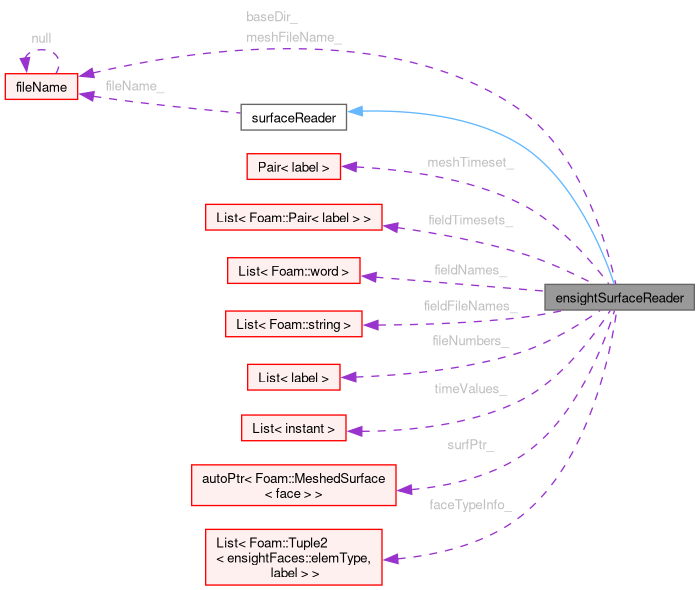

Collaboration diagram for ensightSurfaceReader:

[legend]

Public Member Functions
	ensightSurfaceReader (const ensightSurfaceReader &)=delete
	No copy construct.
void	operator= (const ensightSurfaceReader &)=delete
	No copy assignment.
	TypeName ("ensight")
	Runtime type information.
	ensightSurfaceReader (const fileName &fName, const dictionary &options=dictionary())
	Construct from fileName, with reader options.
virtual	~ensightSurfaceReader ()=default
	Destructor.
virtual const meshedSurface &	geometry (const label timeIndex)
	Return a reference to the surface geometry.
virtual instantList	times () const
	Return a list of the available times.
virtual wordList	fieldNames (const label timeIndex) const
	Return a list of the available fields at a given time.
virtual tmp< Field< scalar > >	field (const label timeIndex, const label fieldIndex, const scalar &refValue=pTraits< scalar >::zero) const
	Return a scalar field at a given time.
virtual tmp< Field< vector > >	field (const label timeIndex, const label fieldIndex, const vector &refValue=pTraits< vector >::zero) const
	Return a vector field at a given time.
virtual tmp< Field< sphericalTensor > >	field (const label timeIndex, const label fieldIndex, const sphericalTensor &refValue=pTraits< sphericalTensor >::zero) const
	Return a sphericalTensor field at a given time.
virtual tmp< Field< symmTensor > >	field (const label timeIndex, const label fieldIndex, const symmTensor &refValue=pTraits< symmTensor >::zero) const
	Return a symmTensor field at a given time.
virtual tmp< Field< tensor > >	field (const label timeIndex, const label fieldIndex, const tensor &refValue=pTraits< tensor >::zero) const
	Return a tensor field at a given time.
Public Member Functions inherited from surfaceReader
	TypeName ("surfaceReader")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, surfaceReader, fileName,(const fileName &fName, const dictionary &options),(fName, options))
	surfaceReader (const fileName &fName)
	Construct from fileName.
	surfaceReader (const fileName &fName, const dictionary &options)
	Construct from fileName and specified options.
virtual	~surfaceReader ()=default
	Destructor.

Protected Types
enum	idTypes : unsigned char { NONE = 0 , IGNORE = 1 , GIVEN = 2 }
	Handling of node/element id types (off, assign, ignore, given). More...
typedef Tuple2< ensightFaces::elemType, label >	faceInfoTuple
	Tuple of face type (tria3, quad4, nsided) and count.

Protected Member Functions
Pair< idTypes >	readGeometryHeader (ensightReadFile &is) const
	Read (and discard) geometry file header.
void	readCase (ISstream &is)
	Read the case file.
meshedSurface	readGeometry (const fileName &geometryFile, const label timeIndex=0)
	Read and return surface geometry. Updates faceTypeInfo_.
template<class Type>
tmp< Field< Type > >	readField (const fileName &dataFile, const word &fieldName, const label timeIndex=0) const
	Helper function to return a field.
template<class Type>
tmp< Field< Type > >	readField (const label timeIndex, const label fieldIndex) const
	Helper function to return a field.

Static Protected Member Functions
static bool	readLine (ISstream &is, std::string &line)
	Helper function to read an ascii line from file, skipping blank lines and comments.
static void	checkSection (const word &expected, const string &buffer, const ISstream &is)
	Check a section header.
static void	debugSection (const word &expected, ISstream &is)
	Read and check a section header.
template<class Type>
static void	readFrom (const std::string &buffer, Type &value)
	Helper function to return Type from string.

Protected Attributes
bool	masterOnly_
	Read on master and broadcast (in parallel).
IOstreamOption::streamFormat	readFormat_
	Format flag.
fileName	baseDir_
	Base directory.
labelPair	meshTimeset_
	The timeset/fileset (if any) associated with the mesh.
fileName	meshFileName_
	Name of mesh file, including any subdirectory.
List< labelPair >	fieldTimesets_
	The timeset/fileset (if any) associated with fields.
List< word >	fieldNames_
	Field names.
List< string >	fieldFileNames_
	Field file names.
label	timeStartIndex_
	Start time index.
label	timeIncrement_
	Time increment.
labelList	fileNumbers_
	Numbers for files.
instantList	timeValues_
	Times.
autoPtr< meshedSurface >	surfPtr_
	Pointer to the surface.
List< faceInfoTuple >	faceTypeInfo_
	List of face-type/count tuples.
Protected Attributes inherited from surfaceReader
fileName	fileName_
	File name.

Additional Inherited Members
Static Public Member Functions inherited from surfaceReader
static dictionary	formatOptions (const dictionary &dict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static autoPtr< surfaceReader >	New (const word &readType, const fileName &fName, const dictionary &options=dictionary())
	Return a reference to the selected surfaceReader.

Detailed Description

Ensight format surface reader.

readOptions
{
    ensight
    {
        debug       false;
        masterOnly  false;
    }
}

Format options for ensight:

Property	Description	Required	Default
`debug`	Add debug flag	no	false
`masterOnly`	Read files on master and broadcast values	no	true

Source files

Definition at line 85 of file ensightSurfaceReader.H.

Member Typedef Documentation

◆ faceInfoTuple

typedef Tuple2<ensightFaces::elemType, label> faceInfoTuple

protected

Tuple of face type (tria3, quad4, nsided) and count.

Definition at line 107 of file ensightSurfaceReader.H.

Member Enumeration Documentation

◆ idTypes

enum idTypes : unsigned char

protected

Handling of node/element id types (off, assign, ignore, given).

Enumerator
NONE	"off", "assign"
IGNORE	Read but "ignore".
GIVEN	Use "given" values (not supported).

Definition at line 96 of file ensightSurfaceReader.H.

Constructor & Destructor Documentation

◆ ensightSurfaceReader() [1/2]

ensightSurfaceReader ( const ensightSurfaceReader & )

delete

No copy construct.

References ensightSurfaceReader().

Referenced by ensightSurfaceReader(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

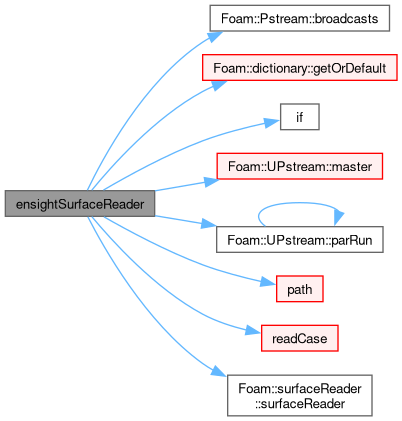

◆ ensightSurfaceReader() [2/2]

ensightSurfaceReader	(	const fileName &	fName,
		const dictionary &	options = dictionary() )

explicit

Construct from fileName, with reader options.

Definition at line 599 of file ensightSurfaceReader.C.

References baseDir_, Pstream::broadcasts(), fieldFileNames_, fieldNames_, fieldTimesets_, fileNumbers_, dictionary::getOrDefault(), if(), UPstream::master(), masterOnly_, meshFileName_, meshTimeset_, UPstream::parRun(), path(), readCase(), readFormat_, surfaceReader::surfaceReader(), timeIncrement_, timeStartIndex_, timeValues_, and UPstream::worldComm.

Here is the call graph for this function:

◆ ~ensightSurfaceReader()

virtual ~ensightSurfaceReader ( )

virtualdefault

Destructor.

References timeIndex.

Member Function Documentation

◆ readLine()

bool readLine	(	ISstream &	is,
		std::string &	line )

staticprotected

Helper function to read an ascii line from file, skipping blank lines and comments.

Returns: True if reading was successful

Definition at line 83 of file ensightSurfaceReader.C.

References ISstream::getLine(), IOstream::good(), Foam::stringOps::inplaceTrimRight(), and Foam::pos().

Referenced by debugSection(), and readCase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkSection()

void checkSection	(	const word &	expected,
		const string &	buffer,
		const ISstream &	is )

staticprotected

Check a section header.

Definition at line 103 of file ensightSurfaceReader.C.

References DebugInfo, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::nl, and string::starts_with().

Referenced by debugSection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ debugSection()

void debugSection	(	const word &	expected,
		ISstream &	is )

staticprotected

Read and check a section header.

Definition at line 127 of file ensightSurfaceReader.C.

References checkSection(), and readLine().

Referenced by readCase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readFrom()

template<class Type>

void readFrom	(	const std::string &	buffer,
		Type &	value )

staticprotected

Helper function to return Type from string.

References timeIndex.

Referenced by readCase().

Here is the caller graph for this function:

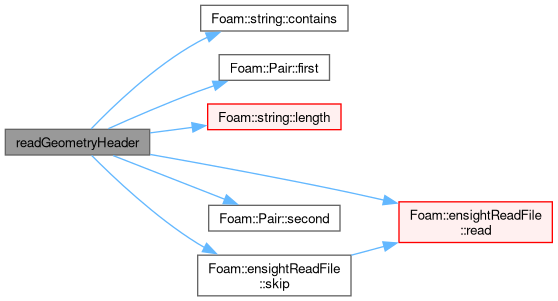

◆ readGeometryHeader()

Foam::Pair< Foam::ensightSurfaceReader::idTypes > readGeometryHeader ( ensightReadFile & is ) const

protected

Read (and discard) geometry file header.

Returns: information about node/element id handling

Definition at line 143 of file ensightSurfaceReader.C.

References string::contains(), DebugInfo, Pair< T >::first(), GIVEN, IGNORE, string::length(), Foam::nl, NONE, ensightReadFile::read(), Pair< T >::second(), and ensightReadFile::skip().

Referenced by readGeometry().

Here is the call graph for this function:

Here is the caller graph for this function:

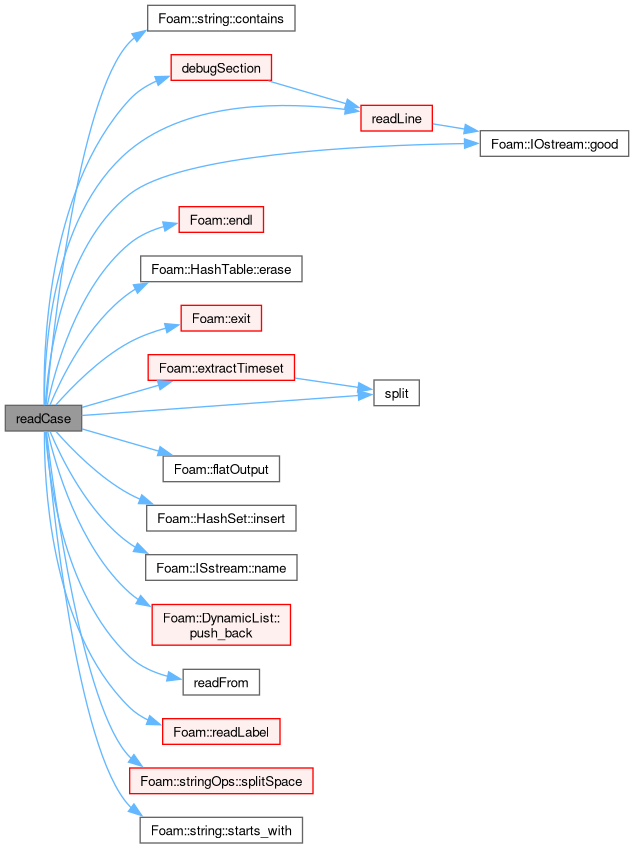

◆ readCase()

void readCase ( ISstream & is )

protected

Read the case file.

Definition at line 220 of file ensightSurfaceReader.C.

References string::contains(), DebugInfo, DebugInFunction, debugSection(), Foam::endl(), HashTable< T, Key, Hash >::erase(), Foam::exit(), Foam::extractTimeset(), Foam::FatalError, FatalErrorInFunction, Foam::FatalIOError, FatalIOErrorInFunction, fieldFileNames_, fieldNames_, fieldTimesets_, fileNumbers_, Foam::flatOutput(), IOstream::good(), HashSet< Key, Hash >::insert(), meshFileName_, meshTimeset_, ISstream::name(), Foam::nl, DynamicList< T, SizeMin >::push_back(), readFrom(), Foam::readLabel(), readLine(), split(), Foam::stringOps::splitSpace(), string::starts_with(), timeIncrement_, timeStartIndex_, timeValues_, and WarningInFunction.

Referenced by ensightSurfaceReader().

Here is the call graph for this function:

Here is the caller graph for this function:

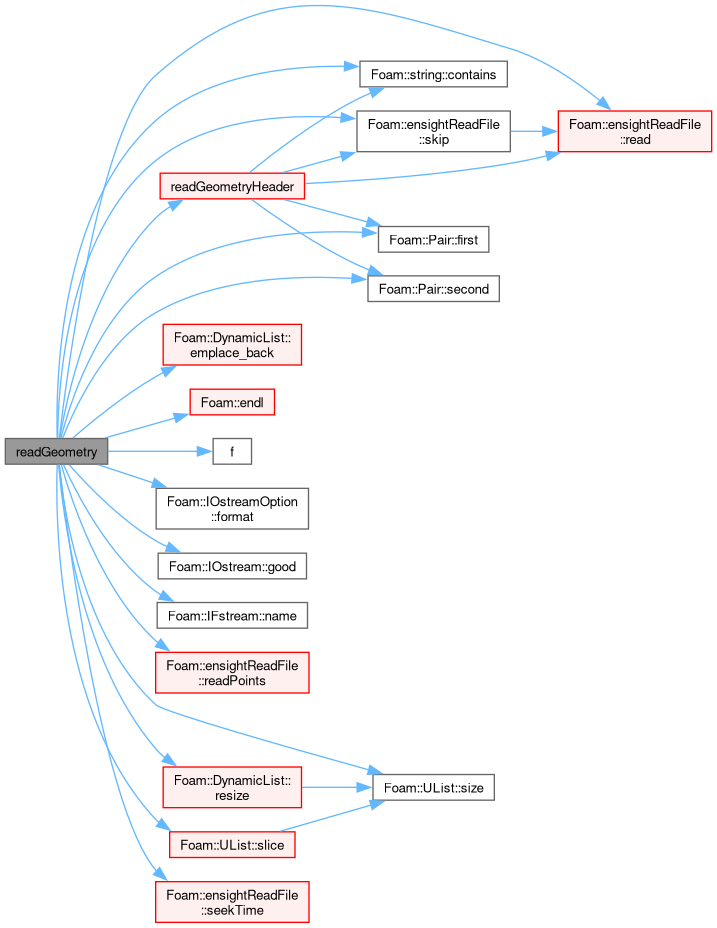

◆ readGeometry()

Foam::meshedSurface readGeometry	(	const fileName &	geometryFile,
		const label	timeIndex = 0 )

protected

Read and return surface geometry. Updates faceTypeInfo_.

Parameters

timeIndex Optional index for transient single-file format

Definition at line 649 of file ensightSurfaceReader.C.

References string::contains(), DebugInfo, DebugInFunction, ensightFaces::elemNames, DynamicList< T, SizeMin >::emplace_back(), Foam::endl(), f(), faceTypeInfo_, Pair< T >::first(), IOstreamOption::format(), IOstreamOption::formatNames, GIVEN, IOstream::good(), IGNORE, IFstream::name(), Foam::nl, nPoints, ensightFaces::NSIDED, points, ensightFaces::QUAD4, ensightReadFile::read(), readFormat_, readGeometryHeader(), ensightReadFile::readPoints(), DynamicList< T, SizeMin >::resize(), Pair< T >::second(), ensightReadFile::seekTime(), UList< T >::size(), ensightReadFile::skip(), UList< T >::slice(), timeIndex, ensightFaces::TRIA3, and WarningInFunction.

Referenced by geometry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readField() [1/2]

template<class Type>

tmp< Field< Type > > readField	(	const fileName &	dataFile,
		const word &	fieldName,
		const label	timeIndex = 0 ) const

protected

Helper function to return a field.

References timeIndex.

Referenced by field(), field(), field(), field(), and field().

Here is the caller graph for this function:

◆ readField() [2/2]

template<class Type>

tmp< Field< Type > > readField	(	const label	timeIndex,
		const label	fieldIndex ) const

protected

Helper function to return a field.

References timeIndex.

◆ operator=()

void operator= ( const ensightSurfaceReader & )

delete

No copy assignment.

References ensightSurfaceReader().

Here is the call graph for this function:

◆ TypeName()

TypeName ( "ensight" )

Runtime type information.

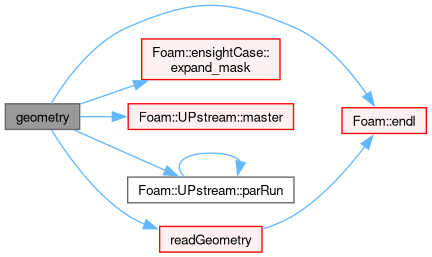

◆ geometry()

const Foam::meshedSurface & geometry ( const label timeIndex )

virtual

Return a reference to the surface geometry.

Implements surfaceReader.

Definition at line 911 of file ensightSurfaceReader.C.

References baseDir_, UPstream::broadcast, DebugInFunction, Foam::endl(), ensightCase::expand_mask(), UPstream::master(), masterOnly_, meshFileName_, UPstream::parRun(), readGeometry(), surfPtr_, timeIndex, and UPstream::worldComm.

Here is the call graph for this function:

◆ times()

Foam::instantList times ( ) const

virtual

Return a list of the available times.

Implements surfaceReader.

Definition at line 945 of file ensightSurfaceReader.C.

References timeValues_.

◆ fieldNames()

Foam::wordList fieldNames ( const label timeIndex ) const

virtual

Return a list of the available fields at a given time.

Implements surfaceReader.

Definition at line 951 of file ensightSurfaceReader.C.

References fieldNames_, and timeIndex.

◆ field() [1/5]

Foam::tmp< Foam::Field< Foam::scalar > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const scalar &	refValue = pTraits<scalar>::zero ) const

virtual

Return a scalar field at a given time.

Implements surfaceReader.

Definition at line 960 of file ensightSurfaceReader.C.

References readField(), and timeIndex.

Here is the call graph for this function:

◆ field() [2/5]

Foam::tmp< Foam::Field< Foam::vector > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const vector &	refValue = pTraits<vector>::zero ) const

virtual

Return a vector field at a given time.

Implements surfaceReader.

Definition at line 971 of file ensightSurfaceReader.C.

References readField(), and timeIndex.

Here is the call graph for this function:

◆ field() [3/5]

Foam::tmp< Foam::Field< Foam::sphericalTensor > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const sphericalTensor &	refValue = pTraits<sphericalTensor>::zero ) const

virtual

Return a sphericalTensor field at a given time.

Implements surfaceReader.

Definition at line 983 of file ensightSurfaceReader.C.

References readField(), and timeIndex.

Here is the call graph for this function:

◆ field() [4/5]

Foam::tmp< Foam::Field< Foam::symmTensor > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const symmTensor &	refValue = pTraits<symmTensor>::zero ) const

virtual

Return a symmTensor field at a given time.

Implements surfaceReader.

Definition at line 994 of file ensightSurfaceReader.C.

References readField(), and timeIndex.

Here is the call graph for this function:

◆ field() [5/5]

Foam::tmp< Foam::Field< Foam::tensor > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const tensor &	refValue = pTraits<tensor>::zero ) const

virtual

Return a tensor field at a given time.

Implements surfaceReader.

Definition at line 1005 of file ensightSurfaceReader.C.

References readField(), and timeIndex.

Here is the call graph for this function:

Member Data Documentation

◆ masterOnly_

bool masterOnly_

protected

Read on master and broadcast (in parallel).

Definition at line 115 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), and geometry().

◆ readFormat_

IOstreamOption::streamFormat readFormat_

protected

Format flag.

Definition at line 120 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), and readGeometry().

◆ baseDir_

fileName baseDir_

protected

Base directory.

Definition at line 125 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), and geometry().

◆ meshTimeset_

labelPair meshTimeset_

protected

The timeset/fileset (if any) associated with the mesh.

Definition at line 130 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), and readCase().

◆ meshFileName_

fileName meshFileName_

protected

Name of mesh file, including any subdirectory.

Definition at line 135 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), geometry(), and readCase().

◆ fieldTimesets_

List<labelPair> fieldTimesets_

protected

The timeset/fileset (if any) associated with fields.

Definition at line 140 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), and readCase().

◆ fieldNames_

List<word> fieldNames_

protected

Field names.

Definition at line 145 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), fieldNames(), and readCase().

◆ fieldFileNames_

List<string> fieldFileNames_

protected

Field file names.

Definition at line 150 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), and readCase().

◆ timeStartIndex_

label timeStartIndex_

protected

Start time index.

Definition at line 155 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), and readCase().

◆ timeIncrement_

label timeIncrement_

protected

Time increment.

Definition at line 160 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), and readCase().

◆ fileNumbers_

labelList fileNumbers_

protected

Numbers for files.

Definition at line 165 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), and readCase().

◆ timeValues_

instantList timeValues_

protected

Times.

Definition at line 170 of file ensightSurfaceReader.H.

Referenced by ensightSurfaceReader(), readCase(), and times().

◆ surfPtr_

autoPtr<meshedSurface> surfPtr_

protected

Pointer to the surface.

Definition at line 175 of file ensightSurfaceReader.H.

Referenced by geometry().

◆ faceTypeInfo_

List<faceInfoTuple> faceTypeInfo_

protected

List of face-type/count tuples.

Definition at line 180 of file ensightSurfaceReader.H.

Referenced by readGeometry().

The documentation for this class was generated from the following files:

src/surfMesh/readers/ensight/ensightSurfaceReader.H
src/surfMesh/readers/ensight/ensightSurfaceReader.C

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ faceInfoTuple

Member Enumeration Documentation

◆ idTypes

Constructor & Destructor Documentation

◆ ensightSurfaceReader() [1/2]

◆ ensightSurfaceReader() [2/2]

◆ ~ensightSurfaceReader()

Member Function Documentation

◆ readLine()

◆ checkSection()

◆ debugSection()

◆ readFrom()

◆ readGeometryHeader()

◆ readCase()

◆ readGeometry()

◆ readField() [1/2]

◆ readField() [2/2]

◆ operator=()

◆ TypeName()

◆ geometry()

◆ times()

◆ fieldNames()

◆ field() [1/5]

◆ field() [2/5]

◆ field() [3/5]

◆ field() [4/5]

◆ field() [5/5]

Member Data Documentation

◆ masterOnly_

◆ readFormat_

◆ baseDir_

◆ meshTimeset_

◆ meshFileName_

◆ fieldTimesets_

◆ fieldNames_

◆ fieldFileNames_

◆ timeStartIndex_

◆ timeIncrement_

◆ fileNumbers_

◆ timeValues_

◆ surfPtr_

◆ faceTypeInfo_
