extendedCentredCellToCellStencil Class Reference

#include <extendedCentredCellToCellStencil.H>

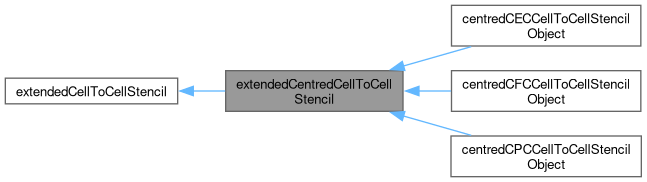

Inheritance diagram for extendedCentredCellToCellStencil:

Collaboration diagram for extendedCentredCellToCellStencil:

Public Member Functions
	extendedCentredCellToCellStencil (const cellToCellStencil &)
	Construct from uncompacted cell stencil.
const mapDistribute &	map () const
	Return reference to the parallel distribution map.
const labelListList &	stencil () const
	Return reference to the stencil.
void	compact ()
	After removing elements from the stencil adapt the schedule (map).
template<class Type>
void	collectData (const GeometricField< Type, fvPatchField, volMesh > &fld, List< List< Type > > &stencilFld) const
	Use map to get the data into stencil order.
template<class Type, class WeightType>
tmp< GeometricField< typename outerProduct< WeightType, Type >::type, fvPatchField, volMesh > >	weightedSum (const GeometricField< Type, fvPatchField, volMesh > &fld, const List< List< WeightType > > &stencilWeights) const
	Sum vol field contributions to create cell values.
Public Member Functions inherited from extendedCellToCellStencil
	extendedCellToCellStencil (const polyMesh &)
	Construct from mesh.
template<class Type, class WeightType>
Foam::tmp< Foam::GeometricField< typename Foam::outerProduct< WeightType, Type >::type, Foam::fvPatchField, Foam::volMesh > >	weightedSum (const mapDistribute &map, const labelListList &stencil, const GeometricField< Type, fvPatchField, volMesh > &fld, const List< List< WeightType > > &stencilWeights)

Additional Inherited Members
Static Public Member Functions inherited from extendedCellToCellStencil
template<class Type, class WeightType>
static tmp< GeometricField< typename outerProduct< WeightType, Type >::type, fvPatchField, volMesh > >	weightedSum (const mapDistribute &map, const labelListList &stencil, const GeometricField< Type, fvPatchField, volMesh > &fld, const List< List< WeightType > > &stencilWeights)
	Sum surface field contributions to create cell values.
Protected Attributes inherited from extendedCellToCellStencil
const polyMesh &	mesh_

Detailed Description

Source files

• extendedCentredCellToCellStencil.H
• extendedCentredCellToCellStencil.C

Definition at line 48 of file extendedCentredCellToCellStencil.H.

Constructor & Destructor Documentation

extendedCentredCellToCellStencil()

extendedCentredCellToCellStencil ( const cellToCellStencil & stencil )

explicit

Construct from uncompacted cell stencil.

Definition at line 27 of file extendedCentredCellToCellStencil.C.

References extendedCellToCellStencil::extendedCellToCellStencil(), mesh, UPstream::nProcs(), and stencil().

Here is the call graph for this function:

Member Function Documentation

map()

const mapDistribute & map ( ) const

inline

Return reference to the parallel distribution map.

Definition at line 96 of file extendedCentredCellToCellStencil.H.

Referenced by LeastSquaresGrad< Type, Stencil >::calcGrad(), collectData(), compact(), and weightedSum().

Here is the caller graph for this function:

stencil()

const labelListList & stencil ( ) const

inline

Return reference to the stencil.

Definition at line 104 of file extendedCentredCellToCellStencil.H.

Referenced by LeastSquaresGrad< Type, Stencil >::calcGrad(), collectData(), extendedCentredCellToCellStencil(), and weightedSum().

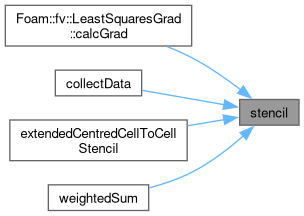

Here is the caller graph for this function:

compact()

void compact

(

)

After removing elements from the stencil adapt the schedule (map).

Definition at line 51 of file extendedCentredCellToCellStencil.C.

References forAll, map(), and UPstream::msgType().

Here is the call graph for this function:

collectData()

template<class Type>

void collectData ( const GeometricField< Type, fvPatchField, volMesh > & fld, List< List< Type > > & stencilFld ) const

inline

Use map to get the data into stencil order.

Definition at line 118 of file extendedCentredCellToCellStencil.H.

References extendedCellToFaceStencil::collectData(), fld(), map(), and stencil().

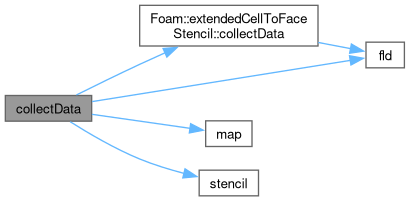

Here is the call graph for this function:

weightedSum()

template<class Type, class WeightType>

tmp< GeometricField< typename outerProduct< WeightType, Type >::type, fvPatchField, volMesh > > weightedSum ( const GeometricField< Type, fvPatchField, volMesh > & fld, const List< List< WeightType > > & stencilWeights ) const

inline

Sum vol field contributions to create cell values.

Definition at line 145 of file extendedCentredCellToCellStencil.H.

References fld(), map(), stencil(), and extendedCellToCellStencil::weightedSum().

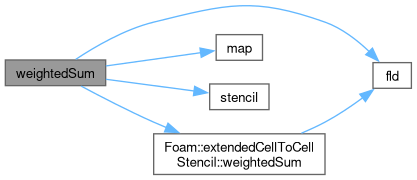

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/finiteVolume/fvMesh/extendedStencil/cellToCell/extendedCentredCellToCellStencil.H
• src/finiteVolume/fvMesh/extendedStencil/cellToCell/extendedCentredCellToCellStencil.C
