boundedBackwardFaDdtScheme Class Reference

#include <boundedBackwardFaDdtScheme.H>

Inheritance diagram for boundedBackwardFaDdtScheme:
Inheritance graph
[legend]
Collaboration diagram for boundedBackwardFaDdtScheme:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("boundedBackward")
 Runtime type information.
 boundedBackwardFaDdtScheme (const boundedBackwardFaDdtScheme &)=delete
 No copy construct.
void operator= (const boundedBackwardFaDdtScheme &)=delete
 No copy assignment.
 boundedBackwardFaDdtScheme (const faMesh &mesh)
 Construct from mesh.
 boundedBackwardFaDdtScheme (const faMesh &mesh, Istream &is)
 Construct from mesh and Istream.
const faMesh & mesh () const
 Return mesh reference.
tmp< areaScalarField > facDdt (const dimensionedScalar)
tmp< areaScalarField > facDdt0 (const dimensionedScalar)
tmp< areaScalarField > facDdt (const areaScalarField &)
tmp< areaScalarField > facDdt0 (const areaScalarField &)
tmp< areaScalarField > facDdt (const dimensionedScalar &, const areaScalarField &)
tmp< areaScalarField > facDdt0 (const dimensionedScalar &, const areaScalarField &)
tmp< areaScalarField > facDdt (const areaScalarField &, const areaScalarField &)
tmp< areaScalarField > facDdt0 (const areaScalarField &, const areaScalarField &)
tmp< faScalarMatrix > famDdt (const areaScalarField &)
tmp< faScalarMatrix > famDdt (const dimensionedScalar &, const areaScalarField &)
tmp< faScalarMatrix > famDdt (const areaScalarField &, const areaScalarField &)
Public Member Functions inherited from faDdtScheme< scalar >
virtual const word & type () const=0
 Runtime type information.
 declareRunTimeSelectionTable (tmp, faDdtScheme, Istream,(const faMesh &mesh, Istream &schemeData),(mesh, schemeData))
 faDdtScheme (const faDdtScheme &)=delete
 No copy construct.
void operator= (const faDdtScheme &)=delete
 No copy assignment.
virtual ~faDdtScheme ()
 Destructor.
const faMesh & mesh () const noexcept
 Return mesh reference.
virtual tmp< GeometricField< scalar, faPatchField, areaMesh > > facDdt (const dimensioned< scalar >)=0
virtual tmp< GeometricField< scalar, faPatchField, areaMesh > > facDdt0 (const dimensioned< scalar >)=0
virtual tmp< faMatrix< scalar > > famDdt (const GeometricField< scalar, faPatchField, areaMesh > &)=0
Public Member Functions inherited from refCount
constexpr refCount () noexcept
 Default construct, initializing count to 0.
int use_count () const noexcept
 Return the current reference count.
bool unique () const noexcept
 Return true if the reference count is zero.
void operator++ () noexcept
 Increment the reference count.
void operator++ (int) noexcept
 Increment the reference count.
void operator-- () noexcept
 Decrement the reference count.
void operator-- (int) noexcept
 Decrement the reference count.

Additional Inherited Members

Static Public Member Functions inherited from faDdtScheme< scalar >
static tmp< faDdtScheme< scalar > > New (const faMesh &mesh, Istream &schemeData)
 Return a pointer to a new faDdtScheme created on freestore.
Protected Attributes inherited from faDdtScheme< scalar >
const faMesh & mesh_
 Reference to mesh.

Detailed Description

Definition at line 53 of file boundedBackwardFaDdtScheme.H.

Constructor & Destructor Documentation

◆ boundedBackwardFaDdtScheme() [1/3]

boundedBackwardFaDdtScheme ( const boundedBackwardFaDdtScheme & )
delete

No copy construct.

References boundedBackwardFaDdtScheme().

Referenced by boundedBackwardFaDdtScheme(), and operator=().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ boundedBackwardFaDdtScheme() [2/3]

boundedBackwardFaDdtScheme ( const faMesh & mesh)
inline

Construct from mesh.

Definition at line 112 of file boundedBackwardFaDdtScheme.H.

References faDdtScheme< scalar >::faDdtScheme(), and mesh().

Here is the call graph for this function:

◆ boundedBackwardFaDdtScheme() [3/3]

boundedBackwardFaDdtScheme ( const faMesh & mesh,
Istream & is )
inline

Construct from mesh and Istream.

Definition at line 120 of file boundedBackwardFaDdtScheme.H.

References faDdtScheme< scalar >::faDdtScheme(), and mesh().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "boundedBackward" )

Runtime type information.

◆ operator=()

void operator= ( const boundedBackwardFaDdtScheme & )
delete

No copy assignment.

References boundedBackwardFaDdtScheme().

Here is the call graph for this function:

◆ mesh()

const faMesh & mesh ( ) const
inline

Return mesh reference.

Definition at line 131 of file boundedBackwardFaDdtScheme.H.

References faDdtScheme< Type >::mesh().

Referenced by boundedBackwardFaDdtScheme(), boundedBackwardFaDdtScheme(), facDdt(), facDdt(), facDdt(), facDdt(), facDdt0(), facDdt0(), facDdt0(), facDdt0(), famDdt(), famDdt(), and famDdt().

Here is the call graph for this function:

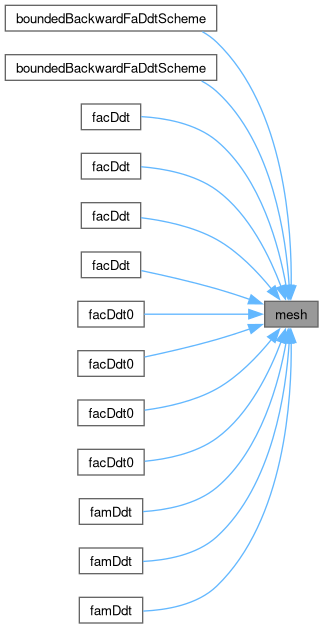

Here is the caller graph for this function:

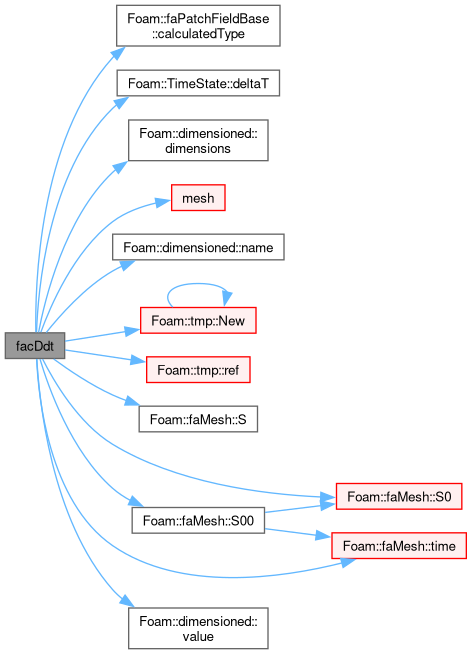

◆ facDdt() [1/4]

tmp< areaScalarField > facDdt ( const dimensionedScalar dt)

Definition at line 50 of file boundedBackwardFaDdtScheme.C.

References faPatchFieldBase::calculatedType(), TimeState::deltaT(), dimensioned< Type >::dimensions(), Foam::dimTime, mesh(), dimensioned< Type >::name(), tmp< T >::New(), tmp< T >::ref(), faMesh::S(), faMesh::S0(), faMesh::S00(), faMesh::time(), dimensioned< Type >::value(), and Foam::Zero.

Here is the call graph for this function:

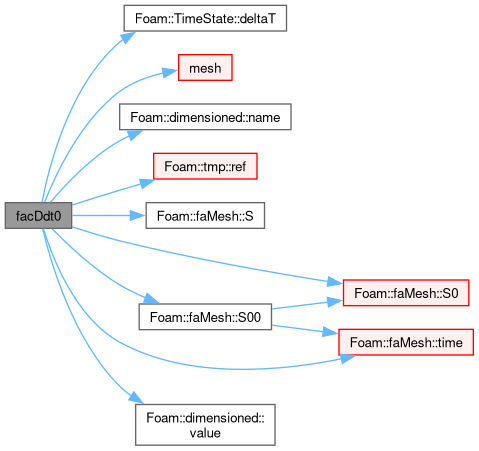

◆ facDdt0() [1/4]

tmp< areaScalarField > facDdt0 ( const dimensionedScalar dt)

Definition at line 105 of file boundedBackwardFaDdtScheme.C.

References TimeState::deltaT(), mesh(), dimensioned< Type >::name(), tmp< T >::ref(), faMesh::S(), faMesh::S0(), faMesh::S00(), faMesh::time(), and dimensioned< Type >::value().

Here is the call graph for this function:

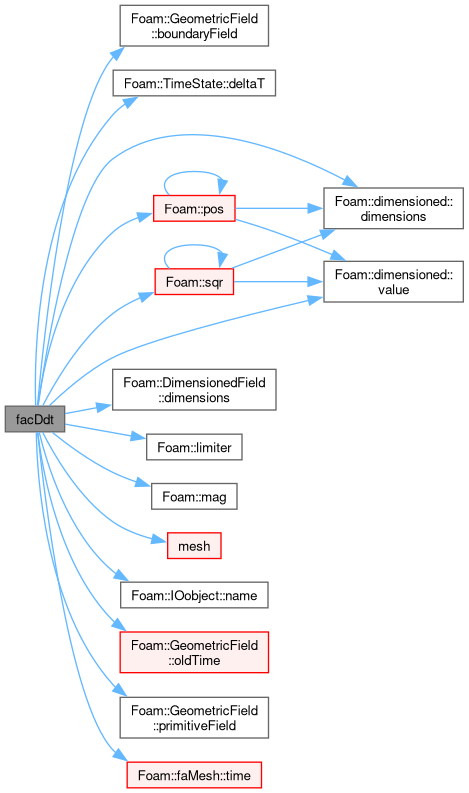

◆ facDdt() [2/4]

tmp< areaScalarField > facDdt ( const areaScalarField & vf)

Definition at line 152 of file boundedBackwardFaDdtScheme.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), TimeState::deltaT(), dimensioned< Type >::dimensions(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::limiter(), Foam::mag(), mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::pos(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), Foam::sqr(), faMesh::time(), and dimensioned< Type >::value().

Here is the call graph for this function:

◆ facDdt0() [2/4]

tmp< areaScalarField > facDdt0 ( const areaScalarField & vf)

Definition at line 249 of file boundedBackwardFaDdtScheme.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), TimeState::deltaT(), dimensioned< Type >::dimensions(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::limiter(), Foam::mag(), mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::pos(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), Foam::sqr(), faMesh::time(), and dimensioned< Type >::value().

Here is the call graph for this function:

◆ facDdt() [3/4]

tmp< areaScalarField > facDdt ( const dimensionedScalar & rho,
const areaScalarField & vf )

Definition at line 343 of file boundedBackwardFaDdtScheme.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), TimeState::deltaT(), dimensioned< Type >::dimensions(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::limiter(), Foam::mag(), mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::pos(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), rho, Foam::sqr(), faMesh::time(), and dimensioned< Type >::value().

Here is the call graph for this function:

◆ facDdt0() [3/4]

tmp< areaScalarField > facDdt0 ( const dimensionedScalar & rho,
const areaScalarField & vf )

Definition at line 440 of file boundedBackwardFaDdtScheme.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), TimeState::deltaT(), dimensioned< Type >::dimensions(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::limiter(), Foam::mag(), mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::pos(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), rho, Foam::sqr(), faMesh::time(), and dimensioned< Type >::value().

Here is the call graph for this function:

◆ facDdt() [4/4]

tmp< areaScalarField > facDdt ( const areaScalarField & rho,
const areaScalarField & vf )

Definition at line 535 of file boundedBackwardFaDdtScheme.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), TimeState::deltaT(), dimensioned< Type >::dimensions(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::limiter(), Foam::mag(), mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::pos(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), rho, Foam::sqr(), faMesh::time(), and dimensioned< Type >::value().

Here is the call graph for this function:

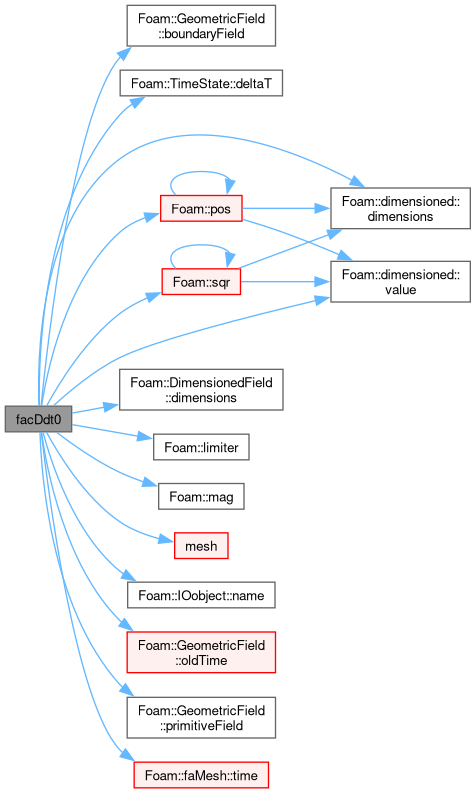

◆ facDdt0() [4/4]

tmp< areaScalarField > facDdt0 ( const areaScalarField & rho,
const areaScalarField & vf )

Definition at line 636 of file boundedBackwardFaDdtScheme.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), TimeState::deltaT(), dimensioned< Type >::dimensions(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::limiter(), Foam::mag(), mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::pos(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), rho, Foam::sqr(), faMesh::time(), and dimensioned< Type >::value().

Here is the call graph for this function:

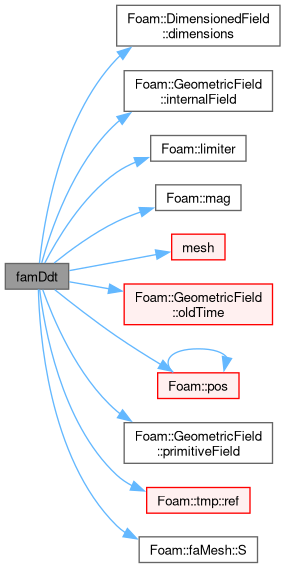

◆ famDdt() [1/3]

tmp< faScalarMatrix > famDdt ( const areaScalarField & vf)

Definition at line 734 of file boundedBackwardFaDdtScheme.C.

References Foam::dimArea, DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, GeometricField< Type, PatchField, GeoMesh >::internalField(), Foam::limiter(), Foam::mag(), mesh(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::pos(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), tmp< T >::ref(), and faMesh::S().

Here is the call graph for this function:

◆ famDdt() [2/3]

tmp< faScalarMatrix > famDdt ( const dimensionedScalar & rho,
const areaScalarField & vf )

Definition at line 805 of file boundedBackwardFaDdtScheme.C.

References Foam::dimArea, DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, GeometricField< Type, PatchField, GeoMesh >::internalField(), Foam::limiter(), Foam::mag(), mesh(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::pos(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), tmp< T >::ref(), rho, and faMesh::S().

Here is the call graph for this function:

◆ famDdt() [3/3]

tmp< faScalarMatrix > famDdt ( const areaScalarField & rho,
const areaScalarField & vf )

Definition at line 876 of file boundedBackwardFaDdtScheme.C.

References Foam::dimArea, DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, GeometricField< Type, PatchField, GeoMesh >::internalField(), Foam::limiter(), Foam::mag(), mesh(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::pos(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), tmp< T >::ref(), rho, and faMesh::S().

Here is the call graph for this function:
The documentation for this class was generated from the following files:
