A special matrix type and solver, designed for finite area solutions of scalar equations. Face addressing is used to make all matrix assembly and solution loops vectorise. More...

#include <faMatrix.H>

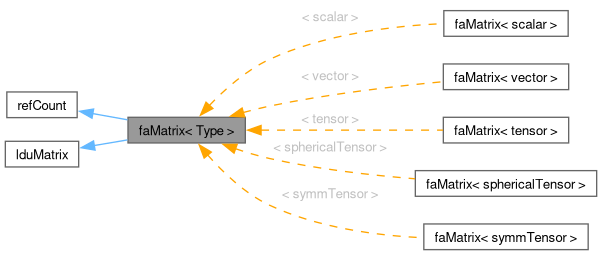

Inheritance diagram for faMatrix< Type >:

[legend]

Collaboration diagram for faMatrix< Type >:

[legend]

Classes
class	faSolver
	Solver class returned by the solver function used for systems in which it is useful to cache the solver for reuse. More...

Public Types
typedef GeometricField< Type, faPatchField, areaMesh >	psiFieldType
	The geometric field type for psi.
typedef GeometricField< Type, faePatchField, edgeMesh >	faceFluxFieldType
	Field type for face flux (for non-orthogonal correction).
typedef std::unique_ptr< faceFluxFieldType >	faceFluxFieldPtrType
	Declare return type of the faceFluxCorrectionPtr() function.
Public Types inherited from lduMatrix
enum class	normTypes : char { NO_NORM , DEFAULT_NORM , L1_SCALED_NORM }
	Enumerated matrix normalisation types. More...

Public Member Functions
	ClassName ("faMatrix")

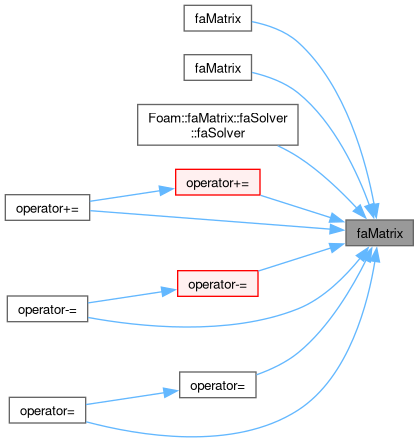

	faMatrix (const GeometricField< Type, faPatchField, areaMesh > &psi, const dimensionSet &ds)
	Construct given a field to solve for.
	faMatrix (const faMatrix< Type > &)
	Copy construct.
	faMatrix (const tmp< faMatrix< Type > > &)
	Copy/move construct from tmp<faMatrix<Type>>.
	faMatrix (const GeometricField< Type, faPatchField, areaMesh > &psi, Istream &is)
	Deprecated(2022-05) - construct with dimensionSet instead.
tmp< faMatrix< Type > >	clone () const
	Construct and return a clone.
virtual	~faMatrix ()
	Destructor.

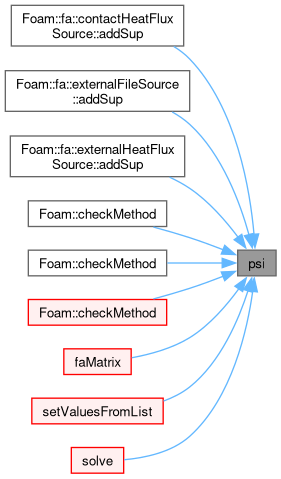

const GeometricField< Type, faPatchField, areaMesh > &	psi () const
const dimensionSet &	dimensions () const noexcept

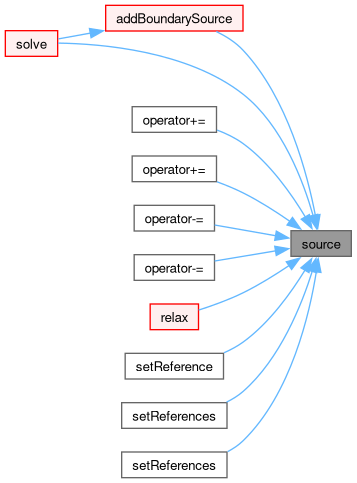

Field< Type > &	source () noexcept
const Field< Type > &	source () const noexcept
const FieldField< Field, Type > &	internalCoeffs () const noexcept
	faBoundary scalar field containing pseudo-matrix coeffs for internal cells
FieldField< Field, Type > &	internalCoeffs () noexcept
	faBoundary scalar field containing pseudo-matrix coeffs for internal cells
const FieldField< Field, Type > &	boundaryCoeffs () const noexcept
	faBoundary scalar field containing pseudo-matrix coeffs for boundary cells
FieldField< Field, Type > &	boundaryCoeffs () noexcept
	faBoundary scalar field containing pseudo-matrix coeffs for boundary cells
faceFluxFieldPtrType &	faceFluxCorrectionPtr ()
	Return pointer to face-flux non-orthogonal correction field.
void	faceFluxCorrectionPtr (faceFluxFieldType *flux)
	Set pointer to face-flux non-orthogonal correction field.
bool	hasFaceFluxCorrection () const noexcept
	True if face-flux non-orthogonal correction field exists.
void	setValues (const labelUList &faceLabels, const Type &value)
	Set solution in given faces to the specified value and eliminate the corresponding equations from the matrix.
void	setValues (const labelUList &faceLabels, const UList< Type > &values)
	Set solution in given faces to the specified values and eliminate the corresponding equations from the matrix.
void	setValues (const labelUList &faceLabels, const UIndirectList< Type > &values)
	Set solution in given faces to the specified values and eliminate the corresponding equations from the matrix.
void	setReference (const label facei, const Type &value, const bool forceReference=false)
	Set reference level for solution.
void	setReferences (const labelUList &faceLabels, const Type &value, const bool forceReference=false)
	Set reference level for solution.
void	setReferences (const labelUList &faceLabels, const UList< Type > &values, const bool forceReference=false)
	Set reference level for solution.
void	setComponentReference (const label patchi, const label facei, const direction cmpt, const scalar value)
	Set reference level for a component of the solution on a given patch face.

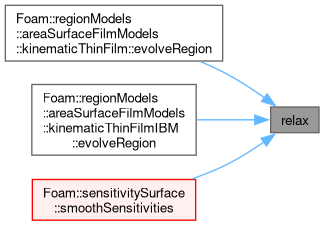

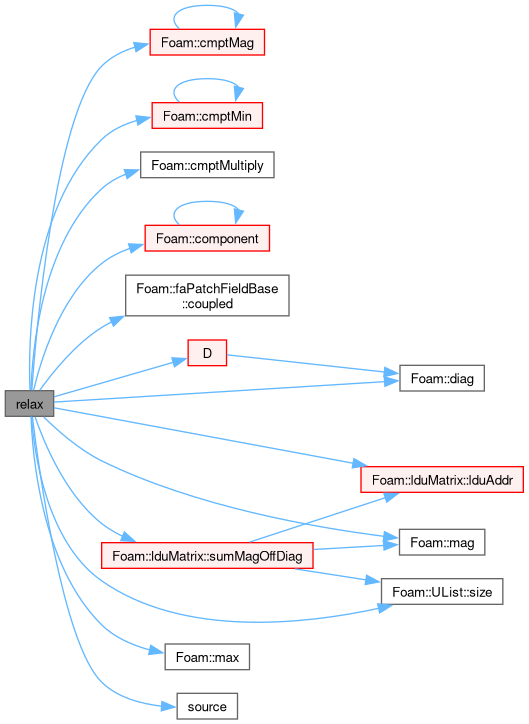

void	relax (const scalar alpha)
	Relax matrix (for steady-state solution).
void	relax ()
	Relax matrix (for steady-state solution).

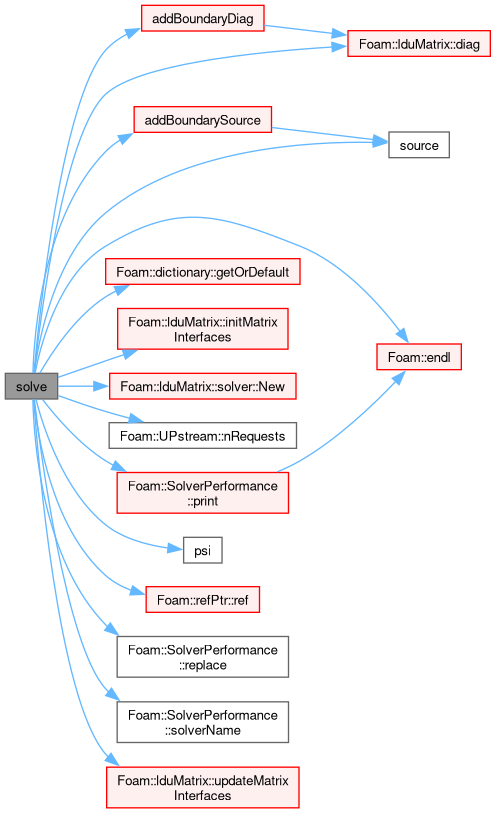

SolverPerformance< Type >	solve (const dictionary &)
	Solve returning the solution statistics.
SolverPerformance< Type >	solve (const word &name)
	Solve returning the solution statistics.

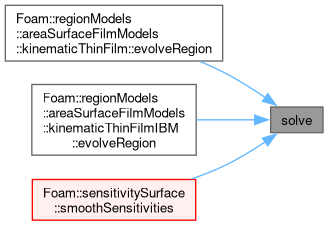

SolverPerformance< Type >	solve ()
	Solve returning the solution statistics.

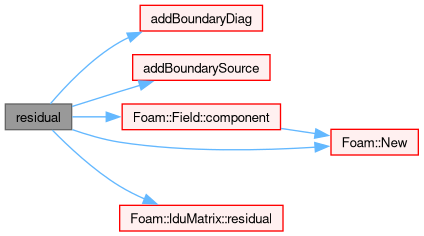

tmp< Field< Type > >	residual () const
	Return the matrix residual.
tmp< scalarField >	D () const
	Return the matrix diagonal.
tmp< areaScalarField >	A () const
	Return the central coefficient.

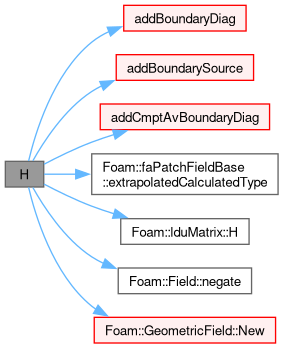

tmp< GeometricField< Type, faPatchField, areaMesh > >	H () const
	Return the H operation source.

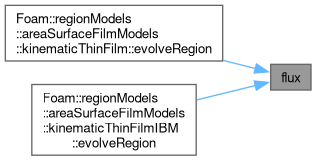

tmp< GeometricField< Type, faePatchField, edgeMesh > >	flux () const
	Return the face-flux field from the matrix.
const dictionary &	solverDict (const word &name) const
	Return the solver dictionary (from faSolution) for `name`.
const dictionary &	solverDict () const
	Return the solver dictionary for psi.
void	operator= (const faMatrix< Type > &)
void	operator= (const tmp< faMatrix< Type > > &)
void	negate ()
	Inplace negate.
void	operator+= (const faMatrix< Type > &)
void	operator+= (const tmp< faMatrix< Type > > &)
void	operator-= (const faMatrix< Type > &)
void	operator-= (const tmp< faMatrix< Type > > &)
void	operator+= (const DimensionedField< Type, areaMesh > &)
void	operator+= (const tmp< DimensionedField< Type, areaMesh > > &)
void	operator+= (const tmp< GeometricField< Type, faPatchField, areaMesh > > &)
void	operator-= (const DimensionedField< Type, areaMesh > &)
void	operator-= (const tmp< DimensionedField< Type, areaMesh > > &)
void	operator-= (const tmp< GeometricField< Type, faPatchField, areaMesh > > &)
void	operator+= (const dimensioned< Type > &)
void	operator-= (const dimensioned< Type > &)
void	operator+= (Foam::zero)
void	operator-= (Foam::zero)
void	operator*= (const areaScalarField::Internal &)
void	operator*= (const tmp< areaScalarField::Internal > &)
void	operator*= (const tmp< areaScalarField > &)
void	operator*= (const dimensioned< scalar > &)
void	setComponentReference (const label patchI, const label edgeI, const direction, const scalar value)
Foam::solverPerformance	solve (const dictionary &solverControls)
Foam::tmp< Foam::scalarField >	residual () const
Foam::tmp< Foam::areaScalarField >	H () const
void	setComponentReference (const label patchi, const label facei, const direction, const scalar value)
SolverPerformance< scalar >	solve (const dictionary &)
tmp< scalarField >	residual () const
tmp< areaScalarField >	H () const
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.
Public Member Functions inherited from lduMatrix
	ClassName ("lduMatrix")
	lduMatrix (const lduMesh &mesh)
	Construct (without coefficients) for an LDU addressed mesh.
	lduMatrix (const lduMatrix &)
	Copy construct.
	lduMatrix (lduMatrix &&)
	Move construct.
	lduMatrix (lduMatrix &, bool reuse)
	Construct as copy or re-use as specified.
	lduMatrix (const lduMesh &mesh, Istream &is)
	Construct given an LDU addressed mesh and an Istream from which the coefficients are read.
	~lduMatrix ()=default
	Destructor.
const lduMesh &	mesh () const noexcept
	Return the LDU mesh from which the addressing is obtained.
void	setLduMesh (const lduMesh &m)
	Set the LDU mesh containing the addressing.
const lduAddressing &	lduAddr () const
	Return the LDU addressing.
const lduSchedule &	patchSchedule () const
	Return the patch evaluation schedule.
const scalarField &	diag () const
const scalarField &	upper () const
const scalarField &	lower () const
scalarField &	diag ()
scalarField &	upper ()
scalarField &	lower ()
scalarField &	diag (label size)
scalarField &	upper (label nCoeffs)
scalarField &	lower (label nCoeffs)
bool	hasLowerCSR () const noexcept
const scalarField &	lowerCSR () const
scalarField &	lowerCSR ()
const solveScalarField &	work () const
	Work array.
solveScalarField &	work (label size) const
	Work array.
word	matrixTypeName () const
	The matrix type (empty, diagonal, symmetric, ...).
bool	hasDiag () const noexcept
bool	hasUpper () const noexcept
bool	hasLower () const noexcept
bool	diagonal () const noexcept
	Matrix has diagonal only.
bool	symmetric () const noexcept
	Matrix is symmetric.
bool	asymmetric () const noexcept
	Matrix is asymmetric (ie, full).
void	sumDiag ()
void	negSumDiag ()
void	sumMagOffDiag (scalarField &sumOff) const
void	Amul (solveScalarField &, const tmp< solveScalarField > &, const FieldField< Field, scalar > &, const lduInterfaceFieldPtrsList &, const direction cmpt) const
	Matrix multiplication with updated interfaces.
void	Tmul (solveScalarField &, const tmp< solveScalarField > &, const FieldField< Field, scalar > &, const lduInterfaceFieldPtrsList &, const direction cmpt) const
	Matrix transpose multiplication with updated interfaces.
void	sumA (solveScalarField &, const FieldField< Field, scalar > &, const lduInterfaceFieldPtrsList &) const
	Sum the coefficients on each row of the matrix.
void	residual (solveScalarField &rA, const solveScalarField &psi, const scalarField &source, const FieldField< Field, scalar > &interfaceBouCoeffs, const lduInterfaceFieldPtrsList &interfaces, const direction cmpt) const
tmp< solveScalarField >	residual (const solveScalarField &psi, const scalarField &source, const FieldField< Field, scalar > &interfaceBouCoeffs, const lduInterfaceFieldPtrsList &interfaces, const direction cmpt) const
void	initMatrixInterfaces (const bool add, const FieldField< Field, scalar > &interfaceCoeffs, const lduInterfaceFieldPtrsList &interfaces, const solveScalarField &psiif, solveScalarField &result, const direction cmpt) const
	Initialise the update of interfaced interfaces for matrix operations.
void	updateMatrixInterfaces (const bool add, const FieldField< Field, scalar > &interfaceCoeffs, const lduInterfaceFieldPtrsList &interfaces, const solveScalarField &psiif, solveScalarField &result, const direction cmpt, const label startRequest) const
	Update interfaced interfaces for matrix operations.
void	setResidualField (const scalarField &residual, const word &fieldName, const bool initial) const
	Set the residual field using an IOField on the object registry if it exists.
template<class Type>
tmp< Field< Type > >	H (const Field< Type > &) const
template<class Type>
tmp< Field< Type > >	H (const tmp< Field< Type > > &) const
tmp< scalarField >	H1 () const
template<class Type>
tmp< Field< Type > >	faceH (const Field< Type > &) const
template<class Type>
tmp< Field< Type > >	faceH (const tmp< Field< Type > > &) const
InfoProxy< lduMatrix >	info () const noexcept
	Return info proxy, used to print matrix information to a stream.
void	operator= (const lduMatrix &)
	Copy assignment.
void	operator= (lduMatrix &&)
	Move assignment.
void	negate ()
void	operator+= (const lduMatrix &)
void	operator-= (const lduMatrix &)
void	operator*= (const scalarField &)
void	operator*= (scalar)
template<class Type>
Foam::tmp< Foam::Field< Type > >	H (const Field< Type > &psi) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	H (const tmp< Field< Type > > &tpsi) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	faceH (const Field< Type > &psi) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	faceH (const tmp< Field< Type > > &tpsi) const

Protected Member Functions
template<class Type2>

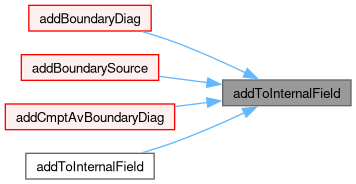

void	addToInternalField (const labelUList &addr, const Field< Type2 > &pf, Field< Type2 > &intf) const
	Add patch contribution to internal field.
template<class Type2>
void	addToInternalField (const labelUList &addr, const tmp< Field< Type2 > > &tpf, Field< Type2 > &intf) const
template<class Type2>
void	subtractFromInternalField (const labelUList &addr, const Field< Type2 > &pf, Field< Type2 > &intf) const
	Subtract patch contribution from internal field.
template<class Type2>
void	subtractFromInternalField (const labelUList &addr, const tmp< Field< Type2 > > &tpf, Field< Type2 > &intf) const

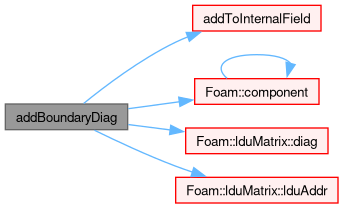

void	addBoundaryDiag (scalarField &diag, const direction cmpt) const

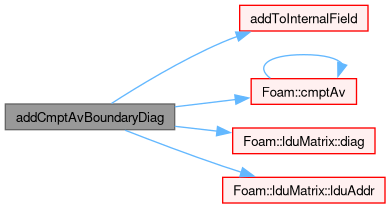

void	addCmptAvBoundaryDiag (scalarField &diag) const

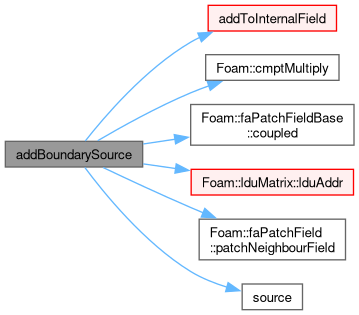

void	addBoundarySource (Field< Type > &source, const bool couples=true) const
template<template< class > class ListType>

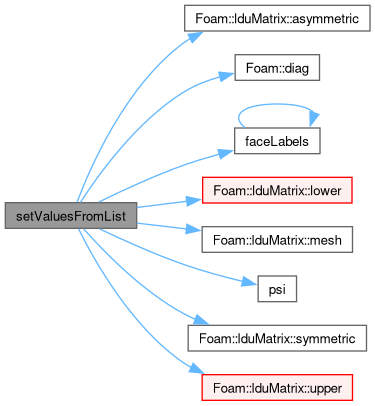

void	setValuesFromList (const labelUList &faceLabels, const ListType< Type > &values)
	Set solution in given faces to the specified values.

Friends
class	faSolver
	Declare friendship with the faSolver class.
tmp< GeometricField< Type, faPatchField, areaMesh > >	operator& (const faMatrix< Type > &, const DimensionedField< Type, areaMesh > &)
tmp< GeometricField< Type, faPatchField, areaMesh > >	operator& (const faMatrix< Type > &, const tmp< GeometricField< Type, faPatchField, areaMesh > > &)
tmp< GeometricField< Type, faPatchField, areaMesh > >	operator& (const tmp< faMatrix< Type > > &, const DimensionedField< Type, areaMesh > &)
tmp< GeometricField< Type, faPatchField, areaMesh > >	operator& (const tmp< faMatrix< Type > > &, const tmp< GeometricField< Type, faPatchField, areaMesh > > &)
Ostream &	operator<< (Ostream &, const faMatrix< Type > &)

Additional Inherited Members
Static Public Attributes inherited from lduMatrix
static const Enum< normTypes >	normTypesNames_
	Names for the normTypes.
static constexpr const label	defaultMaxIter = 1000
	Default maximum number of iterations for solvers (1000).
static const scalar	defaultTolerance = 1e-6
	Default (absolute) tolerance (1e-6).

Detailed Description

template<class Type>
class Foam::faMatrix< Type >

A special matrix type and solver, designed for finite area solutions of scalar equations. Face addressing is used to make all matrix assembly and solution loops vectorise.

Finite-Area matrix.

Author Zeljko Tukovic, FMENA Hrvoje Jasak, Wikki Ltd.

Source files

Author Zeljko Tukovic, FMENA Hrvoje Jasak, Wikki Ltd.

Definition at line 104 of file faMatrix.H.

Member Typedef Documentation

◆ psiFieldType

template<class Type>

typedef GeometricField<Type, faPatchField, areaMesh> psiFieldType

The geometric field type for psi.

Definition at line 118 of file faMatrix.H.

◆ faceFluxFieldType

template<class Type>

typedef GeometricField<Type, faePatchField, edgeMesh> faceFluxFieldType

Field type for face flux (for non-orthogonal correction).

Definition at line 125 of file faMatrix.H.

◆ faceFluxFieldPtrType

template<class Type>

typedef std::unique_ptr<faceFluxFieldType> faceFluxFieldPtrType

Declare return type of the faceFluxCorrectionPtr() function.

Definition at line 407 of file faMatrix.H.

Constructor & Destructor Documentation

◆ faMatrix() [1/4]

template<class Type>

faMatrix	(	const GeometricField< Type, faPatchField, areaMesh > &	psi,
		const dimensionSet &	ds )

Construct given a field to solve for.

Definition at line 175 of file faMatrix.C.

References boundary, DebugInFunction, Foam::endl(), forAll, lduMatrix::lduMatrix(), lduMatrix::mesh(), psi(), and Foam::Zero.

Referenced by faMatrix(), faMatrix(), faMatrix< Type >::faSolver::faSolver(), operator+=(), operator+=(), operator-=(), operator-=(), operator=(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ faMatrix() [2/4]

template<class Type>

faMatrix ( const faMatrix< Type > & fam )

Copy construct.

Definition at line 218 of file faMatrix.C.

References DebugInFunction, Foam::endl(), faMatrix(), and lduMatrix::lduMatrix().

Here is the call graph for this function:

◆ faMatrix() [3/4]

template<class Type>

faMatrix ( const tmp< faMatrix< Type > > & tmat )

Copy/move construct from tmp<faMatrix<Type>>.

Definition at line 241 of file faMatrix.C.

References DebugInFunction, Foam::endl(), faMatrix(), and lduMatrix::lduMatrix().

Here is the call graph for this function:

◆ faMatrix() [4/4]

template<class Type>

faMatrix	(	const GeometricField< Type, faPatchField, areaMesh > &	psi,
		Istream &	is )

inline

Deprecated(2022-05) - construct with dimensionSet instead.

Deprecated: (2022-05) - construct with dimensionSet instead

Definition at line 320 of file faMatrix.H.

◆ ~faMatrix()

template<class Type>

~faMatrix ( )

virtual

Destructor.

Definition at line 276 of file faMatrix.C.

References DebugInFunction, and Foam::endl().

Here is the call graph for this function:

Member Function Documentation

◆ addToInternalField() [1/2]

template<class Type>

template<class Type2>

void addToInternalField	(	const labelUList &	addr,
		const Field< Type2 > &	pf,
		Field< Type2 > &	intf ) const

protected

Add patch contribution to internal field.

Definition at line 32 of file faMatrix.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, forAll, and UList< T >::size().

Referenced by addBoundaryDiag(), addBoundarySource(), addCmptAvBoundaryDiag(), and addToInternalField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addToInternalField() [2/2]

template<class Type>

template<class Type2>

void addToInternalField	(	const labelUList &	addr,
		const tmp< Field< Type2 > > &	tpf,
		Field< Type2 > &	intf ) const

protected

Definition at line 56 of file faMatrix.C.

References addToInternalField().

Here is the call graph for this function:

◆ subtractFromInternalField() [1/2]

template<class Type>

template<class Type2>

void subtractFromInternalField	(	const labelUList &	addr,
		const Field< Type2 > &	pf,
		Field< Type2 > &	intf ) const

protected

Subtract patch contribution from internal field.

Definition at line 70 of file faMatrix.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, forAll, and UList< T >::size().

Referenced by subtractFromInternalField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ subtractFromInternalField() [2/2]

template<class Type>

template<class Type2>

void subtractFromInternalField	(	const labelUList &	addr,
		const tmp< Field< Type2 > > &	tpf,
		Field< Type2 > &	intf ) const

protected

Definition at line 94 of file faMatrix.C.

References subtractFromInternalField().

Here is the call graph for this function:

◆ addBoundaryDiag()

template<class Type>

void addBoundaryDiag	(	scalarField &	diag,
		const direction	cmpt ) const

protected

Definition at line 107 of file faMatrix.C.

References addToInternalField(), Foam::component(), lduMatrix::diag(), forAll, and lduMatrix::lduAddr().

Referenced by H(), residual(), and solve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addCmptAvBoundaryDiag()

template<class Type>

void addCmptAvBoundaryDiag ( scalarField & diag ) const

protected

Definition at line 126 of file faMatrix.C.

References addToInternalField(), Foam::cmptAv(), lduMatrix::diag(), forAll, and lduMatrix::lduAddr().

Referenced by D(), and H().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addBoundarySource()

template<class Type>

void addBoundarySource	(	Field< Type > &	source,
		const bool	couples = true ) const

protected

Definition at line 141 of file faMatrix.C.

References addToInternalField(), Foam::cmptMultiply(), faPatchFieldBase::coupled(), forAll, lduMatrix::lduAddr(), faPatchField< Type >::patchNeighbourField(), and source().

Referenced by H(), residual(), and solve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setValuesFromList()

template<class Type>

template<template< class > class ListType>

void setValuesFromList	(	const labelUList &	faceLabels,
		const ListType< Type > &	values )

protected

Set solution in given faces to the specified values.

Definition at line 287 of file faMatrix.C.

References lduMatrix::asymmetric(), Foam::diag(), faceLabels(), forAll, lduMatrix::lower(), lduMatrix::mesh(), psi(), lduMatrix::symmetric(), lduMatrix::upper(), and Foam::Zero.

Referenced by setValues(), setValues(), and setValues().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ClassName()

template<class Type>

ClassName ( "faMatrix< Type >" )

◆ clone()

template<class Type>

tmp< faMatrix< Type > > clone ( ) const

inline

Construct and return a clone.

Definition at line 332 of file faMatrix.H.

◆ psi()

template<class Type>

const GeometricField< Type, faPatchField, areaMesh > & psi ( ) const

inline

Definition at line 348 of file faMatrix.H.

Referenced by contactHeatFluxSource::addSup(), externalFileSource::addSup(), externalHeatFluxSource::addSup(), Foam::checkMethod(), Foam::checkMethod(), Foam::checkMethod(), faMatrix(), setValuesFromList(), and solve().

Here is the caller graph for this function:

◆ dimensions()

template<class Type>

const dimensionSet & dimensions ( ) const

inlinenoexcept

Definition at line 353 of file faMatrix.H.

Referenced by Foam::checkMethod(), Foam::checkMethod(), Foam::checkMethod(), and flux().

Here is the caller graph for this function:

◆ source() [1/2]

template<class Type>

Field< Type > & source ( )

inlinenoexcept

Definition at line 358 of file faMatrix.H.

Referenced by addBoundarySource(), operator+=(), operator+=(), operator-=(), operator-=(), relax(), setReference(), setReferences(), setReferences(), and solve().

Here is the caller graph for this function:

◆ source() [2/2]

template<class Type>

const Field< Type > & source ( ) const

inlinenoexcept

Definition at line 363 of file faMatrix.H.

◆ internalCoeffs() [1/2]

template<class Type>

const FieldField< Field, Type > & internalCoeffs ( ) const

inlinenoexcept

faBoundary scalar field containing pseudo-matrix coeffs for internal cells

Definition at line 372 of file faMatrix.H.

◆ internalCoeffs() [2/2]

template<class Type>

FieldField< Field, Type > & internalCoeffs ( )

inlinenoexcept

faBoundary scalar field containing pseudo-matrix coeffs for internal cells

Definition at line 381 of file faMatrix.H.

◆ boundaryCoeffs() [1/2]

template<class Type>

const FieldField< Field, Type > & boundaryCoeffs ( ) const

inlinenoexcept

faBoundary scalar field containing pseudo-matrix coeffs for boundary cells

Definition at line 390 of file faMatrix.H.

◆ boundaryCoeffs() [2/2]

template<class Type>

FieldField< Field, Type > & boundaryCoeffs ( )

inlinenoexcept

faBoundary scalar field containing pseudo-matrix coeffs for boundary cells

Definition at line 399 of file faMatrix.H.

◆ faceFluxCorrectionPtr() [1/2]

template<class Type>

faceFluxFieldPtrType & faceFluxCorrectionPtr ( )

inline

Return pointer to face-flux non-orthogonal correction field.

Definition at line 412 of file faMatrix.H.

Referenced by gaussLaplacianScheme< Type >::famLaplacian().

Here is the caller graph for this function:

◆ faceFluxCorrectionPtr() [2/2]

template<class Type>

void faceFluxCorrectionPtr ( faceFluxFieldType * flux )

inline

Set pointer to face-flux non-orthogonal correction field.

Definition at line 420 of file faMatrix.H.

◆ hasFaceFluxCorrection()

template<class Type>

bool hasFaceFluxCorrection ( ) const

inlinenoexcept

True if face-flux non-orthogonal correction field exists.

Definition at line 428 of file faMatrix.H.

◆ setValues() [1/3]

template<class Type>

void setValues	(	const labelUList &	faceLabels,
		const Type &	value )

Set solution in given faces to the specified value and eliminate the corresponding equations from the matrix.

Definition at line 386 of file faMatrix.C.

References faceLabels(), and setValuesFromList().

Here is the call graph for this function:

◆ setValues() [2/3]

template<class Type>

void setValues	(	const labelUList &	faceLabels,
		const UList< Type > &	values )

Set solution in given faces to the specified values and eliminate the corresponding equations from the matrix.

Definition at line 397 of file faMatrix.C.

References faceLabels(), and setValuesFromList().

Here is the call graph for this function:

◆ setValues() [3/3]

template<class Type>

void setValues	(	const labelUList &	faceLabels,
		const UIndirectList< Type > &	values )

Set solution in given faces to the specified values and eliminate the corresponding equations from the matrix.

Definition at line 408 of file faMatrix.C.

References faceLabels(), and setValuesFromList().

Here is the call graph for this function:

◆ setReference()

template<class Type>

void setReference	(	const label	facei,
		const Type &	value,
		const bool	forceReference = false )

Set reference level for solution.

Definition at line 419 of file faMatrix.C.

References Foam::diag(), UPstream::master(), and source().

Here is the call graph for this function:

◆ setReferences() [1/2]

template<class Type>

void setReferences	(	const labelUList &	faceLabels,
		const Type &	value,
		const bool	forceReference = false )

Set reference level for solution.

Definition at line 438 of file faMatrix.C.

References Foam::diag(), faceId(), faceLabels(), forAll, and source().

Here is the call graph for this function:

◆ setReferences() [2/2]

template<class Type>

void setReferences	(	const labelUList &	faceLabels,
		const UList< Type > &	values,
		const bool	forceReference = false )

Set reference level for solution.

Definition at line 461 of file faMatrix.C.

References Foam::diag(), faceId(), faceLabels(), forAll, and source().

Here is the call graph for this function:

◆ setComponentReference() [1/3]

template<class Type>

void setComponentReference	(	const label	patchi,
		const label	facei,
		const direction	cmpt,
		const scalar	value )

Set reference level for a component of the solution on a given patch face.

Definition at line 31 of file faMatrixSolve.C.

References lduMatrix::diag().

Here is the call graph for this function:

◆ relax() [1/2]

template<class Type>

void relax ( const scalar alpha )

Relax matrix (for steady-state solution).

alpha = 1 : diagonally equal alpha < 1 : ,, dominant alpha = 0 : do nothing Note: Requires positive diagonal.

Definition at line 484 of file faMatrix.C.

References alpha, Foam::cmptMag(), Foam::cmptMin(), Foam::cmptMultiply(), Foam::component(), faPatchFieldBase::coupled(), D(), Foam::diag(), forAll, lduMatrix::lduAddr(), Foam::mag(), Foam::max(), UList< T >::size(), source(), lduMatrix::sumMagOffDiag(), and Foam::Zero.

Referenced by kinematicThinFilm::evolveRegion(), kinematicThinFilmIBM::evolveRegion(), and sensitivitySurface::smoothSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ relax() [2/2]

template<class Type>

void relax ( )

Relax matrix (for steady-state solution).

alpha is read from controlDict

Definition at line 574 of file faMatrix.C.

References DebugInFunction, Foam::nl, and relax().

Here is the call graph for this function:

◆ solve() [1/5]

template<class Type>

Foam::SolverPerformance< Type > solve ( const dictionary & solverControls )

Solve returning the solution statistics.

Use the given solver controls

Definition at line 48 of file faMatrixSolve.C.

References addBoundaryDiag(), addBoundarySource(), DebugInFunction, lduMatrix::diag(), Foam::endl(), dictionary::getOrDefault(), Foam::Info, lduMatrix::initMatrixInterfaces(), lduMatrix::solver::New(), UPstream::nRequests(), SolverPerformance< Type >::print(), psi(), refPtr< T >::ref(), SolverPerformance< Type >::replace(), SolverPerformance< Type >::solverName(), source(), and lduMatrix::updateMatrixInterfaces().

Referenced by kinematicThinFilm::evolveRegion(), kinematicThinFilmIBM::evolveRegion(), and sensitivitySurface::smoothSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ solve() [2/5]

template<class Type>

Foam::SolverPerformance< Type > solve ( const word & name )

Solve returning the solution statistics.

Uses name solver controls from faSolution

Definition at line 172 of file faMatrixSolve.C.

References Foam::name(), solve(), and solverDict().

Here is the call graph for this function:

◆ solve() [3/5]

template<class Type>

Foam::SolverPerformance< Type > solve ( )

Solve returning the solution statistics.

Solver controls read from faSolution

Definition at line 179 of file faMatrixSolve.C.

References solve(), and solverDict().

Referenced by solve(), and solve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ residual() [1/3]

template<class Type>

Foam::tmp< Foam::Field< Type > > residual ( ) const

Return the matrix residual.

Definition at line 186 of file faMatrixSolve.C.

References addBoundaryDiag(), addBoundarySource(), Field< Type >::component(), Foam::New(), lduMatrix::residual(), and Foam::Zero.

Here is the call graph for this function:

◆ D()

template<class Type>

Foam::tmp< Foam::scalarField > D ( ) const

Return the matrix diagonal.

Definition at line 591 of file faMatrix.C.

References addCmptAvBoundaryDiag(), Foam::diag(), and tmp< T >::New().

Referenced by relax().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ A()

template<class Type>

Foam::tmp< Foam::areaScalarField > A ( ) const

Return the central coefficient.

Definition at line 600 of file faMatrix.C.

References D, Foam::dimArea, faPatchFieldBase::extrapolatedCalculatedType(), and GeometricField< scalar, faPatchField, areaMesh >::New().

Referenced by kinematicThinFilm::evolveRegion(), and kinematicThinFilmIBM::evolveRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ H() [1/3]

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::faPatchField, Foam::areaMesh > > H ( ) const

Return the H operation source.

Definition at line 619 of file faMatrix.C.

References addBoundaryDiag(), addBoundarySource(), addCmptAvBoundaryDiag(), Foam::dimArea, faPatchFieldBase::extrapolatedCalculatedType(), lduMatrix::H(), Field< Type >::negate(), GeometricField< Type, PatchField, GeoMesh >::New(), and Foam::Zero.

Referenced by kinematicThinFilm::evolveRegion(), and kinematicThinFilmIBM::evolveRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flux()

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::faePatchField, Foam::edgeMesh > > flux ( ) const

Return the face-flux field from the matrix.

Definition at line 655 of file faMatrix.C.

References Foam::abort(), Foam::cmptMultiply(), dimensions(), lduMatrix::faceH(), Foam::FatalError, FatalErrorInFunction, forAll, and GeometricField< Type, PatchField, GeoMesh >::New().

Referenced by kinematicThinFilm::evolveRegion(), and kinematicThinFilmIBM::evolveRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ solverDict() [1/2]

template<class Type>

const Foam::dictionary & solverDict ( const word & name ) const

Return the solver dictionary (from faSolution) for name.

Definition at line 722 of file faMatrix.C.

References Foam::name().

Here is the call graph for this function:

◆ solverDict() [2/2]

template<class Type>

const Foam::dictionary & solverDict ( ) const

Return the solver dictionary for psi.

Definition at line 732 of file faMatrix.C.

Referenced by solve(), and solve().

Here is the caller graph for this function:

◆ operator=() [1/2]

template<class Type>

void operator= ( const faMatrix< Type > & famv )

Definition at line 744 of file faMatrix.C.

References Foam::abort(), faMatrix(), Foam::FatalError, FatalErrorInFunction, and lduMatrix::operator=().

Referenced by operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [2/2]

template<class Type>

void operator= ( const tmp< faMatrix< Type > > & tfamv )

Definition at line 778 of file faMatrix.C.

References faMatrix(), and operator=().

Here is the call graph for this function:

◆ negate()

template<class Type>

void negate ( )

Inplace negate.

Definition at line 786 of file faMatrix.C.

References lduMatrix::negate().

Here is the call graph for this function:

◆ operator+=() [1/7]

template<class Type>

void operator+= ( const faMatrix< Type > & famv )

Definition at line 801 of file faMatrix.C.

References Foam::checkMethod(), faMatrix(), and lduMatrix::operator+=().

Referenced by operator+=(), operator+=(), and operator+=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator+=() [2/7]

template<class Type>

void operator+= ( const tmp< faMatrix< Type > > & tfamv )

Definition at line 826 of file faMatrix.C.

References faMatrix(), and operator+=().

Here is the call graph for this function:

◆ operator-=() [1/7]

template<class Type>

void operator-= ( const faMatrix< Type > & famv )

Definition at line 834 of file faMatrix.C.

References Foam::checkMethod(), faMatrix(), and lduMatrix::operator-=().

Referenced by operator-=(), operator-=(), and operator-=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator-=() [2/7]

template<class Type>

void operator-= ( const tmp< faMatrix< Type > > & tfamv )

Definition at line 859 of file faMatrix.C.

References faMatrix(), and operator-=().

Here is the call graph for this function:

◆ operator+=() [3/7]

template<class Type>

void operator+= ( const DimensionedField< Type, areaMesh > & su )

Definition at line 867 of file faMatrix.C.

References Foam::checkMethod(), and source().

Here is the call graph for this function:

◆ operator+=() [4/7]

template<class Type>

void operator+= ( const tmp< DimensionedField< Type, areaMesh > > & tsu )

Definition at line 878 of file faMatrix.C.

References operator+=().

Here is the call graph for this function:

◆ operator+=() [5/7]

template<class Type>

void operator+= ( const tmp< GeometricField< Type, faPatchField, areaMesh > > & tsu )

Definition at line 889 of file faMatrix.C.

References operator+=().

Here is the call graph for this function:

◆ operator-=() [3/7]

template<class Type>

void operator-= ( const DimensionedField< Type, areaMesh > & su )

Definition at line 900 of file faMatrix.C.

References Foam::checkMethod(), and source().

Here is the call graph for this function:

◆ operator-=() [4/7]

template<class Type>

void operator-= ( const tmp< DimensionedField< Type, areaMesh > > & tsu )

Definition at line 911 of file faMatrix.C.

References operator-=().

Here is the call graph for this function:

◆ operator-=() [5/7]

template<class Type>

void operator-= ( const tmp< GeometricField< Type, faPatchField, areaMesh > > & tsu )

Definition at line 922 of file faMatrix.C.

References operator-=().

Here is the call graph for this function:

◆ operator+=() [6/7]

template<class Type>

void operator+= ( const dimensioned< Type > & su )

Definition at line 933 of file faMatrix.C.

References DimensionedField< Type, GeoMesh >::mesh(), psi, and source().

Here is the call graph for this function:

◆ operator-=() [6/7]

template<class Type>

void operator-= ( const dimensioned< Type > & su )

Definition at line 943 of file faMatrix.C.

References DimensionedField< Type, GeoMesh >::mesh(), psi, and source().

Here is the call graph for this function:

◆ operator+=() [7/7]

template<class Type>

void operator+= ( Foam::zero )

inline

Definition at line 615 of file faMatrix.H.

◆ operator-=() [7/7]

template<class Type>

void operator-= ( Foam::zero )

inline

Definition at line 616 of file faMatrix.H.

◆ operator*=() [1/4]

template<class Type>

void operator*= ( const areaScalarField::Internal & dsf )

Definition at line 953 of file faMatrix.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, forAll, and lduMatrix::operator*=().

Referenced by operator*=(), and operator*=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator*=() [2/4]

template<class Type>

void operator*= ( const tmp< areaScalarField::Internal > & tfld )

Definition at line 982 of file faMatrix.C.

References operator*=().

Here is the call graph for this function:

◆ operator*=() [3/4]

template<class Type>

void operator*= ( const tmp< areaScalarField > & tfld )

Definition at line 993 of file faMatrix.C.

References operator*=().

Here is the call graph for this function:

◆ operator*=() [4/4]

template<class Type>

void operator*= ( const dimensioned< scalar > & ds )

Definition at line 1004 of file faMatrix.C.

References lduMatrix::operator*=().

Here is the call graph for this function:

◆ setComponentReference() [2/3]

void setComponentReference	(	const label	patchI,
		const label	edgeI,
		const direction	,
		const scalar	value )

Definition at line 30 of file faScalarMatrix.C.

◆ solve() [4/5]

Foam::solverPerformance solve ( const dictionary & solverControls )

Definition at line 47 of file faScalarMatrix.C.

◆ residual() [2/3]

Foam::tmp< Foam::scalarField > residual ( ) const

Definition at line 98 of file faScalarMatrix.C.

◆ H() [2/3]

Foam::tmp< Foam::areaScalarField > H ( ) const

Definition at line 127 of file faScalarMatrix.C.

◆ setComponentReference() [3/3]

void setComponentReference	(	const label	patchi,
		const label	facei,
		const direction	,
		const scalar	value )

◆ solve() [5/5]

SolverPerformance< scalar > solve ( const dictionary & )

◆ residual() [3/3]

tmp< scalarField > residual ( ) const

◆ H() [3/3]

tmp< areaScalarField > H ( ) const

◆ faSolver

template<class Type>

friend class faSolver

friend

Declare friendship with the faSolver class.

Definition at line 174 of file faMatrix.H.

◆ operator& [1/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > operator&	(	const faMatrix< Type > &	,
		const DimensionedField< Type, areaMesh > &	)

friend

◆ operator& [2/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > operator&	(	const faMatrix< Type > &	,
		const tmp< GeometricField< Type, faPatchField, areaMesh > > &	)

friend

◆ operator& [3/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > operator&	(	const tmp< faMatrix< Type > > &	,
		const DimensionedField< Type, areaMesh > &	)

friend

◆ operator& [4/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > operator&	(	const tmp< faMatrix< Type > > &	,
		const tmp< GeometricField< Type, faPatchField, areaMesh > > &	)

friend

◆ operator<<

template<class Type>

Ostream & operator<<	(	Ostream &	,
		const faMatrix< Type > &	)

friend

The documentation for this class was generated from the following files:

src/finiteArea/faMatrices/faMatricesFwd.H
src/finiteArea/faMatrices/faMatrix/faMatrix.H
src/finiteArea/faMatrices/faMatrix/faMatrix.C
src/finiteArea/faMatrices/faMatrix/faMatrixSolve.C

Classes

Public Types

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ psiFieldType

◆ faceFluxFieldType

◆ faceFluxFieldPtrType

Constructor & Destructor Documentation

◆ faMatrix() [1/4]

◆ faMatrix() [2/4]

◆ faMatrix() [3/4]

◆ faMatrix() [4/4]

◆ ~faMatrix()

Member Function Documentation

◆ addToInternalField() [1/2]

◆ addToInternalField() [2/2]

◆ subtractFromInternalField() [1/2]

◆ subtractFromInternalField() [2/2]

◆ addBoundaryDiag()

◆ addCmptAvBoundaryDiag()

◆ addBoundarySource()

◆ setValuesFromList()

◆ ClassName()

◆ clone()

◆ psi()

◆ dimensions()

◆ source() [1/2]

◆ source() [2/2]

◆ internalCoeffs() [1/2]

◆ internalCoeffs() [2/2]

◆ boundaryCoeffs() [1/2]

◆ boundaryCoeffs() [2/2]

◆ faceFluxCorrectionPtr() [1/2]

◆ faceFluxCorrectionPtr() [2/2]

◆ hasFaceFluxCorrection()

◆ setValues() [1/3]

◆ setValues() [2/3]

◆ setValues() [3/3]

◆ setReference()

◆ setReferences() [1/2]

◆ setReferences() [2/2]

◆ setComponentReference() [1/3]

◆ relax() [1/2]

◆ relax() [2/2]

◆ solve() [1/5]

◆ solve() [2/5]

◆ solve() [3/5]

◆ residual() [1/3]

◆ D()

◆ A()

◆ H() [1/3]

◆ flux()

◆ solverDict() [1/2]

◆ solverDict() [2/2]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ negate()

◆ operator+=() [1/7]

◆ operator+=() [2/7]

◆ operator-=() [1/7]

◆ operator-=() [2/7]

◆ operator+=() [3/7]

◆ operator+=() [4/7]

◆ operator+=() [5/7]

◆ operator-=() [3/7]

◆ operator-=() [4/7]

◆ operator-=() [5/7]

◆ operator+=() [6/7]

◆ operator-=() [6/7]

◆ operator+=() [7/7]

◆ operator-=() [7/7]

◆ operator*=() [1/4]

◆ operator*=() [2/4]

◆ operator*=() [3/4]

◆ operator*=() [4/4]

◆ setComponentReference() [2/3]
