#include <faDdtScheme.H>

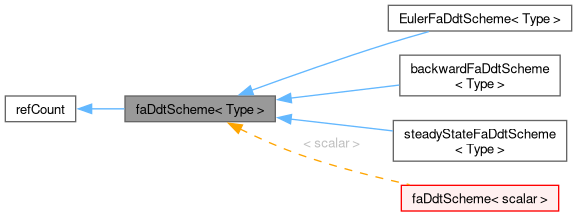

Inheritance diagram for faDdtScheme< Type >:

[legend]

Collaboration diagram for faDdtScheme< Type >:

[legend]

Public Member Functions
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (tmp, faDdtScheme, Istream,(const faMesh &mesh, Istream &schemeData),(mesh, schemeData))
	faDdtScheme (const faDdtScheme &)=delete
	No copy construct.
void	operator= (const faDdtScheme &)=delete
	No copy assignment.
	faDdtScheme (const faMesh &mesh)
	Construct from mesh.
	faDdtScheme (const faMesh &mesh, Istream &)
	Construct from mesh and Istream.
virtual	~faDdtScheme ()
	Destructor.
const faMesh &	mesh () const noexcept
	Return mesh reference.
virtual tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt (const dimensioned< Type >)=0
virtual tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt0 (const dimensioned< Type >)=0
virtual tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt (const GeometricField< Type, faPatchField, areaMesh > &)=0
virtual tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt0 (const GeometricField< Type, faPatchField, areaMesh > &)=0
virtual tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt (const dimensionedScalar &, const GeometricField< Type, faPatchField, areaMesh > &)=0
virtual tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt0 (const dimensionedScalar &, const GeometricField< Type, faPatchField, areaMesh > &)=0
virtual tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt (const areaScalarField &, const GeometricField< Type, faPatchField, areaMesh > &)=0
virtual tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt0 (const areaScalarField &, const GeometricField< Type, faPatchField, areaMesh > &)=0
virtual tmp< faMatrix< Type > >	famDdt (const GeometricField< Type, faPatchField, areaMesh > &)=0
virtual tmp< faMatrix< Type > >	famDdt (const dimensionedScalar &, const GeometricField< Type, faPatchField, areaMesh > &)=0
virtual tmp< faMatrix< Type > >	famDdt (const areaScalarField &, const GeometricField< Type, faPatchField, areaMesh > &)=0
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Static Public Member Functions
static tmp< faDdtScheme< Type > >	New (const faMesh &mesh, Istream &schemeData)
	Return a pointer to a new faDdtScheme created on freestore.

Protected Attributes
const faMesh &	mesh_
	Reference to mesh.

Detailed Description

template<class Type>
class Foam::fa::faDdtScheme< Type >

Definition at line 61 of file faDdtScheme.H.

Constructor & Destructor Documentation

◆ faDdtScheme() [1/3]

template<class Type>

faDdtScheme ( const faDdtScheme< Type > & )

delete

No copy construct.

References faDdtScheme().

Referenced by backwardFaDdtScheme< Type >::backwardFaDdtScheme(), backwardFaDdtScheme< Type >::backwardFaDdtScheme(), declareRunTimeSelectionTable(), EulerFaDdtScheme< Type >::EulerFaDdtScheme(), EulerFaDdtScheme< Type >::EulerFaDdtScheme(), faDdtScheme(), operator=(), steadyStateFaDdtScheme< Type >::steadyStateFaDdtScheme(), and steadyStateFaDdtScheme< Type >::steadyStateFaDdtScheme().

Here is the call graph for this function:

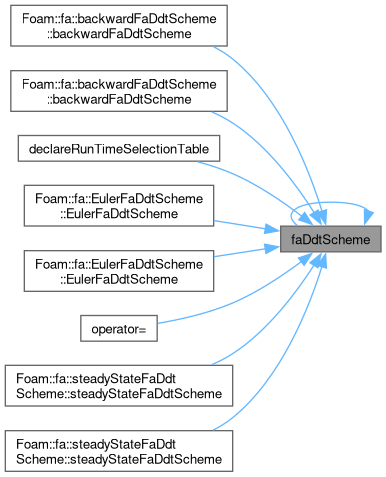

Here is the caller graph for this function:

◆ faDdtScheme() [2/3]

template<class Type>

faDdtScheme ( const faMesh & mesh )

inline

Construct from mesh.

Definition at line 113 of file faDdtScheme.H.

References mesh(), and mesh_.

Here is the call graph for this function:

◆ faDdtScheme() [3/3]

template<class Type>

faDdtScheme	(	const faMesh &	mesh,
		Istream &	)

inline

Construct from mesh and Istream.

Definition at line 121 of file faDdtScheme.H.

References mesh(), and mesh_.

Here is the call graph for this function:

◆ ~faDdtScheme()

template<class Type>

~faDdtScheme ( )

virtual

Destructor.

Definition at line 81 of file faDdtScheme.C.

Member Function Documentation

◆ type()

template<class Type>

virtual const word & type ( ) const

pure virtual

Runtime type information.

◆ declareRunTimeSelectionTable()

template<class Type>

declareRunTimeSelectionTable	(	tmp	,
		faDdtScheme< Type >	,
		Istream	,
		(const faMesh &mesh, Istream &schemeData)	,
		(mesh, schemeData)	)

References faDdtScheme(), and mesh().

Here is the call graph for this function:

◆ operator=()

template<class Type>

void operator= ( const faDdtScheme< Type > & )

delete

No copy assignment.

References faDdtScheme().

Here is the call graph for this function:

◆ New()

template<class Type>

tmp< faDdtScheme< Type > > New	(	const faMesh &	mesh,
		Istream &	schemeData )

static

Return a pointer to a new faDdtScheme created on freestore.

Definition at line 37 of file faDdtScheme.C.

References Foam::endl(), IOstream::eof(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FatalIOErrorInLookup, InfoInFunction, mesh(), and Foam::nl.

Referenced by Foam::fac::ddt(), Foam::fac::ddt(), Foam::fac::ddt(), Foam::fac::ddt(), Foam::fam::ddt(), Foam::fam::ddt(), and Foam::fam::ddt().

Here is the call graph for this function:

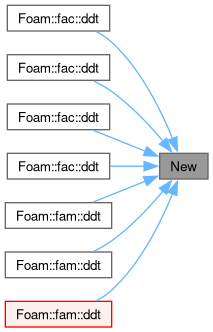

Here is the caller graph for this function:

◆ mesh()

template<class Type>

const faMesh & mesh ( ) const

inlinenoexcept

Return mesh reference.

Definition at line 150 of file faDdtScheme.H.

References mesh_, and Foam::noexcept.

Referenced by declareRunTimeSelectionTable(), faDdtScheme(), faDdtScheme(), backwardFaDdtScheme< Type >::mesh(), boundedBackwardFaDdtScheme::mesh(), EulerFaDdtScheme< Type >::mesh(), steadyStateFaDdtScheme< Type >::mesh(), and New().

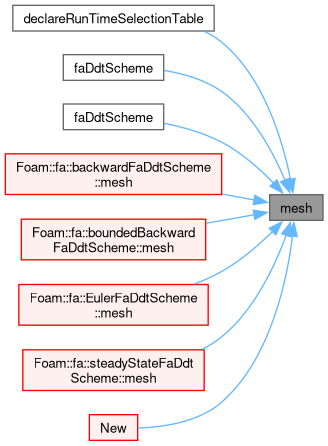

Here is the caller graph for this function:

◆ facDdt() [1/4]

template<class Type>

virtual tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt ( const dimensioned< Type > )

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ facDdt0() [1/4]

template<class Type>

virtual tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt0 ( const dimensioned< Type > )

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ facDdt() [2/4]

template<class Type>

virtual tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt ( const GeometricField< Type, faPatchField, areaMesh > & )

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ facDdt0() [2/4]

template<class Type>

virtual tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt0 ( const GeometricField< Type, faPatchField, areaMesh > & )

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ facDdt() [3/4]

template<class Type>

virtual tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt	(	const dimensionedScalar &	,
		const GeometricField< Type, faPatchField, areaMesh > &	)

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ facDdt0() [3/4]

template<class Type>

virtual tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt0	(	const dimensionedScalar &	,
		const GeometricField< Type, faPatchField, areaMesh > &	)

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ facDdt() [4/4]

template<class Type>

virtual tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt	(	const areaScalarField &	,
		const GeometricField< Type, faPatchField, areaMesh > &	)

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ facDdt0() [4/4]

template<class Type>

virtual tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt0	(	const areaScalarField &	,
		const GeometricField< Type, faPatchField, areaMesh > &	)

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ famDdt() [1/3]

template<class Type>

virtual tmp< faMatrix< Type > > famDdt ( const GeometricField< Type, faPatchField, areaMesh > & )

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ famDdt() [2/3]

template<class Type>

virtual tmp< faMatrix< Type > > famDdt	(	const dimensionedScalar &	,
		const GeometricField< Type, faPatchField, areaMesh > &	)

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

◆ famDdt() [3/3]

template<class Type>

virtual tmp< faMatrix< Type > > famDdt	(	const areaScalarField &	,
		const GeometricField< Type, faPatchField, areaMesh > &	)

pure virtual

Implemented in backwardFaDdtScheme< Type >, EulerFaDdtScheme< Type >, and steadyStateFaDdtScheme< Type >.

Member Data Documentation

◆ mesh_

template<class Type>

const faMesh& mesh_

protected

Reference to mesh.

Definition at line 72 of file faDdtScheme.H.

Referenced by faDdtScheme(), faDdtScheme(), and mesh().

The documentation for this class was generated from the following files:

src/finiteArea/finiteArea/ddtSchemes/faDdtScheme/faDdtScheme.H
src/finiteArea/finiteArea/ddtSchemes/faDdtScheme/faDdtScheme.C
