#include <steadyStateFaDdtScheme.H>

Inheritance diagram for steadyStateFaDdtScheme< Type >:

Collaboration diagram for steadyStateFaDdtScheme< Type >:

Public Member Functions
	TypeName ("steadyState")
	Runtime type information.
	steadyStateFaDdtScheme (const steadyStateFaDdtScheme &)=delete
	No copy construct.
void	operator= (const steadyStateFaDdtScheme &)=delete
	No copy assignment.
	steadyStateFaDdtScheme (const faMesh &mesh)
	Construct from mesh.
	steadyStateFaDdtScheme (const faMesh &mesh, Istream &is)
	Construct from mesh and Istream.
const faMesh &	mesh () const
	Return mesh reference.
tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt (const dimensioned< Type >)
tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt0 (const dimensioned< Type >)
tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt (const GeometricField< Type, faPatchField, areaMesh > &)
tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt0 (const GeometricField< Type, faPatchField, areaMesh > &)
tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt (const dimensionedScalar &, const GeometricField< Type, faPatchField, areaMesh > &)
tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt0 (const dimensionedScalar &, const GeometricField< Type, faPatchField, areaMesh > &)
tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt (const areaScalarField &, const GeometricField< Type, faPatchField, areaMesh > &)
tmp< GeometricField< Type, faPatchField, areaMesh > >	facDdt0 (const areaScalarField &, const GeometricField< Type, faPatchField, areaMesh > &)
tmp< faMatrix< Type > >	famDdt (const GeometricField< Type, faPatchField, areaMesh > &)
tmp< faMatrix< Type > >	famDdt (const dimensionedScalar &, const GeometricField< Type, faPatchField, areaMesh > &)
tmp< faMatrix< Type > >	famDdt (const areaScalarField &, const GeometricField< Type, faPatchField, areaMesh > &)
Public Member Functions inherited from faDdtScheme< Type >
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (tmp, faDdtScheme, Istream,(const faMesh &mesh, Istream &schemeData),(mesh, schemeData))
	faDdtScheme (const faDdtScheme &)=delete
	No copy construct.
void	operator= (const faDdtScheme &)=delete
	No copy assignment.
	faDdtScheme (const faMesh &mesh)
	Construct from mesh.
	faDdtScheme (const faMesh &mesh, Istream &)
	Construct from mesh and Istream.
virtual	~faDdtScheme ()
	Destructor.
const faMesh &	mesh () const noexcept
	Return mesh reference.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from faDdtScheme< Type >
static tmp< faDdtScheme< Type > >	New (const faMesh &mesh, Istream &schemeData)
	Return a pointer to a new faDdtScheme created on freestore.
Protected Attributes inherited from faDdtScheme< Type >
const faMesh &	mesh_
	Reference to mesh.

Detailed Description

template<class Type>
class Foam::fa::steadyStateFaDdtScheme< Type >

Definition at line 52 of file steadyStateFaDdtScheme.H.

Constructor & Destructor Documentation

◆ steadyStateFaDdtScheme() [1/3]

template<class Type>

steadyStateFaDdtScheme ( const steadyStateFaDdtScheme< Type > & )

delete

No copy construct.

References steadyStateFaDdtScheme().

Referenced by operator=(), and steadyStateFaDdtScheme().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ steadyStateFaDdtScheme() [2/3]

template<class Type>

steadyStateFaDdtScheme ( const faMesh & mesh )

inline

Construct from mesh.

Definition at line 82 of file steadyStateFaDdtScheme.H.

References faDdtScheme< Type >::faDdtScheme(), and mesh().

Here is the call graph for this function:

◆ steadyStateFaDdtScheme() [3/3]

template<class Type>

steadyStateFaDdtScheme	(	const faMesh &	mesh,
		Istream &	is )

inline

Construct from mesh and Istream.

Definition at line 90 of file steadyStateFaDdtScheme.H.

References faDdtScheme< Type >::faDdtScheme(), and mesh().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class Type>

TypeName ( "steadyState" )

Runtime type information.

◆ operator=()

template<class Type>

void operator= ( const steadyStateFaDdtScheme< Type > & )

delete

No copy assignment.

References steadyStateFaDdtScheme().

Here is the call graph for this function:

◆ mesh()

template<class Type>

const faMesh & mesh ( ) const

inline

Return mesh reference.

Definition at line 101 of file steadyStateFaDdtScheme.H.

References faDdtScheme< Type >::mesh().

Referenced by facDdt(), facDdt(), facDdt(), facDdt(), facDdt0(), facDdt0(), facDdt0(), facDdt0(), steadyStateFaDdtScheme(), and steadyStateFaDdtScheme().

Here is the call graph for this function:

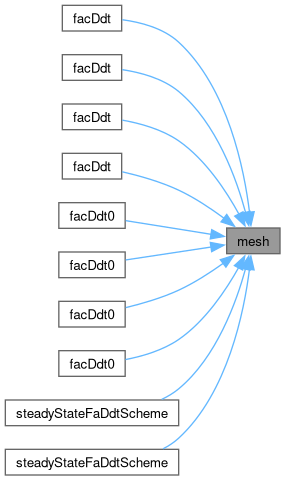

Here is the caller graph for this function:

◆ facDdt() [1/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt ( const dimensioned< Type > dt )

virtual

Implements faDdtScheme< Type >.

Definition at line 39 of file steadyStateFaDdtScheme.C.

References dimensioned< Type >::dimensions(), Foam::dimTime, mesh(), dimensioned< Type >::name(), GeometricField< Type, PatchField, GeoMesh >::New(), and IOobjectOption::REGISTER.

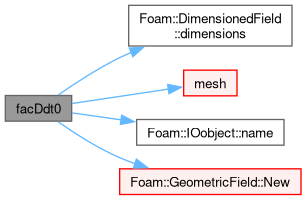

Here is the call graph for this function:

◆ facDdt0() [1/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt0 ( const dimensioned< Type > dt )

virtual

Implements faDdtScheme< Type >.

Definition at line 57 of file steadyStateFaDdtScheme.C.

References dimensioned< Type >::dimensions(), Foam::dimTime, mesh(), dimensioned< Type >::name(), GeometricField< Type, PatchField, GeoMesh >::New(), and IOobjectOption::REGISTER.

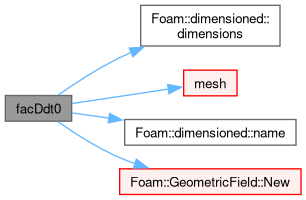

Here is the call graph for this function:

◆ facDdt() [2/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt ( const GeometricField< Type, faPatchField, areaMesh > & vf )

virtual

Implements faDdtScheme< Type >.

Definition at line 75 of file steadyStateFaDdtScheme.C.

References DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::New(), and IOobjectOption::REGISTER.

Here is the call graph for this function:

◆ facDdt0() [2/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt0 ( const GeometricField< Type, faPatchField, areaMesh > & vf )

virtual

Implements faDdtScheme< Type >.

Definition at line 93 of file steadyStateFaDdtScheme.C.

References DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::New(), and IOobjectOption::REGISTER.

Here is the call graph for this function:

◆ facDdt() [3/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt	(	const dimensionedScalar &	rho,
		const GeometricField< Type, faPatchField, areaMesh > &	vf )

virtual

Implements faDdtScheme< Type >.

Definition at line 111 of file steadyStateFaDdtScheme.C.

References DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::New(), IOobjectOption::REGISTER, and rho.

Here is the call graph for this function:

◆ facDdt0() [3/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt0	(	const dimensionedScalar &	rho,
		const GeometricField< Type, faPatchField, areaMesh > &	vf )

virtual

Implements faDdtScheme< Type >.

Definition at line 129 of file steadyStateFaDdtScheme.C.

References DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::New(), IOobjectOption::REGISTER, and rho.

Here is the call graph for this function:

◆ facDdt() [4/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt	(	const areaScalarField &	rho,
		const GeometricField< Type, faPatchField, areaMesh > &	vf )

virtual

Implements faDdtScheme< Type >.

Definition at line 148 of file steadyStateFaDdtScheme.C.

References DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::New(), IOobjectOption::REGISTER, and rho.

Here is the call graph for this function:

◆ facDdt0() [4/4]

template<class Type>

tmp< GeometricField< Type, faPatchField, areaMesh > > facDdt0	(	const areaScalarField &	rho,
		const GeometricField< Type, faPatchField, areaMesh > &	vf )

virtual

Implements faDdtScheme< Type >.

Definition at line 167 of file steadyStateFaDdtScheme.C.

References DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, mesh(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::New(), IOobjectOption::REGISTER, and rho.

Here is the call graph for this function:

◆ famDdt() [1/3]

template<class Type>

tmp< faMatrix< Type > > famDdt ( const GeometricField< Type, faPatchField, areaMesh > & vf )

virtual

Implements faDdtScheme< Type >.

Definition at line 185 of file steadyStateFaDdtScheme.C.

References Foam::dimArea, DimensionedField< Type, GeoMesh >::dimensions(), and Foam::dimTime.

Here is the call graph for this function:

◆ famDdt() [2/3]

template<class Type>

tmp< faMatrix< Type > > famDdt	(	const dimensionedScalar &	rho,
		const GeometricField< Type, faPatchField, areaMesh > &	vf )

virtual

Implements faDdtScheme< Type >.

Definition at line 205 of file steadyStateFaDdtScheme.C.

References Foam::dimArea, DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, and rho.

Here is the call graph for this function:

◆ famDdt() [3/3]

template<class Type>

tmp< faMatrix< Type > > famDdt	(	const areaScalarField &	rho,
		const GeometricField< Type, faPatchField, areaMesh > &	vf )

virtual

Implements faDdtScheme< Type >.

Definition at line 226 of file steadyStateFaDdtScheme.C.

References Foam::dimArea, DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimTime, and rho.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/finiteArea/finiteArea/ddtSchemes/steadyStateFaDdtScheme/steadyStateFaDdtScheme.H
src/finiteArea/finiteArea/ddtSchemes/steadyStateFaDdtScheme/steadyStateFaDdtScheme.C
