Intermediate abstract class for handling face-set options for the derived faOptions. More...

#include <faceSetOption.H>

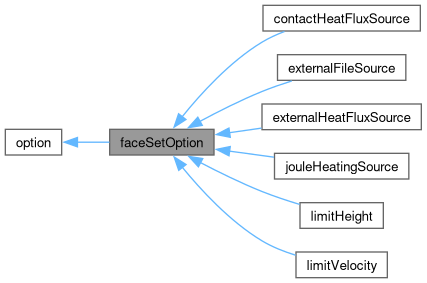

Inheritance diagram for faceSetOption:

[legend]

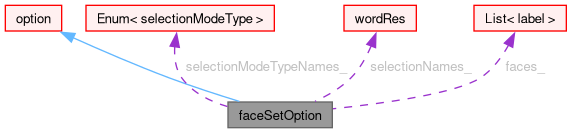

Collaboration diagram for faceSetOption:

[legend]

Public Types
enum	selectionModeType { smAll , smFaceSet , smFaceZone , smPatch }
	Enumeration for selection mode types. More...

Public Member Functions
	TypeName ("faceSetOption")
	Runtime type information.
	faceSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh, const word &defaultAreaName=word())
	Construct from components.
virtual	~faceSetOption ()=default
	Destructor.
scalar	timeStart () const noexcept
	Return const access to the time start.
scalar	duration () const noexcept
	Return const access to the duration.
bool	inTimeLimits (const scalar timeValue) const
	Return true if within time limits.
bool	useSubMesh () const noexcept
	True if sub-selection should be used.
selectionModeType	selectionMode () const noexcept
	Return the face selection mode.
const wordRes &	selectionNames () const noexcept
	Return const access to the selection names (set, zone or patch selection).
const wordRe &	zoneName () const
	Return const access to the first set/zone/patch name.
scalar	A () const noexcept
	Return const access to the total face area.
const labelList &	faces () const noexcept
	Return const access to the local finite-area face selection.
scalar	timeStart (scalar val) noexcept
	Adjust the time start, return the old value.
scalar	duration (scalar val) noexcept
	Adjust the duration, return the old value.
virtual bool	isActive ()
	Is the source active?
virtual bool	read (const dictionary &dict)
	Read source dictionary.
Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh, const word &areaName),(name, modelType, dict, mesh, areaName))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh, const word &defaultAreaName=word())
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	The source name.
const fvMesh &	mesh () const noexcept
	Return const access to the volume mesh.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
const word &	areaName () const noexcept
	The finite-area mesh name.
const word &	regionName () const noexcept
	The model region name.
const faMesh &	regionMesh () const
	Return the region mesh database (demand-driven).
const volSurfaceMapping &	vsm () const
	Return volSurfaceMapping (demand-driven).
bool	active (bool on) noexcept
	Change source active flag, return previous value.
const word &	suffixHint () const noexcept
	The suffix hint when generating variable names.
word	suffixed (const char *base) const
	Return the concatenation of `base` and the suffix hint.
word	suffixed (const std::string &base) const
	Return the concatenation of `base` and the suffix hint.
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (const areaScalarField &h, faMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, faMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, faMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, faMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, faMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (faMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (faMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (faMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (faMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (faMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (areaScalarField &field)
virtual void	correct (areaVectorField &field)
virtual void	correct (areaSphericalTensorField &field)
virtual void	correct (areaSymmTensorField &field)
virtual void	correct (areaTensorField &field)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.

Static Public Attributes
static const Enum< selectionModeType >	selectionModeTypeNames_
	List of selection mode type names.

Protected Member Functions
void	setSelection (const dictionary &dict)
	Set face selection name from dictionary input.
void	setFaceSelection ()
	Set face selection based on user input selection mode.
void	setArea ()
	Recalculate the area.
template<class Type>
void	subsetFilter (List< Type > &field) const
	Zero all non-selected locations within field.
Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.

Protected Attributes
scalar	timeStart_
	Time start.
scalar	duration_
	Duration.
selectionModeType	selectionMode_
	Face selection mode.
wordRes	selectionNames_
	Face selection names (for set, zone or patch selections).
labelList	faces_
	Set of faces to apply source to.
scalar	A_
	Sum of face area.
Protected Attributes inherited from option
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
word	areaName_
	The finite-area mesh name.
word	regionName_
	The model region name (finite-area).
word	suffixHint_
	Suffix hint for variable names (default: "").

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh, const word &defaultAreaName=word())
	Return a reference to the selected faOption model.
static bool	sameRegionNames (const word &name1, const word &name2)
	Compare the region names.
Public Attributes inherited from option
bool	log
	Switch write log to Info.

Detailed Description

Intermediate abstract class for handling face-set options for the derived faOptions.

Usage

Minimal example by using constant/faOptions:

<userDefinedName1>
{
    // Mandatory/Optional (inherited) entries
    ...

    // Mandatory entries (unmodifiable)
    selectionMode   all;

    // Optional entries (runtime modifiable)
    timeStart       1.0;

    // Conditional mandatory entries (runtime modifiable)

    // when timeStart entry is present
    duration        1.4;

    // when selectionMode=faceZone
    faceZones       (<name> ...);
    //or: faceZone  <name>;

    // when selectionMode=patch
    patches         (<name> ...)
    //or: patch     <name>;
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`selectionMode`	Mode of face selection - see below	word	yes	-
`timeStart`	Start time of faOption	scalar	no	-1
`duration`	Duration of faOption execution starting from timeStart	scalar	cndtnl	0
`faceSet`	Name of operand faceSet	word	cndtnl	-
`faceZone`	Name of operand faceZone(s)	wordRe	cndtnl	-
`faceZones`	Names of operand faceZones	wordRes	cndtnl	-
`patch`	Name of operand poly patch(s)	wordRe	cndtnl	-
`patches`	Names of operand poly patches	wordRes	cndtnl	-

Options for the selectionMode entry:

      all       | Use all faces in the computational domain
      faceSet   | Use subset corresponding to specified (volume) faceSet
      faceZones | Use subset corresponding to specified (volume) faceZones
      faceZone  | Use subset corresponding to specified (volume) faceZones
      patch     | Use subset corresponding of specified volume patches
      patches   | Use subset corresponding of specified volume patches

The inherited entries are elaborated in:

faOption.H

Note

Source/sink options are to be added to the right-hand side of equations.

Source files

Definition at line 167 of file faceSetOption.H.

Member Enumeration Documentation

◆ selectionModeType

enum selectionModeType

Enumeration for selection mode types.

Enumerator
smAll	"all" finite-area faces
smFaceSet	"faceSet" : subset with (volume) face set
smFaceZone	"faceZone" : subset with (volume) zone faces
smPatch	"patch" : subset with (volume) patches

Definition at line 178 of file faceSetOption.H.

Constructor & Destructor Documentation

◆ faceSetOption()

faceSetOption	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh,
		const word &	defaultAreaName = word() )

Construct from components.

Parameters

defaultAreaName The expected finite-area mesh name

Definition at line 286 of file faceSetOption.C.

References A_, option::coeffs_, Foam::decrIndent(), dict, duration_, Foam::incrIndent(), Foam::Info, isActive(), option::mesh(), option::name(), option::option(), read(), selectionMode_, selectionModeTypeNames_, selectionNames_, setArea(), setFaceSelection(), setSelection(), and timeStart_.

Referenced by contactHeatFluxSource::contactHeatFluxSource(), externalFileSource::externalFileSource(), externalHeatFluxSource::externalHeatFluxSource(), limitHeight::limitHeight(), and limitVelocity::limitVelocity().

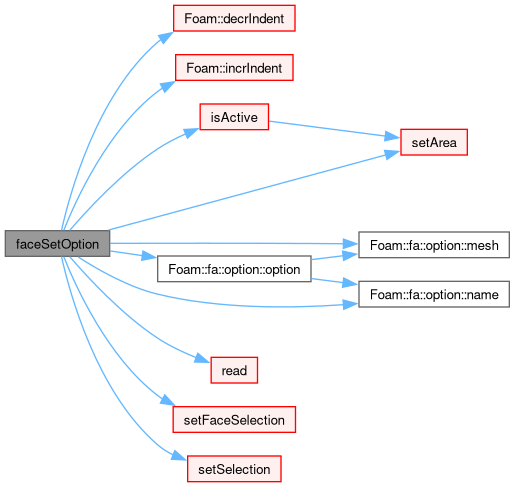

Here is the call graph for this function:

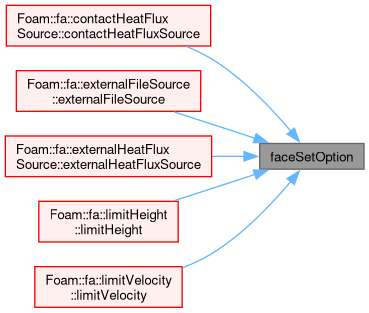

Here is the caller graph for this function:

◆ ~faceSetOption()

virtual ~faceSetOption ( )

virtualdefault

Destructor.

References A(), dict, duration(), faces(), inTimeLimits(), isActive(), Foam::noexcept, read(), selectionMode(), selectionNames(), timeStart(), useSubMesh(), and zoneName().

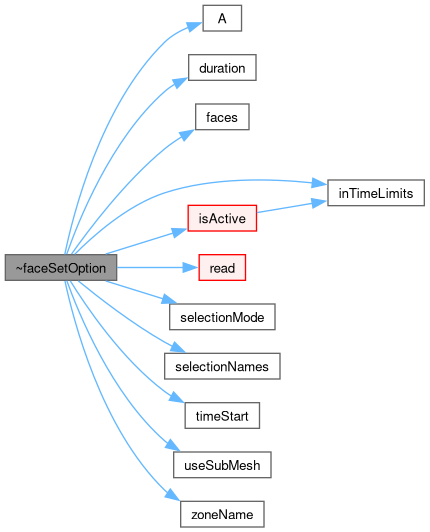

Here is the call graph for this function:

Member Function Documentation

◆ setSelection()

void setSelection ( const dictionary & dict )

protected

Set face selection name from dictionary input.

Definition at line 52 of file faceSetOption.C.

References dict, Foam::exit(), Foam::FatalError, FatalErrorInFunction, selectionMode_, selectionModeTypeNames_, selectionNames_, smAll, smFaceSet, smFaceZone, and smPatch.

Referenced by faceSetOption().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setFaceSelection()

void setFaceSelection ( )

protected

Set face selection based on user input selection mode.

Definition at line 139 of file faceSetOption.C.

References Foam::endl(), Foam::exit(), faceLabels(), faces_, Foam::FatalError, FatalErrorInFunction, UList< T >::first(), Foam::flatOutput(), forAll, Foam::identity(), Foam::indent(), Foam::Info, option::mesh_, Foam::nl, patchIDs, pbm, option::regionMesh(), Foam::returnReduceAnd(), selectionMode_, selectionModeTypeNames_, selectionNames_, UList< T >::size(), smAll, smFaceSet, smFaceZone, smPatch, Foam::subset(), WarningInFunction, zoneIDs, and zoneName().

Referenced by faceSetOption().

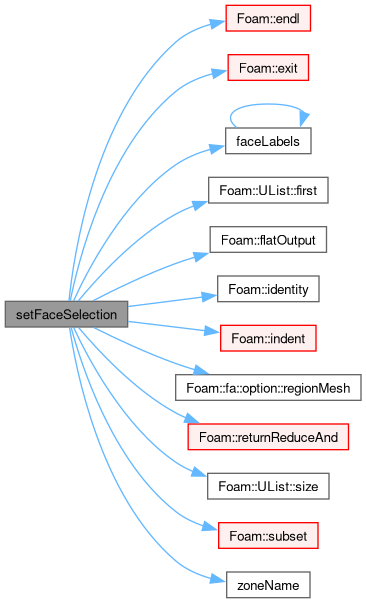

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setArea()

void setArea ( )

protected

Recalculate the area.

Definition at line 107 of file faceSetOption.C.

References A_, IOstream::defaultPrecision(), Foam::endl(), faces_, Foam::indent(), Foam::Info, Foam::reduce(), option::regionMesh(), Foam::returnReduce(), and Time::timeName().

Referenced by faceSetOption(), and isActive().

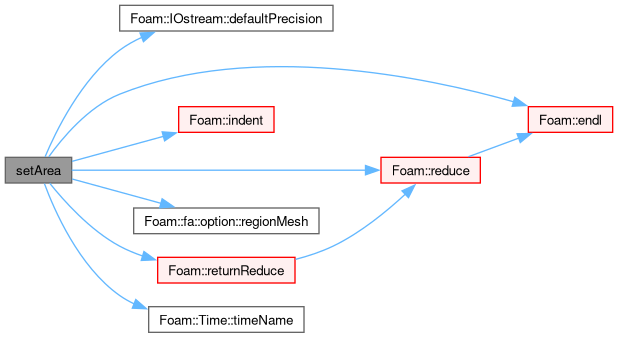

Here is the call graph for this function:

Here is the caller graph for this function:

◆ subsetFilter()

template<class Type>

void subsetFilter ( List< Type > & field ) const

inlineprotected

Zero all non-selected locations within field.

Definition at line 24 of file faceSetOptionI.H.

References faces_, field(), selectionMode_, smAll, and Foam::Zero.

Referenced by externalHeatFluxSource::addSup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "faceSetOption" )

Runtime type information.

References dict, option::mesh(), and option::name().

Here is the call graph for this function:

◆ timeStart() [1/2]

Foam::scalar timeStart ( ) const

inlinenoexcept

Return const access to the time start.

Definition at line 42 of file faceSetOptionI.H.

References Foam::noexcept, and timeStart_.

Referenced by ~faceSetOption().

Here is the caller graph for this function:

◆ duration() [1/2]

Foam::scalar duration ( ) const

inlinenoexcept

Return const access to the duration.

Definition at line 48 of file faceSetOptionI.H.

References duration_, and Foam::noexcept.

Referenced by ~faceSetOption().

Here is the caller graph for this function:

◆ inTimeLimits()

bool inTimeLimits ( const scalar timeValue ) const

inline

Return true if within time limits.

Definition at line 54 of file faceSetOptionI.H.

References duration_, option::mesh_, and timeStart_.

Referenced by isActive(), and ~faceSetOption().

Here is the caller graph for this function:

◆ useSubMesh()

bool useSubMesh ( ) const

inlinenoexcept

True if sub-selection should be used.

Definition at line 88 of file faceSetOptionI.H.

References Foam::noexcept, selectionMode_, and smAll.

Referenced by externalHeatFluxSource::addSup(), limitHeight::correct(), limitVelocity::correct(), and ~faceSetOption().

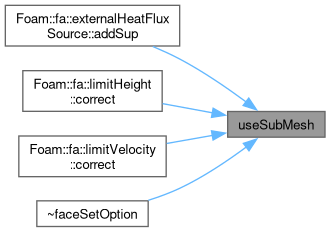

Here is the caller graph for this function:

◆ selectionMode()

Foam::fa::faceSetOption::selectionModeType selectionMode ( ) const

inlinenoexcept

Return the face selection mode.

Definition at line 69 of file faceSetOptionI.H.

References Foam::noexcept, and selectionMode_.

Referenced by ~faceSetOption().

Here is the caller graph for this function:

◆ selectionNames()

const Foam::wordRes & selectionNames ( ) const

inlinenoexcept

Return const access to the selection names (set, zone or patch selection).

Definition at line 76 of file faceSetOptionI.H.

References Foam::noexcept, and selectionNames_.

Referenced by ~faceSetOption().

Here is the caller graph for this function:

◆ zoneName()

const Foam::wordRe & zoneName ( ) const

inline

Return const access to the first set/zone/patch name.

Definition at line 82 of file faceSetOptionI.H.

References wordRe::null, and selectionNames_.

Referenced by setFaceSelection(), and ~faceSetOption().

Here is the caller graph for this function:

◆ A()

Foam::scalar A ( ) const

inlinenoexcept

Return const access to the total face area.

Definition at line 94 of file faceSetOptionI.H.

References A_, and Foam::noexcept.

Referenced by externalHeatFluxSource::addSup(), and ~faceSetOption().

Here is the caller graph for this function:

◆ faces()

const Foam::labelList & faces ( ) const

inlinenoexcept

Return const access to the local finite-area face selection.

Definition at line 100 of file faceSetOptionI.H.

References faces_, and Foam::noexcept.

Referenced by externalHeatFluxSource::addSup(), and ~faceSetOption().

Here is the caller graph for this function:

◆ timeStart() [2/2]

Foam::scalar timeStart ( scalar val )

inlinenoexcept

Adjust the time start, return the old value.

Definition at line 106 of file faceSetOptionI.H.

References timeStart_.

◆ duration() [2/2]

Foam::scalar duration ( scalar val )

inlinenoexcept

Adjust the duration, return the old value.

Definition at line 114 of file faceSetOptionI.H.

References duration_.

◆ isActive()

bool isActive ( )

virtual

Is the source active?

Reimplemented from option.

Definition at line 316 of file faceSetOption.C.

References A_, inTimeLimits(), option::isActive(), option::mesh_, and setArea().

Referenced by contactHeatFluxSource::addSup(), externalFileSource::addSup(), externalHeatFluxSource::addSup(), faceSetOption(), and ~faceSetOption().

Here is the call graph for this function:

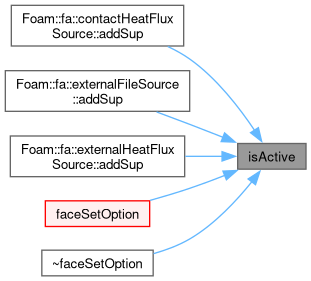

Here is the caller graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read source dictionary.

Reimplemented from option.

Reimplemented in contactHeatFluxSource, externalFileSource, externalHeatFluxSource, jouleHeatingSource, limitHeight, and limitVelocity.

Definition at line 341 of file faceSetOption.C.

References option::coeffs_, dict, duration_, option::read(), and timeStart_.

Referenced by faceSetOption(), limitHeight::read(), limitVelocity::read(), and ~faceSetOption().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ selectionModeTypeNames_

const Foam::Enum< Foam::fa::faceSetOption::selectionModeType > selectionModeTypeNames_

static

List of selection mode type names.

Definition at line 189 of file faceSetOption.H.

Referenced by faceSetOption(), setFaceSelection(), and setSelection().

◆ timeStart_

scalar timeStart_

protected

Time start.

Definition at line 199 of file faceSetOption.H.

Referenced by faceSetOption(), inTimeLimits(), read(), timeStart(), and timeStart().

◆ duration_

scalar duration_

protected

Duration.

Definition at line 204 of file faceSetOption.H.

Referenced by duration(), duration(), faceSetOption(), inTimeLimits(), and read().

◆ selectionMode_

selectionModeType selectionMode_

protected

Face selection mode.

Definition at line 209 of file faceSetOption.H.

Referenced by faceSetOption(), selectionMode(), setFaceSelection(), setSelection(), subsetFilter(), and useSubMesh().

◆ selectionNames_

wordRes selectionNames_

protected

Face selection names (for set, zone or patch selections).

Definition at line 214 of file faceSetOption.H.

Referenced by faceSetOption(), selectionNames(), setFaceSelection(), setSelection(), and zoneName().

◆ faces_

labelList faces_

protected

Set of faces to apply source to.

Definition at line 219 of file faceSetOption.H.

Referenced by limitHeight::correct(), limitVelocity::correct(), faces(), setArea(), setFaceSelection(), and subsetFilter().

◆ A_

scalar A_

protected

Sum of face area.

Definition at line 224 of file faceSetOption.H.

Referenced by A(), faceSetOption(), isActive(), and setArea().

The documentation for this class was generated from the following files:

src/faOptions/faceSetOption/faceSetOption.H
src/faOptions/faceSetOption/faceSetOption.C
src/faOptions/faceSetOption/faceSetOptionI.H

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ selectionModeType

Constructor & Destructor Documentation

◆ faceSetOption()

◆ ~faceSetOption()

Member Function Documentation

◆ setSelection()

◆ setFaceSelection()

◆ setArea()

◆ subsetFilter()

◆ TypeName()

◆ timeStart() [1/2]

◆ duration() [1/2]

◆ inTimeLimits()

◆ useSubMesh()

◆ selectionMode()

◆ selectionNames()

◆ zoneName()

◆ A()

◆ faces()

◆ timeStart() [2/2]

◆ duration() [2/2]

◆ isActive()

◆ read()

Member Data Documentation

◆ selectionModeTypeNames_

◆ timeStart_

◆ duration_

◆ selectionMode_

◆ selectionNames_

◆ faces_

◆ A_
