Base abstract class for handling finite area options (i.e. faOption). More...

#include <faOption.H>

Inheritance diagram for option:

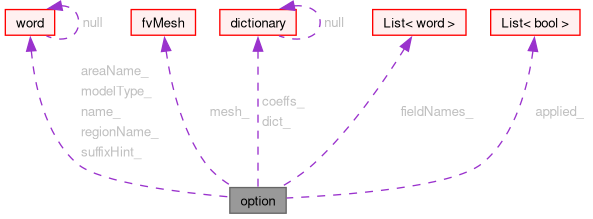

Collaboration diagram for option:

[legend]

Classes
class	iNew
	Return pointer to new faOption object created on the freestore from an Istream. More...

Public Member Functions
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh, const word &areaName),(name, modelType, dict, mesh, areaName))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh, const word &defaultAreaName=word())
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	The source name.
const fvMesh &	mesh () const noexcept
	Return const access to the volume mesh.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
const word &	areaName () const noexcept
	The finite-area mesh name.
const word &	regionName () const noexcept
	The model region name.
const faMesh &	regionMesh () const
	Return the region mesh database (demand-driven).
const volSurfaceMapping &	vsm () const
	Return volSurfaceMapping (demand-driven).
bool	active (bool on) noexcept
	Change source active flag, return previous value.
const word &	suffixHint () const noexcept
	The suffix hint when generating variable names.
word	suffixed (const char *base) const
	Return the concatenation of `base` and the suffix hint.
word	suffixed (const std::string &base) const
	Return the concatenation of `base` and the suffix hint.
virtual bool	isActive ()
	Is the source active?
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (const areaScalarField &h, faMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, faMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, faMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, faMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, faMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (faMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (faMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (faMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (faMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (faMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (areaScalarField &field)
virtual void	correct (areaVectorField &field)
virtual void	correct (areaSphericalTensorField &field)
virtual void	correct (areaSymmTensorField &field)
virtual void	correct (areaTensorField &field)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.
virtual bool	read (const dictionary &dict)
	Read source dictionary.

Static Public Member Functions
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh, const word &defaultAreaName=word())
	Return a reference to the selected faOption model.
static bool	sameRegionNames (const word &name1, const word &name2)
	Compare the region names.

Public Attributes
bool	log
	Switch write log to Info.

Protected Member Functions
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.

Protected Attributes
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
word	areaName_
	The finite-area mesh name.
word	regionName_
	The model region name (finite-area).
word	suffixHint_
	Suffix hint for variable names (default: "").

Detailed Description

Base abstract class for handling finite area options (i.e. faOption).

Usage

Minimal example by using constant/faOptions:

<userDefinedName1>
{
    // Mandatory entries (unmodifiable)
    type              <faOptionName>;

    // Mandatory entries (runtime modifiable)
    region            <regionName>;

    // Optional entry (unmodifiable)
    area              <areaName>;

    // Optional entries (unmodifiable/runtime modifiable)
    <faOption>Coeffs
    {
        // subdictionary entries
    }

    // Optional entries (runtime modifiable)
    active            true;
    log               true;
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Name of operand faOption	word	yes	-
`area`	Name of finite-area mesh	word	no	region0
`region`	Name of operand region	word	yes	-
`<faOption>Coeffs`	Dictionary containing settings of the selected faOption settings	dictionary	no	-
`active`	Flag to (de)activate faOption	bool	no	true
`log`	Flag to log faOption-related info	bool	no	true
`suffixing`	Suffix hint for option variables	word	no	-

Note

Source/sink options are to be added to the right-hand side of equations.
Suffixing (true|false|none|default|...) currently selects between no suffix and ('_'+region).

Source files

Definition at line 148 of file faOption.H.

Constructor & Destructor Documentation

◆ option()

option	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh,
		const word &	defaultAreaName = word() )

Construct from components.

Parameters

defaultAreaName The expected finite-area mesh name

References dict, mesh(), and name().

Referenced by declareRunTimeSelectionTable(), and faceSetOption::faceSetOption().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~option()

virtual ~option ( )

virtualdefault

Destructor.

Member Function Documentation

◆ resetApplied()

void resetApplied ( )

protected

Resize/reset applied flag list for all fieldNames_ entries.

Referenced by externalFileSource::externalFileSource().

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "option" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		option	,
		dictionary	,
		(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh, const word &areaName)	,
		(name, modelType, dict, mesh, areaName)	)

References areaName(), dict, mesh(), name(), and option().

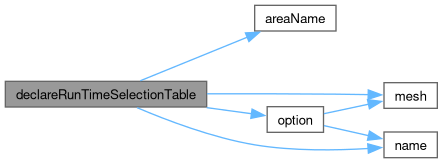

Here is the call graph for this function:

◆ clone()

autoPtr< option > clone ( ) const

inline

Return clone.

Definition at line 291 of file faOption.H.

References NotImplemented.

◆ New()

autoPtr< option > New	(	const word &	name,
		const dictionary &	dict,
		const fvMesh &	mesh,
		const word &	defaultAreaName = word() )

static

Return a reference to the selected faOption model.

Parameters

defaultAreaName The expected finite-area mesh name

References dict, mesh(), and name().

Referenced by option::iNew::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sameRegionNames()

bool sameRegionNames	(	const word &	name1,
		const word &	name2 )

static

Compare the region names.

Treats empty or polyMesh::defaultRegion as always matching

◆ name()

const word & name ( ) const

inlinenoexcept

The source name.

Definition at line 380 of file faOption.H.

References name_, and Foam::noexcept.

Referenced by contactHeatFluxSource::addSup(), declareRunTimeSelectionTable(), faceSetOption::faceSetOption(), option::iNew::iNew(), limitHeight::limitHeight(), limitVelocity::limitVelocity(), New(), option(), faceSetOption::TypeName(), limitHeight::TypeName(), and limitVelocity::TypeName().

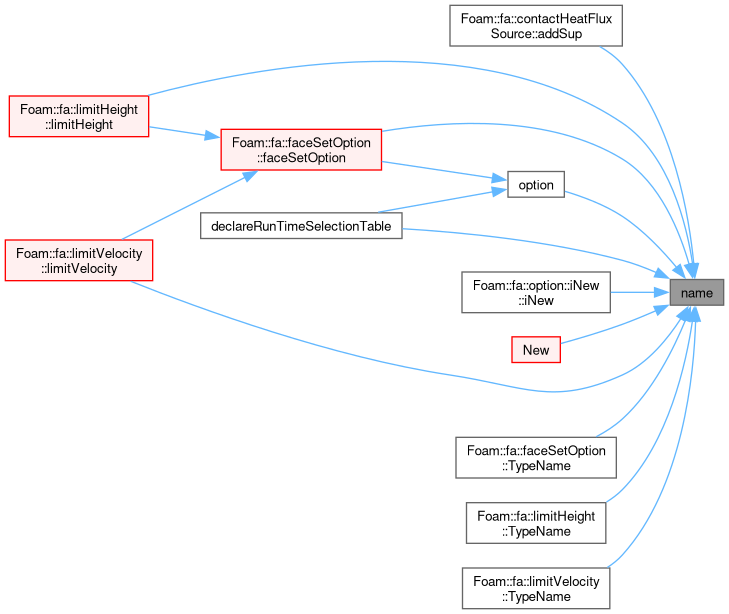

Here is the caller graph for this function:

◆ mesh()

const fvMesh & mesh ( ) const

inlinenoexcept

Return const access to the volume mesh.

Definition at line 385 of file faOption.H.

References mesh_, and Foam::noexcept.

Referenced by contactHeatFluxSource::contactHeatFluxSource(), declareRunTimeSelectionTable(), faceSetOption::faceSetOption(), option::iNew::iNew(), jouleHeatingSource::jouleHeatingSource(), limitHeight::limitHeight(), limitVelocity::limitVelocity(), New(), option(), contactHeatFluxSource::TypeName(), externalFileSource::TypeName(), externalHeatFluxSource::TypeName(), faceSetOption::TypeName(), limitHeight::TypeName(), and limitVelocity::TypeName().

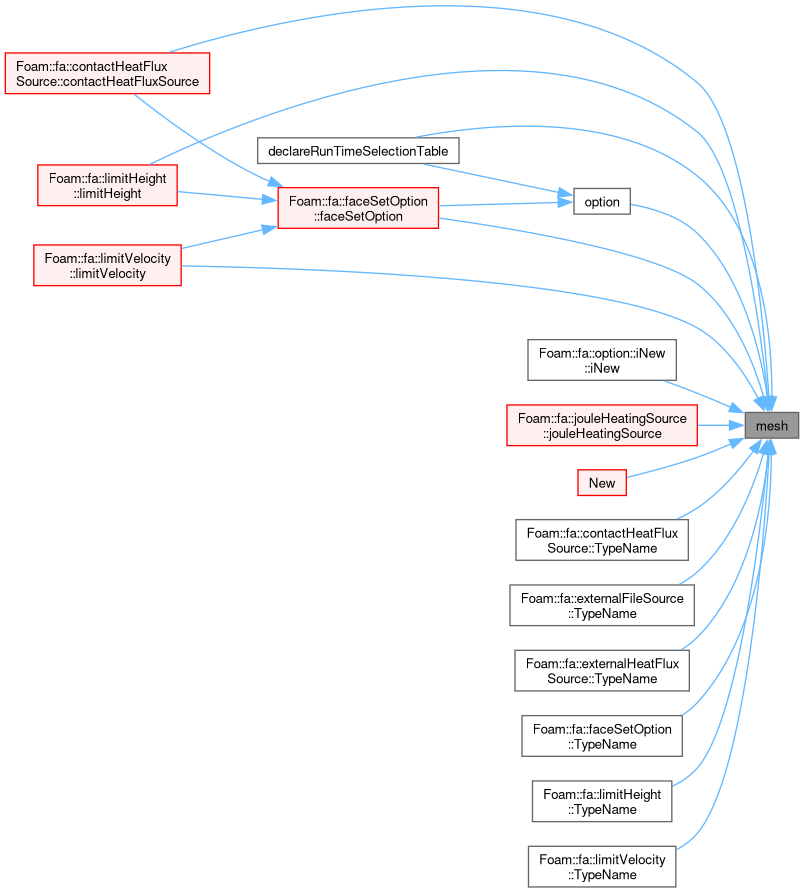

Here is the caller graph for this function:

◆ coeffs()

const dictionary & coeffs ( ) const

inlinenoexcept

Return dictionary.

Definition at line 390 of file faOption.H.

References coeffs_, and Foam::noexcept.

◆ active() [1/2]

bool active ( ) const

inlinenoexcept

True if source is active.

Definition at line 395 of file faOption.H.

References Foam::noexcept.

◆ setApplied()

void setApplied ( const label fieldi )

inline

Set the applied flag to true for field index fieldi.

Definition at line 31 of file faOptionI.H.

References applied_.

◆ areaName()

const word & areaName ( ) const

inlinenoexcept

The finite-area mesh name.

Definition at line 405 of file faOption.H.

References areaName_, and Foam::noexcept.

Referenced by declareRunTimeSelectionTable().

Here is the caller graph for this function:

◆ regionName()

const word & regionName ( ) const

inlinenoexcept

The model region name.

Definition at line 410 of file faOption.H.

References Foam::noexcept, and regionName_.

◆ regionMesh()

const Foam::faMesh & regionMesh ( ) const

inline

Return the region mesh database (demand-driven).

Definition at line 37 of file faOptionI.H.

References areaName_, and mesh_.

Referenced by contactHeatFluxSource::addSup(), externalHeatFluxSource::addSup(), externalFileSource::externalFileSource(), contactHeatFluxSource::read(), externalFileSource::read(), faceSetOption::setArea(), faceSetOption::setFaceSelection(), and vsm().

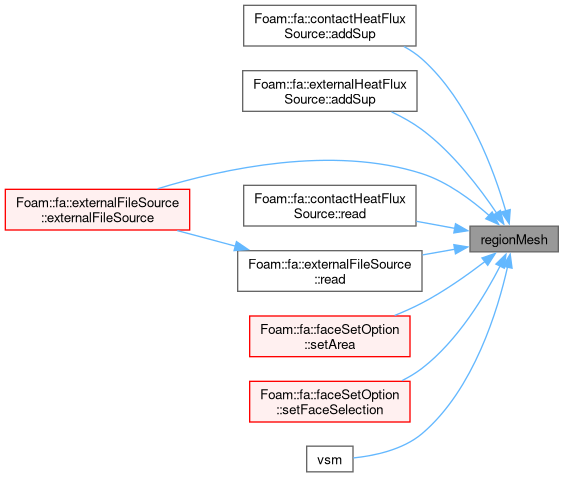

Here is the caller graph for this function:

◆ vsm()

const Foam::volSurfaceMapping & vsm ( ) const

inline

Return volSurfaceMapping (demand-driven).

Definition at line 47 of file faOptionI.H.

References regionMesh().

Here is the call graph for this function:

◆ active() [2/2]

bool active ( bool on )

inlinenoexcept

Change source active flag, return previous value.

Definition at line 23 of file faOptionI.H.

◆ suffixHint()

const word & suffixHint ( ) const

inlinenoexcept

The suffix hint when generating variable names.

Definition at line 436 of file faOption.H.

References Foam::noexcept, and suffixHint_.

◆ suffixed() [1/2]

Foam::word suffixed ( const char * base ) const

inline

Return the concatenation of base and the suffix hint.

Definition at line 58 of file faOptionI.H.

References suffixHint_.

◆ suffixed() [2/2]

Foam::word suffixed ( const std::string & base ) const

inline

Return the concatenation of base and the suffix hint.

Definition at line 65 of file faOptionI.H.

References suffixHint_.

◆ isActive()

virtual bool isActive ( )

virtual

Is the source active?

Reimplemented in faceSetOption.

Referenced by faceSetOption::isActive().

Here is the caller graph for this function:

◆ applyToField()

virtual label applyToField ( const word & fieldName ) const

virtual

Return index of field name if found in fieldNames list.

◆ checkApplied()

virtual void checkApplied ( ) const

virtual

Check that the source has been applied.

◆ addSup() [1/10]

virtual void addSup	(	const areaScalarField &	h,
		faMatrix< scalar > &	eqn,
		const label	fieldi )

virtual

Reimplemented in externalFileSource.

References h.

◆ addSup() [2/10]

virtual void addSup	(	const areaScalarField &	h,
		faMatrix< vector > &	eqn,
		const label	fieldi )

virtual

References h.

◆ addSup() [3/10]

virtual void addSup	(	const areaScalarField &	h,
		faMatrix< symmTensor > &	eqn,
		const label	fieldi )

virtual

References h.

◆ addSup() [4/10]

virtual void addSup	(	const areaScalarField &	h,
		faMatrix< sphericalTensor > &	eqn,
		const label	fieldi )

virtual

References h.

◆ addSup() [5/10]

virtual void addSup	(	const areaScalarField &	h,
		faMatrix< tensor > &	eqn,
		const label	fieldi )

virtual

References h.

◆ addSup() [6/10]

virtual void addSup	(	const areaScalarField &	h,
		const areaScalarField &	rho,
		faMatrix< scalar > &	eqn,
		const label	fieldi )

virtual

Reimplemented in contactHeatFluxSource, externalHeatFluxSource, and jouleHeatingSource.

References h, and rho.

◆ addSup() [7/10]

virtual void addSup	(	const areaScalarField &	h,
		const areaScalarField &	rho,
		faMatrix< vector > &	eqn,
		const label	fieldi )

virtual

References h, and rho.

◆ addSup() [8/10]

virtual void addSup	(	const areaScalarField &	h,
		const areaScalarField &	rho,
		faMatrix< symmTensor > &	eqn,
		const label	fieldi )

virtual

References h, and rho.

◆ addSup() [9/10]

virtual void addSup	(	const areaScalarField &	h,
		const areaScalarField &	rho,
		faMatrix< sphericalTensor > &	eqn,
		const label	fieldi )

virtual

References h, and rho.

◆ addSup() [10/10]

virtual void addSup	(	const areaScalarField &	h,
		const areaScalarField &	rho,
		faMatrix< tensor > &	eqn,
		const label	fieldi )

virtual

References h, and rho.

◆ constrain() [1/5]

virtual void constrain	(	faMatrix< scalar > &	eqn,
		const label	fieldi )

virtual

◆ constrain() [2/5]

virtual void constrain	(	faMatrix< vector > &	eqn,
		const label	fieldi )

virtual

◆ constrain() [3/5]

virtual void constrain	(	faMatrix< sphericalTensor > &	eqn,
		const label	fieldi )

virtual

◆ constrain() [4/5]

virtual void constrain	(	faMatrix< symmTensor > &	eqn,
		const label	fieldi )

virtual

◆ constrain() [5/5]

virtual void constrain	(	faMatrix< tensor > &	eqn,
		const label	fieldi )

virtual

◆ correct() [1/5]

virtual void correct ( areaScalarField & field )

virtual

Reimplemented in limitHeight.

References field().

Here is the call graph for this function:

◆ correct() [2/5]

virtual void correct ( areaVectorField & field )

virtual

Reimplemented in limitVelocity.

References field().

Here is the call graph for this function:

◆ correct() [3/5]

virtual void correct ( areaSphericalTensorField & field )

virtual

References field().

Here is the call graph for this function:

◆ correct() [4/5]

virtual void correct ( areaSymmTensorField & field )

virtual

References field().

Here is the call graph for this function:

◆ correct() [5/5]

virtual void correct ( areaTensorField & field )

virtual

References field().

Here is the call graph for this function:

◆ writeHeader()

virtual void writeHeader ( Ostream & ) const

virtual

Write the source header information.

◆ writeFooter()

virtual void writeFooter ( Ostream & ) const

virtual

Write the source footer information.

◆ writeData()

virtual void writeData ( Ostream & ) const

virtual

Write the source properties.

◆ read()

virtual bool read ( const dictionary & dict )

virtual

Read source dictionary.

Reimplemented in contactHeatFluxSource, externalFileSource, externalHeatFluxSource, faceSetOption, jouleHeatingSource, limitHeight, and limitVelocity.

References dict.

Referenced by contactHeatFluxSource::read(), externalFileSource::read(), externalHeatFluxSource::read(), and faceSetOption::read().

Here is the caller graph for this function:

Member Data Documentation

◆ name_

const word name_

protected

Source name.

Definition at line 165 of file faOption.H.

Referenced by limitHeight::correct(), limitVelocity::correct(), and name().

◆ modelType_

const word modelType_

protected

Model type.

Definition at line 170 of file faOption.H.

◆ mesh_

const fvMesh& mesh_

protected

Reference to the mesh database.

Definition at line 175 of file faOption.H.

Referenced by externalHeatFluxSource::addSup(), faceSetOption::inTimeLimits(), faceSetOption::isActive(), mesh(), contactHeatFluxSource::read(), externalFileSource::read(), externalHeatFluxSource::read(), regionMesh(), and faceSetOption::setFaceSelection().

◆ dict_

dictionary dict_

protected

Top level source dictionary.

Definition at line 180 of file faOption.H.

◆ coeffs_

dictionary coeffs_

protected

Dictionary containing source coefficients.

Definition at line 185 of file faOption.H.

Referenced by coeffs(), faceSetOption::faceSetOption(), limitVelocity::limitVelocity(), contactHeatFluxSource::read(), faceSetOption::read(), limitHeight::read(), and limitVelocity::read().

◆ fieldNames_

wordList fieldNames_

protected

Field names to apply source to - populated by derived models.

Definition at line 190 of file faOption.H.

Referenced by externalFileSource::externalFileSource(), limitVelocity::limitVelocity(), and limitHeight::read().

◆ applied_

List<bool> applied_

protected

Applied flag list - corresponds to each fieldNames_ entry.

Definition at line 195 of file faOption.H.

Referenced by limitVelocity::limitVelocity(), limitHeight::read(), and setApplied().

◆ areaName_

word areaName_

protected

The finite-area mesh name.

Definition at line 200 of file faOption.H.

Referenced by areaName(), and regionMesh().

◆ regionName_

word regionName_

protected

The model region name (finite-area).

Definition at line 205 of file faOption.H.

Referenced by regionName().

◆ suffixHint_

word suffixHint_

protected

Suffix hint for variable names (default: "").

Definition at line 210 of file faOption.H.

Referenced by suffixed(), suffixed(), and suffixHint().

◆ log

bool log

Switch write log to Info.

Definition at line 246 of file faOption.H.

The documentation for this class was generated from the following files:

src/faOptions/faOption/faOption.H
src/faOptions/faOption/faOptionI.H

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ option()

◆ ~option()

Member Function Documentation

◆ resetApplied()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ clone()

◆ New()

◆ sameRegionNames()

◆ name()

◆ mesh()

◆ coeffs()

◆ active() [1/2]

◆ setApplied()

◆ areaName()

◆ regionName()

◆ regionMesh()

◆ vsm()

◆ active() [2/2]

◆ suffixHint()

◆ suffixed() [1/2]

◆ suffixed() [2/2]

◆ isActive()

◆ applyToField()

◆ checkApplied()

◆ addSup() [1/10]

◆ addSup() [2/10]

◆ addSup() [3/10]

◆ addSup() [4/10]

◆ addSup() [5/10]

◆ addSup() [6/10]

◆ addSup() [7/10]

◆ addSup() [8/10]

◆ addSup() [9/10]

◆ addSup() [10/10]

◆ constrain() [1/5]

◆ constrain() [2/5]

◆ constrain() [3/5]

◆ constrain() [4/5]

◆ constrain() [5/5]

◆ correct() [1/5]

◆ correct() [2/5]

◆ correct() [3/5]

◆ correct() [4/5]

◆ correct() [5/5]

◆ writeHeader()

◆ writeFooter()

◆ writeData()

◆ read()

Member Data Documentation

◆ name_

◆ modelType_

◆ mesh_

◆ dict_

◆ coeffs_

◆ fieldNames_

◆ applied_

◆ areaName_

◆ regionName_

◆ suffixHint_

◆ log
