Read AVL/FIRE fpma, fpmb files. More...

#include <FIREMeshReader.H>

Inheritance diagram for FIREMeshReader:

[legend]

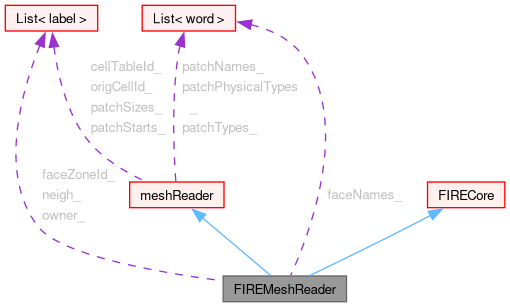

Collaboration diagram for FIREMeshReader:

[legend]

Public Member Functions
	FIREMeshReader (const fileName &, const scalar scaleFactor=1.0)
	Construct by reading file, optionally with scaling.
virtual	~FIREMeshReader ()=default
	Destructor.

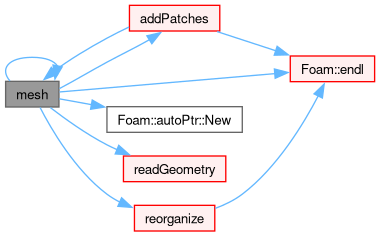

virtual autoPtr< polyMesh >	mesh (const objectRegistry &)
	Create and return polyMesh.
Public Member Functions inherited from meshReader
	meshReader (const fileName &, const scalar scaling=1.0)
	Construct from fileName.
virtual	~meshReader ()=default
	Destructor.
void	writeAux (const objectRegistry &) const
	Write auxiliary information.
void	writeMesh (const polyMesh &, IOstreamOption streamOpt=IOstreamOption(IOstreamOption::BINARY)) const
	Write mesh.

Protected Member Functions
	FIREMeshReader (const FIREMeshReader &)=delete
	No copy construct.
void	operator= (const FIREMeshReader &)=delete
	No copy assignment.

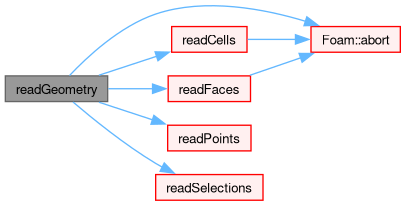

virtual bool	readGeometry (const scalar scaleFactor=1.0)
	Read the mesh from the file(s).
void	readPoints (ISstream &, const scalar scaleFactor=1.0)
	Read points from file.
void	readFaces (ISstream &)
	Read points from file.
void	readCells (ISstream &)
	Read cell connectivities from file.

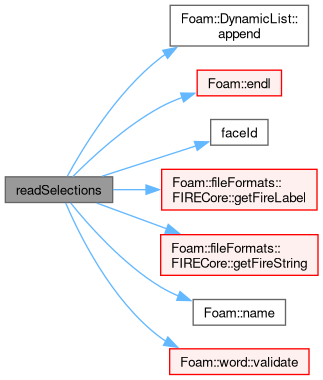

void	readSelections (ISstream &)
	Read cell/face selections from file.
void	reorganize ()
void	addPatches (polyMesh &) const
Protected Member Functions inherited from FIRECore
	FIRECore ()=default
	Construct null.

Protected Attributes
labelList	owner_
labelList	neigh_
labelList	faceZoneId_
wordList	faceNames_
Protected Attributes inherited from meshReader
fileName	geometryFile_
	Referenced filename.
scalar	scaleFactor_
	Geometry scaling.
pointField	points_
	Points supporting the mesh.
labelList	origCellId_
	Lookup original Cell number for a given cell.
List< List< cellFaceIdentifier > >	boundaryIds_
	Identify boundary faces by cells and their faces.
wordList	patchTypes_
	Boundary patch types.
wordList	patchNames_
	Boundary patch names.
wordList	patchPhysicalTypes_
	Boundary patch physical types.
labelList	patchStarts_
	Polyhedral mesh boundary patch start indices and dimensions.
labelList	patchSizes_
label	nInternalFaces_
	Number of internal faces for polyMesh.
faceList	meshFaces_
	Global face list for polyMesh.
faceListList	cellFaces_
	List of faces for every cell.
faceList	baffleFaces_
	List of each baffle face.
labelList	cellTableId_
	Cell table id for each cell.
cellTable	cellTable_
	Cell table persistent data saved as a dictionary.

Additional Inherited Members
Public Types inherited from FIRECore
enum	selectionType { cellSelection = 2 , faceSelection = 3 }
	Selection Types. More...
enum	shapeType { fireLine = 1 , fireTri = 2 , fireQuad = 3 , fireTet = 4 , fireHex = 5 , firePyr = 6 , firePrism = 8 }
	Shape-Type for FIRE (FLMA) files. More...
enum	fileExt3d { POLY_ASCII , POLY_BINARY , POLY_ASCII_Z , POLY_BINARY_Z }
	Enumeration defining the file extensions for 3D types. More...
typedef int32_t	fireInt_t
	Integer type (binary format).
typedef double	fireReal_t
	Float type (binary format).
Static Public Member Functions inherited from meshReader
static void	warnDuplicates (const word &context, const wordList &)
	Warn about repeated names.
Static Public Member Functions inherited from FIRECore
static fileName	fireFileName (const fileName &baseName, const enum fileExt3d)
	Resolve base file-name for the given file-type.
static label	getFireLabel (ISstream &)
	Get an integer (ascii or binary).
static point	getFirePoint (ISstream &)
	Get an point x/y/z (ascii or binary).
static std::string	getFireString (ISstream &)
	Extract a string (ascii or binary).
static void	putFireLabel (OSstream &, const label)
	Write an integer (ascii or binary).
static void	putFireLabels (OSstream &, const labelUList &)
	Write multiple integers (ascii or binary).
static void	putFireLabels (OSstream &, const label count, const label start)
	Write an on-the-fly list of integers (ascii or binary).
static void	putFirePoint (OSstream &, const point &)
	Write a point x/y/z (ascii or binary).
static void	putFireString (OSstream &, const std::string &)
	Write a string (ascii or binary).
Static Protected Member Functions inherited from FIRECore
static label	readPoints (ISstream &, pointField &)
	Read points.
Static Protected Attributes inherited from FIRECore
static const Enum< fileExt3d >	file3dExtensions
