This velocity inlet/outlet boundary condition combines a fixed normal component obtained from the "normalVelocity" patchField supplied with a fixed or zero-gradiented tangential component. More...

#include <fixedNormalInletOutletVelocityFvPatchVectorField.H>

Inheritance diagram for fixedNormalInletOutletVelocityFvPatchVectorField:

[legend]

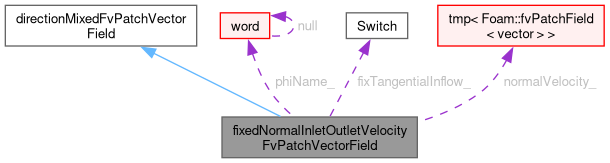

Collaboration diagram for fixedNormalInletOutletVelocityFvPatchVectorField:

[legend]

Public Member Functions
	TypeName ("fixedNormalInletOutletVelocity")
	Runtime type information.
	fixedNormalInletOutletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
	Construct from patch and internal field.
	fixedNormalInletOutletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	fixedNormalInletOutletVelocityFvPatchVectorField (const fixedNormalInletOutletVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given.
	fixedNormalInletOutletVelocityFvPatchVectorField (const fixedNormalInletOutletVelocityFvPatchVectorField &)
	Construct as copy.
	fixedNormalInletOutletVelocityFvPatchVectorField (const fixedNormalInletOutletVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< vector > >	clone (const DimensionedField< vector, volMesh > &iF) const
	Clone with an internal field reference.
virtual bool	assignable () const
	True: this patch field is altered by assignment.
const word &	phiName () const
	Return the name of phi.
word &	phiName ()
	Return reference to the name of phi to allow adjustment.
Switch	fixTangentialInflow () const
const fvPatchVectorField &	normalVelocity () const
	Return the BC which provides the normal component of velocity.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchVectorField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.
virtual void	operator= (const fvPatchField< vector > &pvf)

Protected Attributes
word	phiName_
	Flux field name.
Switch	fixTangentialInflow_
	Set true to fix the tangential component for inflow.
tmp< fvPatchVectorField >	normalVelocity_
	BC which provided the normal component of the velocity.

Detailed Description

This velocity inlet/outlet boundary condition combines a fixed normal component obtained from the "normalVelocity" patchField supplied with a fixed or zero-gradiented tangential component.

The tangential component is set depending on the direction of the flow and the setting of "fixTangentialInflow":

Outflow: apply zero-gradient condition to tangential components
Inflow:
- fixTangentialInflow is true apply value provided by the normalVelocity patchField to the tangential components
- fixTangentialInflow is false apply zero-gradient condition to tangential components.

Usage

Property	Description	Required	Default value
`phi`	flux field name	no	phi
`fixTangentialInflow`	If true fix the tangential component for inflow	yes
`normalVelocity`	patchField providing the normal velocity field	yes

Example of the boundary condition specification:

    <patchName>
    {
        type            fixedNormalInletOutletVelocity;

        fixTangentialInflow false;
        normalVelocity
        {
            type            uniformFixedValue;
            uniformValue    sine;
            uniformValueCoeffs
            {
                frequency 1;
                amplitude table
                (
                    (0  0)
                    (2  0.088)
                    (8  0.088)
                );
                scale     (0 1 0);
                level     (0 0 0);
            }
        }

        value           uniform (0 0 0);
    }

Source files

Definition at line 120 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ fixedNormalInletOutletVelocityFvPatchVectorField() [1/5]

fixedNormalInletOutletVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 30 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References fixTangentialInflow_, Foam::New(), normalVelocity_, p, phiName_, and Foam::Zero.

Referenced by fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), rmap(), and TypeName().

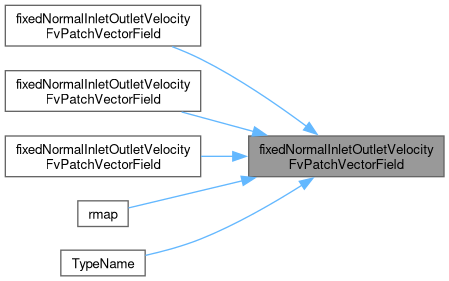

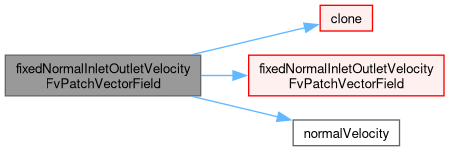

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fixedNormalInletOutletVelocityFvPatchVectorField() [2/5]

fixedNormalInletOutletVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 51 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References dict, fixTangentialInflow_, IOobjectOption::MUST_READ, Foam::New(), normalVelocity(), normalVelocity_, p, phiName_, fvPatchFieldBase::readDict(), and Foam::Zero.

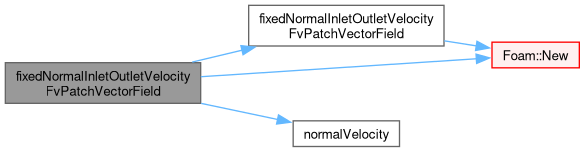

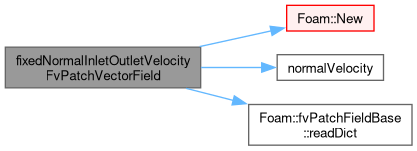

Here is the call graph for this function:

◆ fixedNormalInletOutletVelocityFvPatchVectorField() [3/5]

fixedNormalInletOutletVelocityFvPatchVectorField	(	const fixedNormalInletOutletVelocityFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given.

fixedNormalInletOutletVelocityFvPatchVectorField onto a new patch

Definition at line 75 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References fixedNormalInletOutletVelocityFvPatchVectorField(), fixTangentialInflow_, Foam::New(), normalVelocity(), normalVelocity_, p, and phiName_.

Here is the call graph for this function:

◆ fixedNormalInletOutletVelocityFvPatchVectorField() [4/5]

fixedNormalInletOutletVelocityFvPatchVectorField ( const fixedNormalInletOutletVelocityFvPatchVectorField & pivpvf )

Construct as copy.

Definition at line 94 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References clone(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixTangentialInflow_, normalVelocity(), normalVelocity_, and phiName_.

Here is the call graph for this function:

◆ fixedNormalInletOutletVelocityFvPatchVectorField() [5/5]

fixedNormalInletOutletVelocityFvPatchVectorField	(	const fixedNormalInletOutletVelocityFvPatchVectorField &	pivpvf,
		const DimensionedField< vector, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 107 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References clone(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixTangentialInflow_, normalVelocity(), normalVelocity_, and phiName_.

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "fixedNormalInletOutletVelocity" )

Runtime type information.

References fixedNormalInletOutletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 206 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Referenced by fixedNormalInletOutletVelocityFvPatchVectorField(), and fixedNormalInletOutletVelocityFvPatchVectorField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 214 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ assignable()

virtual bool assignable ( ) const

inlinevirtual

True: this patch field is altered by assignment.

Definition at line 228 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

◆ phiName() [1/2]

const word & phiName ( ) const

inline

Return the name of phi.

Definition at line 236 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

References phiName_.

◆ phiName() [2/2]

word & phiName ( )

inline

Return reference to the name of phi to allow adjustment.

Definition at line 244 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

References phiName_.

◆ fixTangentialInflow()

Switch fixTangentialInflow ( ) const

inline

Definition at line 249 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

References fixTangentialInflow_.

◆ normalVelocity()

const fvPatchVectorField & normalVelocity ( ) const

inline

Return the BC which provides the normal component of velocity.

Definition at line 257 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

References normalVelocity_.

Referenced by fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), rmap(), and updateCoeffs().

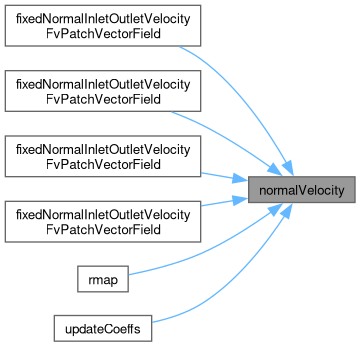

Here is the caller graph for this function:

◆ autoMap()

void autoMap ( const fvPatchFieldMapper & m )

virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 123 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References normalVelocity_.

◆ rmap()

void rmap	(	const fvPatchVectorField &	ptf,
		const labelList &	addr )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 133 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References fixedNormalInletOutletVelocityFvPatchVectorField(), normalVelocity(), normalVelocity_, and Foam::refCast().

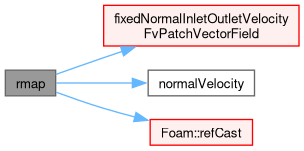

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 148 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References fixTangentialInflow_, Foam::I, Foam::neg(), normalVelocity(), normalVelocity_, phiName_, and Foam::sqr().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 173 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References fixTangentialInflow_, normalVelocity_, os(), phiName_, fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

◆ operator=()

void operator= ( const fvPatchField< vector > & pvf )

virtual

Definition at line 193 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References Foam::I, fvPatchField< Type >::operator=(), and Foam::transform().

Here is the call graph for this function:

Member Data Documentation

◆ phiName_

word phiName_

protected

Flux field name.

Definition at line 131 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

Referenced by fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), phiName(), phiName(), updateCoeffs(), and write().

◆ fixTangentialInflow_

Switch fixTangentialInflow_

protected

Set true to fix the tangential component for inflow.

Definition at line 136 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

Referenced by fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixTangentialInflow(), updateCoeffs(), and write().

◆ normalVelocity_

tmp<fvPatchVectorField> normalVelocity_

protected

BC which provided the normal component of the velocity.

Definition at line 141 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

Referenced by autoMap(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField(), normalVelocity(), rmap(), updateCoeffs(), and write().

The documentation for this class was generated from the following files:

src/finiteVolume/fields/fvPatchFields/derived/fixedNormalInletOutletVelocity/fixedNormalInletOutletVelocityFvPatchVectorField.H
src/finiteVolume/fields/fvPatchFields/derived/fixedNormalInletOutletVelocity/fixedNormalInletOutletVelocityFvPatchVectorField.C
