fixedRhoFvPatchScalarField Class Reference
Boundary conditions » Inlet

Foam::fixedRhoFvPatchScalarField. More...

#include <fixedRhoFvPatchScalarField.H>

Inheritance diagram for fixedRhoFvPatchScalarField:
Inheritance graph
[legend]
Collaboration diagram for fixedRhoFvPatchScalarField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("fixedRho")
 Runtime type information.
 fixedRhoFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
 Construct from patch and internal field.
 fixedRhoFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 fixedRhoFvPatchScalarField (const fixedRhoFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given fixedRhoFvPatchScalarField.
 fixedRhoFvPatchScalarField (const fixedRhoFvPatchScalarField &)
 Construct as copy.
 fixedRhoFvPatchScalarField (const fixedRhoFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > > clone () const
 Return a clone.
virtual tmp< fvPatchField< scalar > > clone (const DimensionedField< scalar, volMesh > &iF) const
 Clone with an internal field reference.
virtual void updateCoeffs ()
 Update the coefficients associated with the patch field.
virtual void write (Ostream &) const
 Write.

Detailed Description

Foam::fixedRhoFvPatchScalarField.

This boundary condition provides a fixed density inlet condition for compressible solvers, where the density of calculated using:

\‍[ \rho = \psi p \‍]

where

$ p $=pressure [Pa]
$ \rho $=density [kg/m3]
Usage
Property Description Required Default value
p Pressure field name no p
psi Compressibility field name no thermo:psi

Example of the boundary condition specification:

    <patchName>
    {
        type            fixedRho;
    }
Source files

Definition at line 101 of file fixedRhoFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ fixedRhoFvPatchScalarField() [1/5]

fixedRhoFvPatchScalarField ( const fvPatch & ,
const DimensionedField< scalar, volMesh > &  )

Construct from patch and internal field.

Referenced by fixedRhoFvPatchScalarField(), fixedRhoFvPatchScalarField(), and fixedRhoFvPatchScalarField().

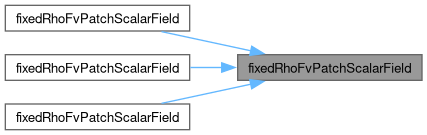

Here is the caller graph for this function:

◆ fixedRhoFvPatchScalarField() [2/5]

fixedRhoFvPatchScalarField ( const fvPatch & ,
const DimensionedField< scalar, volMesh > & ,
const dictionary &  )

Construct from patch, internal field and dictionary.

◆ fixedRhoFvPatchScalarField() [3/5]

fixedRhoFvPatchScalarField ( const fixedRhoFvPatchScalarField & ,
const fvPatch & ,
const DimensionedField< scalar, volMesh > & ,
const fvPatchFieldMapper &  )

Construct by mapping given fixedRhoFvPatchScalarField.

onto a new patch

References fixedRhoFvPatchScalarField().

Here is the call graph for this function:

◆ fixedRhoFvPatchScalarField() [4/5]

fixedRhoFvPatchScalarField ( const fixedRhoFvPatchScalarField & )

Construct as copy.

References fixedRhoFvPatchScalarField().

Here is the call graph for this function:

◆ fixedRhoFvPatchScalarField() [5/5]

fixedRhoFvPatchScalarField ( const fixedRhoFvPatchScalarField & ,
const DimensionedField< scalar, volMesh > &  )

Construct as copy setting internal field reference.

References fixedRhoFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "fixedRho" )

Runtime type information.

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 183 of file fixedRhoFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 191 of file fixedRhoFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ updateCoeffs()

virtual void updateCoeffs ( )
virtual

Update the coefficients associated with the patch field.

◆ write()

virtual void write ( Ostream & ) const
virtual

Write.

The documentation for this class was generated from the following file:
