flowRateInletVelocityFvPatchVectorField Class Reference
Boundary conditions » Inlet

Velocity inlet boundary condition either correcting the extrapolated velocity or creating a uniform velocity field normal to the patch adjusted to match the specified flow rate. More...

#include <flowRateInletVelocityFvPatchVectorField.H>

Inheritance diagram for flowRateInletVelocityFvPatchVectorField:
Inheritance graph
[legend]
Collaboration diagram for flowRateInletVelocityFvPatchVectorField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("flowRateInletVelocity")
 Runtime type information.
 flowRateInletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
 Construct from patch and internal field.
 flowRateInletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 flowRateInletVelocityFvPatchVectorField (const flowRateInletVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given.
 flowRateInletVelocityFvPatchVectorField (const flowRateInletVelocityFvPatchVectorField &)
 Construct as copy.
 flowRateInletVelocityFvPatchVectorField (const flowRateInletVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > > clone () const
 Return a clone.
virtual tmp< fvPatchField< vector > > clone (const DimensionedField< vector, volMesh > &iF) const
 Clone with an internal field reference.
virtual void updateCoeffs ()
 Update the coefficients associated with the patch field.
virtual void write (Ostream &) const
 Write.

Detailed Description

Velocity inlet boundary condition either correcting the extrapolated velocity or creating a uniform velocity field normal to the patch adjusted to match the specified flow rate.

For a mass-based flux:

  • the flow rate should be provided in kg/s
  • if rho is "none" the flow rate is in m3/s
  • otherwise rho should correspond to the name of the density field
  • if the density field cannot be found in the database, the user must specify the inlet density using the rhoInlet entry

For a volumetric-based flux:

  • the flow rate is in m3/s
Usage
Property Description Required Default value
massFlowRate mass flow rate [kg/s] no
volumetricFlowRate volumetric flow rate [m3/s]no
rho density field name no rho
rhoInlet inlet density no
extrapolateProfile Extrapolate velocity profile no false

Example of the boundary condition specification for a volumetric flow rate:

    <patchName>
    {
        type                flowRateInletVelocity;
        volumetricFlowRate  0.2;
        extrapolateProfile  yes;
        value               uniform (0 0 0);
    }

Example of the boundary condition specification for a mass flow rate:

    <patchName>
    {
        type                flowRateInletVelocity;
        massFlowRate        0.2;
        extrapolateProfile  yes;
        rho                 rho;
        rhoInlet            1.0;
        value               uniform (0 0 0);
    }

The flowRate entry is a Function1 of time, see Foam::Function1Types.

Note
  • rhoInlet is required for the case of a mass flow rate, where the density field is not available at start-up
  • The value is positive into the domain (as an inlet)
  • May not work correctly for transonic inlets
  • Strange behaviour with potentialFoam since the U equation is not solved
See also
Foam::fixedValueFvPatchField Foam::Function1Types Foam::flowRateOutletVelocityFvPatchVectorField
Source files

Definition at line 141 of file flowRateInletVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ flowRateInletVelocityFvPatchVectorField() [1/5]

flowRateInletVelocityFvPatchVectorField ( const fvPatch & p,
const DimensionedField< vector, volMesh > & iF )

Construct from patch and internal field.

Definition at line 30 of file flowRateInletVelocityFvPatchVectorField.C.

References p.

Referenced by flowRateInletVelocityFvPatchVectorField(), flowRateInletVelocityFvPatchVectorField(), flowRateInletVelocityFvPatchVectorField(), and TypeName().

Here is the caller graph for this function:

◆ flowRateInletVelocityFvPatchVectorField() [2/5]

flowRateInletVelocityFvPatchVectorField ( const fvPatch & p,
const DimensionedField< vector, volMesh > & iF,
const dictionary & dict )

Construct from patch, internal field and dictionary.

Definition at line 46 of file flowRateInletVelocityFvPatchVectorField.C.

References UPstream::buffered, dict, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Function1< Type >::NewIfPresent(), Foam::nl, and p.

Here is the call graph for this function:

◆ flowRateInletVelocityFvPatchVectorField() [3/5]

flowRateInletVelocityFvPatchVectorField ( const flowRateInletVelocityFvPatchVectorField & ptf,
const fvPatch & p,
const DimensionedField< vector, volMesh > & iF,
const fvPatchFieldMapper & mapper )

Construct by mapping given.

flowRateInletVelocityFvPatchVectorField onto a new patch

Definition at line 94 of file flowRateInletVelocityFvPatchVectorField.C.

References clone(), flowRateInletVelocityFvPatchVectorField(), and p.

Here is the call graph for this function:

◆ flowRateInletVelocityFvPatchVectorField() [4/5]

flowRateInletVelocityFvPatchVectorField ( const flowRateInletVelocityFvPatchVectorField & ptf)

Construct as copy.

Definition at line 112 of file flowRateInletVelocityFvPatchVectorField.C.

References clone(), and flowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ flowRateInletVelocityFvPatchVectorField() [5/5]

flowRateInletVelocityFvPatchVectorField ( const flowRateInletVelocityFvPatchVectorField & ptf,
const DimensionedField< vector, volMesh > & iF )

Construct as copy setting internal field reference.

Definition at line 127 of file flowRateInletVelocityFvPatchVectorField.C.

References clone(), and flowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "flowRateInletVelocity" )

Runtime type information.

References flowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 245 of file flowRateInletVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Referenced by flowRateInletVelocityFvPatchVectorField(), flowRateInletVelocityFvPatchVectorField(), and flowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:

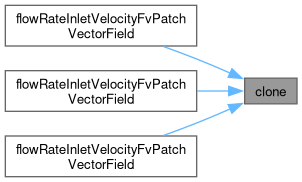

Here is the caller graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 253 of file flowRateInletVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )
virtual

Update the coefficients associated with the patch field.

Definition at line 194 of file flowRateInletVelocityFvPatchVectorField.C.

References Foam::exit(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os) const
virtual

Write.

Definition at line 235 of file flowRateInletVelocityFvPatchVectorField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:
