freeSurfaceVelocityFvPatchVectorField Class Reference

This boundary condition provides a velocity outlet boundary condition for free surface patches. More...

#include <freeSurfaceVelocityFvPatchVectorField.H>

Inheritance diagram for freeSurfaceVelocityFvPatchVectorField:

Collaboration diagram for freeSurfaceVelocityFvPatchVectorField:

Public Member Functions
	TypeName ("freeSurfaceVelocity")
	Runtime type information.
	freeSurfaceVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
	Construct from patch and internal field.
	freeSurfaceVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	freeSurfaceVelocityFvPatchVectorField (const freeSurfaceVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given freeSurfaceVelocityFvPatchVectorField.
	freeSurfaceVelocityFvPatchVectorField (const freeSurfaceVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< vector > >	clone (const DimensionedField< vector, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.

Detailed Description

This boundary condition provides a velocity outlet boundary condition for free surface patches.

Source files

• freeSurfaceVelocityFvPatchVectorField.H
• freeSurfaceVelocityFvPatchVectorField.C

Definition at line 51 of file freeSurfaceVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

freeSurfaceVelocityFvPatchVectorField() [1/4]

freeSurfaceVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 31 of file freeSurfaceVelocityFvPatchVectorField.C.

References p.

Referenced by freeSurfaceVelocityFvPatchVectorField(), freeSurfaceVelocityFvPatchVectorField(), and TypeName().

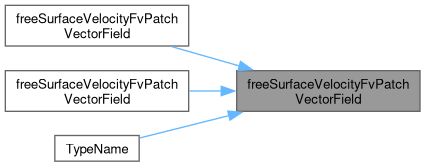

Here is the caller graph for this function:

freeSurfaceVelocityFvPatchVectorField() [2/4]

freeSurfaceVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 55 of file freeSurfaceVelocityFvPatchVectorField.C.

References dict, p, and fvPatchFieldBase::readDict().

Here is the call graph for this function:

freeSurfaceVelocityFvPatchVectorField() [3/4]

freeSurfaceVelocityFvPatchVectorField	(	const freeSurfaceVelocityFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given freeSurfaceVelocityFvPatchVectorField.

onto a new patch

Definition at line 42 of file freeSurfaceVelocityFvPatchVectorField.C.

References freeSurfaceVelocityFvPatchVectorField(), and p.

Here is the call graph for this function:

freeSurfaceVelocityFvPatchVectorField() [4/4]

freeSurfaceVelocityFvPatchVectorField	(	const freeSurfaceVelocityFvPatchVectorField &	fcvpvf,
		const DimensionedField< vector, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 71 of file freeSurfaceVelocityFvPatchVectorField.C.

References freeSurfaceVelocityFvPatchVectorField().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"freeSurfaceVelocity"

)

Runtime type information.

References freeSurfaceVelocityFvPatchVectorField().

Here is the call graph for this function:

clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 109 of file freeSurfaceVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 117 of file freeSurfaceVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 84 of file freeSurfaceVelocityFvPatchVectorField.C.

References Foam::isA(), and mesh.

Here is the call graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 111 of file freeSurfaceVelocityFvPatchVectorField.C.

References os(), fixedGradientFvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

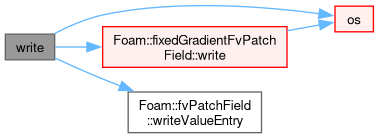

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/dynamicFaMesh/interfaceTrackingFvMesh/fvPatchFields/freeSurfaceVelocity/freeSurfaceVelocityFvPatchVectorField.H
• src/dynamicFaMesh/interfaceTrackingFvMesh/fvPatchFields/freeSurfaceVelocity/freeSurfaceVelocityFvPatchVectorField.C
