freestreamPressureFvPatchScalarField Class Reference
Boundary conditions » Inlet | Boundary conditions » Outlet

This boundary condition provides a free-stream condition for pressure. More...

#include <freestreamPressureFvPatchScalarField.H>

Inheritance diagram for freestreamPressureFvPatchScalarField:
Inheritance graph
[legend]
Collaboration diagram for freestreamPressureFvPatchScalarField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("freestreamPressure")
 Runtime type information.
 freestreamPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
 Construct from patch and internal field.
 freestreamPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 freestreamPressureFvPatchScalarField (const freestreamPressureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given freestreamPressureFvPatchScalarField onto.
 freestreamPressureFvPatchScalarField (const freestreamPressureFvPatchScalarField &)
 Construct as copy.
 freestreamPressureFvPatchScalarField (const freestreamPressureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > > clone () const
 Return a clone.
virtual tmp< fvPatchField< scalar > > clone (const DimensionedField< scalar, volMesh > &iF) const
 Clone with an internal field reference.
const scalarField & freestreamValue () const
 Same as refValue().
scalarField & freestreamValue ()
 Same as refValue().
virtual void updateCoeffs ()
 Update the coefficients associated with the patch field.
virtual void write (Ostream &) const
 Write.

Detailed Description

This boundary condition provides a free-stream condition for pressure.

It is an outlet-inlet condition that uses the velocity orientation to continuously blend between zero gradient for normal inlet and fixed value for normal outlet flow.

Usage
Property Description Required Default value
U velocity field name no U
freestreamValue freestream pressure yes

Example of the boundary condition specification:

    <patchName>
    {
        type            freestreamPressure;
        freestreamValue uniform 1e5;
    }
Note
This condition is designed to operate with a freestreamVelocity condition
See also
Foam::mixedFvPatchField Foam::freestreamFvPatchField
Source files

Definition at line 92 of file freestreamPressureFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ freestreamPressureFvPatchScalarField() [1/5]

freestreamPressureFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF )

Construct from patch and internal field.

Definition at line 28 of file freestreamPressureFvPatchScalarField.C.

References p.

Referenced by freestreamPressureFvPatchScalarField(), freestreamPressureFvPatchScalarField(), freestreamPressureFvPatchScalarField(), and TypeName().

Here is the caller graph for this function:

◆ freestreamPressureFvPatchScalarField() [2/5]

freestreamPressureFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const dictionary & dict )

Construct from patch, internal field and dictionary.

Definition at line 40 of file freestreamPressureFvPatchScalarField.C.

References Field< Type >::assign(), dict, freestreamValue(), fvPatchField< scalar >::operator=(), p, and Foam::Zero.

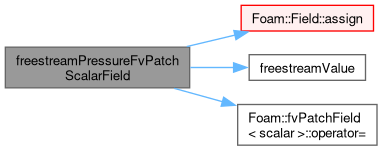

Here is the call graph for this function:

◆ freestreamPressureFvPatchScalarField() [3/5]

freestreamPressureFvPatchScalarField ( const freestreamPressureFvPatchScalarField & ptf,
const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const fvPatchFieldMapper & mapper )

Construct by mapping given freestreamPressureFvPatchScalarField onto.

a new patch

Definition at line 63 of file freestreamPressureFvPatchScalarField.C.

References freestreamPressureFvPatchScalarField(), and p.

Here is the call graph for this function:

◆ freestreamPressureFvPatchScalarField() [4/5]

freestreamPressureFvPatchScalarField ( const freestreamPressureFvPatchScalarField & wbppsf)

Construct as copy.

Definition at line 77 of file freestreamPressureFvPatchScalarField.C.

References freestreamPressureFvPatchScalarField().

Here is the call graph for this function:

◆ freestreamPressureFvPatchScalarField() [5/5]

freestreamPressureFvPatchScalarField ( const freestreamPressureFvPatchScalarField & wbppsf,
const DimensionedField< scalar, volMesh > & iF )

Construct as copy setting internal field reference.

Definition at line 88 of file freestreamPressureFvPatchScalarField.C.

References freestreamPressureFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "freestreamPressure" )

Runtime type information.

References freestreamPressureFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 166 of file freestreamPressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 174 of file freestreamPressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ freestreamValue() [1/2]

const scalarField & freestreamValue ( ) const
inline

Same as refValue().

Definition at line 188 of file freestreamPressureFvPatchScalarField.H.

Referenced by freestreamPressureFvPatchScalarField(), and write().

Here is the caller graph for this function:

◆ freestreamValue() [2/2]

scalarField & freestreamValue ( )
inline

Same as refValue().

Definition at line 193 of file freestreamPressureFvPatchScalarField.H.

◆ updateCoeffs()

void updateCoeffs ( )
virtual

Update the coefficients associated with the patch field.

Definition at line 102 of file freestreamPressureFvPatchScalarField.C.

References Foam::mag(), and fvPatchField< Type >::updateCoeffs().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os) const
virtual

Write.

Definition at line 118 of file freestreamPressureFvPatchScalarField.C.

References freestreamValue(), os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

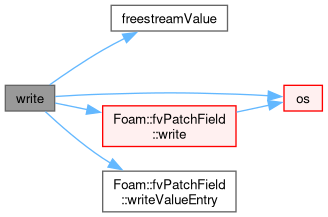

Here is the call graph for this function:
The documentation for this class was generated from the following files:
