Average run time condition - satisfied when average does not change by more than a given value. More...

#include <averageCondition.H>

Inheritance diagram for averageCondition:

[legend]

Collaboration diagram for averageCondition:

[legend]

Public Member Functions
	TypeName ("average")
	Runtime type information.
	averageCondition (const word &name, const objectRegistry &obr, const dictionary &dict, stateFunctionObject &state)
	Constructor.
virtual	~averageCondition ()=default
	Destructor.
virtual bool	apply ()
	Apply the condition.
virtual void	write ()
	Write.
virtual void	reset ()
	Reset.
Public Member Functions inherited from runTimeCondition
	TypeName ("runTimeCondition")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, runTimeCondition, dictionary,(const word &name, const objectRegistry &obr, const dictionary &dict, stateFunctionObject &state),(name, obr, dict, state))
	Declare runtime constructor selection table.
	runTimeCondition (const word &name, const objectRegistry &obr, const dictionary &dict, stateFunctionObject &state)
	Constructor.
virtual	~runTimeCondition ()=default
	Destructor.
virtual const word &	name () const
	Return the condition name.
virtual bool	active () const
	Return the active flag.
virtual label	groupID () const
	Return the group index.
Public Member Functions inherited from valueAverageBase
	valueAverageBase (const word &name, const objectRegistry &obr, const dictionary &dict, stateFunctionObject &state, const bool writeToFile=true)
	Construct from Time and dictionary.
	valueAverageBase (const valueAverageBase &)=delete
	No copy construct.
void	operator= (const valueAverageBase &)=delete
	No copy assignment.
virtual	~valueAverageBase ()=default
	Destructor.
virtual bool	read (const dictionary &dict)
	Read the field value average data.
virtual bool	calculate (dictionary &dict)
	Calculate the averages.
Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name="undefined", const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName.
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name, const dictionary &dict, const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName and read options from dictionary.
	writeFile (const writeFile &wf)
	Construct copy.
virtual	~writeFile ()=default
	Destructor.
virtual const string &	setExt (const string &ext)
	Set extension.
virtual OFstream &	file ()
	Return access to the file (if only 1).
virtual bool	writeToFile () const
	Flag to allow writing to file.
virtual bool	canWriteToFile () const
	Flag to allow writing to the file.
virtual bool	canResetFile () const
	Flag to allow resetting the file.
virtual bool	canWriteHeader () const
	Flag to allow writing the header.
virtual label	charWidth () const
	Return width of character stream output.
virtual void	writeCommented (Ostream &os, const string &str) const
	Write a commented string to stream.
virtual void	writeTabbed (Ostream &os, const string &str) const
	Write a tabbed string to stream.
virtual void	writeHeader (Ostream &os, const string &str) const
	Write a commented header to stream.
virtual void	writeCurrentTime (Ostream &os) const
	Write the current time to stream.
virtual void	writeBreak (Ostream &os) const
	Write a break marker to the stream.
template<class Type>
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const
	Write a (commented) header property and value pair.
template<class Type>
void	writeValue (Ostream &os, const Type &val) const
	Write a given value to stream with the space delimiter.

Protected Attributes
label	nIterStartUp_
	Number of start-up iterations before allowing satisfied checks.
label	iter_
	Current iteration count.
Protected Attributes inherited from runTimeCondition
word	name_
	Condition name.
const objectRegistry &	obr_
	Reference to the object registry.
stateFunctionObject &	state_
	State.
bool	active_
	On/off switch.
dictionary &	conditionDict_
	Reference to the condition dictionary.
label	groupID_
	Group index - if applied, all conditions in a group must be.
Protected Attributes inherited from valueAverageBase
bool	resetOnRestart_
	Reset the averaging process on restart.
windowType	windowType_
	Window type.
stateFunctionObject &	state_
	Reference to the state functionObject.
word	functionObjectName_
	Name of function object to retrieve data from.
wordList	fieldNames_
	List of fields on which to operate.
scalar	tolerance_
	Optional tolerance to check for converged results.
scalar	window_
	Averaging window.
List< scalar >	totalTime_
	Average time per field.
Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_
	Reference to the region objectRegistry.
const fileName	prefix_
	Prefix.
word	fileName_
	Name of file.
autoPtr< OFstream >	filePtr_
	File pointer.
label	writePrecision_
	Write precision.
bool	writeToFile_
	Flag to enable/disable writing to file.
bool	updateHeader_
	Flag to update the header, e.g. on mesh changes. Default is true.
bool	writtenHeader_
	Flag to identify whether the header has been written.
bool	useUserTime_
	Flag to use the specified user time, e.g. CA deg instead of seconds. Default = true.
scalar	startTime_
	Start time value.
string	ext_
	File extension; default = .dat.

Additional Inherited Members
Public Types inherited from valueAverageBase
enum class	windowType : uint8_t { NONE , APPROXIMATE , EXACT }
	Averaging window types. More...
Static Public Member Functions inherited from runTimeCondition
static autoPtr< runTimeCondition >	New (const word &conditionName, const objectRegistry &obr, const dictionary &dict, stateFunctionObject &state)
	Selector.
Public Attributes inherited from runTimeCondition
Switch	log
	Switch to send output to Info.
Static Public Attributes inherited from valueAverageBase
static const Enum< windowType >	windowTypeNames
	Names for windowType enumeration.
Static Public Attributes inherited from writeFile
static label	addChars = 8
	Additional characters for writing.
Protected Member Functions inherited from runTimeCondition
dictionary &	setConditionDict ()
	Set the condition dictionary (create if necessary).
const dictionary &	conditionDict () const
	Return const access to the conditions dictionary.
dictionary &	conditionDict ()
	Return non-const access to the conditions dictionary.
Protected Member Functions inherited from valueAverageBase
template<class Type, class Type2 = Type>
bool	calc (const label fieldi, bool &converged, dictionary &dict)
	Templated function to calculate the average.
virtual void	writeFileHeader (Ostream &os) const
	Output file header information.
virtual void	readState (dictionary &dict)
	Read state from dictionary.
virtual void	writeState (dictionary &dict)
	Write state to dictionary for restarts.
virtual void	resetState (dictionary &dict)
	Reset state.
Protected Member Functions inherited from writeFile
void	initStream (Ostream &os) const
	Initialise the output stream for writing.
fileName	baseFileDir () const
	Return the base directory for output.
fileName	baseTimeDir () const
	Return the base directory for the current time value.
fileName	filePath (const fileName &fName) const
	Return the full path for the supplied file name.
virtual autoPtr< OFstream >	newFile (const fileName &fName) const
	Return autoPtr to a new file using file name.
virtual autoPtr< OFstream >	newFileAtTime (const word &name, scalar timeValue) const
	Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	newFileAtStartTime (const word &name) const
	Return autoPtr to a new file using the simulation start time.
virtual void	resetFile (const word &name)
	Reset internal file pointer to new file with new name.
Omanip< int >	valueWidth (const label offset=0) const
	Return the value width when writing to stream with optional offset.
void	operator= (const writeFile &)=delete
	No copy assignment.
virtual autoPtr< OFstream >	createFile (const word &name, scalar timeValue) const
	Deprecated(2022-09) Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	createFile (const word &name) const
	Deprecated(2022-09) Return autoPtr to a new file using the simulation start time.

Detailed Description

Average run time condition - satisfied when average does not change by more than a given value.

See also

Foam::functionObjects::valueAverageBase

Source files

Definition at line 56 of file averageCondition.H.

Constructor & Destructor Documentation

◆ averageCondition()

averageCondition	(	const word &	name,
		const objectRegistry &	obr,
		const dictionary &	dict,
		stateFunctionObject &	state )

Constructor.

Definition at line 40 of file averageCondition.C.

References runTimeCondition::conditionDict(), dict, iter_, runTimeCondition::name(), nIterStartUp_, runTimeCondition::obr_, valueAverageBase::readState(), runTimeCondition::runTimeCondition(), and valueAverageBase::valueAverageBase().

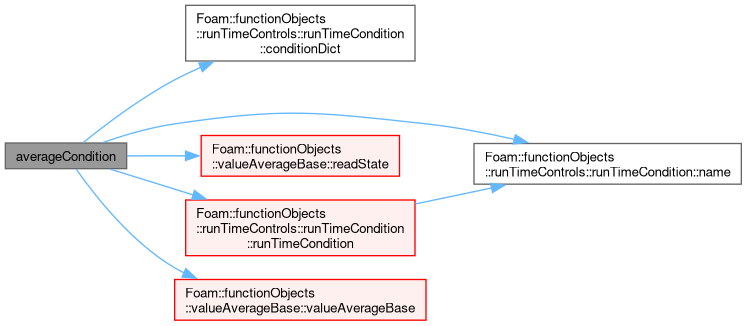

Here is the call graph for this function:

◆ ~averageCondition()

virtual ~averageCondition ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "average" )

Runtime type information.

References dict, and runTimeCondition::name().

Here is the call graph for this function:

◆ apply()

bool apply ( )

virtual

Apply the condition.

Implements runTimeCondition.

Definition at line 63 of file averageCondition.C.

References runTimeCondition::active_, valueAverageBase::calculate(), runTimeCondition::conditionDict(), Foam::decrIndent(), Foam::incrIndent(), Foam::Info, iter_, and nIterStartUp_.

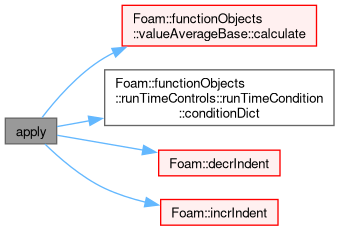

Here is the call graph for this function:

◆ write()

void write ( )

virtual

Write.

Implements runTimeCondition.

Definition at line 85 of file averageCondition.C.

References runTimeCondition::conditionDict(), iter_, and valueAverageBase::writeState().

Here is the call graph for this function:

◆ reset()

void reset ( )

virtual

Reset.

Implements runTimeCondition.

Definition at line 95 of file averageCondition.C.

References runTimeCondition::conditionDict(), iter_, and valueAverageBase::resetState().

Here is the call graph for this function:

Member Data Documentation

◆ nIterStartUp_

label nIterStartUp_

protected

Number of start-up iterations before allowing satisfied checks.

Definition at line 68 of file averageCondition.H.

Referenced by apply(), and averageCondition().

◆ iter_

label iter_

protected

Current iteration count.

Definition at line 73 of file averageCondition.H.

Referenced by apply(), averageCondition(), reset(), and write().

The documentation for this class was generated from the following files:

src/functionObjects/utilities/runTimeControl/runTimeCondition/averageCondition/averageCondition.H
src/functionObjects/utilities/runTimeControl/runTimeCondition/averageCondition/averageCondition.C
