Abstract base-class for Time/database function objects. More...

#include <functionObject.H>

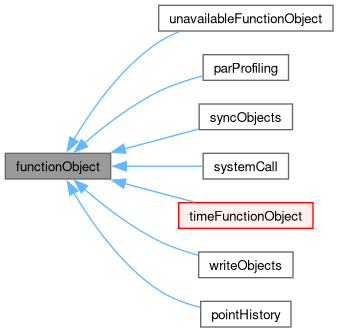

Inheritance diagram for functionObject:

[legend]

Collaboration diagram for functionObject:

[legend]

Classes
class	unavailableFunctionObject
	Abstract functionObject to report when a real version is unavailable. More...

Public Member Functions
	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))
	functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)
	Construct from components.
autoPtr< functionObject >	clone () const
	Return clone.
virtual	~functionObject ()=default
	Destructor.
virtual const word &	type () const =0
	Runtime type information.
const word &	name () const noexcept
	Return the name of this functionObject.
bool	useNamePrefix () const noexcept
	Return the flag for adding a scoping name prefix.
bool	useNamePrefix (bool on) noexcept
	Modify the flag for adding a scoping name prefix.
virtual bool	read (const dictionary &dict)
	Read and set the function object if its data have changed.
virtual bool	execute ()=0
	Called at each ++ or += of the time-loop.
virtual bool	execute (const label subIndex)
	Execute using the specified subIndex.
virtual bool	write ()=0
	Called at each ++ or += of the time-loop.
virtual bool	end ()
	Called when Time::run() determines that the time-loop exits.
virtual bool	adjustTimeStep ()
	Called at the end of Time::adjustDeltaT() if adjustTime is true.
virtual bool	filesModified () const
	Did any file get changed during execution?
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update for changes of mesh.
virtual void	movePoints (const polyMesh &mesh)
	Update for changes of mesh.

Static Public Member Functions
static autoPtr< functionObject >	New (const word &name, const Time &runTime, const dictionary &dict)
	Select from dictionary, based on its "type" entry.

Public Attributes
bool	log
	Flag to write log into Info.

Static Public Attributes
static int	debug
	Flag to execute debug content.
static bool	postProcess
	Global post-processing mode switch.
static bool	defaultUseNamePrefix
	Global default for useNamePrefix.
static word	outputPrefix
	Directory prefix.

Protected Member Functions
word	scopedName (const word &name) const
	Return a scoped (prefixed) name.

Detailed Description

Abstract base-class for Time/database function objects.

See also

Source files

Definition at line 363 of file functionObject.H.

Constructor & Destructor Documentation

◆ functionObject()

functionObject	(	const word &	name,
		const bool	withNamePrefix = defaultUseNamePrefix )

explicit

Construct from components.

Definition at line 57 of file functionObject.C.

References log, name(), and postProcess.

Referenced by declareRunTimeSelectionTable(), parProfiling::parProfiling(), pointHistory::pointHistory(), syncObjects::syncObjects(), systemCall::systemCall(), timeControl::timeControl(), timeFunctionObject::timeFunctionObject(), timeControl::TypeName(), functionObject::unavailableFunctionObject::unavailableFunctionObject(), writeObjects::writeObjects(), and codedFunctionObject::~codedFunctionObject().

Here is the call graph for this function:

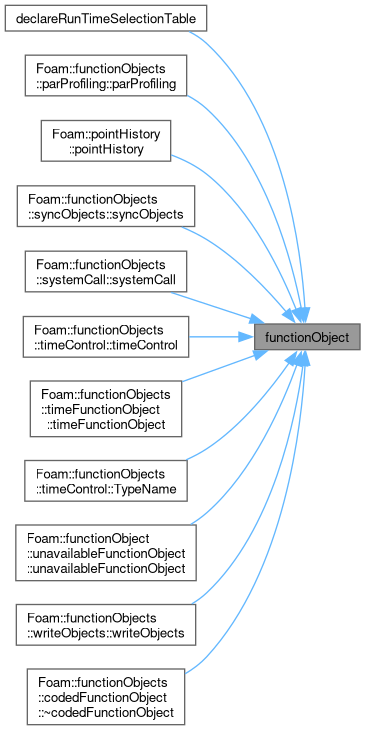

Here is the caller graph for this function:

◆ ~functionObject()

virtual ~functionObject ( )

virtualdefault

Destructor.

Member Function Documentation

◆ scopedName()

Foam::word scopedName ( const word & name ) const

protected

Return a scoped (prefixed) name.

Used to construct local field names, controlled by useNamePrefix_

Definition at line 44 of file functionObject.C.

References name(), and IOobject::scopedName().

Referenced by momentumError::calcMomentError(), DESModelRegions::DESModelRegions(), electricPotential::electricPotential(), Curle::execute(), proudmanAcousticPower::execute(), wallShearStress::execute(), yPlus::execute(), fvExpressionField::fieldName(), filmFlux::filmFlux(), forces::force(), forceCoeffs::forceCoeff(), forces::moment(), forceCoeffs::momentCoeff(), momentumError::momentumError(), momentum::newField(), proudmanAcousticPower::proudmanAcousticPower(), fieldAverage::read(), zeroGradient::read(), fieldExpression::setResultName(), stabilityBlendingFactor::stabilityBlendingFactor(), wallShearStress::wallShearStress(), momentum::write(), momentumError::write(), particleDistribution::write(), proudmanAcousticPower::write(), wallShearStress::write(), XiReactionRate::write(), yPlus::write(), and yPlus::yPlus().

Here is the call graph for this function:

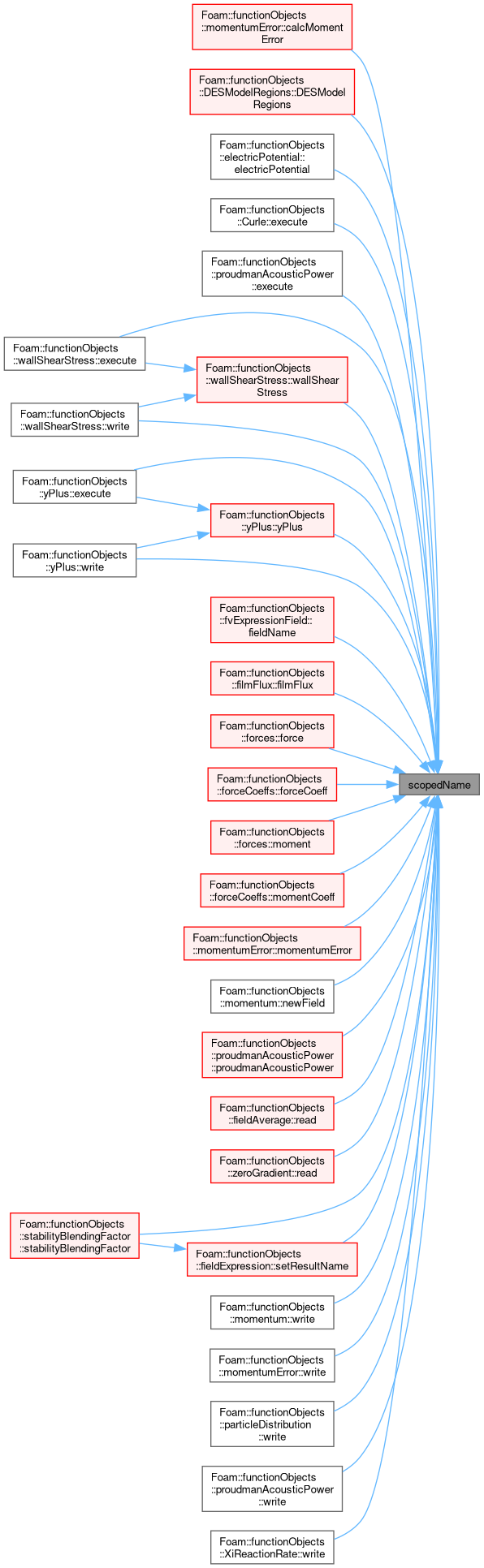

Here is the caller graph for this function:

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		functionObject	,
		dictionary	,
		(const word &name, const Time &runTime, const dictionary &dict)	,
		(name, runTime, dict)	)

References defaultUseNamePrefix, dict, functionObject(), name(), and runTime.

Here is the call graph for this function:

◆ clone()

autoPtr< functionObject > clone ( ) const

inline

Return clone.

Definition at line 453 of file functionObject.H.

References NotImplemented.

◆ New()

Foam::autoPtr< Foam::functionObject > New	(	const word &	name,
		const Time &	runTime,
		const dictionary &	dict )

static

Select from dictionary, based on its "type" entry.

Definition at line 71 of file functionObject.C.

References DebugInfo, dict, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, FatalErrorInLookup, name(), Foam::nl, and runTime.

Referenced by functionObjectList::read(), multiFieldValue::read(), multiRegion::read(), codedFunctionObject::redirectFunctionObject(), and timeControl::timeControl().

Here is the call graph for this function:

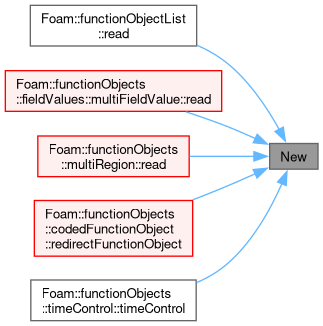

Here is the caller graph for this function:

◆ type()

virtual const word & type ( ) const

pure virtual

Runtime type information.

References dict, Foam::noexcept, read(), and useNamePrefix().

Referenced by functionObject::unavailableFunctionObject::carp(), extractEulerianParticles::checkFaceZone(), fieldsExpression::fieldsExpression(), fieldExpression::foundObject(), sizeDistribution::initialise(), and fieldAverage::initialize().

Here is the call graph for this function:

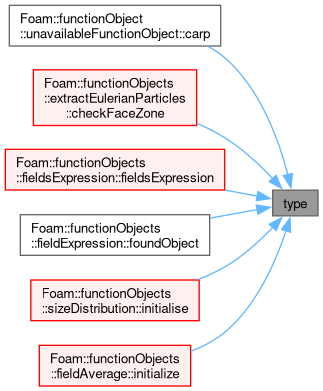

Here is the caller graph for this function:

◆ name()

const Foam::word & name ( ) const

noexcept

Return the name of this functionObject.

Definition at line 136 of file functionObject.C.

References Foam::noexcept.

Referenced by abort::abort(), extractEulerianParticles::checkFaceZone(), cloudInfo::cloudInfo(), codedFunctionObject::codedFunctionObject(), declareRunTimeSelectionTable(), externalCoupled::externalCoupled(), filmFlux::filmFlux(), foamReport::foamReport(), fieldExpression::foundObject(), functionObject(), fvMeshFunctionObject::fvMeshFunctionObject(), fvMeshFunctionObject::fvMeshFunctionObject(), graphFunctionObject::graphFunctionObject(), sizeDistribution::initialise(), fieldAverage::initialize(), multiFieldValue::multiFieldValue(), multiRegion::multiRegion(), New(), stateFunctionObject::operator=(), timeFunctionObject::operator=(), parProfiling::parProfiling(), pointHistory::pointHistory(), regionFunctionObject::regionFunctionObject(), regionFunctionObject::regionFunctionObject(), removeRegisteredObject::removeRegisteredObject(), runTimeControl::runTimeControl(), scopedName(), setTimeStepFaRegionsFunctionObject::setTimeStepFaRegionsFunctionObject(), setTimeStepFunctionObject::setTimeStepFunctionObject(), stateFunctionObject::stateFunctionObject(), syncObjects::syncObjects(), systemCall::systemCall(), timeActivatedFileUpdate::timeActivatedFileUpdate(), timeControl::timeControl(), timeFunctionObject::timeFunctionObject(), timeInfo::timeInfo(), abort::TypeName(), cloudInfo::TypeName(), codedFunctionObject::TypeName(), multiFieldValue::TypeName(), volFieldValue::TypeName(), filmFlux::TypeName(), foamReport::TypeName(), fvMeshFunctionObject::TypeName(), graphFunctionObject::TypeName(), multiRegion::TypeName(), parProfiling::TypeName(), regionFunctionObject::TypeName(), removeRegisteredObject::TypeName(), runTimeControl::TypeName(), setTimeStepFaRegionsFunctionObject::TypeName(), setTimeStepFunctionObject::TypeName(), syncObjects::TypeName(), systemCall::TypeName(), timeActivatedFileUpdate::TypeName(), timeControl::TypeName(), timeInfo::TypeName(), valueAverage::TypeName(), writeDictionary::TypeName(), writeObjects::TypeName(), pointHistory::TypeName(), functionObject::unavailableFunctionObject::unavailableFunctionObject(), valueAverage::valueAverage(), volFieldValue::volFieldValue(), volFieldValue::volFieldValue(), vtkWrite::vtkWrite(), caseInfo::write(), writeDictionary::writeDictionary(), writeFreeSurface::writeFreeSurface(), and writeObjects::writeObjects().

◆ useNamePrefix() [1/2]

bool useNamePrefix ( ) const

noexcept

Return the flag for adding a scoping name prefix.

Definition at line 142 of file functionObject.C.

References Foam::noexcept.

Referenced by type().

Here is the caller graph for this function:

◆ useNamePrefix() [2/2]

bool useNamePrefix ( bool on )

noexcept

Modify the flag for adding a scoping name prefix.

Returns: previous value.

Definition at line 148 of file functionObject.C.

◆ read()

bool read ( const dictionary & dict )

virtual

Read and set the function object if its data have changed.

Reimplemented in areaWrite, abort, age, AMIWeights, BilgerMixtureFraction, binField, bladeForces, blendingFactor, caseInfo, cellDecomposer, cloudInfo, codedFunctionObject, columnAverage, comfort, continuityError, CourantNo, Curle, dataCloud, ddt2, derivedFields, DESModelRegions, DMD, dsmcFields, electricPotential, energySpectrum, energyTransport, ensightCloudWriteObject, ensightWrite, externalCoupled, extractEulerianParticles, fieldAverage, fieldExpression, fieldExtents, fieldMinMax, fieldsExpression, fieldStatistics, fieldValue, multiFieldValue, volFieldValue, filmFlux, fluxSummary, foamReport, forceCoeffs, forces, fvExpressionField, heatTransferCoeff, histogram, hydrostaticPressure, icoUncoupledKinematicCloud, interfaceHeight, limitFields, log, mapFields, momentum, momentumError, multiphaseInterHtcModel, multiRegion, nearWallFields, norm, ObukhovLength, particleDistribution, PecletNo, pow, pressure, processorField, propellerInfo, proudmanAcousticPower, radiometerProbes, randomise, reactingEulerHtcModel, reactionsSensitivityAnalysis< chemistryType >, reactionsSensitivityAnalysis< BasicChemistryModel< psiReactionThermo > >, reactionsSensitivityAnalysis< BasicChemistryModel< rhoReactionThermo > >, readFields, reference, regionFunctionObject, regionSizeDistribution, removeRegisteredObject, resolutionIndex, runTimeControl, scalarTransport, setFlow, setTimeStepFaRegionsFunctionObject, setTimeStepFunctionObject, sixDoFRigidBodyState, sizeDistribution, solverInfo, specieReactionRates< ChemistryModelType >, specieReactionRates< BasicChemistryModel< psiReactionThermo > >, specieReactionRates< BasicChemistryModel< rhoReactionThermo > >, stabilityBlendingFactor, streamLine, streamLineBase, surfaceCourantNumber, surfaceDistance, surfaceInterpolate, syncObjects, systemCall, thermoCoupleProbes, timeActivatedFileUpdate, timeControl, timeInfo, turbulenceFields, valueAverage, viewFactorHeatFlux, vtkCloud, vtkWrite, wallBoundedStreamLine, wallHeatFlux, wallShearStress, writeCellCentres, writeCellVolumes, writeDictionary, writeObjects, XiReactionRate, yPlus, zeroGradient, moleFractions< ThermoType >, moleFractions< psiReactionThermo >, moleFractions< rhoReactionThermo >, patchProbes, pointHistory, Probes< ProbeType >, probes, Probes< internalFieldProbe >, Probes< patchFieldProbe >, sampledSets, and sampledSurfaces.

Definition at line 156 of file functionObject.C.

References defaultUseNamePrefix, dict, keyType::LITERAL, log, and postProcess.

Referenced by abort::read(), age::read(), AMIWeights::read(), BilgerMixtureFraction::read(), binField::read(), caseInfo::read(), cellDecomposer::read(), codedFunctionObject::read(), columnAverage::read(), comfort::read(), continuityError::read(), Curle::read(), dataCloud::read(), ddt2::read(), derivedFields::read(), DESModelRegions::read(), DMD::read(), dsmcFields::read(), electricPotential::read(), energySpectrum::read(), energyTransport::read(), externalCoupled::read(), extractEulerianParticles::read(), fieldAverage::read(), fieldExpression::read(), fieldExtents::read(), fieldMinMax::read(), fieldsExpression::read(), fieldValue::read(), multiFieldValue::read(), filmFlux::read(), fluxSummary::read(), foamReport::read(), forces::read(), fvExpressionField::read(), histogram::read(), hydrostaticPressure::read(), icoUncoupledKinematicCloud::read(), limitFields::read(), log::read(), mapFields::read(), momentum::read(), momentumError::read(), multiRegion::read(), nearWallFields::read(), ObukhovLength::read(), particleDistribution::read(), pow::read(), processorField::read(), proudmanAcousticPower::read(), reactionsSensitivityAnalysis< chemistryType >::read(), readFields::read(), regionFunctionObject::read(), regionSizeDistribution::read(), resolutionIndex::read(), runTimeControl::read(), scalarTransport::read(), setFlow::read(), setTimeStepFaRegionsFunctionObject::read(), setTimeStepFunctionObject::read(), sixDoFRigidBodyState::read(), sizeDistribution::read(), solverInfo::read(), streamLineBase::read(), surfaceCourantNumber::read(), surfaceDistance::read(), surfaceInterpolate::read(), syncObjects::read(), systemCall::read(), timeActivatedFileUpdate::read(), timeInfo::read(), turbulenceFields::read(), viewFactorHeatFlux::read(), wallShearStress::read(), writeCellCentres::read(), writeCellVolumes::read(), writeObjects::read(), XiReactionRate::read(), yPlus::read(), zeroGradient::read(), moleFractions< ThermoType >::read(), and type().

◆ execute() [1/2]

virtual bool execute ( )

pure virtual

Called at each ++ or += of the time-loop.

postProcess overrides the usual executeControl behaviour and forces execution (used in post-processing mode)

Implemented in areaWrite, functionObject::unavailableFunctionObject, abort, age, AMIWeights, BilgerMixtureFraction, binField, bladeForces, caseInfo, cellDecomposer, cloudInfo, codedFunctionObject, columnAverage, comfort, continuityError, Curle, dataCloud, ddt2, derivedFields, DESModelRegions, DMD, dsmcFields, electricPotential, energySpectrum, energyTransport, ensightCloudWriteObject, ensightWrite, externalCoupled, extractEulerianParticles, fieldAverage, fieldExpression, fieldExtents, fieldMinMax, fieldsExpression, fieldStatistics, fieldValue, multiFieldValue, filmFlux, fluxSummary, foamReport, forceCoeffs, forces, fvExpressionField, graphFunctionObject, histogram, hydrostaticPressure, icoUncoupledKinematicCloud, interfaceHeight, limitFields, mapFields, momentum, momentumError, multiRegion, nearWallFields, ObukhovLength, parProfiling, particleDistribution, processorField, propellerInfo, proudmanAcousticPower, radiometerProbes, reactionsSensitivityAnalysis< chemistryType >, reactionsSensitivityAnalysis< BasicChemistryModel< psiReactionThermo > >, reactionsSensitivityAnalysis< BasicChemistryModel< rhoReactionThermo > >, readFields, regionSizeDistribution, removeRegisteredObject, resolutionIndex, runTimeControl, scalarTransport, setFlow, setTimeStepFaRegionsFunctionObject, setTimeStepFunctionObject, sixDoFRigidBodyState, sizeDistribution, solverInfo, specieReactionRates< ChemistryModelType >, specieReactionRates< BasicChemistryModel< psiReactionThermo > >, specieReactionRates< BasicChemistryModel< rhoReactionThermo > >, streamLineBase, surfaceCourantNumber, surfaceDistance, surfaceInterpolate, syncObjects, systemCall, thermoCoupleProbes, timeActivatedFileUpdate, timeControl, timeInfo, turbulenceFields, valueAverage, viewFactorHeatFlux, vtkCloud, vtkWrite, wallHeatFlux, wallShearStress, writeCellCentres, writeCellVolumes, writeDictionary, writeFreeSurface, writeObjects, XiReactionRate, yPlus, zeroGradient, moleFractions< ThermoType >, moleFractions< psiReactionThermo >, moleFractions< rhoReactionThermo >, pointHistory, Probes< ProbeType >, Probes< internalFieldProbe >, Probes< patchFieldProbe >, sampledSets, and sampledSurfaces.

References execute().

Referenced by execute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ execute() [2/2]

bool execute ( const label subIndex )

virtual

Execute using the specified subIndex.

The base implementation is a no-op.

Parameters

subIndex an execution sub-index corresponding to a sub-cycle or something similar.

Reimplemented in externalCoupled, and timeControl.

Definition at line 179 of file functionObject.C.

◆ write()

virtual bool write ( )

pure virtual

Called at each ++ or += of the time-loop.

postProcess overrides the usual writeControl behaviour and forces writing always (used in post-processing mode)

Implemented in areaWrite, functionObject::unavailableFunctionObject, abort, age, AMIWeights, BilgerMixtureFraction, binField, bladeForces, blendingFactor, caseInfo, cellDecomposer, cloudInfo, codedFunctionObject, columnAverage, comfort, components, continuityError, Curle, dataCloud, ddt2, derivedFields, DESModelRegions, div, DMD, dsmcFields, electricPotential, energySpectrum, energyTransport, ensightCloudWriteObject, ensightWrite, externalCoupled, extractEulerianParticles, fieldAverage, fieldExpression, fieldExtents, fieldMinMax, fieldsExpression, fieldStatistics, fieldValue, multiFieldValue, volFieldValue, filmFlux, fluxSummary, foamReport, forceCoeffs, forces, fvExpressionField, graphFunctionObject, histogram, hydrostaticPressure, icoUncoupledKinematicCloud, interfaceHeight, limitFields, mapFields, momentum, momentumError, multiRegion, nearWallFields, ObukhovLength, parProfiling, particleDistribution, processorField, propellerInfo, proudmanAcousticPower, radiometerProbes, reactionsSensitivityAnalysis< chemistryType >, reactionsSensitivityAnalysis< BasicChemistryModel< psiReactionThermo > >, reactionsSensitivityAnalysis< BasicChemistryModel< rhoReactionThermo > >, readFields, regionSizeDistribution, removeRegisteredObject, resolutionIndex, runTimeControl, scalarTransport, setFlow, setTimeStepFaRegionsFunctionObject, setTimeStepFunctionObject, sixDoFRigidBodyState, sizeDistribution, solverInfo, specieReactionRates< ChemistryModelType >, specieReactionRates< BasicChemistryModel< psiReactionThermo > >, specieReactionRates< BasicChemistryModel< rhoReactionThermo > >, stabilityBlendingFactor, streamLineBase, surfaceCourantNumber, surfaceDistance, surfaceInterpolate, syncObjects, systemCall, thermoCoupleProbes, timeActivatedFileUpdate, timeControl, timeInfo, turbulenceFields, valueAverage, viewFactorHeatFlux, vtkCloud, vtkWrite, wallHeatFlux, wallShearStress, writeCellCentres, writeCellVolumes, writeDictionary, writeFreeSurface, writeObjects, XiReactionRate, yPlus, zeroGradient, moleFractions< ThermoType >, moleFractions< psiReactionThermo >, moleFractions< rhoReactionThermo >, pointHistory, Probes< ProbeType >, Probes< internalFieldProbe >, Probes< patchFieldProbe >, sampledSets, and sampledSurfaces.

References adjustTimeStep(), end(), filesModified(), mesh, movePoints(), updateMesh(), and write().

Referenced by write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ end()

bool end ( )

virtual

Called when Time::run() determines that the time-loop exits.

The base implementation is a no-op.

Reimplemented in abort, codedFunctionObject, DMD, ensightWrite, externalCoupled, interfaceHeight, parProfiling, systemCall, timeControl, and vtkWrite.

Definition at line 185 of file functionObject.C.

Referenced by nearWallFields::calcAddressing(), externalCoupled::end(), and write().

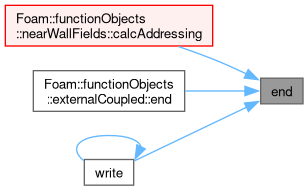

Here is the caller graph for this function:

◆ adjustTimeStep()

bool adjustTimeStep ( )

virtual

Called at the end of Time::adjustDeltaT() if adjustTime is true.

Reimplemented in setTimeStepFaRegionsFunctionObject, setTimeStepFunctionObject, and timeControl.

Definition at line 191 of file functionObject.C.

Referenced by write().

Here is the caller graph for this function:

◆ filesModified()

bool filesModified ( ) const

virtual

Did any file get changed during execution?

Reimplemented in timeActivatedFileUpdate, and timeControl.

Definition at line 197 of file functionObject.C.

Referenced by write().

Here is the caller graph for this function:

◆ updateMesh()

void updateMesh ( const mapPolyMesh & mpm )

virtual

Update for changes of mesh.

The base implementation is a no-op.

Reimplemented in areaWrite, binField, derivedFields, ensightWrite, momentum, ObukhovLength, processorField, streamLineBase, timeControl, viewFactorHeatFlux, vtkWrite, sampledSets, and sampledSurfaces.

Definition at line 203 of file functionObject.C.

Referenced by write().

Here is the caller graph for this function:

◆ movePoints()

void movePoints ( const polyMesh & mesh )

virtual

Update for changes of mesh.

The base implementation is a no-op.

Reimplemented in areaWrite, binField, derivedFields, ensightWrite, momentum, ObukhovLength, propellerInfo, streamLineBase, timeControl, viewFactorHeatFlux, vtkWrite, sampledSets, and sampledSurfaces.

Definition at line 207 of file functionObject.C.

Referenced by write().

Here is the caller graph for this function:

Member Data Documentation

◆ log

bool log

Flag to write log into Info.

Definition at line 401 of file functionObject.H.

Referenced by functionObject(), and read().

◆ debug

int debug

static

Flag to execute debug content.

Definition at line 409 of file functionObject.H.

Referenced by timeControl::adjustTimeStep(), syncObjects::execute(), syncObjects::read(), syncObjects::sync(), and syncObjects::write().

◆ postProcess

bool postProcess

static

Global post-processing mode switch.

Definition at line 414 of file functionObject.H.

Referenced by readFields::execute(), timeControl::execute(), yPlus::execute(), functionObject(), read(), runTimeControl::read(), DMD::write(), and timeControl::write().

◆ defaultUseNamePrefix

bool defaultUseNamePrefix

static

Global default for useNamePrefix.

Definition at line 419 of file functionObject.H.

Referenced by declareRunTimeSelectionTable(), read(), and functionObjectList::read().

◆ outputPrefix

Foam::word outputPrefix

static

Directory prefix.

Definition at line 424 of file functionObject.H.

Referenced by writeFile::baseFileDir(), CloudFunctionObject< CloudType >::CloudFunctionObject(), if(), averageNeighbourFvGeometryScheme::movePoints(), dynamicFvMesh::New(), dataCloud::read(), sampledSets::sampledSets(), sampledSets::sampledSets(), sampledSurfaces::sampledSurfaces(), sampledSurfaces::sampledSurfaces(), shortestPathSet::shortestPathSet(), and streamLineBase::writeToFile().

The documentation for this class was generated from the following files:

src/OpenFOAM/db/functionObjects/functionObject/functionObject.H
src/OpenFOAM/db/functionObjects/functionObject/functionObject.C
