A topoSetFaceSource to select a set of faces that closes a hole i.e. disconnects zones (specified by locations) from one another. More...

#include <holeToFace.H>

Inheritance diagram for holeToFace:

[legend]

Collaboration diagram for holeToFace:

[legend]

Public Member Functions
	TypeName ("holeToFace")
	Runtime type information.
	holeToFace (const polyMesh &mesh, const List< pointField > &zonePoints, const wordList &blockedFaceNames, const wordList &blockedCellNames, const bool erode)
	Construct from components.
	holeToFace (const polyMesh &mesh, const dictionary &dict)
	Construct from dictionary.
	holeToFace (const polyMesh &mesh, Istream &is)
	Construct from Istream.
virtual	~holeToFace ()=default
	Destructor.
virtual void	applyToSet (const topoSetSource::setAction action, topoSet &) const
	Apply specified action to the topoSet.
void	combine (topoSet &set, const bitSet &isBlockedFace, const bitSet &isActiveCell, const bool add) const
	Optional direct use to generate a faceSet.
Public Member Functions inherited from topoSetFaceSource
	declareRunTimeSelectionTable (autoPtr, topoSetFaceSource, word,(const polyMesh &mesh, const dictionary &dict),(mesh, dict))
	declareRunTimeSelectionTable (autoPtr, topoSetFaceSource, istream,(const polyMesh &mesh, Istream &is),(mesh, is))
	topoSetFaceSource (const polyMesh &mesh)
	Construct from mesh.
	topoSetFaceSource (const polyMesh &mesh, const dictionary &dict)
	Construct from mesh, use "verbose" entry if present.
autoPtr< topoSetFaceSource >	clone () const
	Clone (disallowed).
virtual	~topoSetFaceSource ()=default
	Destructor.
virtual topoSetSource::sourceType	setType () const
	The source category is a faceSet.
Public Member Functions inherited from topoSetSource
	TypeName ("topoSetSource")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, topoSetSource, word,(const polyMesh &mesh, const dictionary &dict),(mesh, dict))
	declareRunTimeSelectionTable (autoPtr, topoSetSource, istream,(const polyMesh &mesh, Istream &is),(mesh, is))
	topoSetSource (const polyMesh &mesh, bool verbose=true)
	Construct from mesh, with preferred verbosity.
	topoSetSource (const polyMesh &mesh, const dictionary &dict)
	Construct from mesh, use "verbose" entry if present.
autoPtr< topoSetSource >	clone () const
	Clone (disallowed).
virtual	~topoSetSource ()=default
	Destructor.
const polyMesh &	mesh () const noexcept
	Reference to the mesh.
bool	verbose () const noexcept
	Get output verbosity.
bool	verbose (bool on) noexcept
	Enable/disable verbose output.
void	verbose (const dictionary &dict)
	Use "verbose" entry (if present) to enable/disable verbose output.
bool	hasTransform () const noexcept
	True if coordinate transform is active.
tmp< pointField >	transform (const pointField &points) const
	Coordinate transform (optionally) coordinates. Returns reference to input data if no transform is active.

Static Public Member Functions
static autoPtr< mapDistribute >	calcClosure (const polyMesh &mesh, const List< pointField > &zonePoints, const labelList &blockedFaces, const globalIndex &globalBlockedFaces, const bool erode, labelList &closureFaces, labelList &closureToBlocked)
	Optional direct use to generate the set of faces and the method to.
Static Public Member Functions inherited from topoSetFaceSource
static autoPtr< topoSetFaceSource >	New (const word &sourceType, const polyMesh &mesh, const dictionary &dict)
	Return a reference to the selected source type.
static autoPtr< topoSetFaceSource >	New (const word &sourceType, const polyMesh &mesh, Istream &is)
	Return a reference to the selected source type.
Static Public Member Functions inherited from topoSetSource
static Istream &	checkIs (Istream &is)
	Check state of stream.
static bool	isSetSource (const sourceType t) noexcept
	True if a "set" source.
static bool	isZoneSource (const sourceType t) noexcept
	True if a "zone" source.
static bool	isCell (const sourceType t) noexcept
	True if "cell" geometric type.
static bool	isFace (const sourceType t) noexcept
	True if "face" geometric type.
static bool	isPoint (const sourceType t) noexcept
	True if "point" geometric type.
static const string &	usage (const word &name)
static autoPtr< topoSetSource >	New (const word &topoSetSourceType, const polyMesh &mesh, const dictionary &dict)
	Return a reference to the selected topoSetSource.
static autoPtr< topoSetSource >	New (const word &topoSetSourceType, const polyMesh &mesh, Istream &is)
	Return a reference to the selected topoSetSource.
static setAction	toAction (const word &actionName)
	Deprecated(2018-07) convert string to action.
static bool	readNames (const dictionary &dict, wordList &names)
	Helper: extract wordList of patches/zones from dictionary. Returns.

Additional Inherited Members
Public Types inherited from topoSetSource
enum	sourceType { UNKNOWN_SOURCE = 0 , CELL_TYPE = 0x1 , FACE_TYPE = 0x2 , POINT_TYPE = 0x4 , SET_SOURCE = 0x10 , CELLSET_SOURCE = (CELL_TYPE \| SET_SOURCE) , FACESET_SOURCE = (FACE_TYPE \| SET_SOURCE) , POINTSET_SOURCE = (POINT_TYPE \| SET_SOURCE) , ZONE_SOURCE = 0x20 , CELLZONE_SOURCE = (CELL_TYPE \| ZONE_SOURCE) , FACEZONE_SOURCE = (FACE_TYPE \| ZONE_SOURCE) , POINTZONE_SOURCE = (POINT_TYPE \| ZONE_SOURCE) , CELLSETSOURCE = CELLSET_SOURCE , FACESETSOURCE = FACESET_SOURCE , POINTSETSOURCE = POINTSET_SOURCE , CELLZONESOURCE = CELLZONE_SOURCE , FACEZONESOURCE = FACEZONE_SOURCE , POINTZONESOURCE = POINTZONE_SOURCE }
	Enumeration defining the types of sources. More...
enum	setAction { ADD , SUBTRACT , NEW , SUBSET , INVERT , CLEAR , REMOVE , LIST , IGNORE , DELETE = SUBTRACT }
	Enumeration defining various actions. More...
Static Public Attributes inherited from topoSetSource
static const Enum< setAction >	actionNames
	The setActions enum text. Names: "new", add", "subtract", "subset", "invert", "clear", "remove", "list", "ignore".
static const Enum< setAction >	combineNames
	The setAction enum text when combining selections. Names: "use", "add", "subtract", "subset", "invert", "ignore".
Protected Member Functions inherited from topoSetSource
void	addOrDelete (topoSet &set, const label id, const bool add) const
	Add or delete id from set. Add when 'add' is true.
void	addOrDelete (topoSet &set, const labelUList &labels, const bool add) const
	Add or delete labels from set. Add when 'add' is true.
void	addOrDelete (topoSet &set, const bitSet &labels, const bool add) const
	Add or delete labels from set. Add when 'add' is true.
	topoSetSource (const topoSetSource &)=delete
	No copy construct.
void	operator= (const topoSetSource &)=delete
	No copy assignment.
Static Protected Member Functions inherited from topoSetSource
static bool	check (labelList &list, const label maxLabel)
	Detect and remove any values less than 0 or ge maxLabel.
Protected Attributes inherited from topoSetSource
const polyMesh &	mesh_
	Reference to the mesh.
bool	verbose_
	Output verbosity (default: true).
autoPtr< solidBodyMotionFunction >	transformPtr_
	Optional transformation for geometric data.
Static Protected Attributes inherited from topoSetSource
static const string	illegalSource_
static HashTable< string > *	usageTablePtr_ = nullptr
	A table of usage strings.

Detailed Description

A topoSetFaceSource to select a set of faces that closes a hole i.e. disconnects zones (specified by locations) from one another.

Algorithm roughly according to "A 3D-Hole Closing Algorithm", Zouina Aktouf et al

Dictionary parameters

Property	Description	Required	Default
`points`	Per zone the list of points	yes
`faceSet(s)`	Set(s) of blocked faces	yes
`cellSet(s)`	Set(s) of cells to operate in	yes	<empty>
`erode`	Perform some cleanup on set	no	no

Limited to max 31 zones.

Source files

Definition at line 88 of file holeToFace.H.

Constructor & Destructor Documentation

◆ holeToFace() [1/3]

holeToFace	(	const polyMesh &	mesh,
		const List< pointField > &	zonePoints,
		const wordList &	blockedFaceNames,
		const wordList &	blockedCellNames,
		const bool	erode )

Construct from components.

Definition at line 1071 of file holeToFace.C.

References topoSetSource::mesh(), and topoSetFaceSource::topoSetFaceSource().

Referenced by calcClosure().

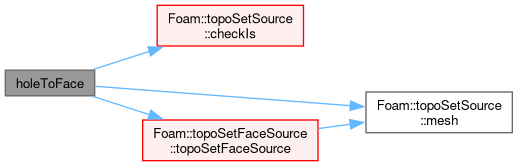

Here is the call graph for this function:

Here is the caller graph for this function:

◆ holeToFace() [2/3]

holeToFace	(	const polyMesh &	mesh,
		const dictionary &	dict )

Construct from dictionary.

Definition at line 1088 of file holeToFace.C.

References dict, topoSetSource::mesh(), and topoSetFaceSource::topoSetFaceSource().

Here is the call graph for this function:

◆ holeToFace() [3/3]

holeToFace	(	const polyMesh &	mesh,
		Istream &	is )

Construct from Istream.

Definition at line 1121 of file holeToFace.C.

References topoSetSource::checkIs(), topoSetSource::mesh(), and topoSetFaceSource::topoSetFaceSource().

Here is the call graph for this function:

◆ ~holeToFace()

virtual ~holeToFace ( )

virtualdefault

Destructor.

References Foam::add(), isBlockedFace(), and topoSetSource::mesh().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "holeToFace" )

Runtime type information.

References dict, and topoSetSource::mesh().

Here is the call graph for this function:

◆ applyToSet()

void applyToSet	(	const topoSetSource::setAction	action,
		topoSet &	set ) const

virtual

Apply specified action to the topoSet.

Implements topoSetSource.

Definition at line 1137 of file holeToFace.C.

References topoSetSource::ADD, HashSet< Key, Hash >::begin(), combine(), HashSet< Key, Hash >::end(), Foam::endl(), Foam::flatOutput(), Foam::Info, isBlockedFace(), topoSetSource::mesh_, topoSetSource::NEW, IOobjectOption::NO_REGISTER, bitSet::setMany(), topoSetSource::SUBTRACT, and topoSetSource::verbose_.

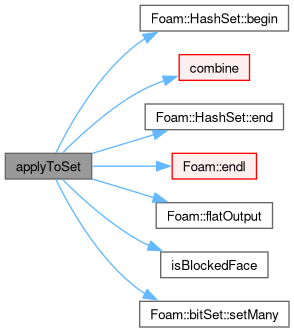

Here is the call graph for this function:

◆ combine()

void combine	(	topoSet &	set,
		const bitSet &	isBlockedFace,
		const bitSet &	isActiveCell,
		const bool	add ) const

Optional direct use to generate a faceSet.

Definition at line 981 of file holeToFace.C.

References Foam::add(), topoSetSource::addOrDelete(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, topoSetSource::mesh_, List< T >::setSize(), and UList< T >::size().

Referenced by applyToSet(), and calcClosure().

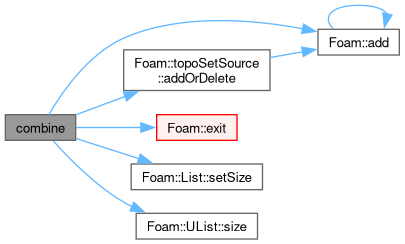

Here is the call graph for this function:

Here is the caller graph for this function:

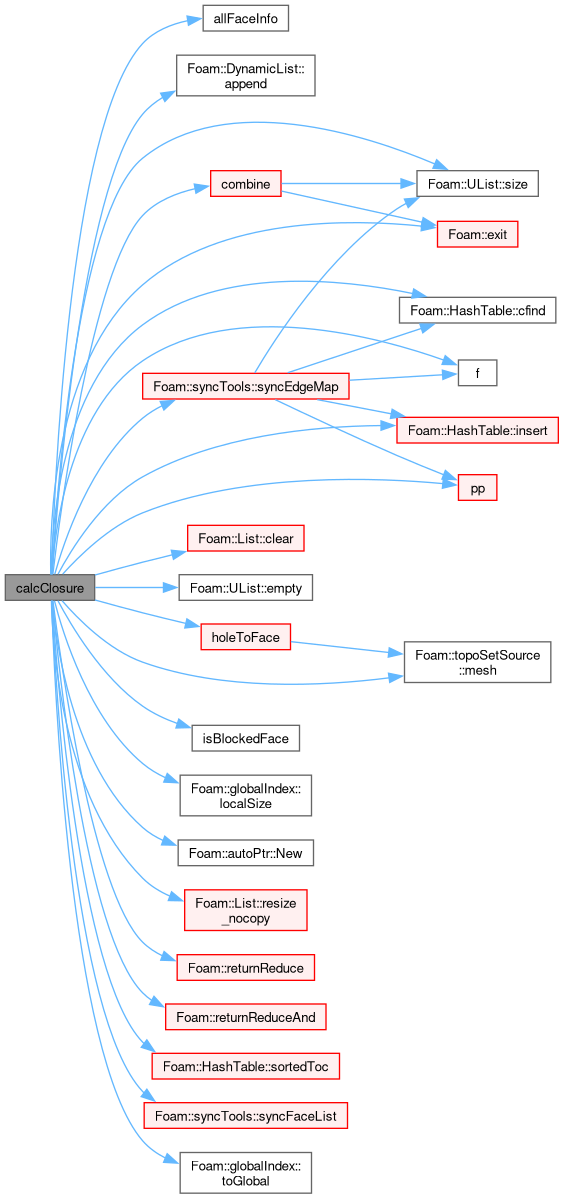

◆ calcClosure()

Foam::autoPtr< Foam::mapDistribute > calcClosure	(	const polyMesh &	mesh,
		const List< pointField > &	zonePoints,
		const labelList &	blockedFaces,
		const globalIndex &	globalBlockedFaces,
		const bool	erode,
		labelList &	closureFaces,
		labelList &	closureToBlocked )

static

Optional direct use to generate the set of faces and the method to.

get data from nearby blocked faces. Gets provided with the

set of points per 'zone'
set of blocked faces
global numbering for these blocked faces Returns
the set of faces to disconnect zones from one another (closureFaces)
a nullptr or the maps from closureFaces to nearest blocked face (mapDistribute and closureToBlocked). Note: closureToBlocked (index into the map) can contain -1 if no nearby valid blocked face could be found (from an edge-face-edge walk)

Seed edges of closureFaces patch with (global) index of blockedFace

Definition at line 1189 of file holeToFace.C.
