inclinedFilmNusseltHeightFvPatchScalarField Class Reference

Film height boundary condition for inclined films that imposes a sinusoidal perturbation on top of a mean flow rate, where the height is calculated using the Nusselt solution. More...

#include <inclinedFilmNusseltHeightFvPatchScalarField.H>

Inheritance diagram for inclinedFilmNusseltHeightFvPatchScalarField:

Collaboration diagram for inclinedFilmNusseltHeightFvPatchScalarField:

Public Member Functions
	TypeName ("inclinedFilmNusseltHeight")
	Runtime type information.
	inclinedFilmNusseltHeightFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	inclinedFilmNusseltHeightFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	inclinedFilmNusseltHeightFvPatchScalarField (const inclinedFilmNusseltHeightFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given.
	inclinedFilmNusseltHeightFvPatchScalarField (const inclinedFilmNusseltHeightFvPatchScalarField &)
	Construct as copy.
	inclinedFilmNusseltHeightFvPatchScalarField (const inclinedFilmNusseltHeightFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.

Detailed Description

Film height boundary condition for inclined films that imposes a sinusoidal perturbation on top of a mean flow rate, where the height is calculated using the Nusselt solution.

Source files

• inclinedFilmNusseltHeightFvPatchScalarField.H
• inclinedFilmNusseltHeightFvPatchScalarField.C

Definition at line 50 of file inclinedFilmNusseltHeightFvPatchScalarField.H.

Constructor & Destructor Documentation

inclinedFilmNusseltHeightFvPatchScalarField() [1/5]

inclinedFilmNusseltHeightFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 29 of file inclinedFilmNusseltHeightFvPatchScalarField.C.

References p.

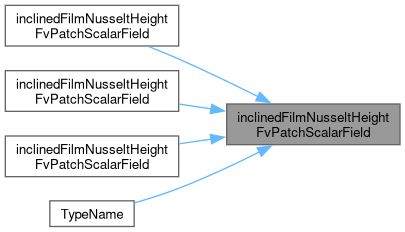

Referenced by inclinedFilmNusseltHeightFvPatchScalarField(), inclinedFilmNusseltHeightFvPatchScalarField(), inclinedFilmNusseltHeightFvPatchScalarField(), and TypeName().

Here is the caller graph for this function:

inclinedFilmNusseltHeightFvPatchScalarField() [2/5]

inclinedFilmNusseltHeightFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 61 of file inclinedFilmNusseltHeightFvPatchScalarField.C.

References dict, Foam::New(), and p.

Here is the call graph for this function:

inclinedFilmNusseltHeightFvPatchScalarField() [3/5]

inclinedFilmNusseltHeightFvPatchScalarField	(	const inclinedFilmNusseltHeightFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given.

inclinedFilmNusseltHeightFvPatchScalarField onto a new patch

Definition at line 44 of file inclinedFilmNusseltHeightFvPatchScalarField.C.

References clone(), inclinedFilmNusseltHeightFvPatchScalarField(), and p.

Here is the call graph for this function:

inclinedFilmNusseltHeightFvPatchScalarField() [4/5]

inclinedFilmNusseltHeightFvPatchScalarField

(

const inclinedFilmNusseltHeightFvPatchScalarField &

wmfrhpsf

)

Construct as copy.

Definition at line 80 of file inclinedFilmNusseltHeightFvPatchScalarField.C.

References clone(), and inclinedFilmNusseltHeightFvPatchScalarField().

Here is the call graph for this function:

inclinedFilmNusseltHeightFvPatchScalarField() [5/5]

inclinedFilmNusseltHeightFvPatchScalarField	(	const inclinedFilmNusseltHeightFvPatchScalarField &	wmfrhpsf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 94 of file inclinedFilmNusseltHeightFvPatchScalarField.C.

References clone(), and inclinedFilmNusseltHeightFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"inclinedFilmNusseltHeight"

)

Runtime type information.

References inclinedFilmNusseltHeightFvPatchScalarField().

Here is the call graph for this function:

clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 139 of file inclinedFilmNusseltHeightFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Referenced by inclinedFilmNusseltHeightFvPatchScalarField(), inclinedFilmNusseltHeightFvPatchScalarField(), and inclinedFilmNusseltHeightFvPatchScalarField().

Here is the call graph for this function:

Here is the caller graph for this function:

clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 147 of file inclinedFilmNusseltHeightFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 111 of file inclinedFilmNusseltHeightFvPatchScalarField.C.

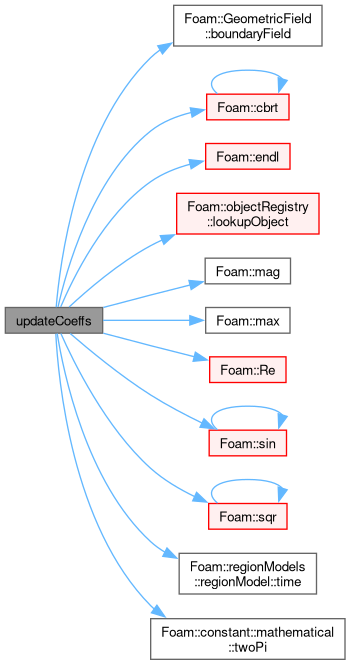

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), Foam::cbrt(), Foam::endl(), objectRegistry::lookupObject(), Foam::mag(), Foam::max(), mu, n, Foam::Re(), rho, Foam::sin(), Foam::sqr(), regionModel::time(), Foam::constant::mathematical::twoPi(), and WarningInFunction.

Here is the call graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 185 of file inclinedFilmNusseltHeightFvPatchScalarField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/regionModels/surfaceFilmModels/derivedFvPatchFields/inclinedFilmNusseltHeight/inclinedFilmNusseltHeightFvPatchScalarField.H
• src/regionModels/surfaceFilmModels/derivedFvPatchFields/inclinedFilmNusseltHeight/inclinedFilmNusseltHeightFvPatchScalarField.C
