Lam and Bremhorst low-Reynolds number k-epsilon turbulence model for incompressible flows. More...

#include <LamBremhorstKE.H>

Inheritance diagram for LamBremhorstKE:

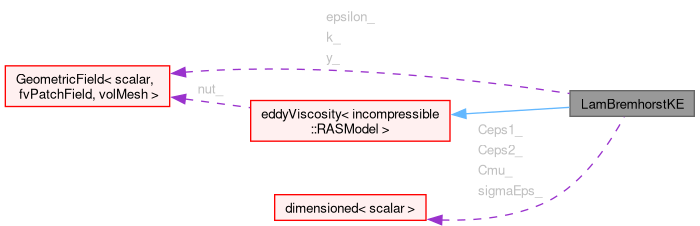

Collaboration diagram for LamBremhorstKE:

[legend]

Public Member Functions
	TypeName ("LamBremhorstKE")
	Runtime type information.
	LamBremhorstKE (const geometricOneField &alpha, const geometricOneField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~LamBremhorstKE ()=default
	Destructor.
virtual bool	read ()
	Re-read model coefficients if they have changed.
tmp< volScalarField >	DkEff () const
	Return the effective diffusivity for k.
tmp< volScalarField >	DepsilonEff () const
	Return the effective diffusivity for epsilon.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from eddyViscosity< incompressible::RASModel >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< incompressible::RASModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.

Protected Member Functions
virtual void	correctNut ()

Protected Attributes
dimensionedScalar	Cmu_
dimensionedScalar	Ceps1_
dimensionedScalar	Ceps2_
dimensionedScalar	sigmaEps_
volScalarField	k_
volScalarField	epsilon_
const volScalarField &	y_
	Wall distance.
Protected Attributes inherited from eddyViscosity< incompressible::RASModel >
volScalarField	nut_

Additional Inherited Members
Public Types inherited from eddyViscosity< incompressible::RASModel >
typedef incompressible::RASModel::alphaField	alphaField
typedef incompressible::RASModel::rhoField	rhoField
typedef incompressible::RASModel::transportModel	transportModel
Public Types inherited from linearViscousStress< incompressible::RASModel >
typedef incompressible::RASModel::alphaField	alphaField
typedef incompressible::RASModel::rhoField	rhoField
typedef incompressible::RASModel::transportModel	transportModel

Detailed Description

Lam and Bremhorst low-Reynolds number k-epsilon turbulence model for incompressible flows.

This turbulence model is described in:

    Lam, C. K. G., & Bremhorst, K. (1981).
    A modified form of the k-ε model for predicting wall turbulence.
    Journal of Fluids Engineering, 103(3), 456-460.

Source files

Definition at line 63 of file LamBremhorstKE.H.

Constructor & Destructor Documentation

◆ LamBremhorstKE()

LamBremhorstKE	(	const geometricOneField &	alpha,
		const geometricOneField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 85 of file LamBremhorstKE.C.

References alpha, Foam::bound(), Ceps1_, Ceps2_, Cmu_, eddyViscosity< incompressible::RASModel >::eddyViscosity(), epsilon_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, k_, Foam::incompressible::New(), phi, rho, sigmaEps_, timeName, U, y, and y_.

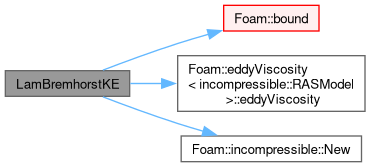

Here is the call graph for this function:

◆ ~LamBremhorstKE()

virtual ~LamBremhorstKE ( )

virtualdefault

Destructor.

Member Function Documentation

◆ correctNut()

void correctNut ( )

protectedvirtual

Implements eddyViscosity< incompressible::RASModel >.

Definition at line 77 of file LamBremhorstKE.C.

References correctNut().

Referenced by correct(), and correctNut().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "LamBremhorstKE" )

Runtime type information.

References alpha, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, phi, turbulenceModel::propertiesName, rho, and U.

◆ read()

bool read ( )

virtual

Re-read model coefficients if they have changed.

Implements eddyViscosity< incompressible::RASModel >.

Definition at line 186 of file LamBremhorstKE.C.

References Ceps1_, Ceps2_, Cmu_, eddyViscosity< BasicTurbulenceModel >::read(), and sigmaEps_.

Here is the call graph for this function:

◆ DkEff()

tmp< volScalarField > DkEff ( ) const

inline

Return the effective diffusivity for k.

Definition at line 154 of file LamBremhorstKE.H.

References nu, and eddyViscosity< incompressible::RASModel >::nut_.

Referenced by correct().

Here is the caller graph for this function:

◆ DepsilonEff()

tmp< volScalarField > DepsilonEff ( ) const

inline

Return the effective diffusivity for epsilon.

Definition at line 165 of file LamBremhorstKE.H.

References nu, eddyViscosity< incompressible::RASModel >::nut_, and sigmaEps_.

Referenced by correct().

Here is the caller graph for this function:

◆ k()

virtual tmp< volScalarField > k ( ) const

inlinevirtual

Return the turbulence kinetic energy.

Implements eddyViscosity< incompressible::RASModel >.

Definition at line 176 of file LamBremhorstKE.H.

References k_.

◆ epsilon()

virtual tmp< volScalarField > epsilon ( ) const

inlinevirtual

Return the turbulence kinetic energy dissipation rate.

Definition at line 184 of file LamBremhorstKE.H.

References epsilon_.

◆ correct()

void correct ( )

virtual

Solve the turbulence equations and correct the turbulence viscosity.

Implements eddyViscosity< incompressible::RASModel >.

Definition at line 202 of file LamBremhorstKE.C.

References Foam::bound(), Ceps1_, Ceps2_, tmp< T >::clear(), eddyViscosity< BasicTurbulenceModel >::correct(), correctNut(), Foam::fvm::ddt(), DepsilonEff(), Foam::fvm::div(), DkEff(), epsilon_, Foam::fvc::grad(), k_, Foam::fvm::laplacian(), eddyViscosity< incompressible::RASModel >::nut_, tmp< T >::ref(), solve(), Foam::fvm::Sp(), and Foam::twoSymm().

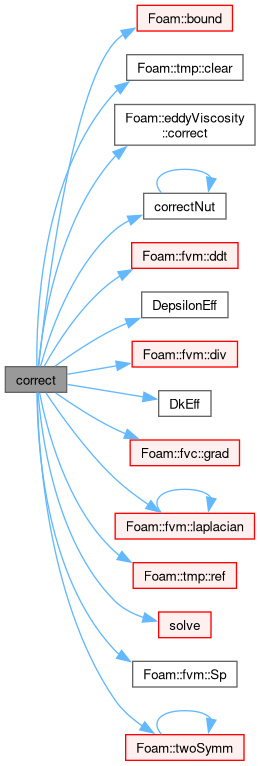

Here is the call graph for this function:

Member Data Documentation

◆ Cmu_

dimensionedScalar Cmu_

protected

Definition at line 90 of file LamBremhorstKE.H.

Referenced by LamBremhorstKE(), and read().

◆ Ceps1_

dimensionedScalar Ceps1_

protected

Definition at line 91 of file LamBremhorstKE.H.

Referenced by correct(), LamBremhorstKE(), and read().

◆ Ceps2_

dimensionedScalar Ceps2_

protected

Definition at line 92 of file LamBremhorstKE.H.

Referenced by correct(), LamBremhorstKE(), and read().

◆ sigmaEps_

dimensionedScalar sigmaEps_

protected

Definition at line 93 of file LamBremhorstKE.H.

Referenced by DepsilonEff(), LamBremhorstKE(), and read().

◆ k_

volScalarField k_

protected

Definition at line 95 of file LamBremhorstKE.H.

Referenced by correct(), k(), and LamBremhorstKE().

◆ epsilon_

volScalarField epsilon_

protected

Definition at line 96 of file LamBremhorstKE.H.

Referenced by correct(), epsilon(), and LamBremhorstKE().

◆ y_

const volScalarField& y_

protected

Wall distance.

Note: different to wall distance in parent RASModel which is for near-wall cells only

Definition at line 104 of file LamBremhorstKE.H.

Referenced by LamBremhorstKE().

The documentation for this class was generated from the following files:

src/TurbulenceModels/incompressible/turbulentTransportModels/RAS/LamBremhorstKE/LamBremhorstKE.H
src/TurbulenceModels/incompressible/turbulentTransportModels/RAS/LamBremhorstKE/LamBremhorstKE.C
