Lien cubic non-linear low-Reynolds k-epsilon turbulence models for incompressible flows. More...

#include <LienCubicKE.H>

Inheritance diagram for LienCubicKE:

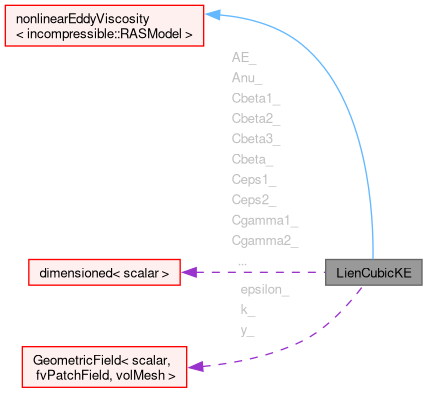

Collaboration diagram for LienCubicKE:

[legend]

Public Member Functions
	TypeName ("LienCubicKE")
	Runtime type information.
	LienCubicKE (const geometricOneField &alpha, const geometricOneField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~LienCubicKE ()=default
	Destructor.
virtual bool	read ()
	Re-read model coefficients if they have changed.
tmp< volScalarField >	DkEff () const
	Return the effective diffusivity for k.
tmp< volScalarField >	DepsilonEff () const
	Return the effective diffusivity for epsilon.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from nonlinearEddyViscosity< incompressible::RASModel >
	nonlinearEddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~nonlinearEddyViscosity ()=default
	Destructor.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
Public Member Functions inherited from eddyViscosity< incompressible::RASModel >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< incompressible::RASModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.

Protected Member Functions
tmp< volScalarField >	fMu () const
tmp< volScalarField >	f2 () const
tmp< volScalarField >	E (const volScalarField &f2) const
virtual void	correctNut ()
virtual void	correctNonlinearStress (const volTensorField &gradU)

Protected Attributes
dimensionedScalar	Ceps1_
dimensionedScalar	Ceps2_
dimensionedScalar	sigmak_
dimensionedScalar	sigmaEps_
dimensionedScalar	Cmu1_
dimensionedScalar	Cmu2_
dimensionedScalar	Cbeta_
dimensionedScalar	Cbeta1_
dimensionedScalar	Cbeta2_
dimensionedScalar	Cbeta3_
dimensionedScalar	Cgamma1_
dimensionedScalar	Cgamma2_
dimensionedScalar	Cgamma4_
dimensionedScalar	Cmu_
dimensionedScalar	kappa_
dimensionedScalar	Anu_
dimensionedScalar	AE_
volScalarField	k_
volScalarField	epsilon_
const volScalarField &	y_
	Wall distance.
Protected Attributes inherited from nonlinearEddyViscosity< incompressible::RASModel >
volSymmTensorField	nonlinearStress_
Protected Attributes inherited from eddyViscosity< incompressible::RASModel >
volScalarField	nut_

Additional Inherited Members
Public Types inherited from nonlinearEddyViscosity< incompressible::RASModel >
typedef incompressible::RASModel::alphaField	alphaField
typedef incompressible::RASModel::rhoField	rhoField
typedef incompressible::RASModel::transportModel	transportModel
Public Types inherited from eddyViscosity< incompressible::RASModel >
typedef incompressible::RASModel::alphaField	alphaField
typedef incompressible::RASModel::rhoField	rhoField
typedef incompressible::RASModel::transportModel	transportModel
Public Types inherited from linearViscousStress< incompressible::RASModel >
typedef incompressible::RASModel::alphaField	alphaField
typedef incompressible::RASModel::rhoField	rhoField
typedef incompressible::RASModel::transportModel	transportModel

Detailed Description

Lien cubic non-linear low-Reynolds k-epsilon turbulence models for incompressible flows.

This turbulence model is described in:

    Lien, F.S., Chen, W.L. & Leschziner, M.A. (1996).
    Low-Reynolds-number eddy-viscosity modeling based on non-linear
    stress-strain/vorticity relations.
    Engineering Turbulence Modelling and Experiments 3, 91-100.

Implemented according to the specification in: Apsley: Turbulence Models 2002

In addition to the low-Reynolds number damping functions support for wall-functions is also included to allow for low- and high-Reynolds number operation.

See also: Foam::incompressible::RASModels::ShihQuadraticKE

Source files

Definition at line 76 of file LienCubicKE.H.

Constructor & Destructor Documentation

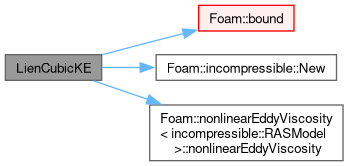

◆ LienCubicKE()

LienCubicKE	(	const geometricOneField &	alpha,
		const geometricOneField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 118 of file LienCubicKE.C.

References AE_, alpha, Anu_, Foam::bound(), Cbeta1_, Cbeta2_, Cbeta3_, Cbeta_, Ceps1_, Ceps2_, Cgamma1_, Cgamma2_, Cgamma4_, Cmu1_, Cmu2_, Cmu_, epsilon_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, k_, kappa_, Foam::incompressible::New(), nonlinearEddyViscosity< incompressible::RASModel >::nonlinearEddyViscosity(), phi, rho, sigmaEps_, sigmak_, timeName, U, y, and y_.

Here is the call graph for this function:

◆ ~LienCubicKE()

virtual ~LienCubicKE ( )

virtualdefault

Destructor.

Member Function Documentation

◆ fMu()

tmp< volScalarField > fMu ( ) const

protected

Definition at line 43 of file LienCubicKE.C.

References Anu_, Cmu_, Foam::exp(), k_, kappa_, nu, Foam::pow(), Foam::sqrt(), and y_.

Referenced by correctNonlinearStress().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ f2()

tmp< volScalarField > f2 ( ) const

protected

Definition at line 53 of file LienCubicKE.C.

References epsilon_, Foam::exp(), k_, nu, and Foam::sqr().

Referenced by correct(), and E().

Here is the call graph for this function:

Here is the caller graph for this function:

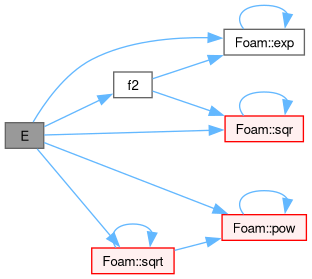

◆ E()

tmp< volScalarField > E ( const volScalarField & f2 ) const

protected

Definition at line 61 of file LienCubicKE.C.

References AE_, Ceps2_, Cmu_, epsilon_, Foam::exp(), f2(), k_, kappa_, nu, Foam::pow(), Foam::sqr(), Foam::sqrt(), and y_.

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ correctNut()

void correctNut ( )

protectedvirtual

Implements eddyViscosity< incompressible::RASModel >.

Definition at line 75 of file LienCubicKE.C.

References correctNonlinearStress(), and Foam::fvc::grad().

Here is the call graph for this function:

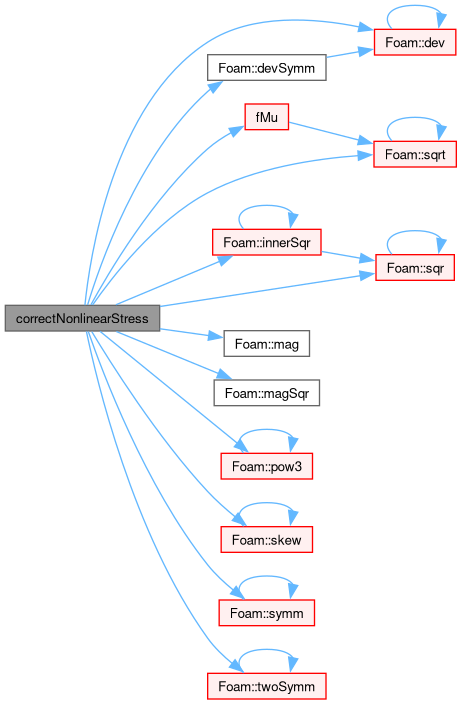

◆ correctNonlinearStress()

void correctNonlinearStress ( const volTensorField & gradU )

protectedvirtual

Implements nonlinearEddyViscosity< incompressible::RASModel >.

Definition at line 81 of file LienCubicKE.C.

References Cbeta1_, Cbeta2_, Cbeta3_, Cbeta_, Cgamma1_, Cgamma2_, Cgamma4_, Cmu1_, Cmu2_, Foam::dev(), Foam::devSymm(), epsilon_, fMu(), Foam::innerSqr(), k_, Foam::mag(), Foam::magSqr(), nonlinearEddyViscosity< incompressible::RASModel >::nonlinearStress_, eddyViscosity< incompressible::RASModel >::nut_, Foam::pow3(), Foam::skew(), Foam::sqr(), Foam::sqrt(), Foam::symm(), and Foam::twoSymm().

Referenced by correct(), and correctNut().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "LienCubicKE" )

Runtime type information.

References alpha, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, phi, turbulenceModel::propertiesName, rho, and U.

◆ read()

bool read ( )

virtual

Re-read model coefficients if they have changed.

Implements eddyViscosity< incompressible::RASModel >.

Definition at line 336 of file LienCubicKE.C.

References AE_, Anu_, Cbeta1_, Cbeta2_, Cbeta3_, Cbeta_, Ceps1_, Ceps2_, Cgamma1_, Cgamma2_, Cgamma4_, Cmu1_, Cmu2_, Cmu_, kappa_, eddyViscosity< BasicTurbulenceModel >::read(), sigmaEps_, and sigmak_.

Here is the call graph for this function:

◆ DkEff()

tmp< volScalarField > DkEff ( ) const

inline

Return the effective diffusivity for k.

Definition at line 173 of file LienCubicKE.H.

References nu, eddyViscosity< incompressible::RASModel >::nut_, and sigmak_.

Referenced by correct().

Here is the caller graph for this function:

◆ DepsilonEff()

tmp< volScalarField > DepsilonEff ( ) const

inline

Return the effective diffusivity for epsilon.

Definition at line 184 of file LienCubicKE.H.

References nu, eddyViscosity< incompressible::RASModel >::nut_, and sigmaEps_.

Referenced by correct().

Here is the caller graph for this function:

◆ k()

virtual tmp< volScalarField > k ( ) const

inlinevirtual

Return the turbulence kinetic energy.

Implements eddyViscosity< incompressible::RASModel >.

Definition at line 195 of file LienCubicKE.H.

References k_.

◆ epsilon()

virtual tmp< volScalarField > epsilon ( ) const

inlinevirtual

Return the turbulence kinetic energy dissipation rate.

Definition at line 203 of file LienCubicKE.H.

References epsilon_.

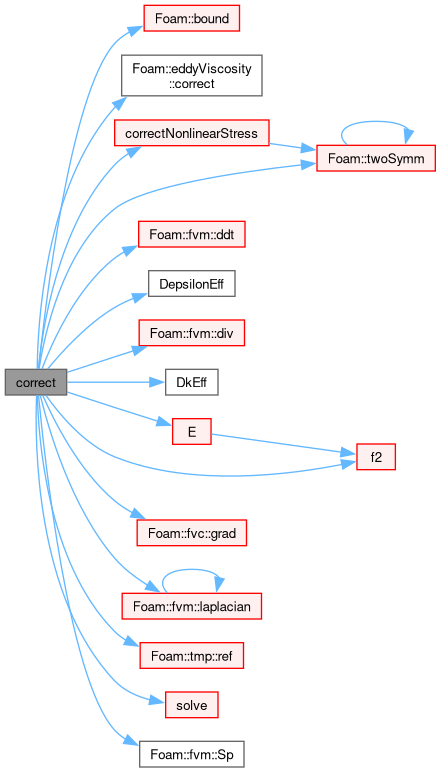

◆ correct()

void correct ( )

virtual

Solve the turbulence equations and correct the turbulence viscosity.

Implements eddyViscosity< incompressible::RASModel >.

Definition at line 365 of file LienCubicKE.C.

References Foam::bound(), Ceps1_, Ceps2_, eddyViscosity< BasicTurbulenceModel >::correct(), correctNonlinearStress(), Foam::fvm::ddt(), DepsilonEff(), Foam::fvm::div(), DkEff(), E(), epsilon_, f2(), Foam::fvc::grad(), k_, Foam::fvm::laplacian(), nonlinearEddyViscosity< incompressible::RASModel >::nonlinearStress_, eddyViscosity< incompressible::RASModel >::nut_, tmp< T >::ref(), solve(), Foam::fvm::Sp(), and Foam::twoSymm().

Here is the call graph for this function:

Member Data Documentation

◆ Ceps1_

dimensionedScalar Ceps1_

protected

Definition at line 87 of file LienCubicKE.H.

Referenced by correct(), LienCubicKE(), and read().

◆ Ceps2_

dimensionedScalar Ceps2_

protected

Definition at line 88 of file LienCubicKE.H.

Referenced by correct(), E(), LienCubicKE(), and read().

◆ sigmak_

dimensionedScalar sigmak_

protected

Definition at line 89 of file LienCubicKE.H.

Referenced by DkEff(), LienCubicKE(), and read().

◆ sigmaEps_

dimensionedScalar sigmaEps_

protected

Definition at line 90 of file LienCubicKE.H.

Referenced by DepsilonEff(), LienCubicKE(), and read().

◆ Cmu1_

dimensionedScalar Cmu1_

protected

Definition at line 91 of file LienCubicKE.H.

Referenced by correctNonlinearStress(), LienCubicKE(), and read().

◆ Cmu2_

dimensionedScalar Cmu2_

protected

Definition at line 92 of file LienCubicKE.H.

Referenced by correctNonlinearStress(), LienCubicKE(), and read().

◆ Cbeta_

dimensionedScalar Cbeta_

protected

Definition at line 93 of file LienCubicKE.H.

Referenced by correctNonlinearStress(), LienCubicKE(), and read().

◆ Cbeta1_

dimensionedScalar Cbeta1_

protected

Definition at line 94 of file LienCubicKE.H.

Referenced by correctNonlinearStress(), LienCubicKE(), and read().

◆ Cbeta2_

dimensionedScalar Cbeta2_

protected

Definition at line 95 of file LienCubicKE.H.

Referenced by correctNonlinearStress(), LienCubicKE(), and read().

◆ Cbeta3_

dimensionedScalar Cbeta3_

protected

Definition at line 96 of file LienCubicKE.H.

Referenced by correctNonlinearStress(), LienCubicKE(), and read().

◆ Cgamma1_

dimensionedScalar Cgamma1_

protected

Definition at line 97 of file LienCubicKE.H.

Referenced by correctNonlinearStress(), LienCubicKE(), and read().

◆ Cgamma2_

dimensionedScalar Cgamma2_

protected

Definition at line 98 of file LienCubicKE.H.

Referenced by correctNonlinearStress(), LienCubicKE(), and read().

◆ Cgamma4_

dimensionedScalar Cgamma4_

protected

Definition at line 99 of file LienCubicKE.H.

Referenced by correctNonlinearStress(), LienCubicKE(), and read().

◆ Cmu_

dimensionedScalar Cmu_

protected

Definition at line 101 of file LienCubicKE.H.

Referenced by E(), fMu(), LienCubicKE(), and read().

◆ kappa_

dimensionedScalar kappa_

protected

Definition at line 102 of file LienCubicKE.H.

Referenced by E(), fMu(), LienCubicKE(), and read().

◆ Anu_

dimensionedScalar Anu_

protected

Definition at line 104 of file LienCubicKE.H.

Referenced by fMu(), LienCubicKE(), and read().

◆ AE_

dimensionedScalar AE_

protected

Definition at line 105 of file LienCubicKE.H.

Referenced by E(), LienCubicKE(), and read().

◆ k_

volScalarField k_

protected

Definition at line 110 of file LienCubicKE.H.

Referenced by correct(), correctNonlinearStress(), E(), f2(), fMu(), k(), and LienCubicKE().

◆ epsilon_

volScalarField epsilon_

protected

Definition at line 111 of file LienCubicKE.H.

Referenced by correct(), correctNonlinearStress(), E(), epsilon(), f2(), and LienCubicKE().

◆ y_

const volScalarField& y_

protected

Wall distance.

Note: different to wall distance in parent RASModel which is for near-wall cells only

Definition at line 119 of file LienCubicKE.H.

Referenced by E(), fMu(), and LienCubicKE().

The documentation for this class was generated from the following files:

src/TurbulenceModels/incompressible/turbulentTransportModels/RAS/LienCubicKE/LienCubicKE.H
src/TurbulenceModels/incompressible/turbulentTransportModels/RAS/LienCubicKE/LienCubicKE.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LienCubicKE()

◆ ~LienCubicKE()

Member Function Documentation

◆ fMu()

◆ f2()

◆ E()

◆ correctNut()

◆ correctNonlinearStress()

◆ TypeName()

◆ read()

◆ DkEff()

◆ DepsilonEff()

◆ k()

◆ epsilon()

◆ correct()

Member Data Documentation

◆ Ceps1_

◆ Ceps2_

◆ sigmak_

◆ sigmaEps_

◆ Cmu1_

◆ Cmu2_

◆ Cbeta_

◆ Cbeta1_

◆ Cbeta2_

◆ Cbeta3_

◆ Cgamma1_

◆ Cgamma2_

◆ Cgamma4_

◆ Cmu_

◆ kappa_

◆ Anu_

◆ AE_

◆ k_

◆ epsilon_

◆ y_
