Model which uses a saturation pressure model for a single species to calculate the interface composition. More...

#include <Saturated.H>

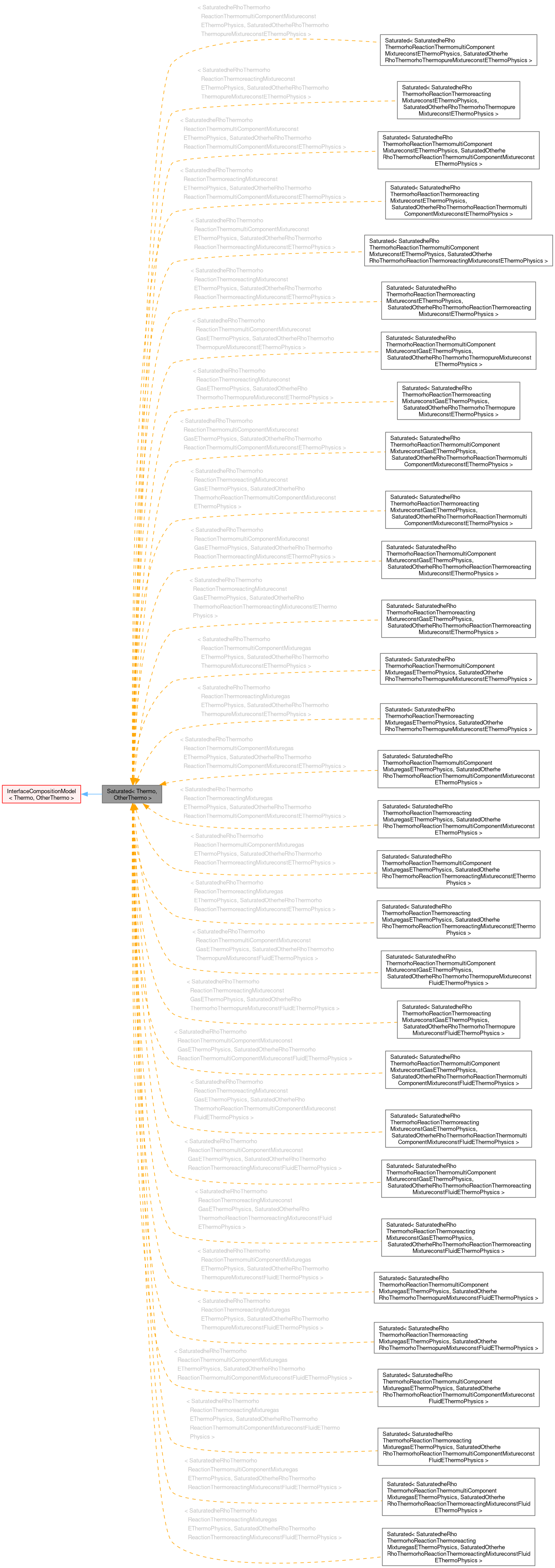

Inheritance diagram for Saturated< Thermo, OtherThermo >:

[legend]

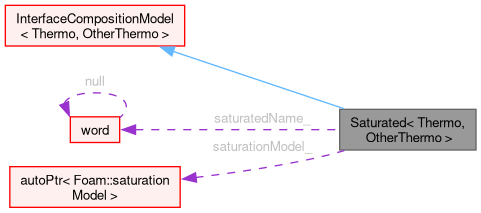

Collaboration diagram for Saturated< Thermo, OtherThermo >:

[legend]

Public Member Functions
	TypeName ("saturated")
	Runtime type information.
	Saturated (const dictionary &dict, const phasePair &pair)
	Construct from components.
virtual	~Saturated ()
	Destructor.
virtual void	update (const volScalarField &Tf)
	Update the composition.
virtual tmp< volScalarField >	Yf (const word &speciesName, const volScalarField &Tf) const
	The interface species fraction.
virtual tmp< volScalarField >	YfPrime (const word &speciesName, const volScalarField &Tf) const
	The interface species fraction derivative w.r.t. temperature.
Public Member Functions inherited from InterfaceCompositionModel< Thermo, OtherThermo >
	InterfaceCompositionModel (const dictionary &dict, const phasePair &pair)
	Construct from components.
virtual	~InterfaceCompositionModel ()=default
	Destructor.
virtual tmp< volScalarField >	dY (const word &speciesName, const volScalarField &Tf) const
	Mass fraction difference between the interface and the field.
virtual tmp< volScalarField >	Dfrom (const word &speciesName) const
	Specie mass diffusivity for pure mixture.
virtual tmp< volScalarField >	Dto (const word &speciesName) const
	Specie mass diffusivity for specie in a multicomponent.
virtual tmp< volScalarField >	L (const word &speciesName, const volScalarField &Tf) const
	Latent heat (to - from)(thermo - otherThermo).
	InterfaceCompositionModel (const dictionary &dict, const phasePair &pair)
	Construct from components.
	~InterfaceCompositionModel ()=default
	Destructor.
virtual tmp< volScalarField >	dY (const word &speciesName, const volScalarField &Tf) const
	Mass fraction difference between the interface and the field.
virtual tmp< volScalarField >	D (const word &speciesName) const
	Mass diffusivity.
virtual tmp< volScalarField >	L (const word &speciesName, const volScalarField &Tf) const
	Latent heat.
virtual void	addMDotL (const volScalarField &K, const volScalarField &Tf, volScalarField &mDotL, volScalarField &mDotLPrime) const
	Add latent heat flow rate to total.
template<class ThermoType>
const Foam::multiComponentMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const multiComponentMixture< ThermoType > &globalThermo) const
template<class ThermoType>
const Foam::pureMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const pureMixture< ThermoType > &globalThermo) const
template<class ThermoType>
Foam::tmp< Foam::volScalarField >	getSpecieMassFraction (const word &speciesName, const multiComponentMixture< ThermoType > &mixture) const
template<class ThermoType>
Foam::tmp< Foam::volScalarField >	getSpecieMassFraction (const word &speciesName, const pureMixture< ThermoType > &mixture) const
template<class ThermoType>
Foam::tmp< Foam::volScalarField >	MwMixture (const pureMixture< ThermoType > &mixture) const
template<class ThermoType>
Foam::tmp< Foam::volScalarField >	MwMixture (const multiComponentMixture< ThermoType > &mixture) const
Public Member Functions inherited from interfaceCompositionModel
	TypeName ("interfaceCompositionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, interfaceCompositionModel, dictionary,(const dictionary &dict, const phasePair &pair),(dict, pair))
	interfaceCompositionModel (const dictionary &dict, const phasePair &pair)
	Construct from a dictionary and a phase pair.
virtual	~interfaceCompositionModel ()=default
	Destructor.
const word	transferSpecie () const
	Return the transferring species name.
const phasePair &	pair () const
	The phase pair.
const multiphaseInterSystem &	fluid () const
	Return the multiphaseInterSystem this interface belongs to.
virtual tmp< volScalarField >	Kexp (const volScalarField &field)=0
	Explicit full mass transfer.
virtual tmp< volScalarField >	KSp (label modelVariable, const volScalarField &field)=0
	Implicit mass transfer.
virtual tmp< volScalarField >	KSu (label modelVariable, const volScalarField &field)=0
	Explicit mass transfer.
virtual const dimensionedScalar &	Tactivate () const noexcept=0
	Reference value.
virtual bool	includeDivU () const noexcept
	Add/subtract alpha*div(U) as a source term for alpha, substituting div(U) = mDot(1/rho1 - 1/rho2).
bool	includeVolChange ()
	Add volume change in pEq.
const word &	variable () const
	Returns the variable on which the model is based.

Protected Member Functions
tmp< volScalarField >	wRatioByP () const
	Constant of proportionality between partial pressure and mass.
Protected Member Functions inherited from InterfaceCompositionModel< Thermo, OtherThermo >
template<class ThermoType>
const pureMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const pureMixture< ThermoType > &globalThermo) const
	Get a reference to the local thermo for a pure mixture.
template<class ThermoType>
const multiComponentMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const multiComponentMixture< ThermoType > &globalThermo) const
	Get a reference to the local thermo for a multi component mixture.
template<class ThermoType>
tmp< volScalarField >	getSpecieMassFraction (const word &speciesName, const pureMixture< ThermoType > &thermo) const
	Return mass fraction for a pureMixture equal to one.
template<class ThermoType>
tmp< volScalarField >	getSpecieMassFraction (const word &speciesName, const multiComponentMixture< ThermoType > &thermo) const
	Return mass fraction for speciesName.
template<class ThermoType>
tmp< volScalarField >	MwMixture (const pureMixture< ThermoType > &thermo) const
	Return moleculas weight of the mixture for pureMixture [Kg/mol].
template<class ThermoType>
tmp< volScalarField >	MwMixture (const multiComponentMixture< ThermoType > &) const
	Return moleculas weight of the mixture for multiComponentMixture.
template<class ThermoType>
const pureMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const pureMixture< ThermoType > &globalThermo) const
	Get a reference to the local thermo for a pure mixture.
template<class ThermoType>
const multiComponentMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const multiComponentMixture< ThermoType > &globalThermo) const
	Get a reference to the local thermo for a multi component mixture.

Protected Attributes
word	saturatedName_
	Saturated species name.
label	saturatedIndex_
	Saturated species index.
autoPtr< saturationModel >	saturationModel_
	Saturation pressure model.
Protected Attributes inherited from InterfaceCompositionModel< Thermo, OtherThermo >
const Thermo &	fromThermo_
	Thermo (from).
const OtherThermo &	toThermo_
	Other Thermo (to).
const dimensionedScalar	Le_
	Lewis number.
const Thermo &	thermo_
	Thermo.
const OtherThermo &	otherThermo_
	Other Thermo.
Protected Attributes inherited from interfaceCompositionModel
modelVariable	modelVariable_
	Enumeration for the model variable.
bool	includeVolChange_
	Add volume change in pEq.
const phasePair &	pair_
	Phase pair.
word	speciesName_
	Names of the transferring specie.
const fvMesh &	mesh_
	Reference to mesh.

Additional Inherited Members
Public Types inherited from interfaceCompositionModel
enum	modelVariable { T , P , Y , alpha }
	Enumeration for variable based mass transfer models. More...
Static Public Member Functions inherited from interfaceCompositionModel
static autoPtr< interfaceCompositionModel >	New (const dictionary &dict, const phasePair &pair)
Static Protected Attributes inherited from interfaceCompositionModel
static const Enum< modelVariable >	modelVariableNames_
	Selection names for the modelVariable.

Detailed Description

template<class Thermo, class OtherThermo>
class Foam::interfaceCompositionModels::Saturated< Thermo, OtherThermo >

Model which uses a saturation pressure model for a single species to calculate the interface composition.

Source files

Definition at line 54 of file Saturated.H.

Constructor & Destructor Documentation

◆ Saturated()

template<class Thermo, class OtherThermo>

Saturated	(	const dictionary &	dict,
		const phasePair &	pair )

Construct from components.

Definition at line 44 of file Saturated.C.

References composition, dict, InterfaceCompositionModel< Thermo, OtherThermo >::InterfaceCompositionModel(), mesh, interfaceCompositionModel::New(), interfaceCompositionModel::pair(), phase1, saturatedIndex_, saturatedName_, saturationModel_, and InterfaceCompositionModel< Thermo, OtherThermo >::thermo_.

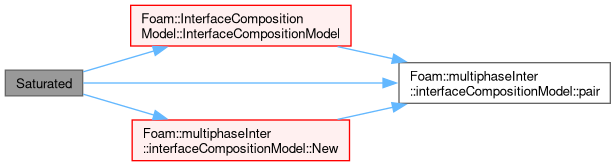

Here is the call graph for this function:

◆ ~Saturated()

template<class Thermo, class OtherThermo>

~Saturated ( )

virtual

Destructor.

Definition at line 77 of file Saturated.C.

Member Function Documentation

◆ wRatioByP()

template<class Thermo, class OtherThermo>

Foam::tmp< Foam::volScalarField > wRatioByP ( ) const

protected

Constant of proportionality between partial pressure and mass.

fraction

Definition at line 27 of file Saturated.C.

References Foam::dimMass, Foam::dimMoles, saturatedIndex_, and InterfaceCompositionModel< Thermo, OtherThermo >::thermo_.

Referenced by Yf(), and YfPrime().

Here is the caller graph for this function:

◆ TypeName()

template<class Thermo, class OtherThermo>

TypeName ( "saturated" )

Runtime type information.

◆ update()

template<class Thermo, class OtherThermo>

void update ( const volScalarField & Tf )

virtual

Update the composition.

Definition at line 85 of file Saturated.C.

◆ Yf()

template<class Thermo, class OtherThermo>

Foam::tmp< Foam::volScalarField > Yf	(	const word &	speciesName,
		const volScalarField &	Tf ) const

virtual

The interface species fraction.

Reimplemented from InterfaceCompositionModel< Thermo, OtherThermo >.

Definition at line 94 of file Saturated.C.

References Foam::max(), saturatedIndex_, saturatedName_, saturationModel_, InterfaceCompositionModel< Thermo, OtherThermo >::thermo_, and wRatioByP().

Here is the call graph for this function:

◆ YfPrime()

template<class Thermo, class OtherThermo>

Foam::tmp< Foam::volScalarField > YfPrime	(	const word &	speciesName,
		const volScalarField &	Tf ) const

virtual

The interface species fraction derivative w.r.t. temperature.

Definition at line 121 of file Saturated.C.

References Foam::max(), saturatedIndex_, saturatedName_, saturationModel_, InterfaceCompositionModel< Thermo, OtherThermo >::thermo_, and wRatioByP().

Here is the call graph for this function:

Member Data Documentation

◆ saturatedName_

template<class Thermo, class OtherThermo>

word saturatedName_

protected

Saturated species name.

Definition at line 65 of file Saturated.H.

Referenced by Saturated(), Yf(), and YfPrime().

◆ saturatedIndex_

template<class Thermo, class OtherThermo>

label saturatedIndex_

protected

Saturated species index.

Definition at line 70 of file Saturated.H.

Referenced by Saturated(), wRatioByP(), Yf(), and YfPrime().

◆ saturationModel_

template<class Thermo, class OtherThermo>

autoPtr<saturationModel> saturationModel_

protected

Saturation pressure model.

Definition at line 75 of file Saturated.H.

Referenced by Saturated(), Yf(), and YfPrime().

The documentation for this class was generated from the following files:

src/phaseSystemModels/reactingEuler/multiphaseSystem/interfacialCompositionModels/interfaceCompositionModels/Saturated/Saturated.H
src/phaseSystemModels/reactingEuler/multiphaseSystem/interfacialCompositionModels/interfaceCompositionModels/Saturated/Saturated.C
