#include <multiComponentMixture.H>

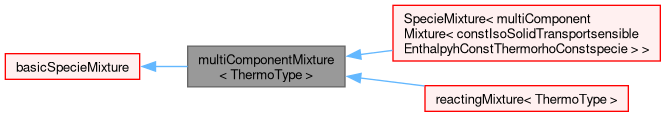

Inheritance diagram for multiComponentMixture< ThermoType >:

[legend]

Collaboration diagram for multiComponentMixture< ThermoType >:

Public Types
typedef ThermoType	thermoType
	The type of thermodynamics this mixture is instantiated for.
Public Types inherited from basicSpecieMixture
typedef basicSpecieMixture	basicMixtureType
	The base class of the mixture.
Public Types inherited from basicMultiComponentMixture
typedef basicMultiComponentMixture	basicMixtureType
	The base class of the mixture.
Public Types inherited from basicMixture
typedef basicMixture	basicMixtureType
	The base class of the mixture.

Public Member Functions
	multiComponentMixture (const dictionary &, const wordList &specieNames, const ReactionTable< ThermoType > &thermoData, const fvMesh &mesh, const word &phaseName)
	Construct from dictionary, specie names, thermo database, mesh and phase name.
	multiComponentMixture (const dictionary &thermoDict, const fvMesh &mesh, const word &phaseName)
	Construct from dictionary, mesh and phase name.
virtual	~multiComponentMixture ()=default
	Destructor.
const ThermoType &	cellMixture (const label celli) const
const ThermoType &	patchFaceMixture (const label patchi, const label facei) const
const ThermoType &	cellVolMixture (const scalar p, const scalar T, const label celli) const
const ThermoType &	patchFaceVolMixture (const scalar p, const scalar T, const label patchi, const label facei) const
const PtrList< ThermoType > &	speciesData () const
	Return the raw specie thermodynamic data.
void	read (const dictionary &)
	Read dictionary.
const ThermoType &	getLocalThermo (const label speciei) const
	Return thermo based on index.
Public Member Functions inherited from basicSpecieMixture
	TypeName ("basicSpecieMixture")
	Run time type information.
	basicSpecieMixture (const dictionary &thermoDict, const wordList &specieNames, const fvMesh &mesh, const word &phaseName)
	Construct from dictionary, species names, mesh and phase name.
virtual	~basicSpecieMixture ()=default
	Destructor.
virtual scalar	W (const label speciei) const =0
	Molecular weight of the given specie [kg/kmol].
virtual scalar	Hc (const label speciei) const =0
	Chemical enthalpy [J/kg].
virtual scalar	Cp (const label speciei, const scalar p, const scalar T) const =0
	Heat capacity at constant pressure [J/(kg K)].
virtual scalar	Cv (const label speciei, const scalar p, const scalar T) const =0
	Heat capacity at constant volume [J/(kg K)].
virtual scalar	HE (const label speciei, const scalar p, const scalar T) const =0
	Enthalpy/Internal energy [J/kg].
virtual scalar	Ha (const label speciei, const scalar p, const scalar T) const =0
	Absolute enthalpy [J/kg].
virtual scalar	Hs (const label speciei, const scalar p, const scalar T) const =0
	Sensible enthalpy [J/kg].
virtual scalar	S (const label speciei, const scalar p, const scalar T) const =0
	Entropy [J/(kg K)].
virtual scalar	Es (const label speciei, const scalar p, const scalar T) const =0
	Sensible internal energy [J/kg].
virtual scalar	G (const label speciei, const scalar p, const scalar T) const =0
	Gibbs free energy [J/kg].
virtual scalar	A (const label speciei, const scalar p, const scalar T) const =0
	Helmholtz free energy [J/kg].
virtual scalar	mu (const label speciei, const scalar p, const scalar T) const =0
	Dynamic viscosity [kg/m/s].
virtual scalar	kappa (const label speciei, const scalar p, const scalar T) const =0
	Thermal conductivity [W/m/K].
virtual scalar	alphah (const label speciei, const scalar p, const scalar T) const =0
	Thermal diffusivity of enthalpy [kg/m/s].
virtual scalar	rho (const label speciei, const scalar p, const scalar T) const =0
	Density [kg/m3].
virtual autoPtr< speciesCompositionTable >	specieComposition () const
	Species composition.
Public Member Functions inherited from basicMultiComponentMixture
	TypeName ("basicMultiComponentMixture")
	Run time type information.
	basicMultiComponentMixture (const dictionary &thermoDict, const wordList &specieNames, const fvMesh &mesh, const word &phaseName)
	Construct from dictionary, species names, mesh and phase name.
virtual	~basicMultiComponentMixture ()=default
	Destructor.
const speciesTable &	species () const
	Return the table of species.
bool	contains (const word &specieName) const
	Does the mixture include this specie?
bool	active (label speciei) const
	Return true for active species.
const List< bool > &	active () const
	Return the bool list of active species.
void	setActive (label speciei)
	Set speciei active.
void	setInactive (label speciei)
	Set speciei inactive.
PtrList< volScalarField > &	Y ()
	Return the mass-fraction fields.
const PtrList< volScalarField > &	Y () const
	Return the const mass-fraction fields.
volScalarField &	Y (const label i)
	Return the mass-fraction field for a specie given by index.
const volScalarField &	Y (const label i) const
	Return the const mass-fraction field for a specie given by index.
volScalarField &	Y (const word &specieName)
	Return the mass-fraction field for a specie given by name.
const volScalarField &	Y (const word &specieName) const
	Return the const mass-fraction field for a specie given by name.
Public Member Functions inherited from basicMixture
	basicMixture (const dictionary &, const fvMesh &, const word &)
	Construct from dictionary, mesh and phase name.

Static Public Member Functions
static word	typeName ()
	Return the instantiated type name.

Additional Inherited Members
Protected Attributes inherited from basicMultiComponentMixture
speciesTable	species_
	Table of specie names.
List< bool >	active_
	List of specie active flags.
PtrList< volScalarField >	Y_
	Species mass fractions.

Detailed Description

template<class ThermoType>
class Foam::multiComponentMixture< ThermoType >

Foam::multiComponentMixture.

Source files

Definition at line 52 of file multiComponentMixture.H.

Member Typedef Documentation

◆ thermoType

template<class ThermoType>

typedef ThermoType thermoType

The type of thermodynamics this mixture is instantiated for.

Definition at line 101 of file multiComponentMixture.H.

Constructor & Destructor Documentation

◆ multiComponentMixture() [1/2]

template<class ThermoType>

multiComponentMixture	(	const dictionary &	thermoDict,
		const wordList &	specieNames,
		const ReactionTable< ThermoType > &	thermoData,
		const fvMesh &	mesh,
		const word &	phaseName )

Construct from dictionary, specie names, thermo database, mesh and phase name.

Definition at line 89 of file multiComponentMixture.C.

References basicSpecieMixture::basicSpecieMixture(), forAll, mesh, basicMultiComponentMixture::species_, and thermoDict.

Here is the call graph for this function:

◆ multiComponentMixture() [2/2]

template<class ThermoType>

multiComponentMixture	(	const dictionary &	thermoDict,
		const fvMesh &	mesh,
		const word &	phaseName )

Construct from dictionary, mesh and phase name.

Definition at line 117 of file multiComponentMixture.C.

References basicSpecieMixture::basicSpecieMixture(), mesh, basicMultiComponentMixture::species_, and thermoDict.

Here is the call graph for this function:

◆ ~multiComponentMixture()

template<class ThermoType>

virtual ~multiComponentMixture ( )

virtualdefault

Destructor.

Member Function Documentation

◆ typeName()

template<class ThermoType>

word typeName ( )

inlinestatic

Return the instantiated type name.

Definition at line 141 of file multiComponentMixture.H.

◆ cellMixture()

template<class ThermoType>

const ThermoType & cellMixture ( const label celli ) const

Definition at line 142 of file multiComponentMixture.C.

References n, and basicMultiComponentMixture::Y_.

◆ patchFaceMixture()

template<class ThermoType>

const ThermoType & patchFaceMixture	(	const label	patchi,
		const label	facei ) const

Definition at line 159 of file multiComponentMixture.C.

References n, and basicMultiComponentMixture::Y_.

◆ cellVolMixture()

template<class ThermoType>

const ThermoType & cellVolMixture	(	const scalar	p,
		const scalar	T,
		const label	celli ) const

Definition at line 177 of file multiComponentMixture.C.

References forAll, n, p, Foam::T(), and basicMultiComponentMixture::Y_.

Here is the call graph for this function:

◆ patchFaceVolMixture()

template<class ThermoType>

const ThermoType & patchFaceVolMixture	(	const scalar	p,
		const scalar	T,
		const label	patchi,
		const label	facei ) const

Definition at line 204 of file multiComponentMixture.C.

References forAll, n, p, Foam::T(), and basicMultiComponentMixture::Y_.

Here is the call graph for this function:

◆ speciesData()

template<class ThermoType>

const PtrList< ThermoType > & speciesData ( ) const

inline

Return the raw specie thermodynamic data.

Definition at line 172 of file multiComponentMixture.H.

Referenced by singleStepReactingMixture< ThermoType >::calculateMaxProducts(), singleStepReactingMixture< ThermoType >::calculateqFuel(), and singleStepReactingMixture< ThermoType >::massAndAirStoichRatios().

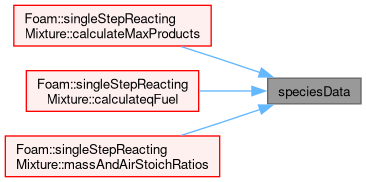

Here is the caller graph for this function:

◆ read()

template<class ThermoType>

void read ( const dictionary & thermoDict )

Read dictionary.

Definition at line 236 of file multiComponentMixture.C.

References forAll, basicMultiComponentMixture::species_, and thermoDict.

◆ getLocalThermo()

template<class ThermoType>

const ThermoType & getLocalThermo ( const label speciei ) const

inline

Return thermo based on index.

Definition at line 185 of file multiComponentMixture.H.

Referenced by InterfaceCompositionModel< Thermo, OtherThermo >::getLocalThermo().

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/phaseSystemModels/multiphaseInter/phasesSystem/InterfaceCompositionModel/InterfaceCompositionModel.H
src/thermophysicalModels/reactionThermo/mixtures/multiComponentMixture/multiComponentMixture.H
src/thermophysicalModels/reactionThermo/mixtures/multiComponentMixture/multiComponentMixture.C
