multiphaseInterSystem Class Reference

#include <multiphaseInterSystem.H>

Inheritance diagram for multiphaseInterSystem:

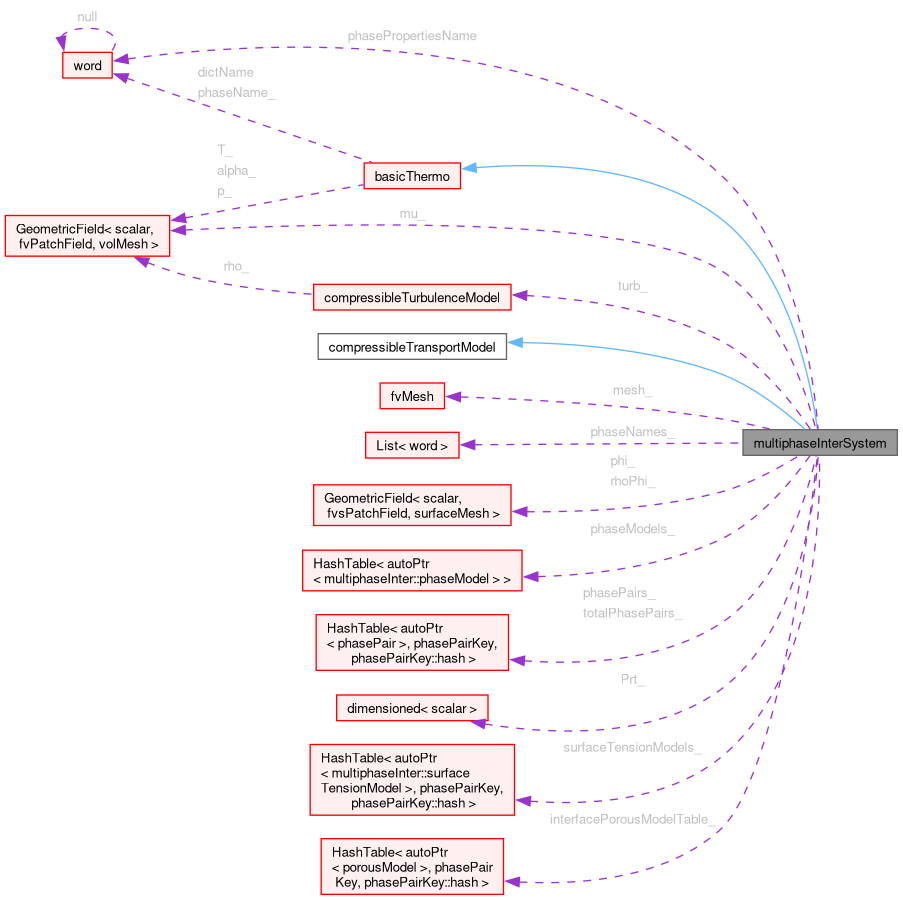

Collaboration diagram for multiphaseInterSystem:

Public Types
typedef HashTable< autoPtr< phasePair >, phasePairKey, phasePairKey::hash >	phasePairTable
typedef HashTable< autoPtr< multiphaseInter::phaseModel > >	phaseModelTable
typedef HashTable< volScalarField::Internal >	SuSpTable
Public Types inherited from IOobject
enum	objectState : char { GOOD , BAD }
	Enumeration defining the valid states of an IOobject. More...
enum	fileCheckTypes : char { timeStamp = 1 , timeStampMaster = 3 , inotify = 4 , inotifyMaster = 6 }
	Enumeration defining the file checking options (time-stamp | inotify) | (all | masterOnly). More...
Public Types inherited from IOobjectOption
enum	readOption : unsigned char {   NO_READ = 0 , MUST_READ = 0x1 , READ_MODIFIED = 0x3 , MUST_READ_IF_MODIFIED = 0x3 ,   LAZY_READ = 0x4 , READ_IF_PRESENT = 0x4 }
	Enumeration defining read preferences. More...
enum	writeOption : unsigned char { NO_WRITE = 0 , AUTO_WRITE = 0x10 }
	Enumeration defining write preferences. More...
enum	registerOption : unsigned char { NO_REGISTER = 0 , REGISTER = 1 , LEGACY_REGISTER = 2 }
	Enumeration for use with registerObject(). Values map to bool (false/true). More...
enum class	Layout : unsigned char { regular , global }
	The layout of the case structure. More...
Public Types inherited from dictionary
typedef Searcher< true >	const_searcher
	Searcher with const access.
typedef Searcher< false >	searcher
	Searcher with non-const access.
Public Types inherited from UILList< DLListBase, T >
typedef T	value_type
	Type of values stored.
typedef T *	pointer
	Pointer for value_type.
typedef const T *	const_pointer
	Const pointer for value_type.
typedef T &	reference
	Reference for value_type.
typedef const T &	const_reference
	Const reference for value_type.
typedef label	size_type
	The type that can represent the container size.
typedef label	difference_type
	The difference between iterator objects.
using	base_iterator
using	const_base_iterator

Public Member Functions
	TypeName ("multiphaseInterSystem")
	Runtime type information.

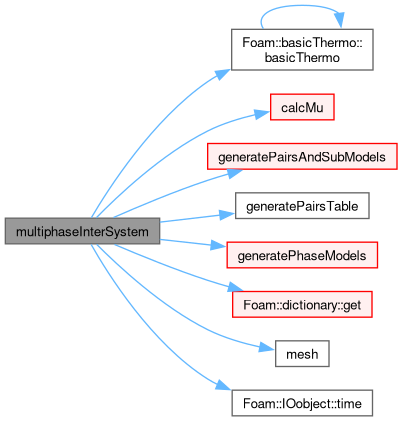

	multiphaseInterSystem (const fvMesh &mesh)
	Construct from fvMesh.
virtual	~multiphaseInterSystem ()
	Destructor.
virtual volScalarField &	he ()
	Return access to the internal energy field [J/Kg].
virtual const volScalarField &	he () const
	Return access to the internal energy field [J/Kg].
virtual tmp< volScalarField >	he (const volScalarField &p, const volScalarField &T) const
	Enthalpy/Internal energy.
virtual tmp< scalarField >	he (const scalarField &p, const scalarField &T, const labelList &cells) const
	Enthalpy/Internal energy for cell-set [J/kg].
virtual tmp< scalarField >	he (const scalarField &p, const scalarField &T, const label patchi) const
	Enthalpy/Internal energy for patch [J/kg].
virtual tmp< volScalarField >	hc () const
	Chemical enthalpy of the mixture [J/kg].
virtual tmp< scalarField >	THE (const scalarField &h, const scalarField &p, const scalarField &T0, const labelList &cells) const
	Temperature from enthalpy/internal energy for cell-set.
virtual tmp< scalarField >	THE (const scalarField &h, const scalarField &p, const scalarField &T0, const label patchi) const
	Temperature from enthalpy/internal energy for patch.
virtual tmp< volScalarField >	rho () const
	Return the mixture density.
virtual tmp< scalarField >	rho (const label patchi) const
	Return the mixture density on a patch.
virtual tmp< volScalarField >	Cp () const
	Return Cp of the mixture.
virtual tmp< scalarField >	Cp (const scalarField &p, const scalarField &T, const label patchi) const
	Heat capacity at constant pressure for patch [J/kg/K].
virtual tmp< scalarField >	Cp (const scalarField &p, const scalarField &T, const labelList &cells) const
	Heat capacity using pressure and temperature.
virtual tmp< volScalarField >	Cv () const
	Return Cv of the mixture.
virtual tmp< scalarField >	Cv (const scalarField &p, const scalarField &T, const label patchI) const
	Heat capacity at constant volume for patch [J/kg/K].
virtual tmp< scalarField >	rhoEoS (const scalarField &p, const scalarField &T, const labelList &cells) const
	Density from pressure and temperature.
virtual tmp< volScalarField >	gamma () const
	Gamma = Cp/Cv [].
virtual tmp< scalarField >	gamma (const scalarField &p, const scalarField &T, const label patchi) const
	Gamma = Cp/Cv for patch [].

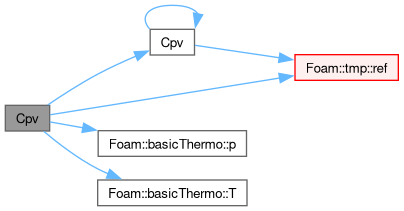

virtual tmp< volScalarField >	Cpv () const
	Heat capacity at constant pressure/volume [J/kg/K].
virtual tmp< scalarField >	Cpv (const scalarField &p, const scalarField &T, const label patchi) const
	Heat capacity at constant pressure/volume for patch [J/kg/K].

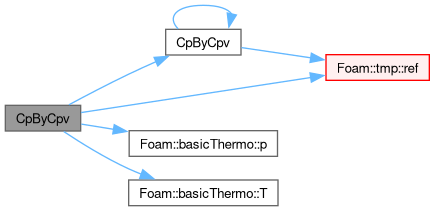

virtual tmp< volScalarField >	CpByCpv () const
	Heat capacity ratio [].
virtual tmp< scalarField >	CpByCpv (const scalarField &p, const scalarField &T, const label patchi) const
	Heat capacity ratio for patch [].
virtual tmp< volScalarField >	W () const
	Molecular weight [kg/kmol] of the mixture.
virtual tmp< volScalarField >	kappa () const
	Thermal diffusivity for temperature of mixture [J/m/s/K].
virtual tmp< scalarField >	kappa (const label patchi) const
	Thermal diffusivity for temperature.
virtual tmp< volScalarField >	alphahe () const
	Thermal diffusivity for energy of mixture [kg/m/s].
virtual tmp< scalarField >	alphahe (const label patchi) const
	Thermal diffusivity for energy of mixture for patch [kg/m/s].
virtual tmp< volScalarField >	kappaEff (const volScalarField &kappat) const
	Effective thermal diffusivity for temperature.
virtual tmp< scalarField >	kappaEff (const scalarField &alphat, const label patchi) const
	Effective thermal diffusivity for temperature.
virtual tmp< volScalarField >	alphaEff (const volScalarField &alphat) const
	Effective thermal diffusivity of mixture [kg/m/s].
virtual tmp< scalarField >	alphaEff (const scalarField &alphat, const label patchi) const
	Effective thermal diffusivity of mixture for patch [kg/m/s].
const dimensionedScalar &	Prt () const
	Return Prandt number.
virtual tmp< volScalarField >	mu () const
	Dynamic viscosity of mixture [kg/m/s].
virtual tmp< scalarField >	mu (const label patchi) const
	Dynamic viscosity of mixture for patch [kg/m/s].
virtual tmp< volScalarField >	nu () const
	Kinematic viscosity of mixture [m^2/s].
virtual tmp< scalarField >	nu (const label patchi) const
	Kinematic viscosity of mixture for patch [m^2/s].
void	setTurbulence (compressibleTurbulenceModel &turb)
	Set turbulence model.
compressibleTurbulenceModel *	turbulence () const
	Return pointer to turbulence model.
tmp< volScalarField >	mut () const
	Return the turbulent dynamic viscosity.
tmp< volScalarField >	muEff () const
	Return the effective dynamic viscosity.
tmp< volScalarField >	nut () const
	Return the turbulent kinematic viscosity.
tmp< volScalarField >	nuEff () const
	Return the effective kinematic viscosity.
tmp< volScalarField >	kappaEff () const
	Effective thermal turbulent diffusivity for temperature.
tmp< scalarField >	kappaEff (const label patchi) const
	Effective thermal turbulent diffusivity for temperature.
tmp< volScalarField >	alphaEff () const
	Effective thermal turbulent diffusivity of mixture [kg/m/s].
tmp< scalarField >	alphaEff (const label patchi) const
	Effective thermal turbulent diffusivity of mixture [kg/m/s].
const surfaceScalarField &	phi () const
	Constant access to the total flux.
surfaceScalarField &	phi ()
	Access to the total mixture flux.
const surfaceScalarField &	rhoPhi () const
	Constant access to the mixture mass flux.
surfaceScalarField &	rhoPhi ()
	Access to the total mixture mass flux.
tmp< volVectorField >	U () const
	Mixture U.

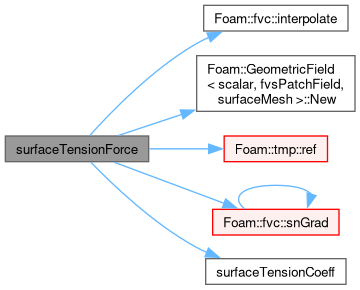

tmp< surfaceScalarField >	surfaceTensionForce () const
	Calculate surface tension of the mixture.
virtual tmp< volScalarField >	surfaceTensionCoeff (const phasePairKey &key) const
	Return the surface tension coefficient.
virtual tmp< volScalarField >	coeffs (const word &key) const
	Return coefficients (1/rho).
void	addInterfacePorosity (fvVectorMatrix &UEqn)
	Add interface porosity on phasePair.
virtual tmp< volScalarField >	dmdt (const phasePairKey &key) const =0
	Return interfacial source mass rate per phase pair.
virtual tmp< fvScalarMatrix >	heatTransfer (const volScalarField &T)=0
	Return the heat transfer matrices.
virtual tmp< fvScalarMatrix >	volTransfer (const volScalarField &p)=0
	Return the volumetric rate transfer matrix.
virtual void	alphaTransfer (SuSpTable &Su, SuSpTable &Sp)=0
	Calculate mass transfer for alpha's.
virtual void	massSpeciesTransfer (const multiphaseInter::phaseModel &phase, volScalarField::Internal &Su, volScalarField::Internal &Sp, const word speciesName)=0
	Calculate mass transfer for species.
virtual bool	includeVolChange ()=0
	Add volume change in pEq.
virtual void	solve ()=0
	Solve for the phase transport equations.
virtual void	correct ()
	Correct the mixture thermos.
virtual void	correctMassSources (const volScalarField &T)=0
	Correct mass sources.
virtual word	thermoName () const
	Return the name of the thermo physics.
virtual void	correctTurbulence ()
	Correct the turbulence.
virtual bool	read ()
	Read base phaseProperties dictionary.
const phasePairTable &	totalPhasePairs () const
	Constant access the total phase pairs.
phasePairTable &	totalPhasePairs ()
	Non-constant access the total phase pairs.
const phaseModelTable &	phases () const
	Constant access the phases.
phaseModelTable &	phases ()
	Access the phases.
template<class modelType>
const modelType &	lookupSubModel (const phasePair &key) const
	Access a sub model between a phase pair.
template<class modelType>
const modelType &	lookupSubModel (const multiphaseInter::phaseModel &from, const multiphaseInter::phaseModel &to) const
	Access a sub model between two phases.
virtual bool	incompressible () const
	Return true if the equation of state is incompressible for all.
virtual bool	incompressible (const word) const
	Return true if a phase is incompressible.
virtual bool	isochoric () const
	Return true if the equation of state is isochoric for all phasses.

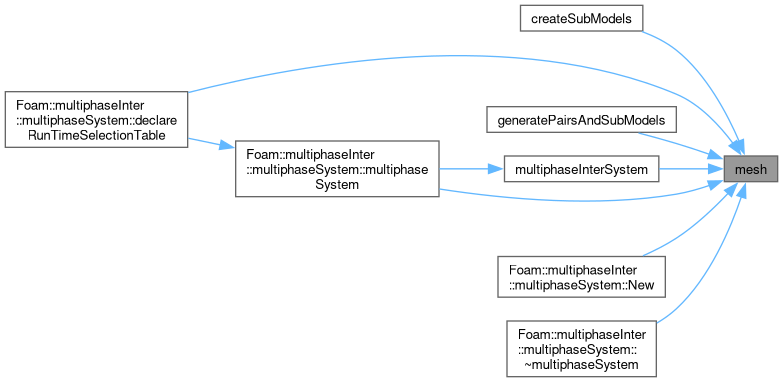

const fvMesh &	mesh () const
	Return mesh.

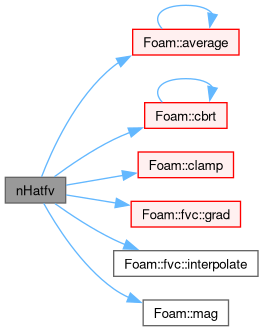

tmp< surfaceVectorField >	nHatfv (const volScalarField &alpha1, const volScalarField &alpha2) const
	Interface normal surface vector.
tmp< volVectorField >	nVolHatfv (const volScalarField &alpha1, const volScalarField &alpha2) const
	Interface normal volField vector.
tmp< surfaceScalarField >	nHatf (const volScalarField &alpha1, const volScalarField &alpha2) const
	Interface normal surface vector.
tmp< volScalarField >	K (const volScalarField &alpha1, const volScalarField &alpha2) const
	Interface curvature.
tmp< volScalarField >	nearInterface (const volScalarField &alpha1, const volScalarField &alpha2) const
	Near Interface of alpha1 and alpha2.
tmp< volScalarField >	nearInterface () const
	Near Interface of alpha'n.
Public Member Functions inherited from basicThermo
	TypeName ("basicThermo")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, basicThermo, fvMesh,(const fvMesh &mesh, const word &phaseName),(mesh, phaseName))
	Declare run-time constructor selection table.
	declareRunTimeSelectionTable (autoPtr, basicThermo, fvMeshDictPhase,(const fvMesh &mesh, const word &phaseName, const word &dictName),(mesh, phaseName, dictName))
	Declare run-time constructor selection table for dictionary based.
	basicThermo (const fvMesh &, const word &phaseName)
	Construct from mesh and phase name.
	basicThermo (const fvMesh &, const dictionary &, const word &phaseName)
	Construct from mesh, dictionary and phase name.
	basicThermo (const fvMesh &, const word &phaseName, const word &dictionaryName)
	Construct from mesh, phase name and explicit naming of the dictionary (so it can be shared amongst phases).
virtual	~basicThermo ()
	Destructor.
word	phasePropertyName (const word &name) const
	The phase property name as property.phase (using phaseName_).
word	phaseScopedName (const std::string &scope, const word &name) const
	The phase property name scoped as scope:property.phase.
void	validate (const string &app, const word &) const
	Check that the thermodynamics package is consistent.
void	validate (const string &app, const word &, const word &) const
	Check that the thermodynamics package is consistent.
void	validate (const string &app, const word &, const word &, const word &) const
	Check that the thermodynamics package is consistent.
void	validate (const string &app, const word &, const word &, const word &, const word &) const
	Check that the thermodynamics package is consistent.
bool	dpdt () const noexcept
	True if dpdt term should be included in enthalpy equation.
bool	updateT () const noexcept
	True if T should be updated.
virtual volScalarField &	p ()
	Pressure [Pa].
virtual const volScalarField &	p () const
	Pressure [Pa].
virtual const volScalarField &	T () const
	Temperature [K].
virtual volScalarField &	T ()
	Temperature [K].
virtual const volScalarField &	alpha () const
	Thermal diffusivity for enthalpy of mixture [kg/m/s].
virtual const scalarField &	alpha (const label patchi) const
	Thermal diffusivity for enthalpy of mixture for patch [kg/m/s].
template<class Thermo>
Foam::autoPtr< Thermo >	New (const fvMesh &mesh, const word &phaseName)
template<class Thermo>
Foam::autoPtr< Thermo >	New (const fvMesh &mesh, const dictionary &dict, const word &phaseName)
template<class Thermo>
Foam::autoPtr< Thermo >	New (const fvMesh &mesh, const word &phaseName, const word &dictName)
Public Member Functions inherited from IOdictionary
	IOdictionary (const IOobject &io, const dictionary *fallback=nullptr)
	Construct given an IOobject and optional fallback dictionary content.
	IOdictionary (const IOobject &io, const dictionary &dict)
	Construct given an IOobject and fallback dictionary content.
	IOdictionary (const IOobject &io, const word &wantedType, const dictionary *fallback=nullptr)
	Construct given an IOobject, wanted typeName and optional fallback dictionary content.
	IOdictionary (const IOobject &io, Istream &is)
	Construct given an IOobject and Istream.
virtual	~IOdictionary ()=default
	Destructor.
virtual bool	global () const
	The object is global.
virtual fileName	filePath () const
	Return complete path + object name if the file exists either in the case/processor or case otherwise null.
Public Member Functions inherited from baseIOdictionary
	TypeName ("dictionary")
	Declare type-name, virtual type (with debug switch).
	baseIOdictionary (const baseIOdictionary &)=default
	Copy construct.
	baseIOdictionary (baseIOdictionary &&)=default
	Move construct.
virtual	~baseIOdictionary ()=default
	Destructor.
	baseIOdictionary (const IOobject &io, const dictionary *fallback=nullptr)
	Construct given an IOobject and optional fallback dictionary content (ununsed).
	baseIOdictionary (const IOobject &io, const dictionary &dict)
	Construct given an IOobject and fallback dictionary content (ununsed).
	baseIOdictionary (const IOobject &io, Istream &is)
	Construct given an IOobject and Istream (ununsed).
const word &	name () const
	Name function is needed to disambiguate those inherited from regIOobject and dictionary.
virtual bool	readData (Istream &)
	The readData function required by regIOobject read operation.
virtual bool	writeData (Ostream &) const
	The writeData function required by regIOobject write operation.
void	operator= (const baseIOdictionary &rhs)
	Copy assignment of dictionary entries.
void	operator= (baseIOdictionary &&rhs)
	Move assignment of dictionary entries.
void	operator= (const dictionary &rhs)
	Copy assignment of dictionary entries.
Public Member Functions inherited from regIOobject
void	operator= (const regIOobject &)=delete
	No copy assignment.
	TypeName ("regIOobject")
	Runtime type information.
	regIOobject (const IOobject &io, const bool isTimeObject=false)
	Construct from IOobject. The optional flag adds special handling if the object is the top-level regIOobject (eg, Time).
	regIOobject (const regIOobject &rio)
	Copy construct.
	regIOobject (const regIOobject &rio, bool registerCopy)
	Copy construct, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const word &newName, const regIOobject &, bool registerCopy)
	Copy construct with new name, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const IOobject &io, const regIOobject &rio)
	Copy construct with new IO parameters.
virtual	~regIOobject ()
	Destructor.
bool	checkIn ()
	Add object to registry, if not already registered.
bool	checkOut ()
	Remove object from registry, and remove all file watches.
virtual void	addWatch ()
	Add file watch on object (if registered and READ_IF_MODIFIED).
bool	registered () const noexcept
	Query the registered state (ie, has been checked in). This is not necessarily the same as registerObject(), which is just a stated preference.
bool	ownedByRegistry () const noexcept
	Is this object owned by the registry?
bool	store ()
	Register object with its registry and transfer ownership to the registry.
void	release (const bool unregister=false) noexcept
	Set object as not ownedByRegistry.
label	eventNo () const noexcept
	Event number at last update.
label &	eventNo () noexcept
	Event number at last update.
bool	upToDate (const regIOobject &) const
	Return true if up-to-date with respect to given object.
bool	upToDate (const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
void	setUpToDate ()
	Set as up-to-date.
virtual void	rename (const word &newName)
	Rename.
const dictionary *	findMetaData () const noexcept
	Return pointer to meta-data or nullptr.
dictionary &	getMetaData () noexcept
	Get or create meta-data.
void	removeMetaData ()
	Remove meta-data.
virtual void	updateMetaData ()
	Update internal meta-data (eg, prior to writing).
bool	headerOk ()
	Read and check header info. Does not check the headerClassName.
Istream &	readStream (const word &, const bool readOnProc=true)
	Return Istream and check object type against that given.
void	close ()
	Close Istream.
virtual label	addWatch (const fileName &)
	Add file watch for fileName on object if not yet watched.
const labelList &	watchIndices () const noexcept
	Read access to file-monitoring handles.
labelList &	watchIndices () noexcept
	Write access to file-monitoring handles.
virtual bool	modified () const
	Return true if the object's file (or files for objectRegistry) have been modified. (modified state is cached by Time).
virtual bool	readIfModified ()
	Read object if modified (as set by call to modified).
virtual bool	writeObject (IOstreamOption streamOpt, const bool writeOnProc) const
	Write using stream options.
virtual bool	write (const bool writeOnProc=true) const
	Write using setting from DB.
void	operator= (const IOobject &io)
	Copy assignment.
virtual bool	writeObject (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType cmp, const bool writeOnProc) const
	Write using given format, version and compression.
Public Member Functions inherited from IOobject
	TypeName ("IOobject")
	Declare type-name, virtual type (with debug switch).
	IOobject (const IOobject &)=default
	Copy construct.
virtual	~IOobject ()=default
	Destructor.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from path, registry, io options.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from path, registry, io options.
	IOobject (const IOobject &io, const objectRegistry &registry)
	Copy construct, resetting registry.
	IOobject (const IOobject &io, const word &name)
	Copy construct, resetting name.
	IOobject (const IOobject &io, const word &name, const fileName &local)
	Copy construct, resetting name and local component.
	IOobject (const IOobject &io, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt)
	Copy construct, resetting read/write options.
	IOobject (const IOobject &io, IOobjectOption::registerOption regOpt)
	Copy construct, resetting register option.
autoPtr< IOobject >	clone () const
	Clone.
autoPtr< IOobject >	clone (const objectRegistry &registry) const
	Clone resetting registry.
const objectRegistry &	db () const noexcept
	Return the local objectRegistry.
const Time &	time () const noexcept
	Return Time associated with the objectRegistry.
const word &	name () const noexcept
	Return the object name.
const word &	headerClassName () const noexcept
	Return name of the class name read from header.
word &	headerClassName () noexcept
	Modifiable access to the class name read from header.
const string &	note () const noexcept
	Return the optional note.
string &	note () noexcept
	Modifiable access to the optional note.
unsigned	labelByteSize () const noexcept
	The sizeof (label) in bytes, possibly read from the header.
unsigned	scalarByteSize () const noexcept
	The sizeof (scalar) in bytes, possibly read from the header.
void	resetHeader (const word &newName=word::null)
	Clear various bits (headerClassName, note, sizeof...) that would be obtained when reading from a file.
bool	hasHeaderClass () const noexcept
	True if headerClassName() is non-empty (after reading).
bool	isHeaderClass (const word &expectedType) const
	Check if headerClassName() equals the expected type. Always true if the expected type is empty.
template<class Type>
bool	isHeaderClass () const
	Check if headerClassName() equals Type::typeName Always true for a void type.
word	group () const
	Return group (extension part of name).
word	member () const
	Return member (name without the extension).
const fileName &	rootPath () const noexcept
	Return the Time::rootPath().
const fileName &	caseName () const noexcept
	Return the Time::caseName().
const fileName &	globalCaseName () const noexcept
	Return the Time::globalCaseName().
const fileName &	caseName (IOobjectOption::Layout) const noexcept
	Return the Time::caseName() - normal or global.
const fileName &	instance () const noexcept
	Read access to instance path component.
fileName &	instance () noexcept
	Modifiable access to instance path component.
scalar	instanceValue () const
	Return the scalar value of the instance component (or 0), which often corresponds to a time index/value.
const fileName &	local () const noexcept
	Read access to local path component.
fileName &	local () noexcept
	Modifiable access to the local path component.
fileName	path () const
	The complete path for the object (with instance, local,...).
fileName	globalPath () const
	The complete global path for the object (with instance, local,...).
fileName	path (IOobjectOption::Layout) const
	The complete path (normal or global) for the object.
fileName	path (const word &instance, const fileName &local=fileName::null) const
	The complete path with alternative instance and local.
fileName	globalPath (const word &instance, const fileName &local=fileName::null) const
	The complete global path with alternative instance and local.
fileName	path (IOobjectOption::Layout, const word &instance, const fileName &local=fileName::null) const
	The complete path (normal or global) with alternative instance and local.
fileName	objectPath () const
	The complete path + object name.
fileName	globalObjectPath () const
	The complete global path + object name.
fileName	objectPath (IOobjectOption::Layout) const
	The complete path (normal or global) + object name.
fileName	objectPath (IOobjectOption::Layout, const word &instance) const
	The complete path (normal or global) + object name with alternative instance.
fileName	objectPath (const word &instance) const
	The complete path + object name with alternative instance.
fileName	globalObjectPath (const word &instance) const
	The complete global path + object name with alternative instance.
fileName	objectRelPath () const
	The object path relative to the case.
fileName	localFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching locally.
fileName	globalFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching up if in parallel.
IOstreamOption	parseHeader (const dictionary &headerDict)
	Parse 'FoamFile' header contents and set the IOobject characteristics and return the stream characteristics.
bool	readHeader (Istream &is)
	Read header ('FoamFile' dictionary) and set the IOobject and stream characteristics.
bool	readHeader (dictionary &headerDict, Istream &is)
	Read header (the 'FoamFile' dictionary) and set the IOobject and stream characteristics.
template<class Type>
bool	typeHeaderOk (const bool checkType=true, const bool search=true, const bool verbose=true)
	Read header (respects is_globalIOobject trait) and check its info. A void type suppresses trait and type-name checks.
template<class Type, bool Searching>
bool	typeHeaderOk (const bool checkType=true, const bool verbose=true)
	Forwards to single-parameter version with the specified search type. A void type suppresses trait and type-name checks.
template<class Type>
fileName	typeFilePath (const bool search=true) const
	Call localFilePath or globalFilePath for given type depending on its is_globalIOobject trait.
template<class Type>
void	warnNoRereading () const
	Helper: warn that type does not support re-reading.
bool	writeHeader (Ostream &os) const
	Write header with current type().
bool	writeHeader (Ostream &os, const word &objectType) const
	Write header with override of type.
void	writeHeader (dictionary &dict, IOstreamOption streamOpt) const
	Write header into a dictionary with current type() and given output format.
void	writeHeader (dictionary &dict, const word &objectType, IOstreamOption streamOpt) const
	Write header into a dictionary with override of type and given output format.
bool	good () const noexcept
	Did last readHeader() succeed?
bool	bad () const noexcept
	Did last readHeader() fail?
InfoProxy< IOobject >	info () const noexcept
	Return info proxy, for printing information to a stream.
void	operator= (const IOobject &io)
	Copy assignment, copies all values (except the registry).
template<class Type>
bool	isHeaderClassName () const
	Same as isHeaderClass().
template<class StringType>
Foam::word	groupName (StringType base, const word &group)
template<class Type>
Foam::fileName	typeFilePath (const bool search) const
Public Member Functions inherited from IOobjectOption
constexpr	IOobjectOption (readOption rOpt=readOption::NO_READ, writeOption wOpt=writeOption::NO_WRITE, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Default construct (NO_READ, NO_WRITE, REGISTER, non-global) or construct with specified options.
constexpr	IOobjectOption (readOption rOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_WRITE with specified read/register options.
constexpr	IOobjectOption (writeOption wOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_READ with specified write/register options.
constexpr	IOobjectOption (registerOption registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option.
constexpr	IOobjectOption (readOption rOpt, writeOption wOpt, bool registerObject, bool globalObject=false) noexcept
	Construct from components with specified register option as bool.
constexpr	IOobjectOption (bool registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option as bool.
readOption	readOpt () const noexcept
	Get the read option.
readOption	readOpt (readOption opt) noexcept
	Set the read option.
writeOption	writeOpt () const noexcept
	Get the write option.
writeOption	writeOpt (writeOption opt) noexcept
	Set the write option.
bool	registerObject () const noexcept
	Should objects created with this IOobject be registered?
bool	registerObject (bool on) noexcept
	Change registration preference.
bool	globalObject () const noexcept
	True if object is treated the same for all processors.
bool	globalObject (bool on) noexcept
	Change global-object status.
bool	isAnyRead () const noexcept
	True if any reading may be required (ie, != NO_READ).
bool	isReadRequired () const noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
bool	isReadOptional () const noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
readOption &	readOpt () noexcept
	Access to the read option.
writeOption &	writeOpt () noexcept
	Access to the write option.
bool &	registerObject () noexcept
	Access to the register object option.
bool &	globalObject () noexcept
	Access to the global object option.
Public Member Functions inherited from dictionary
	ClassName ("dictionary")
	dictionary ()
	Default construct, a top-level empty dictionary.
	dictionary (const fileName &name)
	Construct top-level empty dictionary with given name.
	dictionary (const fileName &name, const dictionary &parentDict, Istream &is, bool keepHeader=false)
	Construct given the entry name, parent dictionary and Istream, reading entries until EOF, optionally keeping the header.
	dictionary (Istream &is)
	Construct top-level dictionary from Istream (discards the header). Reads entries until EOF or when the first token is a '{' character, it will stop reading at the matching '}' character.
	dictionary (Istream &is, bool keepHeader)
	Construct top-level dictionary from Istream, reading entries until EOF, optionally keeping the header.
	dictionary (const dictionary &parentDict, const dictionary &dict)
	Copy construct given the parent dictionary.
	dictionary (const dictionary &dict)
	Copy construct top-level dictionary.
	dictionary (const dictionary *dict)
	Construct top-level dictionary as copy from pointer to dictionary.
	dictionary (const dictionary &parentDict, dictionary &&dict)
	Move construct for given parent dictionary.
	dictionary (dictionary &&dict)
	Move construct top-level dictionary.
autoPtr< dictionary >	clone () const
	Construct and return clone.
virtual	~dictionary ()
	Destructor.
const fileName &	name () const noexcept
	The dictionary name.
fileName &	name () noexcept
	The dictionary name for modification (use with caution).
word	dictName () const
	The local dictionary name (final part of scoped name).
fileName	relativeName (const bool caseTag=false) const
	The dictionary name relative to the case.
bool	isNullDict () const noexcept
	The dictionary is actually dictionary::null (root dictionary).
const dictionary &	parent () const noexcept
	Return the parent dictionary.
const dictionary &	topDict () const
	Return the top of the tree.
label	startLineNumber () const
	Return line number of first token in dictionary.
label	endLineNumber () const
	Return line number of last token in dictionary.
SHA1Digest	digest () const
	Return the SHA1 digest of the dictionary contents.
tokenList	tokens () const
	Return the dictionary as a list of tokens.
const entry *	findEntry (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry (const access) with the given keyword.
entry *	findEntry (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Find an entry (non-const access) with the given keyword.
bool	found (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry (const access) with the given keyword.
const entry *	findScoped (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Search for a scoped entry (const access) with the given keyword.
const dictionary *	findDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a sub-dictionary pointer if present (and it is a dictionary) otherwise return nullptr.
dictionary *	findDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a sub-dictionary pointer if present (and it is a dictionary) otherwise return nullptr.
ITstream *	findStream (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return an entry stream if present (and it is a stream) otherwise return nullptr.
const entry &	lookupEntry (const word &keyword, enum keyType::option matchOpt) const
	Search for an entry (const access) with the given keyword.
ITstream &	lookup (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return an entry data stream. FatalIOError if not found, or not a stream.
template<class T>
T	get (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T. FatalIOError if not found, or if the number of tokens is incorrect.
template<class T>
T	getOrDefault (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T, or return the given default value. FatalIOError if it is found and the number of tokens is incorrect.
template<class T>
T	getOrAdd (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a T, or return the given default value and add it to dictionary. FatalIOError if it is found and the number of tokens is incorrect.
template<class T>
bool	readEntry (const word &keyword, T &val, enum keyType::option matchOpt=keyType::REGEX, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ) const
	Find entry and assign to T val. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found.
template<class T>
bool	readIfPresent (const word &keyword, T &val, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry if present, and assign to T val. FatalIOError if it is found and the number of tokens is incorrect.
template<class T, class Predicate>
T	getCheck (const word &keyword, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T with additional checking FatalIOError if not found, or if the number of tokens is incorrect.
template<class T, class Predicate>
T	getCheckOrDefault (const word &keyword, const T &deflt, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T, or return the given default value. FatalIOError if it is found and the number of tokens is incorrect.
template<class T, class Predicate>
T	getCheckOrAdd (const word &keyword, const T &deflt, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a T, or return the given default value and add it to dictionary. FatalIOError if it is found and the number of tokens is incorrect.
template<class T, class Predicate>
bool	readCheck (const word &keyword, T &val, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ) const
	Find entry and assign to T val. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found.
template<class T, class Predicate>
bool	readCheckIfPresent (const word &keyword, T &val, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry if present, and assign to T val. FatalIOError if it is found and the number of tokens is incorrect.
const dictionary &	subDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a sub-dictionary.
dictionary &	subDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a sub-dictionary for manipulation.
dictionary &	subDictOrAdd (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Find and return a sub-dictionary for manipulation.
dictionary	subOrEmptyDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX, const bool mandatory=false) const
	Find and return a sub-dictionary as a copy, otherwise return an empty dictionary.
const dictionary &	optionalSubDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a sub-dictionary, otherwise return this dictionary.
wordList	toc () const
	Return the table of contents.
wordList	sortedToc () const
	Return the sorted table of contents.
template<class Compare>
wordList	sortedToc (const Compare &comp) const
	Return table of contents sorted using the specified comparator.
List< keyType >	keys (bool patterns=false) const
	Return the list of available keys or patterns.
bool	substituteKeyword (const word &keyword, bool mergeEntry=false)
	Substitute the given keyword (which is prefixed by '$').
bool	substituteScopedKeyword (const word &keyword, bool mergeEntry=false)
	Substitute the given scoped keyword (which is prefixed by '$').
entry *	add (entry *entryPtr, bool mergeEntry=false)
	Add a new entry.
entry *	add (const entry &e, bool mergeEntry=false)
	Add an entry.
entry *	add (const keyType &k, const word &v, bool overwrite=false)
	Add a word entry.
entry *	add (const keyType &k, const string &v, bool overwrite=false)
	Add a string entry.
entry *	add (const keyType &k, const label v, bool overwrite=false)
	Add a label entry.
entry *	add (const keyType &k, const scalar v, bool overwrite=false)
	Add a scalar entry.
entry *	add (const keyType &k, const dictionary &d, bool mergeEntry=false)
	Add a dictionary entry.
template<class T>
entry *	add (const keyType &k, const T &v, bool overwrite=false)
	Add a T entry.
entry *	set (entry *entryPtr)
	Assign a new entry, overwriting any existing entry.
entry *	set (const entry &e)
	Assign a new entry, overwriting any existing entry.
entry *	set (const keyType &k, const dictionary &v)
	Assign a dictionary entry, overwriting any existing entry.
entry *	set (const keyType &k, std::nullptr_t)
	Assign an empty primitive entry, overwriting any existing entry.
entry *	set (const keyType &k, const UList< token > &tokens)
	Assign a primitive entry from a list of tokens, overwriting any existing entry.
entry *	set (const keyType &k, List< token > &&tokens)
	Assign a primitive entry from a list of tokens, overwriting any existing entry.
template<class T>
entry *	set (const keyType &k, const T &v)
	Assign a T entry, overwriting any existing entry.
bool	remove (const word &keyword)
	Remove an entry specified by keyword.
bool	changeKeyword (const keyType &oldKeyword, const keyType &newKeyword, bool overwrite=false)
	Change the keyword for an entry,.
bool	merge (const dictionary &dict)
	Merge entries from the given dictionary.
void	clear ()
	Clear the dictionary.
void	transfer (dictionary &dict)
	Transfer the contents of the argument and annul the argument.
void	checkITstream (const ITstream &is, const word &keyword) const
	Check after reading if the input token stream has unconsumed tokens remaining or if there were no tokens in the first place.
bool	read (Istream &is)
	Read dictionary from Istream (discards the header). Reads entries until EOF or when the first token is a '{' character, it will stop reading at the matching '}' character.
bool	read (Istream &is, bool keepHeader)
	Read dictionary from Istream (optionally keeping the header) Reads entries until EOF or when the first token is a '{' character, it will stop reading at the matching '}' character.
void	writeEntry (Ostream &os) const
	Write sub-dictionary with its dictName as its header.
void	writeEntry (const keyType &keyword, Ostream &os) const
	Write sub-dictionary with the keyword as its header.
void	writeEntries (Ostream &os, const bool extraNewLine=false) const
	Write dictionary entries.
void	write (Ostream &os, const bool subDict=true) const
	Write dictionary, normally with sub-dictionary formatting.
const_searcher	csearch (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Search dictionary for given keyword.
const_searcher	search (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Search dictionary for given keyword.
searcher	search (const word &keyword, enum keyType::option matchOpt=keyType::REGEX)
	Search dictionary for given keyword.
const_searcher	csearchScoped (const word &keyword, enum keyType::option matchOpt) const
	Search using scoping.
const_searcher	searchScoped (const word &keyword, enum keyType::option matchOpt) const
	Search using dot or slash scoping.
searcher	searchScoped (const word &keyword, enum keyType::option matchOpt)
	Search using dot or slash scoping.
const dictionary *	cfindScopedDict (const fileName &dictPath) const
	Locate a sub-dictionary using slash-scoping.
const dictionary *	findScopedDict (const fileName &dictPath) const
	Locate a sub-dictionary using slash-scoping.
dictionary *	findScopedDict (const fileName &dictPath)
	Locate a sub-dictionary using slash-scoping.
dictionary *	makeScopedDict (const fileName &dictPath)
	Locate existing or create sub-dictionary using slash-scoping.
const_searcher	csearchCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const
	Search dictionary for given keyword and any compatibility names.
const entry *	findCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt) const
	Find and return an entry pointer if present, or return a nullptr, using any compatibility names if needed.
bool	foundCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const
	Search dictionary for given keyword and any compatibility names.
const entry &	lookupEntryCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt) const
	Find and return an entry if present, otherwise FatalIOError, using any compatibility names if needed.
ITstream &	lookupCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return an entry data stream, using any compatibility names if needed.
template<class T>
T	getCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T using any compatibility names if needed. FatalIOError if not found, or if there are excess tokens.
template<class T>
T	getOrDefaultCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) const
	Find and return a T, or return the given default value using any compatibility names if needed.
template<class T>
bool	readCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, T &val, enum keyType::option matchOpt=keyType::REGEX, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ) const
	Find entry and assign to T val using any compatibility names if needed. FatalIOError if there are excess tokens.
template<class T>
bool	readIfPresentCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, T &val, enum keyType::option matchOpt=keyType::REGEX) const
	Find an entry if present, and assign to T val using any compatibility names if needed. FatalIOError if it is found and there are excess tokens.
void	operator= (const dictionary &rhs)
	Copy assignment.
void	operator+= (const dictionary &rhs)
	Include entries from the given dictionary.
void	operator|= (const dictionary &rhs)
	Conditionally include entries from the given dictionary.
void	operator<<= (const dictionary &rhs)
	Unconditionally include entries from the given dictionary.
bool	getBool (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<bool>(const word&, keyType::option).
label	getLabel (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<label>(const word&, keyType::option).
scalar	getScalar (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<scalar>(const word&, keyType::option).
string	getString (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<string>(const word&, keyType::option).
word	getWord (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<word>(const word&, keyType::option).
fileName	getFileName (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Same as get<fileName>(const word&, keyType::option).
bool	isDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const
	Check for existence of a sub-dictionary. Generally prefer findDict() for more flexibility.
template<class T>
T	lookupOrDefault (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) const
	Same as getOrDefault().
template<class T>
T	lookupOrAddDefault (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX)
	Same as getOrAdd().
ITstream &	operator[] (const word &keyword) const
	Deprecated(2018-07) - use lookup() method.
bool	found (const word &keyword, bool recursive, bool patternMatch=true) const
	Deprecated(2018-10).
entry *	lookupEntryPtr (const word &keyword, bool recursive, bool patternMatch)
	Deprecated(2018-10).
const entry *	lookupEntryPtr (const word &keyword, bool recursive, bool patternMatch) const
	Deprecated(2018-10).
const entry *	lookupScopedEntryPtr (const word &keyword, bool recursive, bool patternMatch) const
	Deprecated(2018-10).
const dictionary *	subDictPtr (const word &keyword) const
	Deprecated(2018-10).
dictionary *	subDictPtr (const word &keyword)
	Deprecated(2018-10) Find and return a sub-dictionary pointer if present.
const entry &	lookupEntry (const word &keyword, bool recursive, bool patternMatch) const
	Deprecated(2018-10).
ITstream &	lookup (const word &keyword, bool recursive, bool patternMatch=true) const
	Deprecated(2018-10).
template<class T>
T	lookupOrDefault (const word &keyword, const T &deflt, bool recursive, bool patternMatch=true) const
	Deprecated(2018-10).
template<class T>
T	lookupOrAddDefault (const word &keyword, const T &deflt, bool recursive, bool patternMatch=true)
	Deprecated(2018-10).
template<class T>
bool	readIfPresent (const word &keyword, T &val, bool recursive, bool patternMatch=true) const
	Deprecated(2018-10).
template<class T>
T	lookupType (const word &keyword, bool recursive=false, bool patternMatch=true) const
	Deprecated(2018-10) find and return a T.
template<class Compare>
Foam::wordList	sortedToc (const Compare &comp) const
template<class T>
Foam::entry *	add (const keyType &k, const T &v, bool overwrite)
template<class T>
Foam::entry *	set (const keyType &k, const T &v)
Public Member Functions inherited from ILList< DLListBase, T >
	ILList ()=default
	Default construct.
	ILList (T *item)
	Construct and add initial item pointer.
	ILList (Istream &is)
	Construct from Istream.
	ILList (const ILList< DLListBase, T > &lst)
	Copy construct using the 'clone()' method for each element.
	ILList (ILList< DLListBase, T > &&lst)
	Move construct.
	ILList (const ILList< DLListBase, T > &lst, const CloneArg &cloneArg)
	Copy constructor with additional argument for clone 'clone()'.
	ILList (Istream &is, const INew &inew)
	Construct from Istream using given Istream constructor class.
	~ILList ()
	Destructor. Calls clear().
void	clear ()
	Clear the contents of the list.
void	pop_front (label n=1)
	Remove first element(s) from the list (deletes pointers).
bool	erase (T *item)
	Remove the specified element from the list and delete it.
void	transfer (ILList< DLListBase, T > &lst)
	Transfer the contents of the argument into this List and annul the argument list.
void	operator= (const ILList< DLListBase, T > &lst)
	Copy assignment using the 'clone()' method for each element.
void	operator= (ILList< DLListBase, T > &&lst)
	Move assignment.
Public Member Functions inherited from UILList< DLListBase, T >
	UILList ()=default
	Default construct.
	UILList (T *item)
	Construct and add initial item pointer.
	UILList (const UILList< DLListBase, T > &list)
	Construct as copy.
T *	front ()
	The first entry in the list.
const T *	front () const
	The first entry in the list (const access).
T *	back ()
	The last entry in the list.
const T *	back () const
	The last entry in the list (const access).
T *	removeHead ()
	Remove and return head.
T *	remove (T *item)
	Remove and return element.
T *	remove (iterator &iter)
	Remove and return item specified by iterator.
void	operator= (const UILList< DLListBase, T > &lst)
	Copy assignment.
bool	operator== (const UILList< DLListBase, T > &lst) const
	Equality. True both lists are element-wise equal.
bool	operator!= (const UILList< DLListBase, T > &lst) const
	The opposite of the equality operation. Takes linear time.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write UILList with line-breaks when length exceeds shortLen.
iterator	begin ()
	Iterator to first item in list with non-const access.
const_iterator	cbegin () const
	Iterator to first item in list with const access.
reverse_iterator	rbegin ()
	Iterator to last item in list with non-const access.
const_reverse_iterator	crbegin () const
	Iterator to last item in list with const access.
const_iterator	begin () const
	Iterator to first item in list with const access.
const_reverse_iterator	rbegin () const
	Iterator to last item in list with const access.
const iterator &	end ()
	End of list for forward iterators.
const const_iterator &	cend () const
	End of list for forward iterators.
const reverse_iterator &	rend ()
	End of list for reverse iterators.
const const_reverse_iterator &	crend () const
	End of list for reverse iterators.
const const_iterator &	end () const
	End of list for forward iterators.
const const_reverse_iterator &	rend () const
	End of list for reverse iterators.
T *	first ()
	The first entry in the list.
const T *	first () const
	The first entry in the list (const access).
T *	last ()
	The last entry in the list.
const T *	last () const
	The last entry in the list (const access).
Public Member Functions inherited from DLListBase
	DLListBase ()=default
	Default construct.
	DLListBase (const DLListBase &)=delete
	No copy construct.
void	operator= (const DLListBase &)=delete
	No copy assignment.
	~DLListBase ()=default
	Destructor.
bool	empty () const noexcept
	True if the list is empty.
label	size () const noexcept
	The number of elements in list.
link *	front ()
	Return first entry.
const link *	front () const
	Return const access to first entry.
link *	back ()
	Return last entry.
const link *	back () const
	Return const access to last entry.
void	push_front (link *item)
	Add at front of list.
void	push_back (link *item)
	Add at back of list.
bool	swapUp (link *item)
	Swap this element with the one above unless it is at the top.
bool	swapDown (link *item)
	Swap this element with the one below unless it is at the bottom.
link *	removeHead ()
	Remove and return first entry.
link *	remove (link *item)
	Remove and return element.
link *	remove (iterator &iter)
	Remove and return element specified by iterator.
link *	replace (link *oldLink, link *newLink)
	Replace oldLink with newLink and return element.
link *	replace (iterator &oldIter, link *newitem)
	Replace oldIter with newItem and return element.
void	clear ()
	Clear the list.
void	swap (DLListBase &lst)
	Swap the contents of the list.
void	transfer (DLListBase &lst)
	Transfer the contents of the argument into this list and annul the argument list.
iterator	begin ()
	Iterator to first item in list with non-const access.
const_iterator	cbegin () const
	Iterator to first item in list with const access.
const_iterator	crbegin () const
	Iterator to last item in list with const access.
const iterator &	end ()
	End of list for iterators.
const const_iterator &	cend () const
	End of list for iterators.
const const_iterator &	crend () const
	End of list for reverse iterators.
link *	first ()
	Return first entry.
const link *	first () const
	Return const access to first entry.
link *	last ()
	Return last entry.
const link *	last () const
	Return const access to last entry.
void	prepend (link *item)
	Add at front of list.
void	append (link *item)
	Add at back of list.
Public Member Functions inherited from compressibleTransportModel
	TypeName ("compressibleTransportModel")
	Runtime type information.
	compressibleTransportModel ()
	Construct from components.
virtual	~compressibleTransportModel ()
	Destructor.

Static Public Attributes
static const word	phasePropertiesName
	Default name of the phase properties dictionary.
Static Public Attributes inherited from basicThermo
static const word	dictName
	The dictionary name ("thermophysicalProperties").
Static Public Attributes inherited from IOobject
static const Enum< fileCheckTypes >	fileCheckTypesNames
	Names for the fileCheckTypes.
static char	scopeSeparator
	Character for scoping object names (':' or '_').
static fileCheckTypes	fileModificationChecking
	Type of file modification checking.
static float	fileModificationSkew
	Time skew (seconds) for file modification checks.
static int	maxFileModificationPolls
	Max number of times to poll for file modification changes.
Static Public Attributes inherited from dictionary
static int	writeOptionalEntries
	Report optional keywords and values if not present in dictionary.
static const dictionary	null
	An empty dictionary, which is also the parent for all dictionaries.
static refPtr< OSstream >	reportingOutput
	Output location when reporting default values.

Protected Types
typedef HashTable< dictionary, phasePairKey, phasePairKey::hash >	dictTable
typedef HashTable< autoPtr< multiphaseInter::surfaceTensionModel >, phasePairKey, phasePairKey::hash >	surfaceTensionModelTable
typedef HashTable< autoPtr< porousModel >, phasePairKey, phasePairKey::hash >	interfacePorousModelTable

Protected Member Functions
void	calcMu ()
	Calculate and return the laminar viscosity.
HashTable< autoPtr< multiphaseInter::phaseModel > >	generatePhaseModels (const wordList &names) const
	Generate the phases.
tmp< surfaceScalarField >	generatePhi (const HashTable< autoPtr< multiphaseInter::phaseModel > > &phaseModels) const
	Generate the mixture flux.
void	generatePairs (const dictTable &modelDicts)
	Generate pairs.
void	generatePairsTable ()
	Generate pair table.
template<class modelType>
void	createSubModels (const dictTable &modelDicts, HashTable< autoPtr< modelType >, phasePairKey, phasePairKey::hash > &models)
	Generate pairs and sub-model tables using pair keys.
template<class modelType>
void	createSubModels (const dictTable &modelDicts, const fvMesh &mesh, HashTable< autoPtr< modelType >, phasePairKey, phasePairKey::hash > &models)
	Generate pairs and sub-model tables using mesh.
template<class modelType>
void	generatePairsAndSubModels (const word &modelName, HashTable< autoPtr< modelType >, phasePairKey, phasePairKey::hash > &models)
	Generate pairs and sub-model tables.
template<class modelType>
void	generatePairsAndSubModels (const word &modelName, const fvMesh &mesh, HashTable< autoPtr< modelType >, phasePairKey, phasePairKey::hash > &models)
	Generate pairs and per-phase sub-model tables with mesh ref.
template<class modelType>
void	generatePairsAndSubModels (const word &modelName, HashTable< HashTable< autoPtr< modelType > >, phasePairKey, phasePairKey::hash > &models)
	Generate pairs and per-phase sub-model tables.
Protected Member Functions inherited from basicThermo
wordList	heBoundaryTypes ()
	Return the enthalpy/internal energy field boundary types by interrogating the temperature field boundary types.
wordList	heBoundaryBaseTypes ()
	Return the enthalpy/internal energy field boundary base types by interrogating the temperature field boundary types.
	basicThermo (const basicThermo &)=delete
	No copy construct.
Protected Member Functions inherited from regIOobject
bool	readHeaderOk (const IOstreamOption::streamFormat fmt, const word &typeName)
	Helper: check readOpt flags and read if necessary.
Protected Member Functions inherited from IOobject
void	setBad (const string &s)
	Set the object state to bad.
Protected Member Functions inherited from DLListBase
template<class IteratorType>
IteratorType	iterator_first () const
	Return iterator to first item or end-iterator if list is empty.
template<class IteratorType>
IteratorType	iterator_last () const
	Return iterator to last item or end-iterator if list is empty.

Protected Attributes
const fvMesh &	mesh_
	Reference to the mesh.
volScalarField	mu_
	Dynamic viscocity.
wordList	phaseNames_
	Phase names.
surfaceScalarField	phi_
	Mixture total volumetric flux.
surfaceScalarField	rhoPhi_
	Mixture total mass flux.
phaseModelTable	phaseModels_
	Phase models.
phasePairTable	phasePairs_
	Phase pairs.
phasePairTable	totalPhasePairs_
	Total ordered phase pairs in the system.
dimensionedScalar	Prt_
	Turbulent Prandt number.
compressibleTurbulenceModel *	turb_
	Turbulence model.
surfaceTensionModelTable	surfaceTensionModels_
	Surface tension models.
interfacePorousModelTable	interfacePorousModelTable_
	Interface porous models.
Protected Attributes inherited from basicThermo
const word &	phaseName_
	Phase-name.
bool	pOwner_
	Pressure created and stored by this instance.
bool	TOwner_
	Temperature created and stored by this instance.
bool	dpdt_
	Include dpdt term in the enthalpy equation?
volScalarField &	p_
	Pressure [Pa].
volScalarField &	T_
	Temperature [K].
volScalarField	alpha_
	Laminar thermal diffusivity [kg/m/s].

Additional Inherited Members
Static Public Member Functions inherited from basicThermo
template<class Thermo>
static autoPtr< Thermo >	New (const fvMesh &, const word &phaseName=word::null)
	Generic New for each of the related thermodynamics packages.
template<class Thermo>
static autoPtr< Thermo >	New (const fvMesh &, const dictionary &, const word &phaseName=word::null)
	Generic New for each of the related thermodynamics packages.
template<class Thermo>
static autoPtr< Thermo >	New (const fvMesh &, const word &phaseName, const word &dictName)
	Generic New for each of the related thermodynamics packages.
static autoPtr< basicThermo >	New (const fvMesh &, const word &phaseName=word::null)
	Specialisation of the Generic New for basicThermo.
static word	phasePropertyName (const word &name, const word &phaseName)
	The phase property name as property.phase.
static const basicThermo &	lookupThermo (const fvPatchScalarField &pf)
static Ostream &	printThermoNames (Ostream &os, const wordList &cmptNames, const wordList &thermoNames)
	Print (filtered) table of thermo names, splits on " ,<>".
static wordList	splitThermoName (const std::string &thermoName, const int nExpectedCmpts)
	Split thermo package name into a list of components names.
Static Public Member Functions inherited from IOdictionary
static dictionary	readContents (const IOobject &io)
	Read and return contents, testing for "dictionary" type. The IOobject will not be registered.
static dictionary	readContents (const IOobject &io, const word &wantedType)
	Read and return contents, testing for expected type. The IOobject will not be registered.
Static Public Member Functions inherited from regIOobject
template<class Type>
static Type &	store (Type *p)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (std::unique_ptr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &&ptr)
	Transfer pointer ownership to its registry.
Static Public Member Functions inherited from IOobject
static bool	bannerEnabled () noexcept
	Status of output file banner.
static bool	bannerEnabled (bool on) noexcept
	Enable/disable output file banner.
static bool	fileModificationChecking_masterOnly () noexcept
	Test fileModificationChecking for master-only.
static bool	fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name)
	Split path into instance, local, name components.
template<class StringType>
static word	groupName (StringType base, const word &group)
	Create dot-delimited name.group string.
static word	group (const word &name)
	Return group (extension part of name).
static word	member (const word &name)
	Return member (name without the extension).
static word	scopedName (const std::string &scope, const word &name)
	Create scope:name or scope_name string.
static word	scopedName (const std::string &scope, const word &name1, const word &name2)
	Create scope:name1:name2 or scope_name1_name2 string.
static IOobject	selectIO (const IOobject &io, const fileName &altFile, const word &ioName="")
	Return the IOobject, but also consider an alternative file name.
static Ostream &	writeBanner (Ostream &os, const bool noSyntaxHint=false)
	Write the standard OpenFOAM file/dictionary banner.
static Ostream &	writeDivider (Ostream &os)
	Write the standard file section divider.
static Ostream &	writeEndDivider (Ostream &os)
	Write the standard end file divider.
Static Public Member Functions inherited from IOobjectOption
static bool	isAnyRead (readOption opt) noexcept
	True if any reading may be required (ie, != NO_READ).
static bool	isReadRequired (readOption opt) noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
static bool	isReadOptional (readOption opt) noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
static readOption	lazierRead (readOption opt) noexcept
	Downgrade readOption optional (LAZY_READ), leaves NO_READ intact.
Static Public Member Functions inherited from dictionary
static int	reportOptional () noexcept
	Return the state of reporting optional (default) entries.
static int	reportOptional (const int level) noexcept
	Change the state of reporting optional (default) entries.
static autoPtr< dictionary >	New (Istream &is)
	Construct top-level dictionary on freestore from Istream.
Public Attributes inherited from dictionary
friend	const_searcher
	Declare friendship with the searcher classes.
friend	searcher
Static Protected Member Functions inherited from IOobject
static void	writeHeaderContent (Ostream &os, const IOobject &io, const word &objectType, const dictionary *metaDataDict=nullptr)
	Helper: write content for FoamFile IOobject header with optional meta information.
static void	writeHeaderContent (dictionary &dict, const IOobject &io, const word &objectType, IOstreamOption streamOpt, const dictionary *metaDataDict=nullptr)
	Helper: write dictionary content for FoamFile header with optional meta information.
Static Protected Member Functions inherited from DLListBase
template<class IteratorType>
static const IteratorType &	iterator_end ()
	Factory method to return an iterator end.
template<class IteratorType>
static const IteratorType &	iterator_rend ()
	Factory method to return an iterator reverse end.
Static Protected Attributes inherited from regIOobject
static bool	masterOnlyReading = false
	To flag master-only reading of objects.

Detailed Description

Source files

• multiphaseInterSystem.H
• multiphaseInterSystem.C

Definition at line 64 of file multiphaseInterSystem.H.

Member Typedef Documentation

phasePairTable

typedef HashTable< autoPtr<phasePair>, phasePairKey, phasePairKey::hash > phasePairTable

Definition at line 78 of file multiphaseInterSystem.H.

phaseModelTable

typedef HashTable<autoPtr<multiphaseInter::phaseModel> > phaseModelTable

Definition at line 81 of file multiphaseInterSystem.H.

SuSpTable

typedef HashTable<volScalarField::Internal> SuSpTable

Definition at line 84 of file multiphaseInterSystem.H.

dictTable

typedef HashTable<dictionary, phasePairKey, phasePairKey::hash> dictTable

protected

Definition at line 92 of file multiphaseInterSystem.H.

surfaceTensionModelTable

typedef HashTable< autoPtr<multiphaseInter::surfaceTensionModel>, phasePairKey, phasePairKey::hash > surfaceTensionModelTable

protected

Definition at line 102 of file multiphaseInterSystem.H.

interfacePorousModelTable

typedef HashTable< autoPtr<porousModel>, phasePairKey, phasePairKey::hash > interfacePorousModelTable

protected

Definition at line 112 of file multiphaseInterSystem.H.

Constructor & Destructor Documentation

multiphaseInterSystem()

multiphaseInterSystem

(

const fvMesh &

mesh

)

Construct from fvMesh.

Definition at line 202 of file multiphaseInterSystem.C.

References IOobjectOption::AUTO_WRITE, basicThermo::basicThermo(), calcMu(), Foam::dimDensity, Foam::dimMass, Foam::dimTime, Foam::dimViscosity, Foam::dimVolume, found, generatePairsAndSubModels(), generatePairsTable(), generatePhaseModels(), dictionary::get(), interfacePorousModelTable_, mesh(), mesh_, mu_, dictionary::null, phaseModels_, phaseNames_, phasePairs_, phasePropertiesName, phi_, Prt_, IOobjectOption::READ_IF_PRESENT, rhoPhi_, surfaceTensionModels_, IOobject::time(), timeName, totalPhasePairs_, and Foam::Zero.

Referenced by multiphaseSystem::multiphaseSystem().

Here is the call graph for this function:

Here is the caller graph for this function:

~multiphaseInterSystem()

~multiphaseInterSystem ( )

virtual

Destructor.

Definition at line 288 of file multiphaseInterSystem.C.

Member Function Documentation

calcMu()

void calcMu ( )

protected

Calculate and return the laminar viscosity.

Definition at line 52 of file multiphaseInterSystem.C.

References mu(), and mu_.

Referenced by correct(), and multiphaseInterSystem().

Here is the call graph for this function:

Here is the caller graph for this function:

generatePhaseModels()

Foam::multiphaseInterSystem::phaseModelTable generatePhaseModels ( const wordList & names ) const

protected

Generate the phases.

Definition at line 59 of file multiphaseInterSystem.C.

References HashTable< T, Key, Hash >::insert(), and phaseModel::New().

Referenced by multiphaseInterSystem().

Here is the call graph for this function:

Here is the caller graph for this function:

generatePhi()

Foam::tmp< Foam::surfaceScalarField > generatePhi ( const HashTable< autoPtr< multiphaseInter::phaseModel > > & phaseModels ) const

protected

Generate the mixture flux.

Definition at line 83 of file multiphaseInterSystem.C.

References HashTable< T, Key, Hash >::cbegin(), HashTable< T, Key, Hash >::cend(), Foam::fvc::interpolate(), GeometricField< scalar, fvsPatchField, surfaceMesh >::New(), IOobjectOption::NO_REGISTER, and phi.

Here is the call graph for this function:

generatePairs()

void generatePairs ( const dictTable & modelDicts )

protected

Generate pairs.

Definition at line 106 of file multiphaseInterSystem.C.

References forAllConstIters, phaseModels_, and phasePairs_.

Referenced by generatePairsAndSubModels(), and generatePairsAndSubModels().

Here is the caller graph for this function:

generatePairsTable()

void generatePairsTable ( )

protected

Generate pair table.

Definition at line 153 of file multiphaseInterSystem.C.

References forAllConstIters, name, phaseModels_, and totalPhasePairs_.

Referenced by multiphaseInterSystem().

Here is the caller graph for this function:

createSubModels() [1/2]

template<class modelType>

void createSubModels ( const dictTable & modelDicts, HashTable< autoPtr< modelType >, phasePairKey, phasePairKey::hash > & models )

protected

Generate pairs and sub-model tables using pair keys.

Definition at line 24 of file multiphaseInterSystemTemplates.H.

References forAllConstIters, and phasePairs_.

Referenced by generatePairsAndSubModels(), and generatePairsAndSubModels().

Here is the caller graph for this function:

createSubModels() [2/2]

template<class modelType>

void createSubModels ( const dictTable & modelDicts, const fvMesh & mesh, HashTable< autoPtr< modelType >, phasePairKey, phasePairKey::hash > & models )

protected

Generate pairs and sub-model tables using mesh.

Definition at line 53 of file multiphaseInterSystemTemplates.H.

References forAllConstIters, and mesh().

Here is the call graph for this function:

generatePairsAndSubModels() [1/3]

template<class modelType>

void generatePairsAndSubModels ( const word & modelName, HashTable< autoPtr< modelType >, phasePairKey, phasePairKey::hash > & models )

protected

Generate pairs and sub-model tables.

Definition at line 83 of file multiphaseInterSystemTemplates.H.

References createSubModels(), and generatePairs().

Referenced by generatePairsAndSubModels(), and multiphaseInterSystem().

Here is the call graph for this function:

Here is the caller graph for this function:

generatePairsAndSubModels() [2/3]

template<class modelType>

void generatePairsAndSubModels ( const word & modelName, const fvMesh & mesh, HashTable< autoPtr< modelType >, phasePairKey, phasePairKey::hash > & models )

protected

Generate pairs and per-phase sub-model tables with mesh ref.

Definition at line 103 of file multiphaseInterSystemTemplates.H.

References createSubModels(), generatePairs(), and mesh().

Here is the call graph for this function:

generatePairsAndSubModels() [3/3]

template<class modelType>

void generatePairsAndSubModels ( const word & modelName, HashTable< HashTable< autoPtr< modelType > >, phasePairKey, phasePairKey::hash > & models )

protected

Generate pairs and per-phase sub-model tables.

Definition at line 124 of file multiphaseInterSystemTemplates.H.

References forAllConstIters, generatePairsAndSubModels(), IOobject::groupName(), and phaseNames_.

Here is the call graph for this function:

TypeName()

TypeName

(

"multiphaseInterSystem"

)

Runtime type information.

he() [1/5]

virtual volScalarField & he ( )

inlinevirtual

Return access to the internal energy field [J/Kg].

Note

this mixture thermo is prepared to work with T

Implements basicThermo.

Definition at line 332 of file multiphaseInterSystem.H.

References GeometricField< Type, PatchField, GeoMesh >::constCast(), NotImplemented, and GeometricField< scalar, fvPatchField, volMesh >::null().

Here is the call graph for this function:

he() [2/5]

virtual const volScalarField & he ( ) const

inlinevirtual

Return access to the internal energy field [J/Kg].

Note

this mixture thermo is prepared to work with T

Implements basicThermo.

Definition at line 343 of file multiphaseInterSystem.H.

References NotImplemented, and GeometricField< scalar, fvPatchField, volMesh >::null().

Here is the call graph for this function:

he() [3/5]

Foam::tmp< Foam::volScalarField > he ( const volScalarField & p, const volScalarField & T ) const

virtual

Enthalpy/Internal energy.

for given pressure and temperature [J/kg]

Implements basicThermo.

Definition at line 294 of file multiphaseInterSystem.C.

References NotImplemented, basicThermo::p(), and basicThermo::T().

Here is the call graph for this function:

he() [4/5]

Foam::tmp< Foam::scalarField > he ( const scalarField & p, const scalarField & T, const labelList & cells ) const

virtual

Enthalpy/Internal energy for cell-set [J/kg].

Implements basicThermo.

Definition at line 305 of file multiphaseInterSystem.C.

References cells, NotImplemented, basicThermo::p(), and basicThermo::T().

Here is the call graph for this function:

he() [5/5]

Foam::tmp< Foam::scalarField > he ( const scalarField & p, const scalarField & T, const label patchi ) const

virtual

Enthalpy/Internal energy for patch [J/kg].

Implements basicThermo.

Definition at line 317 of file multiphaseInterSystem.C.

References NotImplemented, basicThermo::p(), and basicThermo::T().

Here is the call graph for this function:

hc()

Foam::tmp< Foam::volScalarField > hc ( ) const

virtual

Chemical enthalpy of the mixture [J/kg].

Implements basicThermo.

Definition at line 329 of file multiphaseInterSystem.C.

References hc(), phaseModels_, and tmp< T >::ref().

Referenced by hc().

Here is the call graph for this function:

Here is the caller graph for this function:

THE() [1/2]

Foam::tmp< Foam::scalarField > THE ( const scalarField & h, const scalarField & p, const scalarField & T0, const labelList & cells ) const

virtual

Temperature from enthalpy/internal energy for cell-set.

Implements basicThermo.

Definition at line 347 of file multiphaseInterSystem.C.

References cells, e, NotImplemented, basicThermo::p(), and T0.

Here is the call graph for this function:

THE() [2/2]

Foam::tmp< Foam::scalarField > THE ( const scalarField & h, const scalarField & p, const scalarField & T0, const label patchi ) const

virtual

Temperature from enthalpy/internal energy for patch.

Implements basicThermo.

Definition at line 360 of file multiphaseInterSystem.C.

References e, NotImplemented, basicThermo::p(), and T0.

Here is the call graph for this function:

rho() [1/2]

Foam::tmp< Foam::volScalarField > rho ( ) const

virtual

Return the mixture density.

Implements basicThermo.

Definition at line 373 of file multiphaseInterSystem.C.

References phaseModels_, tmp< T >::ref(), and rho.

Here is the call graph for this function:

rho() [2/2]

Foam::tmp< Foam::scalarField > rho ( const label patchi ) const

virtual

Return the mixture density on a patch.

Implements basicThermo.

Definition at line 391 of file multiphaseInterSystem.C.

References phaseModels_, tmp< T >::ref(), and rho.

Here is the call graph for this function:

Cp() [1/3]

Foam::tmp< Foam::volScalarField > Cp ( ) const

virtual

Return Cp of the mixture.

Implements basicThermo.

Definition at line 417 of file multiphaseInterSystem.C.

References Cp(), phaseModels_, and tmp< T >::ref().

Referenced by Cp(), and kappaEff().

Here is the call graph for this function:

Here is the caller graph for this function:

Cp() [2/3]

Foam::tmp< Foam::scalarField > Cp ( const scalarField & p, const scalarField & T, const label patchi ) const

virtual

Heat capacity at constant pressure for patch [J/kg/K].

Implements basicThermo.

Definition at line 435 of file multiphaseInterSystem.C.

References Cp, basicThermo::p(), phaseModels_, tmp< T >::ref(), and basicThermo::T().

Here is the call graph for this function:

Cp() [3/3]

virtual tmp< scalarField > Cp ( const scalarField & p, const scalarField & T, const labelList & cells ) const

inlinevirtual

Heat capacity using pressure and temperature.

Implements basicThermo.

Definition at line 438 of file multiphaseInterSystem.H.

References cells, NotImplemented, basicThermo::p(), and basicThermo::T().

Here is the call graph for this function:

Cv() [1/2]

Foam::tmp< Foam::volScalarField > Cv ( ) const

virtual

Return Cv of the mixture.

Implements basicThermo.

Definition at line 458 of file multiphaseInterSystem.C.

References Cv, phaseModels_, and tmp< T >::ref().

Here is the call graph for this function:

Cv() [2/2]

Foam::tmp< Foam::scalarField > Cv ( const scalarField & p, const scalarField & T, const label patchI ) const

virtual

Heat capacity at constant volume for patch [J/kg/K].

Implements basicThermo.

Definition at line 476 of file multiphaseInterSystem.C.

References Cv, basicThermo::p(), phaseModels_, tmp< T >::ref(), and basicThermo::T().

Here is the call graph for this function:

rhoEoS()

Foam::tmp< Foam::scalarField > rhoEoS ( const scalarField & p, const scalarField & T, const labelList & cells ) const

virtual

Density from pressure and temperature.

Implements basicThermo.

Definition at line 499 of file multiphaseInterSystem.C.

References cells, NotImplemented, basicThermo::p(), and basicThermo::T().

Here is the call graph for this function:

gamma() [1/2]

Foam::tmp< Foam::volScalarField > gamma ( ) const

virtual

Gamma = Cp/Cv [].

Implements basicThermo.

Definition at line 511 of file multiphaseInterSystem.C.

References Cp, Cv, phaseModels_, and tmp< T >::ref().

Here is the call graph for this function:

gamma() [2/2]

Foam::tmp< Foam::scalarField > gamma ( const scalarField & p, const scalarField & T, const label patchi ) const

virtual

Gamma = Cp/Cv for patch [].

Implements basicThermo.

Definition at line 535 of file multiphaseInterSystem.C.

References gamma, basicThermo::p(), and basicThermo::T().

Here is the call graph for this function:

Cpv() [1/2]

Foam::tmp< Foam::volScalarField > Cpv ( ) const

virtual

Heat capacity at constant pressure/volume [J/kg/K].

Implements basicThermo.

Definition at line 549 of file multiphaseInterSystem.C.

References Cpv(), phaseModels_, and tmp< T >::ref().

Referenced by Cpv(), and Cpv().

Here is the call graph for this function:

Here is the caller graph for this function:

Cpv() [2/2]

Foam::tmp< Foam::scalarField > Cpv ( const scalarField & p, const scalarField & T, const label patchi ) const

virtual

Heat capacity at constant pressure/volume for patch [J/kg/K].

Implements basicThermo.

Definition at line 567 of file multiphaseInterSystem.C.

References Cpv(), basicThermo::p(), phaseModels_, tmp< T >::ref(), and basicThermo::T().

Here is the call graph for this function:

CpByCpv() [1/2]

Foam::tmp< Foam::volScalarField > CpByCpv ( ) const

virtual

Heat capacity ratio [].

Implements basicThermo.

Definition at line 590 of file multiphaseInterSystem.C.

References CpByCpv(), phaseModels_, and tmp< T >::ref().

Referenced by CpByCpv(), and CpByCpv().

Here is the call graph for this function:

Here is the caller graph for this function:

CpByCpv() [2/2]

Foam::tmp< Foam::scalarField > CpByCpv ( const scalarField & p, const scalarField & T, const label patchi ) const

virtual

Heat capacity ratio for patch [].

Implements basicThermo.

Definition at line 608 of file multiphaseInterSystem.C.

References CpByCpv(), basicThermo::p(), phaseModels_, tmp< T >::ref(), and basicThermo::T().

Here is the call graph for this function:

W()

Foam::tmp< Foam::volScalarField > W ( ) const

virtual

Molecular weight [kg/kmol] of the mixture.

Implements basicThermo.

Definition at line 636 of file multiphaseInterSystem.C.

References NotImplemented.

kappa() [1/2]

Foam::tmp< Foam::volScalarField > kappa ( ) const

virtual

Thermal diffusivity for temperature of mixture [J/m/s/K].

Implements basicThermo.

Definition at line 643 of file multiphaseInterSystem.C.

References kappa(), phaseModels_, and tmp< T >::ref().

Referenced by kappa(), kappa(), kappaEff(), kappaEff(), kappaEff(), and kappaEff().

Here is the call graph for this function:

Here is the caller graph for this function:

kappa() [2/2]

Foam::tmp< Foam::scalarField > kappa ( const label patchi ) const

virtual

Thermal diffusivity for temperature.

of mixture for patch [J/m/s/K]

Implements basicThermo.

Definition at line 661 of file multiphaseInterSystem.C.

References kappa(), phaseModels_, and tmp< T >::ref().

Here is the call graph for this function:

alphahe() [1/2]

Foam::tmp< Foam::volScalarField > alphahe ( ) const

virtual

Thermal diffusivity for energy of mixture [kg/m/s].

Implements basicThermo.

Definition at line 687 of file multiphaseInterSystem.C.

References alphahe(), phaseModels_, and tmp< T >::ref().

Referenced by alphahe(), and alphahe().

Here is the call graph for this function:

Here is the caller graph for this function:

alphahe() [2/2]

Foam::tmp< Foam::scalarField > alphahe ( const label patchi ) const

virtual

Thermal diffusivity for energy of mixture for patch [kg/m/s].

Implements basicThermo.

Definition at line 705 of file multiphaseInterSystem.C.

References alphahe(), phaseModels_, and tmp< T >::ref().

Here is the call graph for this function:

kappaEff() [1/4]

Foam::tmp< Foam::volScalarField > kappaEff ( const volScalarField & kappat ) const

virtual

Effective thermal diffusivity for temperature.

of mixture [J/m/s/K]

Implements basicThermo.

Definition at line 729 of file multiphaseInterSystem.C.

References kappa(), kappaEff(), and kappaEff.

Referenced by kappaEff().

Here is the call graph for this function:

Here is the caller graph for this function:

kappaEff() [2/4]

Foam::tmp< Foam::scalarField > kappaEff ( const scalarField & alphat, const label patchi ) const

virtual

Effective thermal diffusivity for temperature.

of mixture for patch [J/m/s/K]

Implements basicThermo.

Definition at line 740 of file multiphaseInterSystem.C.

References kappa().

Here is the call graph for this function:

alphaEff() [1/4]

Foam::tmp< Foam::volScalarField > alphaEff ( const volScalarField & alphat ) const

virtual

Effective thermal diffusivity of mixture [kg/m/s].

Implements basicThermo.

Definition at line 750 of file multiphaseInterSystem.C.

References alpha, phaseModels_, and tmp< T >::ref().

Here is the call graph for this function:

alphaEff() [2/4]

Foam::tmp< Foam::scalarField > alphaEff ( const scalarField & alphat, const label patchi ) const

virtual

Effective thermal diffusivity of mixture for patch [kg/m/s].

Implements basicThermo.

Definition at line 773 of file multiphaseInterSystem.C.

References alpha, phaseModels_, and tmp< T >::ref().

Here is the call graph for this function:

Prt()

const Foam::dimensionedScalar & Prt

(

)

const

Return Prandt number.

Definition at line 802 of file multiphaseInterSystem.C.

References Prt_.

mu() [1/2]

Foam::tmp< Foam::volScalarField > mu ( ) const

virtual

Dynamic viscosity of mixture [kg/m/s].

Implements compressibleTransportModel.

Definition at line 808 of file multiphaseInterSystem.C.

References mu, phaseModels_, and tmp< T >::ref().

Referenced by calcMu().

Here is the call graph for this function:

Here is the caller graph for this function:

mu() [2/2]

Foam::tmp< Foam::scalarField > mu ( const label patchi ) const

virtual

Dynamic viscosity of mixture for patch [kg/m/s].

Implements compressibleTransportModel.

Definition at line 826 of file multiphaseInterSystem.C.

References mu, phaseModels_, and tmp< T >::ref().

Here is the call graph for this function:

nu() [1/2]

Foam::tmp< Foam::volScalarField > nu ( ) const

virtual

Kinematic viscosity of mixture [m^2/s].

Implements compressibleTransportModel.

Definition at line 852 of file multiphaseInterSystem.C.

References nu, phaseModels_, and tmp< T >::ref().

Here is the call graph for this function:

nu() [2/2]

Foam::tmp< Foam::scalarField > nu ( const label patchi ) const

virtual

Kinematic viscosity of mixture for patch [m^2/s].

Implements compressibleTransportModel.

Definition at line 870 of file multiphaseInterSystem.C.

References nu, phaseModels_, and tmp< T >::ref().

Here is the call graph for this function:

setTurbulence()

void setTurbulence ( compressibleTurbulenceModel & turb )

inline

Set turbulence model.

Definition at line 624 of file multiphaseInterSystem.H.

References turb, and turb_.

turbulence()

compressibleTurbulenceModel * turbulence ( ) const

inline

Return pointer to turbulence model.

Definition at line 632 of file multiphaseInterSystem.H.

References turb_.

mut()

Foam::tmp< Foam::volScalarField > mut

(

)

const

Return the turbulent dynamic viscosity.

Definition at line 896 of file multiphaseInterSystem.C.

References turb_.

muEff()

Foam::tmp< Foam::volScalarField > muEff

(

)

const

Return the effective dynamic viscosity.

Definition at line 902 of file multiphaseInterSystem.C.

References turb_.

nut()

Foam::tmp< Foam::volScalarField > nut

(

)

const

Return the turbulent kinematic viscosity.

Definition at line 908 of file multiphaseInterSystem.C.

References turb_.

nuEff()

Foam::tmp< Foam::volScalarField > nuEff

(

)

const

Return the effective kinematic viscosity.

Definition at line 914 of file multiphaseInterSystem.C.

References turb_.

kappaEff() [3/4]

Foam::tmp< Foam::volScalarField > kappaEff

(

)

const

Effective thermal turbulent diffusivity for temperature.

of mixture [J/m/s/K]

Definition at line 920 of file multiphaseInterSystem.C.

References Cp, kappa(), Prt_, and turb_.

Here is the call graph for this function:

kappaEff() [4/4]

Foam::tmp< Foam::scalarField > kappaEff

(

const label

patchi

)

const

Effective thermal turbulent diffusivity for temperature.

of mixture for patch [J/m/s/K]

Definition at line 930 of file multiphaseInterSystem.C.

References Cp, Cp(), kappa(), tmp< T >::New(), Prt_, and turb_.

Here is the call graph for this function:

alphaEff() [3/4]

Foam::tmp< Foam::volScalarField > alphaEff

(

)

const

Effective thermal turbulent diffusivity of mixture [kg/m/s].

Definition at line 942 of file multiphaseInterSystem.C.

References alpha, Prt_, and turb_.

alphaEff() [4/4]

Foam::tmp< Foam::scalarField > alphaEff

(

const label

patchi

)

const

Effective thermal turbulent diffusivity of mixture [kg/m/s].

Definition at line 949 of file multiphaseInterSystem.C.

References alpha, Prt_, and turb_.

phi() [1/2]

const Foam::surfaceScalarField & phi

(

)

const

Constant access to the total flux.

Definition at line 955 of file multiphaseInterSystem.C.

References phi_.

Referenced by multiphaseSystem::solveAlphas().

Here is the caller graph for this function:

phi() [2/2]

Foam::surfaceScalarField & phi

(

)

Access to the total mixture flux.

Definition at line 961 of file multiphaseInterSystem.C.

References phi_.

rhoPhi() [1/2]

const Foam::surfaceScalarField & rhoPhi

(

)

const

Constant access to the mixture mass flux.

Definition at line 967 of file multiphaseInterSystem.C.

References rhoPhi_.

rhoPhi() [2/2]

Foam::surfaceScalarField & rhoPhi

(

)

Access to the total mixture mass flux.

Definition at line 973 of file multiphaseInterSystem.C.

References rhoPhi_.

U()

Foam::tmp< Foam::volVectorField > U

(

)

const

Mixture U.

Definition at line 1114 of file multiphaseInterSystem.C.

References Foam::dimVelocity, forAllConstIters, mesh_, GeometricField< vector, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, phaseModels_, and Foam::Zero.

Here is the call graph for this function:

surfaceTensionForce()

Foam::tmp< Foam::surfaceScalarField > surfaceTensionForce

(

)

const

Calculate surface tension of the mixture.

Definition at line 1068 of file multiphaseInterSystem.C.

References alpha1, alpha2, forAllConstIters, Foam::fvc::interpolate(), mesh_, name, GeometricField< scalar, fvsPatchField, surfaceMesh >::New(), IOobjectOption::NO_REGISTER, phaseModels_, tmp< T >::ref(), Foam::fvc::snGrad(), surfaceTensionCoeff(), surfaceTensionModels_, and Foam::Zero.

Here is the call graph for this function:

surfaceTensionCoeff()

Foam::tmp< Foam::volScalarField > surfaceTensionCoeff ( const phasePairKey & key ) const

virtual

Return the surface tension coefficient.

Definition at line 1136 of file multiphaseInterSystem.C.

References surfaceTensionModels_.

Referenced by surfaceTensionForce().

Here is the caller graph for this function:

coeffs()

Foam::tmp< Foam::volScalarField > coeffs ( const word & key ) const

virtual

Return coefficients (1/rho).

Definition at line 1142 of file multiphaseInterSystem.C.

References phaseModels_, and rho.

addInterfacePorosity()

void addInterfacePorosity

(

fvVectorMatrix &

UEqn

)

Add interface porosity on phasePair.

Definition at line 1151 of file multiphaseInterSystem.C.

References forAllConstIters, interfacePorousModelTable_, mesh_, phaseModel::name(), name, phasei, phaseModels_, and UEqn.

Here is the call graph for this function:

dmdt()

virtual tmp< volScalarField > dmdt ( const phasePairKey & key ) const

pure virtual

Return interfacial source mass rate per phase pair.

Implemented in MassTransferPhaseSystem< multiphaseInter::multiphaseSystem >.

heatTransfer()

virtual tmp< fvScalarMatrix > heatTransfer ( const volScalarField & T )

pure virtual

Return the heat transfer matrices.

Implemented in MassTransferPhaseSystem< multiphaseInter::multiphaseSystem >.

References basicThermo::T().

Here is the call graph for this function:

volTransfer()

virtual tmp< fvScalarMatrix > volTransfer ( const volScalarField & p )

pure virtual

Return the volumetric rate transfer matrix.

Implemented in MassTransferPhaseSystem< multiphaseInter::multiphaseSystem >.

References basicThermo::p().

Here is the call graph for this function:

alphaTransfer()

virtual void alphaTransfer ( SuSpTable & Su, SuSpTable & Sp )

pure virtual

Calculate mass transfer for alpha's.

Implemented in MassTransferPhaseSystem< multiphaseInter::multiphaseSystem >.

References Foam::Sp(), and Foam::Su().

Referenced by multiphaseSystem::calculateSuSp().

Here is the call graph for this function:

Here is the caller graph for this function:

massSpeciesTransfer()

virtual void massSpeciesTransfer ( const multiphaseInter::phaseModel & phase, volScalarField::Internal & Su, volScalarField::Internal & Sp, const word speciesName )

pure virtual

Calculate mass transfer for species.

References Foam::Sp(), and Foam::Su().

Here is the call graph for this function:

includeVolChange()

virtual bool includeVolChange ( )

pure virtual

Add volume change in pEq.

Implemented in MassTransferPhaseSystem< multiphaseInter::multiphaseSystem >.

solve()

virtual void solve ( )

pure virtual

Solve for the phase transport equations.

Implemented in multiphaseSystem.

correct()

void correct ( )

virtual

Correct the mixture thermos.

Implements basicThermo.

Definition at line 979 of file multiphaseInterSystem.C.

References calcMu(), forAllIters, and phaseModels_.

Referenced by phaseModel::correct().

Here is the call graph for this function:

Here is the caller graph for this function:

correctMassSources()

virtual void correctMassSources ( const volScalarField & T )

pure virtual

Correct mass sources.

Implemented in MassTransferPhaseSystem< multiphaseInter::multiphaseSystem >.

References basicThermo::T().

Here is the call graph for this function:

thermoName()

virtual word thermoName ( ) const

inlinevirtual

Return the name of the thermo physics.

Implements basicThermo.

Definition at line 805 of file multiphaseInterSystem.H.

References NotImplemented.

correctTurbulence()

void correctTurbulence ( )

virtual

Correct the turbulence.

Note

Each phase could have its own turbulence

Definition at line 990 of file multiphaseInterSystem.C.

References forAllIters, and phaseModels_.

read()

bool read ( )

virtual

Read base phaseProperties dictionary.

Reimplemented from basicThermo.

Reimplemented in multiphaseSystem.

Definition at line 1329 of file multiphaseInterSystem.C.

References regIOobject::read().

Here is the call graph for this function:

totalPhasePairs() [1/2]

const Foam::multiphaseInterSystem::phasePairTable & totalPhasePairs

(

)

const

Constant access the total phase pairs.

Definition at line 1014 of file multiphaseInterSystem.C.

References totalPhasePairs_.

totalPhasePairs() [2/2]

Foam::multiphaseInterSystem::phasePairTable & totalPhasePairs

(

)

Non-constant access the total phase pairs.

Definition at line 1021 of file multiphaseInterSystem.C.

References totalPhasePairs_.

phases() [1/2]

const Foam::multiphaseInterSystem::phaseModelTable & phases

(

)

const

Constant access the phases.

Definition at line 1000 of file multiphaseInterSystem.C.

References phaseModels_.

phases() [2/2]

Foam::multiphaseInterSystem::phaseModelTable & phases

(

)

Access the phases.

Definition at line 1007 of file multiphaseInterSystem.C.

References phaseModels_.

lookupSubModel() [1/2]

template<class modelType>

const modelType & lookupSubModel

(

const phasePair &

key

)

const

Access a sub model between a phase pair.

Definition at line 172 of file multiphaseInterSystemTemplates.H.

References IOobject::groupName(), objectRegistry::lookupObject(), and mesh.

Referenced by lookupSubModel().

Here is the call graph for this function:

Here is the caller graph for this function:

lookupSubModel() [2/2]

template<class modelType>

const modelType & lookupSubModel	(	const multiphaseInter::phaseModel &	from,
		const multiphaseInter::phaseModel &	to ) const

Access a sub model between two phases.

Definition at line 186 of file multiphaseInterSystemTemplates.H.

References lookupSubModel().

Here is the call graph for this function:

incompressible() [1/2]

bool incompressible ( ) const

virtual

Return true if the equation of state is incompressible for all.

phases

Implements basicThermo.

Definition at line 1027 of file multiphaseInterSystem.C.

References forAllConstIters, incompressible(), phaseModels_, and thermo.

Referenced by incompressible().

Here is the call graph for this function:

Here is the caller graph for this function:

incompressible() [2/2]

bool incompressible ( const word phaseName ) const

virtual

Return true if a phase is incompressible.

Definition at line 1041 of file multiphaseInterSystem.C.

References phaseModels_.

isochoric()

bool isochoric ( ) const

virtual

Return true if the equation of state is isochoric for all phasses.

i.e. rho = const

Implements basicThermo.

Definition at line 1047 of file multiphaseInterSystem.C.

References forAllConstIters, isochoric(), phaseModels_, and thermo.

Referenced by isochoric().

Here is the call graph for this function:

Here is the caller graph for this function:

mesh()

const Foam::fvMesh & mesh

(

)

const

Return mesh.

Definition at line 1061 of file multiphaseInterSystem.C.

References mesh_.

Referenced by createSubModels(), multiphaseSystem::declareRunTimeSelectionTable(), generatePairsAndSubModels(), multiphaseInterSystem(), multiphaseSystem::multiphaseSystem(), multiphaseSystem::New(), and multiphaseSystem::~multiphaseSystem().

Here is the caller graph for this function:

nHatfv()

Foam::tmp< Foam::surfaceVectorField > nHatfv	(	const volScalarField &	alpha1,
		const volScalarField &	alpha2 ) const

Interface normal surface vector.

Definition at line 1284 of file multiphaseInterSystem.C.

References alpha1, alpha2, Foam::average(), Foam::cbrt(), Foam::clamp(), e, Foam::fvc::grad(), Foam::fvc::interpolate(), Foam::mag(), and mesh_.

Referenced by K(), and nHatf().

Here is the call graph for this function:

Here is the caller graph for this function:

nVolHatfv()

Foam::tmp< Foam::volVectorField > nVolHatfv	(	const volScalarField &	alpha1,
		const volScalarField &	alpha2 ) const

Interface normal volField vector.

Definition at line 1251 of file multiphaseInterSystem.C.

References alpha1, alpha2, Foam::average(), Foam::cbrt(), Foam::clamp(), e, Foam::fvc::grad(), Foam::mag(), and mesh_.

Here is the call graph for this function:

nHatf()

Foam::tmp< Foam::surfaceScalarField > nHatf	(	const volScalarField &	alpha1,
		const volScalarField &	alpha2 ) const

Interface normal surface vector.

Definition at line 1318 of file multiphaseInterSystem.C.

References alpha1, alpha2, mesh_, and nHatfv().

Referenced by multiphaseSystem::solveAlphas().

Here is the call graph for this function:

Here is the caller graph for this function:

K()

Foam::tmp< Foam::volScalarField > K	(	const volScalarField &	alpha1,
		const volScalarField &	alpha2 ) const

Interface curvature.

Definition at line 1189 of file multiphaseInterSystem.C.

References alpha1, alpha2, Foam::fvc::div(), mesh_, nHatfv(), and tmp< T >::ref().

Here is the call graph for this function:

nearInterface() [1/2]

Foam::tmp< Foam::volScalarField > nearInterface	(	const volScalarField &	alpha1,
		const volScalarField &	alpha2 ) const

Near Interface of alpha1 and alpha2.

Definition at line 1202 of file multiphaseInterSystem.C.

References alpha1, alpha2, and Foam::pos().

Here is the call graph for this function:

nearInterface() [2/2]

Foam::tmp< Foam::volScalarField > nearInterface

(

)

const

Near Interface of alpha'n.

Definition at line 1217 of file multiphaseInterSystem.C.

References alpha1, alpha2, Foam::dimless, forAllConstIters, mesh_, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, phaseModels_, Foam::pos(), and Foam::Zero.

Here is the call graph for this function:

Member Data Documentation

mesh_

const fvMesh& mesh_

protected

Reference to the mesh.

Definition at line 121 of file multiphaseInterSystem.H.

Referenced by addInterfacePorosity(), K(), multiphaseSystem::maxDiffNo(), mesh(), multiphaseInterSystem(), multiphaseSystem::multiphaseSystem(), nearInterface(), nHatf(), nHatfv(), nVolHatfv(), multiphaseSystem::solve(), multiphaseSystem::solveAlphas(), surfaceTensionForce(), and U().

mu_

volScalarField mu_

protected

Dynamic viscocity.

Definition at line 126 of file multiphaseInterSystem.H.

Referenced by calcMu(), and multiphaseInterSystem().

phaseNames_

wordList phaseNames_

protected

Phase names.

Definition at line 131 of file multiphaseInterSystem.H.

Referenced by generatePairsAndSubModels(), and multiphaseInterSystem().

phi_

surfaceScalarField phi_

protected

Mixture total volumetric flux.

Definition at line 136 of file multiphaseInterSystem.H.

Referenced by multiphaseInterSystem(), phi(), and phi().

rhoPhi_

surfaceScalarField rhoPhi_

protected

Mixture total mass flux.

Definition at line 141 of file multiphaseInterSystem.H.

Referenced by multiphaseInterSystem(), rhoPhi(), rhoPhi(), multiphaseSystem::solve(), and multiphaseSystem::solveAlphas().

phaseModels_

phaseModelTable phaseModels_

protected

Phase models.

Definition at line 146 of file multiphaseInterSystem.H.

Referenced by addInterfacePorosity(), alphaEff(), alphaEff(), alphahe(), alphahe(), coeffs(), correct(), correctTurbulence(), Cp(), Cp(), CpByCpv(), CpByCpv(), Cpv(), Cpv(), Cv(), Cv(), gamma(), generatePairs(), generatePairsTable(), hc(), incompressible(), incompressible(), isochoric(), kappa(), kappa(), multiphaseSystem::maxDiffNo(), mu(), mu(), multiphaseInterSystem(), multiphaseSystem::multiphaseSystem(), nearInterface(), nu(), nu(), phases(), phases(), rho(), rho(), surfaceTensionForce(), and U().

phasePairs_

phasePairTable phasePairs_

protected

Phase pairs.

Definition at line 151 of file multiphaseInterSystem.H.

Referenced by createSubModels(), generatePairs(), and multiphaseInterSystem().

totalPhasePairs_

phasePairTable totalPhasePairs_

protected

Total ordered phase pairs in the system.

Definition at line 156 of file multiphaseInterSystem.H.

Referenced by generatePairsTable(), multiphaseInterSystem(), totalPhasePairs(), and totalPhasePairs().

Prt_

dimensionedScalar Prt_

protected

Turbulent Prandt number.

Definition at line 161 of file multiphaseInterSystem.H.

Referenced by alphaEff(), alphaEff(), kappaEff(), kappaEff(), multiphaseInterSystem(), and Prt().

turb_

compressibleTurbulenceModel* turb_

protected

Turbulence model.

Definition at line 166 of file multiphaseInterSystem.H.

Referenced by alphaEff(), alphaEff(), kappaEff(), kappaEff(), muEff(), mut(), nuEff(), nut(), setTurbulence(), and turbulence().

surfaceTensionModels_

surfaceTensionModelTable surfaceTensionModels_

protected

Surface tension models.

Definition at line 174 of file multiphaseInterSystem.H.

Referenced by multiphaseInterSystem(), surfaceTensionCoeff(), and surfaceTensionForce().

interfacePorousModelTable_

interfacePorousModelTable interfacePorousModelTable_

protected

Interface porous models.

Definition at line 179 of file multiphaseInterSystem.H.

Referenced by addInterfacePorosity(), and multiphaseInterSystem().

phasePropertiesName

const Foam::word phasePropertiesName

static

Default name of the phase properties dictionary.

Definition at line 306 of file multiphaseInterSystem.H.

Referenced by temperatureCoupledBase::kappa(), multiphaseInterSystem(), and multiphaseSystem::New().

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/multiphaseInter/phasesSystem/multiphaseInterSystem/multiphaseInterSystem.H
• src/phaseSystemModels/multiphaseInter/phasesSystem/multiphaseInterSystem/multiphaseInterSystem.C
• src/phaseSystemModels/multiphaseInter/phasesSystem/multiphaseInterSystem/multiphaseInterSystemTemplates.H
