interpolationCellPointWallModified< Type > Class Template Reference

Same as interpolationCellPoint, but if interpolating a wall face, uses cell centre value instead. More...

#include <interpolationCellPointWallModified.H>

Inheritance diagram for interpolationCellPointWallModified< Type >:

Collaboration diagram for interpolationCellPointWallModified< Type >:

Public Member Functions
	TypeName ("cellPointWallModified")
	Runtime type information.
	interpolationCellPointWallModified (const GeometricField< Type, fvPatchField, volMesh > &psi)
	Construct from components.
Type	interpolate (const cellPointWeight &cpw) const
	Interpolate field for the given cellPointWeight.
Type	interpolate (const vector &position, const label celli, const label facei=-1) const
	Interpolate field to the given point in the given cell.
Type	interpolate (const barycentric &coordinates, const tetIndices &tetIs, const label facei=-1) const
	Interpolate field to the given coordinates in the tetrahedron.
Public Member Functions inherited from interpolationCellPoint< Type >
	TypeName ("cellPoint")
	Runtime type information.
	interpolationCellPoint (const GeometricField< Type, fvPatchField, volMesh > &psi)
	Construct from components.
Type	interpolate (const cellPointWeight &cpw) const
	Interpolate field for the given cellPointWeight.
Public Member Functions inherited from interpolation< Type >
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, interpolation, dictionary,(const GeometricField< Type, fvPatchField, volMesh > &psi),(psi))
	interpolation (const GeometricField< Type, fvPatchField, volMesh > &psi)
	Construct from components.
virtual	~interpolation ()=default
	Destructor.
const GeometricField< Type, fvPatchField, volMesh > &	psi () const noexcept
	Return the field to be interpolated.

Additional Inherited Members
Static Public Member Functions inherited from interpolation< Type >
static autoPtr< interpolation< Type > >	New (const word &interpolationType, const GeometricField< Type, fvPatchField, volMesh > &psi)
	Return a reference to the specified interpolation scheme.
static autoPtr< interpolation< Type > >	New (const dictionary &interpolationSchemes, const GeometricField< Type, fvPatchField, volMesh > &psi)
	Return a reference to the selected interpolation scheme.
Protected Attributes inherited from interpolationCellPoint< Type >
const GeometricField< Type, pointPatchField, pointMesh >	psip_
	Interpolated volfield.
Protected Attributes inherited from interpolation< Type >
const GeometricField< Type, fvPatchField, volMesh > &	psi_
const polyMesh &	pMesh_
const vectorField &	pMeshPoints_
const faceList &	pMeshFaces_
const vectorField &	pMeshFaceCentres_
const vectorField &	pMeshFaceAreas_

Detailed Description

template<class Type>
class Foam::interpolationCellPointWallModified< Type >

Same as interpolationCellPoint, but if interpolating a wall face, uses cell centre value instead.

Definition at line 44 of file interpolationCellPointWallModified.H.

Constructor & Destructor Documentation

interpolationCellPointWallModified()

template<class Type>

interpolationCellPointWallModified ( const GeometricField< Type, fvPatchField, volMesh > & psi )

explicit

Construct from components.

Definition at line 26 of file interpolationCellPointWallModified.C.

References interpolationCellPoint< Type >::interpolationCellPoint(), and interpolation< Type >::psi().

Here is the call graph for this function:

Member Function Documentation

TypeName()

template<class Type>

TypeName

(

"cellPointWallModified"

)

Runtime type information.

References coordinates(), and interpolation< Type >::psi().

Here is the call graph for this function:

interpolate() [1/3]

template<class Type>

Type interpolate ( const cellPointWeight & cpw ) const

inline

Interpolate field for the given cellPointWeight.

Definition at line 25 of file interpolationCellPointWallModifiedI.H.

References interpolationCellPoint< Type >::interpolate().

Here is the call graph for this function:

interpolate() [2/3]

template<class Type>

Type interpolate ( const vector & position, const label celli, const label facei = -1 ) const

inlinevirtual

Interpolate field to the given point in the given cell.

Reimplemented from interpolationCellPoint< Type >.

Definition at line 35 of file interpolationCellPointWallModifiedI.H.

References interpolationCellPoint< Type >::interpolate(), and interpolation< Type >::pMesh_.

Here is the call graph for this function:

interpolate() [3/3]

template<class Type>

Type interpolate ( const barycentric & coordinates, const tetIndices & tetIs, const label facei = -1 ) const

inlinevirtual

Interpolate field to the given coordinates in the tetrahedron.

defined by the given indices.

Reimplemented from interpolationCellPoint< Type >.

Definition at line 56 of file interpolationCellPointWallModifiedI.H.

References tetIndices::cell(), coordinates(), Foam::exit(), tetIndices::face(), Foam::FatalError, FatalErrorInFunction, interpolationCellPoint< Type >::interpolate(), cellPointWeightWallModified::onWall(), interpolation< Type >::pMesh_, and interpolation< Type >::psi_.

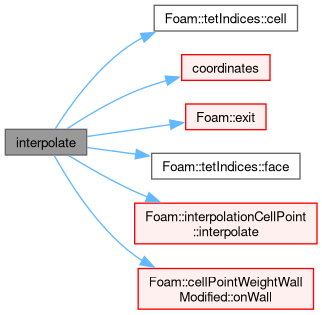

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/finiteVolume/interpolation/interpolation/interpolationCellPointWallModified/interpolationCellPointWallModified.H
• src/finiteVolume/interpolation/interpolation/interpolationCellPointWallModified/interpolationCellPointWallModified.C
• src/finiteVolume/interpolation/interpolation/interpolationCellPointWallModified/interpolationCellPointWallModifiedI.H
