Storage and named access for the indices of a tet which is part of the decomposition of a cell. More...

#include <tetIndices.H>

Public Member Functions
constexpr	tetIndices () noexcept
	Default construct, with invalid labels (-1).
constexpr	tetIndices (label celli, label facei, label tetPointi) noexcept
	Construct from components.
	~tetIndices ()=default
	Destructor.
label	cell () const noexcept
	Return the cell index.
label &	cell () noexcept
	Non-const access to the cell index.
label	face () const noexcept
	Return the face index.
label &	face () noexcept
	Non-const access to the face index.
label	tetPt () const noexcept
	Return the characterising tet point index.
label &	tetPt () noexcept
	Non-const access to the characterising tet point index.
triFace	faceTriIs (const polyMesh &mesh, const bool warn=true) const
	The indices corresponding to the tri on the face for this tet. The normal of the tri points out of the cell.
triFace	triIs (const polyMesh &mesh, const bool warn=true) const
	Local indices corresponding to the tri on the face for this tet. The normal of the tri points out of the cell.
tetPointRef	tet (const polyMesh &mesh) const
	The tet geometry for this tet, where point0 is the cell centre.
tetPointRef	oldTet (const polyMesh &mesh) const
	The tet geometry for this tet (using old positions), where point0 is the cell centre.
triPointRef	faceTri (const polyMesh &mesh) const
	The triangle geometry for the face for this tet. The normal of the tri points out of the cell.
triPointRef	oldFaceTri (const polyMesh &mesh) const
	The triangle geometry for the face for this tet (using old positions).
point	barycentricToPoint (const polyMesh &mesh, const barycentric &bary) const
	The x/y/z position for given barycentric coordinates (where point0 is the cell centre).

Static Public Member Functions
static label	compare (const tetIndices &a, const tetIndices &b) noexcept
	Compare tetIndices for equality. Compares cell, face, tetPt elements in order, stopping at the first inequality.

Friends
Istream &	operator>> (Istream &, tetIndices &)
Ostream &	operator<< (Ostream &, const tetIndices &)

Detailed Description

Storage and named access for the indices of a tet which is part of the decomposition of a cell.

Tets are designated by

cell (of course)
face on cell
three points on face (faceBasePt, facePtA, facePtB) When constructing from a mesh and index in the face (tetPtI):
- faceBasePt is the mesh.tetBasePtIs() base point
- facePtA is tetPtI away from faceBasePt
- facePtB is next one after/before facePtA e.g.:

  +—+ |2 /| | / | |/ 1| <- tetPt (so 1 for first triangle, 2 for second) +—+ ^ faceBasePt

Source files

Definition at line 78 of file tetIndices.H.

Constructor & Destructor Documentation

◆ tetIndices() [1/2]

tetIndices ( )

inlineconstexprnoexcept

Default construct, with invalid labels (-1).

Definition at line 24 of file tetIndicesI.H.

References Foam::noexcept.

Referenced by compare(), operator<<, and operator>>.

Here is the caller graph for this function:

◆ tetIndices() [2/2]

tetIndices	(	label	celli,
		label	facei,
		label	tetPointi )

inlineconstexprnoexcept

Construct from components.

Definition at line 32 of file tetIndicesI.H.

References Foam::noexcept.

◆ ~tetIndices()

~tetIndices ( )

default

Destructor.

Member Function Documentation

◆ cell() [1/2]

label cell ( ) const

inlinenoexcept

Return the cell index.

Definition at line 146 of file tetIndices.H.

References Foam::noexcept.

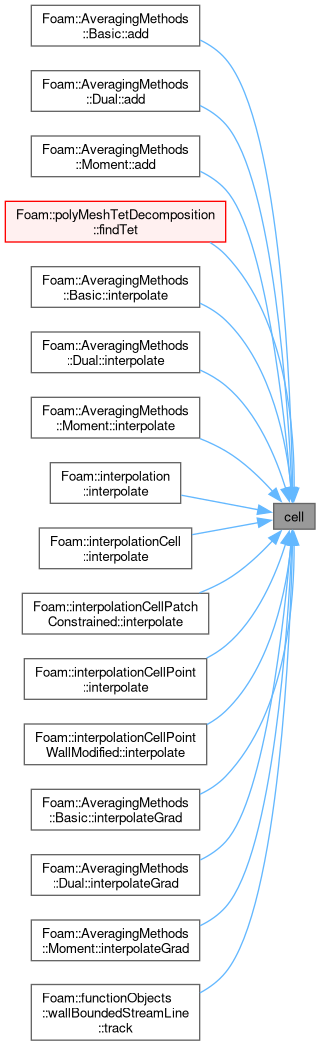

Here is the caller graph for this function:

◆ cell() [2/2]

label & cell ( )

inlinenoexcept

Non-const access to the cell index.

Definition at line 151 of file tetIndices.H.

References Foam::noexcept.

◆ face() [1/2]

label face ( ) const

inlinenoexcept

Return the face index.

Definition at line 156 of file tetIndices.H.

References Foam::noexcept.

Referenced by polyMesh::findTetFacePt(), interpolationCellPoint< Type >::interpolate(), interpolationCellPointWallModified< Type >::interpolate(), wallBoundedStreamLine::track(), and wallBoundedParticle::trackToEdge().

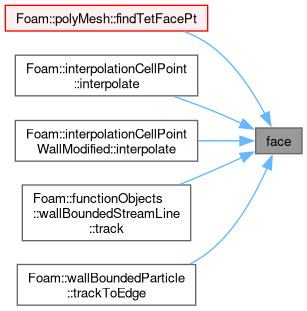

Here is the caller graph for this function:

◆ face() [2/2]

label & face ( )

inlinenoexcept

Non-const access to the face index.

Definition at line 161 of file tetIndices.H.

References Foam::noexcept.

◆ tetPt() [1/2]

label tetPt ( ) const

inlinenoexcept

Return the characterising tet point index.

Definition at line 166 of file tetIndices.H.

References Foam::noexcept.

Referenced by polyMesh::findTetFacePt(), and wallBoundedStreamLine::track().

Here is the caller graph for this function:

◆ tetPt() [2/2]

label & tetPt ( )

inlinenoexcept

Non-const access to the characterising tet point index.

Definition at line 171 of file tetIndices.H.

References Foam::noexcept.

◆ faceTriIs()

Foam::triFace faceTriIs	(	const polyMesh &	mesh,
		const bool	warn = true ) const

inline

The indices corresponding to the tri on the face for this tet. The normal of the tri points out of the cell.

Definition at line 47 of file tetIndicesI.H.

References Foam::endl(), f(), mesh, triFace(), Foam::Warning, and WarningInFunction.

Referenced by Dual< Type >::add(), Moment< Type >::add(), barycentricToPoint(), Dual< Type >::Dual(), faceTri(), cellPointWeight::findTetrahedron(), cellPointWeight::findTriangle(), Dual< Type >::interpolate(), Moment< Type >::interpolate(), interpolationCellPoint< Type >::interpolate(), Dual< Type >::interpolateGrad(), Moment< Type >::Moment(), oldFaceTri(), oldTet(), and tet().

Here is the call graph for this function:

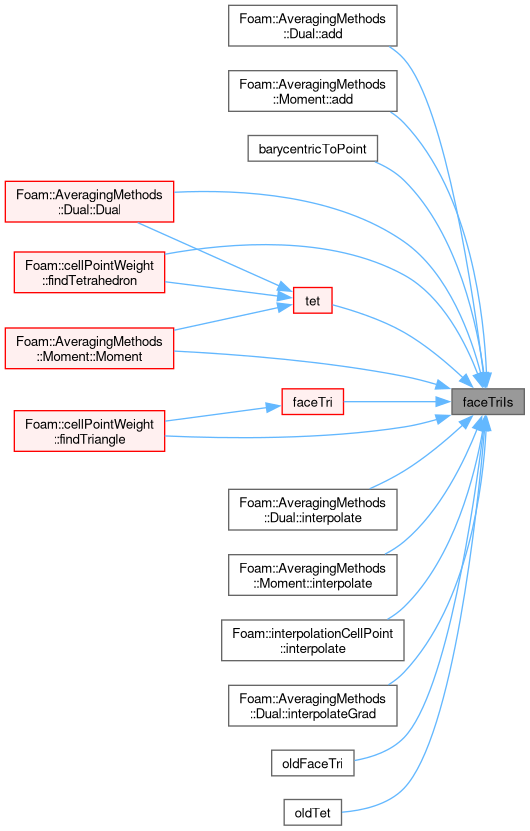

Here is the caller graph for this function:

◆ triIs()

Foam::triFace triIs	(	const polyMesh &	mesh,
		const bool	warn = true ) const

inline

Local indices corresponding to the tri on the face for this tet. The normal of the tri points out of the cell.

Definition at line 88 of file tetIndicesI.H.

References Foam::endl(), f(), mesh, triFace(), Foam::Warning, and WarningInFunction.

Referenced by wallBoundedParticle::trackToEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tet()

Foam::tetPointRef tet ( const polyMesh & mesh ) const

inline

The tet geometry for this tet, where point0 is the cell centre.

Definition at line 129 of file tetIndicesI.H.

References faceTriIs(), mesh, and pts.

Referenced by nearWallFields::calcAddressing(), Dual< Type >::Dual(), polyMeshTetDecomposition::findTet(), cellPointWeight::findTetrahedron(), interpolation< Type >::interpolate(), Moment< Type >::Moment(), and wallBoundedParticle::trackToEdge().

Here is the call graph for this function:

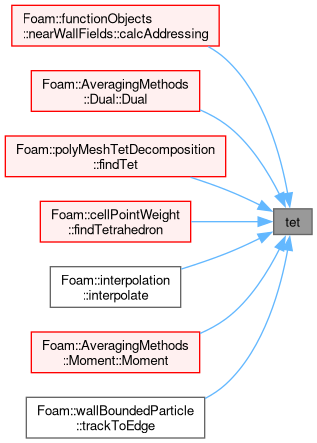

Here is the caller graph for this function:

◆ oldTet()

Foam::tetPointRef oldTet ( const polyMesh & mesh ) const

inline

The tet geometry for this tet (using old positions), where point0 is the cell centre.

Definition at line 144 of file tetIndicesI.H.

References faceTriIs(), mesh, and pts.

Here is the call graph for this function:

◆ faceTri()

Foam::triPointRef faceTri ( const polyMesh & mesh ) const

inline

The triangle geometry for the face for this tet. The normal of the tri points out of the cell.

Definition at line 182 of file tetIndicesI.H.

References faceTriIs(), and mesh.

Referenced by cellPointWeight::findTriangle(), FreeStream< CloudType >::inflow(), polyMesh::pointInCell(), wallBoundedStreamLine::track(), and wallBoundedParticle::trackToEdge().

Here is the call graph for this function:

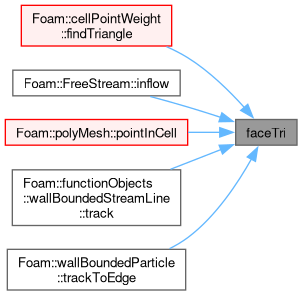

Here is the caller graph for this function:

◆ oldFaceTri()

Foam::triPointRef oldFaceTri ( const polyMesh & mesh ) const

inline

The triangle geometry for the face for this tet (using old positions).

Definition at line 188 of file tetIndicesI.H.

References faceTriIs(), and mesh.

Here is the call graph for this function:

◆ barycentricToPoint()

Foam::point barycentricToPoint	(	const polyMesh &	mesh,
		const barycentric &	bary ) const

inline

The x/y/z position for given barycentric coordinates (where point0 is the cell centre).

Definition at line 159 of file tetIndicesI.H.

References Barycentric< Cmpt >::a(), b, Barycentric< Cmpt >::b(), Barycentric< Cmpt >::c(), Barycentric< Cmpt >::d(), faceTriIs(), mesh, pts, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

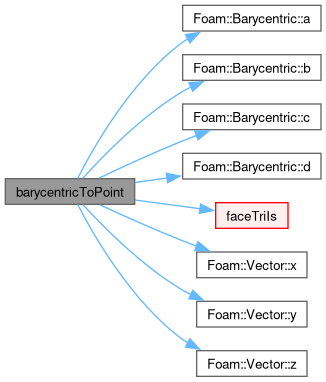

Here is the call graph for this function:

◆ compare()

Foam::label compare	(	const tetIndices &	a,
		const tetIndices &	b )

inlinestaticnoexcept

Compare tetIndices for equality. Compares cell, face, tetPt elements in order, stopping at the first inequality.

Returns: negative/zero/positive from the last element compared

Definition at line 197 of file tetIndicesI.H.

References b, Foam::diff(), and tetIndices().

Referenced by Foam::operator<(), Foam::operator<=(), Foam::operator>(), and Foam::operator>=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator>>

Istream & operator>>	(	Istream &	,
		tetIndices &	)

friend

References tetIndices().

◆ operator<<

Ostream & operator<<	(	Ostream &	,
		const tetIndices &	)

friend

References tetIndices().

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/polyMesh/polyMeshTetDecomposition/tetIndices.H
src/OpenFOAM/meshes/polyMesh/polyMeshTetDecomposition/tetIndices.C
src/OpenFOAM/meshes/polyMesh/polyMeshTetDecomposition/tetIndicesI.H
