Maxwell model for viscoelasticity using the upper-convected time derivative of the stress tensor. See http://en.wikipedia.org/wiki/Upper-convected_Maxwell_model. More...

#include <Maxwell.H>

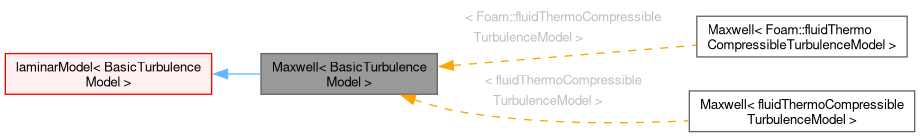

Inheritance diagram for Maxwell< BasicTurbulenceModel >:

[legend]

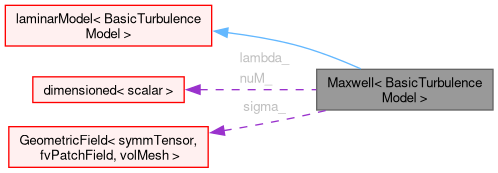

Collaboration diagram for Maxwell< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from laminarModel< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("Maxwell")
	Runtime type information.
	Maxwell (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~Maxwell ()=default
	Destructor.
virtual bool	read ()
	Read model coefficients if they have changed.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff (const volVectorField &U) const
	Return the effective stress tensor based on a given velocity field.

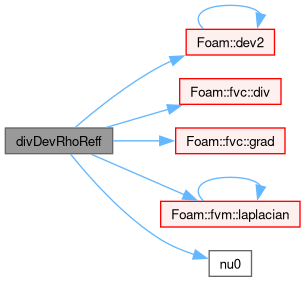

virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix >	divDevRhoReff (const volScalarField &rho, volVectorField &U) const
	Return the source term for the momentum equation.

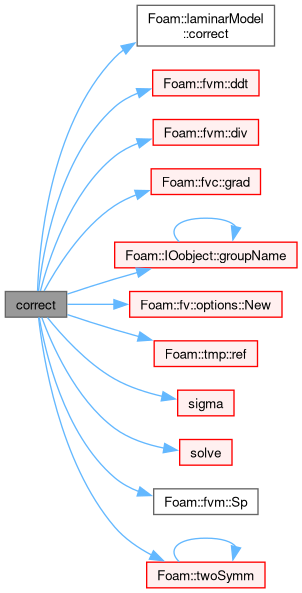

virtual void	correct ()
	Solve the turbulence equations and correct eddy-Viscosity and related properties.
Public Member Functions inherited from laminarModel< BasicTurbulenceModel >
	TypeName ("laminar")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, laminarModel, dictionary,(const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName),(alpha, rho, U, alphaRhoPhi, phi, transport, propertiesName))
	laminarModel (const word &type, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~laminarModel ()=default
	Destructor.
virtual const dictionary &	coeffDict () const
	Const access to the coefficients dictionary.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity, i.e. 0 for laminar flow.
virtual tmp< scalarField >	nut (const label patchi) const
	Return the turbulence viscosity on patch.
virtual tmp< volScalarField >	nuEff () const
	Return the effective viscosity, i.e. the laminar viscosity.
virtual tmp< scalarField >	nuEff (const label patchi) const
	Return the effective viscosity on patch.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy, i.e. 0 for laminar flow.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate,.
virtual tmp< volScalarField >	omega () const
	Return the specific dissipation rate, i.e. 0 for laminar flow.

Protected Member Functions
tmp< volScalarField >	nu0 () const
	Return the turbulence viscosity.
Protected Member Functions inherited from laminarModel< BasicTurbulenceModel >
virtual void	printCoeffs (const word &type)
	Print model coefficients.
	laminarModel (const laminarModel &)=delete
	No copy construct.
void	operator= (const laminarModel &)=delete
	No copy assignment.

Protected Attributes
dimensionedScalar	nuM_
dimensionedScalar	lambda_
volSymmTensorField	sigma_
Protected Attributes inherited from laminarModel< BasicTurbulenceModel >
dictionary	laminarDict_
	laminar coefficients dictionary
Switch	printCoeffs_
	Flag to print the model coeffs at run-time.
dictionary	coeffDict_
	Model coefficients dictionary.

Additional Inherited Members
Static Public Member Functions inherited from laminarModel< BasicTurbulenceModel >
static autoPtr< laminarModel >	New (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName)
	Return a reference to the selected laminar model.

Detailed Description

template<class BasicTurbulenceModel>
class Foam::laminarModels::Maxwell< BasicTurbulenceModel >

Maxwell model for viscoelasticity using the upper-convected time derivative of the stress tensor. See http://en.wikipedia.org/wiki/Upper-convected_Maxwell_model.

The model includes an additional viscosity (nu) from the transport model from which it is instantiated, which makes it equivalent to the Oldroyd-B model for the case of an incompressible transport model (where nu is non-zero). See https://en.wikipedia.org/wiki/Oldroyd-B_model

Reference:

    Amoreira, L. J., & Oliveira, P. J. (2010).
    Comparison of different formulations for the numerical calculation
    of unsteady incompressible viscoelastic fluid flow.
    Adv. Appl. Math. Mech, 4, 483-502.
    DOI:10.4208/aamm.10-m1010

Source files

Definition at line 70 of file Maxwell.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 103 of file Maxwell.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 104 of file Maxwell.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 105 of file Maxwell.H.

Constructor & Destructor Documentation

◆ Maxwell()

template<class BasicTurbulenceModel>

Maxwell	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )
