Templated abstract base class for laminar transport models. More...

#include <laminarModel.H>

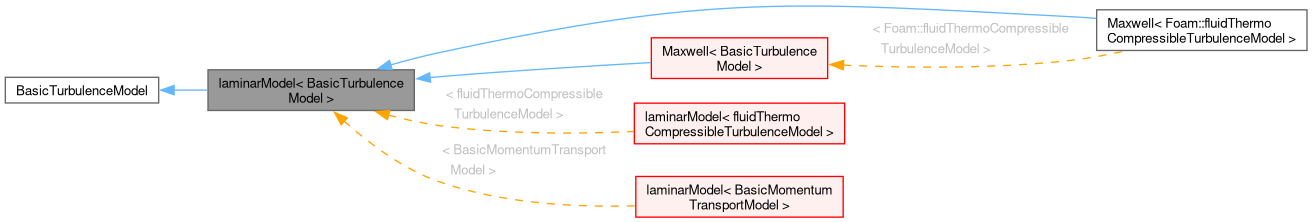

Inheritance diagram for laminarModel< BasicTurbulenceModel >:

[legend]

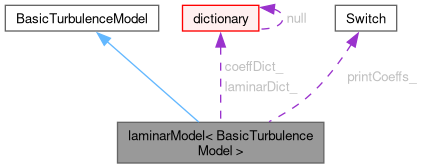

Collaboration diagram for laminarModel< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("laminar")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, laminarModel, dictionary,(const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName),(alpha, rho, U, alphaRhoPhi, phi, transport, propertiesName))
	laminarModel (const word &type, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~laminarModel ()=default
	Destructor.
virtual bool	read ()
	Read model coefficients if they have changed.
virtual const dictionary &	coeffDict () const
	Const access to the coefficients dictionary.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity, i.e. 0 for laminar flow.
virtual tmp< scalarField >	nut (const label patchi) const
	Return the turbulence viscosity on patch.
virtual tmp< volScalarField >	nuEff () const
	Return the effective viscosity, i.e. the laminar viscosity.
virtual tmp< scalarField >	nuEff (const label patchi) const
	Return the effective viscosity on patch.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy, i.e. 0 for laminar flow.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate,.
virtual tmp< volScalarField >	omega () const
	Return the specific dissipation rate, i.e. 0 for laminar flow.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor, i.e. 0 for laminar flow.
virtual void	correct ()
	Correct the laminar transport.

Static Public Member Functions
static autoPtr< laminarModel >	New (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName)
	Return a reference to the selected laminar model.

Protected Member Functions
virtual void	printCoeffs (const word &type)
	Print model coefficients.
	laminarModel (const laminarModel &)=delete
	No copy construct.
void	operator= (const laminarModel &)=delete
	No copy assignment.

Protected Attributes
dictionary	laminarDict_
	laminar coefficients dictionary
Switch	printCoeffs_
	Flag to print the model coeffs at run-time.
dictionary	coeffDict_
	Model coefficients dictionary.

Detailed Description

template<class BasicTurbulenceModel>
class Foam::laminarModel< BasicTurbulenceModel >

Templated abstract base class for laminar transport models.

Source files

Definition at line 48 of file laminarModel.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 93 of file laminarModel.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 94 of file laminarModel.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 95 of file laminarModel.H.

Constructor & Destructor Documentation

◆ laminarModel() [1/2]

template<class BasicTurbulenceModel>

laminarModel ( const laminarModel< BasicTurbulenceModel > & )

protecteddelete

No copy construct.

Referenced by Maxwell< BasicTurbulenceModel >::Maxwell().

Here is the caller graph for this function:

◆ laminarModel() [2/2]

template<class BasicTurbulenceModel>

laminarModel	(	const word &	type,
		const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName )

Construct from components.

Definition at line 40 of file laminarModel.C.

References alpha, coeffDict_, laminarDict_, phi, printCoeffs_, rho, and U.

◆ ~laminarModel()

template<class BasicTurbulenceModel>

virtual ~laminarModel ( )

virtualdefault

Destructor.

Member Function Documentation

◆ printCoeffs()

template<class BasicTurbulenceModel>

void printCoeffs ( const word & type )

protectedvirtual

Print model coefficients.

Definition at line 28 of file laminarModel.C.

References coeffDict_, Foam::endl(), Foam::Info, and printCoeffs_.

Referenced by Maxwell< BasicTurbulenceModel >::Maxwell().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

template<class BasicTurbulenceModel>

void operator= ( const laminarModel< BasicTurbulenceModel > & )

protecteddelete

No copy assignment.

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "laminar" )

Runtime type information.

◆ declareRunTimeSelectionTable()

template<class BasicTurbulenceModel>

declareRunTimeSelectionTable	(	autoPtr	,
		laminarModel< BasicTurbulenceModel >	,
		dictionary	,
		(const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)	,
		(alpha, rho, U, alphaRhoPhi, phi, transport, propertiesName)	)

◆ New()

template<class BasicTurbulenceModel>

Foam::autoPtr< Foam::laminarModel< BasicTurbulenceModel > > New	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName )

static

Return a reference to the selected laminar model.

Definition at line 78 of file laminarModel.C.

References alpha, dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, dictionary::findDict(), IOobject::group(), IOobject::groupName(), Foam::Info, IOobjectOption::MUST_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, phi, rho, and U.

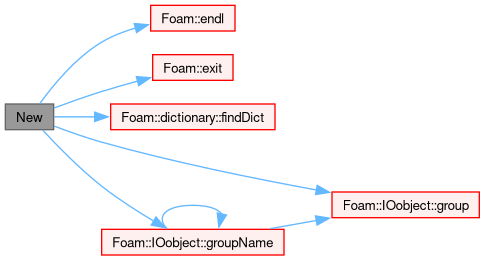

Here is the call graph for this function:

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Read model coefficients if they have changed.

Reimplemented in generalizedNewtonian< BasicMomentumTransportModel >, Maxwell< BasicTurbulenceModel >, Maxwell< fluidThermoCompressibleTurbulenceModel >, Maxwell< Foam::fluidThermoCompressibleTurbulenceModel >, and linearViscousStress< laminarModel< BasicMomentumTransportModel > >.

Definition at line 166 of file laminarModel.C.

Referenced by Maxwell< BasicTurbulenceModel >::read().

Here is the caller graph for this function:

◆ coeffDict()

template<class BasicTurbulenceModel>

virtual const dictionary & coeffDict ( ) const

inlinevirtual

Const access to the coefficients dictionary.

Definition at line 178 of file laminarModel.H.

Referenced by Maxwell< BasicTurbulenceModel >::read().

Here is the caller graph for this function:

◆ nut() [1/2]

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > nut ( ) const

virtual

Return the turbulence viscosity, i.e. 0 for laminar flow.

Reimplemented in generalizedNewtonian< BasicMomentumTransportModel >.

Definition at line 183 of file laminarModel.C.

References GeometricField< scalar, fvPatchField, volMesh >::New().

Here is the call graph for this function:

◆ nut() [2/2]

template<class BasicTurbulenceModel>

Foam::tmp< Foam::scalarField > nut ( const label patchi ) const

virtual

Return the turbulence viscosity on patch.

Definition at line 197 of file laminarModel.C.

References tmp< T >::New(), and Foam::Zero.

Here is the call graph for this function:

◆ nuEff() [1/2]

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > nuEff ( ) const

virtual

Return the effective viscosity, i.e. the laminar viscosity.

Reimplemented in generalizedNewtonian< BasicMomentumTransportModel >.

Definition at line 208 of file laminarModel.C.

References IOobject::groupName(), and GeometricField< scalar, fvPatchField, volMesh >::New().

Here is the call graph for this function:

◆ nuEff() [2/2]

template<class BasicTurbulenceModel>

Foam::tmp< Foam::scalarField > nuEff ( const label patchi ) const

virtual

Return the effective viscosity on patch.

Definition at line 221 of file laminarModel.C.

◆ k()

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > k ( ) const

virtual

Return the turbulence kinetic energy, i.e. 0 for laminar flow.

Definition at line 232 of file laminarModel.C.

References IOobject::groupName(), GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, Foam::sqr(), and Foam::Zero.

Here is the call graph for this function:

◆ epsilon()

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > epsilon ( ) const

virtual

Return the turbulence kinetic energy dissipation rate,.

i.e. 0 for laminar flow

Definition at line 246 of file laminarModel.C.

References Foam::dimTime, IOobject::groupName(), GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, Foam::sqr(), and Foam::Zero.

Here is the call graph for this function:

◆ omega()

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > omega ( ) const

virtual

Return the specific dissipation rate, i.e. 0 for laminar flow.

Definition at line 260 of file laminarModel.C.

References Foam::dimless, Foam::dimTime, IOobject::groupName(), GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, and Foam::Zero.

Here is the call graph for this function:

◆ R()

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volSymmTensorField > R ( ) const

virtual

Return the Reynolds stress tensor, i.e. 0 for laminar flow.

Reimplemented in Maxwell< BasicTurbulenceModel >, Maxwell< fluidThermoCompressibleTurbulenceModel >, and Maxwell< Foam::fluidThermoCompressibleTurbulenceModel >.

Definition at line 274 of file laminarModel.C.

References IOobject::groupName(), GeometricField< symmTensor, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, Foam::sqr(), and Foam::Zero.

Here is the call graph for this function:

◆ correct()

template<class BasicTurbulenceModel>

void correct ( )

virtual

Correct the laminar transport.

Reimplemented in generalizedNewtonian< BasicMomentumTransportModel >, Maxwell< BasicTurbulenceModel >, Maxwell< fluidThermoCompressibleTurbulenceModel >, Maxwell< Foam::fluidThermoCompressibleTurbulenceModel >, and linearViscousStress< laminarModel< BasicMomentumTransportModel > >.

Definition at line 287 of file laminarModel.C.

Referenced by generalizedNewtonian< BasicMomentumTransportModel >::correct(), Maxwell< BasicTurbulenceModel >::correct(), and Stokes< BasicTurbulenceModel >::correct().

Here is the caller graph for this function:

Member Data Documentation

◆ laminarDict_

template<class BasicTurbulenceModel>

dictionary laminarDict_

protected

laminar coefficients dictionary

Definition at line 60 of file laminarModel.H.

Referenced by laminarModel().

◆ printCoeffs_

template<class BasicTurbulenceModel>

Switch printCoeffs_

protected

Flag to print the model coeffs at run-time.

Definition at line 65 of file laminarModel.H.

Referenced by laminarModel(), and printCoeffs().

◆ coeffDict_

template<class BasicTurbulenceModel>

dictionary coeffDict_

protected

Model coefficients dictionary.

Definition at line 70 of file laminarModel.H.

Referenced by laminarModel(), Maxwell< BasicTurbulenceModel >::Maxwell(), and printCoeffs().

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/laminar/laminarModel/laminarModel.H
src/TurbulenceModels/turbulenceModels/laminar/laminarModel/laminarModel.C
