Simplest concrete lduMesh that stores the addressing needed by lduMatrix. More...

#include <lduPrimitiveMesh.H>

Inheritance diagram for lduPrimitiveMesh:

[legend]

Collaboration diagram for lduPrimitiveMesh:

[legend]

Public Member Functions
	ClassName ("lduPrimitiveMesh")
	lduPrimitiveMesh (const label nCells)
	Construct from number of cells.
	lduPrimitiveMesh (const label nCells, labelList &l, labelList &u, const label comm, bool reuse)
	Construct from components but without interfaces. Add interfaces.
void	addInterfaces (lduInterfacePtrsList &interfaces, const lduSchedule &ps)
	Add interfaces to a mesh constructed without.
	lduPrimitiveMesh (const label nCells, labelList &l, labelList &u, PtrList< const lduInterface > &primitiveInterfaces, const lduSchedule &ps, const label comm)
	Construct from components and re-use storage.
	lduPrimitiveMesh (const label comm, const labelList &procAgglomMap, const labelList &procIDs, const lduMesh &myMesh, const PtrList< lduPrimitiveMesh > &otherMeshes, labelList &cellOffsets, labelList &faceOffsets, labelListList &faceMap, labelListList &boundaryMap, labelListListList &boundaryFaceMap)
	Construct by combining multiple meshes. The meshes come from.
virtual	~lduPrimitiveMesh ()=default
	Destructor.
virtual bool	hasDb () const
	Return true if thisDb() is a valid DB.
virtual const lduAddressing &	lduAddr () const
	Return ldu addressing.
virtual lduAddressing &	lduAddr ()
	Return non-const ldu addressing.
virtual lduInterfacePtrsList	interfaces () const
	Return a list of pointers for each patch with only those pointing to interfaces being set.
virtual lduInterfacePtrsList &	interfaces ()
	Return a non-const list of pointers for each patch with only those pointing to interfaces being set.
PtrList< const lduInterface > &	primitiveInterfaces ()
	Return a non-const list of primitive interfaces.
const lduInterfacePtrsList &	rawInterfaces () const
	Return a list of pointers for each patch.
virtual label	comm () const
	Return communicator used for parallel communication.
virtual const labelUList &	lowerAddr () const
	Return Lower addressing.
virtual const labelUList &	upperAddr () const
	Return Upper addressing.
virtual labelList &	lowerAddr ()
	Return non-const Lower addressing.
virtual labelList &	upperAddr ()
	Return non-const Upper addressing.
virtual const labelUList &	patchAddr (const label i) const
	Return patch addressing.
virtual const lduSchedule &	patchSchedule () const
	Return patch evaluation schedule.
template<class ProcPatch>
Foam::lduSchedule	nonBlockingSchedule (const lduInterfacePtrsList &interfaces)
Public Member Functions inherited from lduMesh
	TypeName ("lduMesh")
	Runtime type information.
virtual	~lduMesh ()=default
	Destructor.
virtual const objectRegistry &	thisDb () const
	Return the object registry.
template<class T, class BinaryOp>
void	reduce (T &val, BinaryOp bop) const
	Helper: reduce with current communicator.
InfoProxy< lduMesh >	info () const noexcept
	Return info proxy, used to print mesh information to a stream.
Public Member Functions inherited from lduAddressing
	lduAddressing (const lduAddressing &)=delete
	No copy construct.
void	operator= (const lduAddressing &)=delete
	No copy assignment.
	lduAddressing (const label nEqns) noexcept
	Construct with size (number of equations).
virtual	~lduAddressing ()=default
	Destructor.
label	size () const noexcept
	Return number of equations.
void	clearOut ()
	Clear additional addressing.
const labelUList &	losortAddr () const
	Return losort addressing.
const labelUList &	ownerStartAddr () const
	Return owner start addressing.
const labelUList &	losortStartAddr () const
	Return losort start addressing.
const labelUList &	lowerCSRAddr () const
	Return CSR addressing.
label	triIndex (const label a, const label b) const
	Return off-diagonal index given owner and neighbour label.
Tuple2< label, scalar >	band () const
	Calculate bandwidth and profile of addressing.
template<class Type>
void	map (const UList< Type > &faceVals, List< Type > &vals) const
	Helper to convert lower addressing & data into CSR format.

Static Public Member Functions
static const lduMesh &	mesh (const lduMesh &mesh0, const PtrList< lduPrimitiveMesh > &otherMeshes, const label meshI)
	Select either mesh0 (meshI is 0) or otherMeshes[meshI-1].
static void	gather (const label agglomComm, const lduMesh &mesh, PtrList< lduPrimitiveMesh > &otherMeshes)
	Gather meshes from other processors using agglomComm.
template<class ProcPatch>
static lduSchedule	nonBlockingSchedule (const lduInterfacePtrsList &)
	Get non-scheduled send/receive schedule.

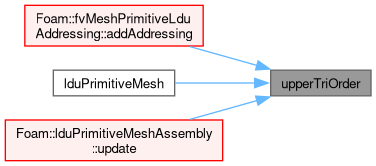

static labelList	upperTriOrder (const label nCells, const labelUList &lower, const labelUList &upper)
	Calculate upper-triangular order.
static void	checkUpperTriangular (const label size, const labelUList &l, const labelUList &u)
	Check if in upper-triangular ordering.
static labelListList	globalCellCells (const lduMesh &mesh, const globalIndex &globalNumbering)
	Calculate global cell-cells.

Detailed Description

Simplest concrete lduMesh that stores the addressing needed by lduMatrix.

Source files

Definition at line 48 of file lduPrimitiveMesh.H.

Constructor & Destructor Documentation

◆ lduPrimitiveMesh() [1/4]

lduPrimitiveMesh ( const label nCells )

explicit

Construct from number of cells.

Definition at line 419 of file lduPrimitiveMesh.C.

References lduAddressing::lduAddressing().

Here is the call graph for this function:

◆ lduPrimitiveMesh() [2/4]

lduPrimitiveMesh	(	const label	nCells,
		labelList &	l,
		labelList &	u,
		const label	comm,
		bool	reuse )

Construct from components but without interfaces. Add interfaces.

separately using addInterfaces

Definition at line 359 of file lduPrimitiveMesh.C.

References comm(), and lduAddressing::lduAddressing().

Here is the call graph for this function:

◆ lduPrimitiveMesh() [3/4]

lduPrimitiveMesh	(	const label	nCells,
		labelList &	l,
		labelList &	u,
		PtrList< const lduInterface > &	primitiveInterfaces,
		const lduSchedule &	ps,
		const label	comm )

Construct from components and re-use storage.

Definition at line 429 of file lduPrimitiveMesh.C.

References comm(), lduAddressing::lduAddressing(), and primitiveInterfaces().

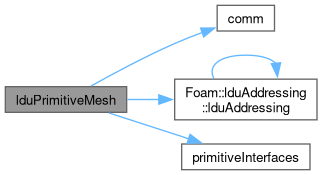

Here is the call graph for this function:

◆ lduPrimitiveMesh() [4/4]

lduPrimitiveMesh	(	const label	comm,
		const labelList &	procAgglomMap,
		const labelList &	procIDs,
		const lduMesh &	myMesh,
		const PtrList< lduPrimitiveMesh > &	otherMeshes,
		labelList &	cellOffsets,
		labelList &	faceOffsets,
		labelListList &	faceMap,
		labelListList &	boundaryMap,
		labelListListList &	boundaryFaceMap )

Construct by combining multiple meshes. The meshes come from.

processors procIDs: procIDs[0] : local processor (myMesh) procIDs[i] : processor where otherMeshes[i-1] comes from procAgglomMap : for every processor which processor it agglomerates onto. The new processor numbers are in compact numbering (so ranks in communicator comm), i.e. similar to cell-restrict-addressing. We need this information to be able to map inter-processor interfaces cellOffsets : for every processor the offset it gets in the mesh faceMap : for every processor, for every face, the destination face. Negative for flipped faces. boundaryMap : for every processor, for every patch, -1 or the new patch index in the mesh. boundaryFaceMap : for every processor, for every patch, for every patch face:

the new internal face (if boundaryMap=-1)
the new patch face (if boundaryMap>=0) Faces becoming internal are negative for flipped faces.

Definition at line 484 of file lduPrimitiveMesh.C.

References Foam::abort(), List< T >::append(), HashTable< T, Key, Hash >::cfind(), checkUpperTriangular(), lduMesh::comm(), comm(), HashTable< T, Key, Hash >::csorted(), Foam::endl(), Foam::exit(), lduInterface::faceCells(), Foam::faceMap(), Foam::FatalError, FatalErrorInFunction, UList< T >::find(), Foam::findIndices(), Foam::flatOutput(), forAll, Foam::inplaceReorder(), lduMesh::interfaces(), interfaces(), Foam::isA(), UList< T >::last(), lduMesh::lduAddr(), lduAddr(), lduAddressing::lduAddressing(), lduAddressing::lowerAddr(), lduAddressing::map(), Foam::max(), mesh, Foam::min(), UPstream::msgType(), processorLduInterface::myProcNo(), UPstream::myProcNo(), n, processorLduInterface::neighbProcNo(), Foam::nl, nonBlockingSchedule(), Foam::Pout, autoPtr< T >::ptr(), Foam::refCast(), UPtrList< T >::set(), List< T >::setSize(), HashTable< T, Key, Hash >::size(), lduAddressing::size(), UList< T >::size(), UPtrList< T >::size(), Foam::sortedOrder(), lduAddressing::upperAddr(), upperTriOrder(), WarningInFunction, and Foam::Zero.

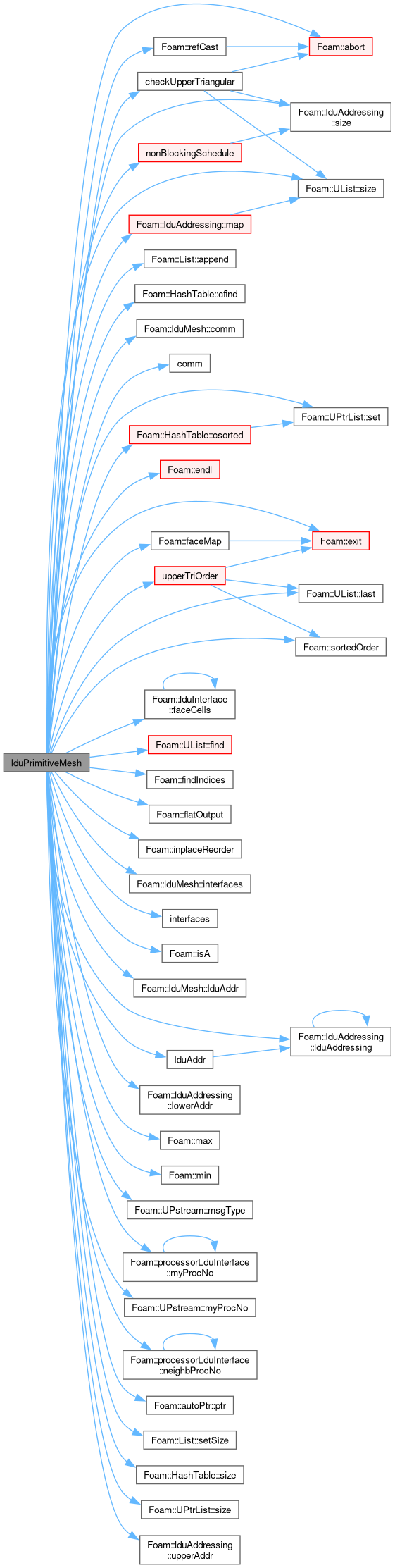

Here is the call graph for this function:

◆ ~lduPrimitiveMesh()

virtual ~lduPrimitiveMesh ( )

virtualdefault

Destructor.

Member Function Documentation

◆ ClassName()

ClassName ( "lduPrimitiveMesh" )

References comm(), Foam::faceMap(), interfaces(), and primitiveInterfaces().

Here is the call graph for this function:

◆ addInterfaces()

void addInterfaces	(	lduInterfacePtrsList &	interfaces,
		const lduSchedule &	ps )

Add interfaces to a mesh constructed without.

Definition at line 398 of file lduPrimitiveMesh.C.

References forAll, interfaces(), and List< T >::setSize().

Here is the call graph for this function:

◆ hasDb()

virtual bool hasDb ( ) const

inlinevirtual

Return true if thisDb() is a valid DB.

Implements lduMesh.

Reimplemented in lduPrimitiveMeshAssembly.

Definition at line 223 of file lduPrimitiveMesh.H.

◆ lduAddr() [1/2]

virtual const lduAddressing & lduAddr ( ) const

inlinevirtual

Return ldu addressing.

Implements lduMesh.

Definition at line 231 of file lduPrimitiveMesh.H.

References lduAddressing::lduAddressing().

Referenced by fvMatrix< Type >::createOrUpdateLduPrimitiveAssembly(), lduPrimitiveMesh(), lduPrimitiveMeshAssembly::lduPrimitiveMeshAssembly(), and lduPrimitiveMeshAssembly::update().

Here is the call graph for this function:

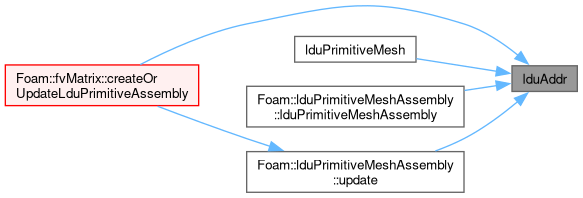

Here is the caller graph for this function:

◆ lduAddr() [2/2]

virtual lduAddressing & lduAddr ( )

inlinevirtual

Return non-const ldu addressing.

Definition at line 239 of file lduPrimitiveMesh.H.

References lduAddressing::lduAddressing().

Here is the call graph for this function:

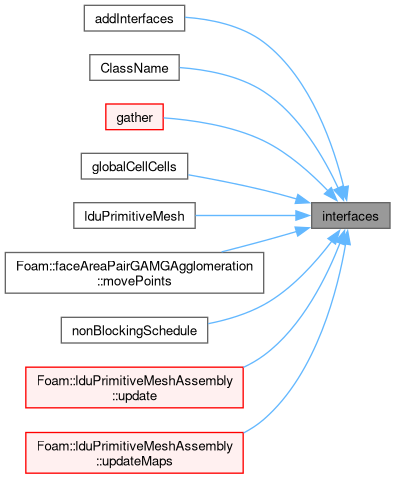

◆ interfaces() [1/2]

virtual lduInterfacePtrsList interfaces ( ) const

inlinevirtual

Return a list of pointers for each patch with only those pointing to interfaces being set.

Implements lduMesh.

Definition at line 248 of file lduPrimitiveMesh.H.

Referenced by addInterfaces(), ClassName(), gather(), globalCellCells(), lduPrimitiveMesh(), faceAreaPairGAMGAgglomeration::movePoints(), nonBlockingSchedule(), lduPrimitiveMeshAssembly::update(), and lduPrimitiveMeshAssembly::updateMaps().

Here is the caller graph for this function:

◆ interfaces() [2/2]

virtual lduInterfacePtrsList & interfaces ( )

inlinevirtual

Return a non-const list of pointers for each patch with only those pointing to interfaces being set.

Definition at line 257 of file lduPrimitiveMesh.H.

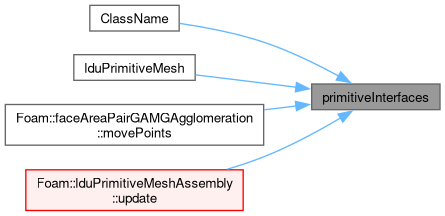

◆ primitiveInterfaces()

PtrList< const lduInterface > & primitiveInterfaces ( )

inline

Return a non-const list of primitive interfaces.

Definition at line 265 of file lduPrimitiveMesh.H.

Referenced by ClassName(), lduPrimitiveMesh(), faceAreaPairGAMGAgglomeration::movePoints(), and lduPrimitiveMeshAssembly::update().

Here is the caller graph for this function:

◆ rawInterfaces()

const lduInterfacePtrsList & rawInterfaces ( ) const

inline

Return a list of pointers for each patch.

with only those pointing to interfaces being set (reference to cached interfaces)

Definition at line 276 of file lduPrimitiveMesh.H.

Referenced by gather(), and faceAreaPairGAMGAgglomeration::movePoints().

Here is the caller graph for this function:

◆ comm()

virtual label comm ( ) const

inlinevirtual

Return communicator used for parallel communication.

Implements lduMesh.

Definition at line 284 of file lduPrimitiveMesh.H.

Referenced by ClassName(), gather(), lduPrimitiveMesh(), lduPrimitiveMesh(), lduPrimitiveMesh(), and lduPrimitiveMeshAssembly::lduPrimitiveMeshAssembly().

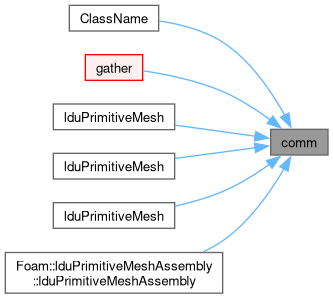

Here is the caller graph for this function:

◆ lowerAddr() [1/2]

virtual const labelUList & lowerAddr ( ) const

inlinevirtual

Return Lower addressing.

Implements lduAddressing.

Definition at line 292 of file lduPrimitiveMesh.H.

Referenced by gather(), and lduPrimitiveMeshAssembly::update().

Here is the caller graph for this function:

◆ upperAddr() [1/2]

virtual const labelUList & upperAddr ( ) const

inlinevirtual

Return Upper addressing.

Implements lduAddressing.

Definition at line 300 of file lduPrimitiveMesh.H.

Referenced by gather(), and lduPrimitiveMeshAssembly::update().

Here is the caller graph for this function:

◆ lowerAddr() [2/2]

virtual labelList & lowerAddr ( )

inlinevirtual

Return non-const Lower addressing.

Definition at line 308 of file lduPrimitiveMesh.H.

◆ upperAddr() [2/2]

virtual labelList & upperAddr ( )

inlinevirtual

Return non-const Upper addressing.

Definition at line 316 of file lduPrimitiveMesh.H.

◆ patchAddr()

virtual const labelUList & patchAddr ( const label i ) const

inlinevirtual

Return patch addressing.

Implements lduAddressing.

Reimplemented in lduPrimitiveMeshAssembly.

Definition at line 324 of file lduPrimitiveMesh.H.

◆ patchSchedule()

virtual const lduSchedule & patchSchedule ( ) const

inlinevirtual

Return patch evaluation schedule.

Implements lduAddressing.

Definition at line 332 of file lduPrimitiveMesh.H.

◆ mesh()

const Foam::lduMesh & mesh	(	const lduMesh &	mesh0,
		const PtrList< lduPrimitiveMesh > &	otherMeshes,
		const label	meshI )

static

Select either mesh0 (meshI is 0) or otherMeshes[meshI-1].

Definition at line 1318 of file lduPrimitiveMesh.C.

Referenced by gather(), globalCellCells(), lduPrimitiveMeshAssembly::lduPrimitiveMeshAssembly(), and nonBlockingSchedule().

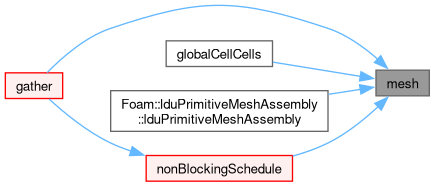

Here is the caller graph for this function:

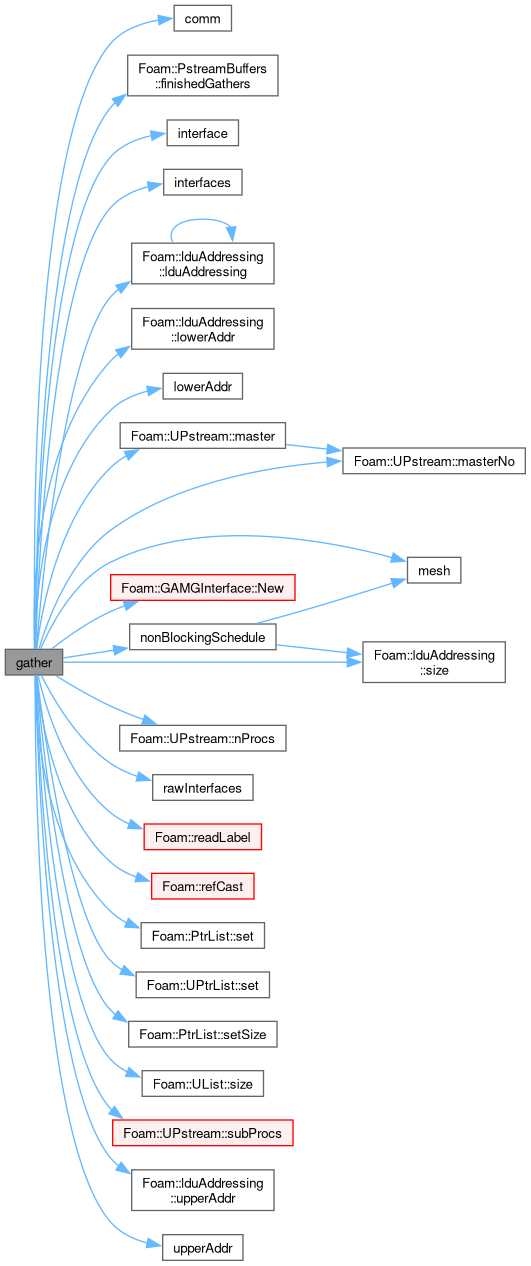

◆ gather()

void gather	(	const label	agglomComm,
		const lduMesh &	mesh,
		PtrList< lduPrimitiveMesh > &	otherMeshes )

static

Gather meshes from other processors using agglomComm.

Received meshes get GAMGInterface.

Definition at line 1329 of file lduPrimitiveMesh.C.

References comm(), PstreamBuffers::finishedGathers(), forAll, interface(), interfaces(), lduAddressing::lduAddressing(), lduAddressing::lowerAddr(), lowerAddr(), UPstream::master(), UPstream::masterNo(), mesh(), GAMGInterface::New(), nonBlockingSchedule(), UPstream::nProcs(), rawInterfaces(), Foam::readLabel(), Foam::refCast(), PtrList< T >::set(), UPtrList< T >::set(), PtrList< T >::setSize(), lduAddressing::size(), UList< T >::size(), UPstream::subProcs(), lduAddressing::upperAddr(), and upperAddr().

Referenced by GAMGAgglomeration::procAgglomerateLduAddressing().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nonBlockingSchedule() [1/2]

template<class ProcPatch>

lduSchedule nonBlockingSchedule ( const lduInterfacePtrsList & )

static

Get non-scheduled send/receive schedule.

References mesh(), and lduAddressing::size().

Referenced by GAMGAgglomeration::agglomerateLduAddressing(), gather(), viewFactor::initialise(), lduPrimitiveMesh(), and oversetFvMeshBase::updateAddressing().

Here is the call graph for this function:

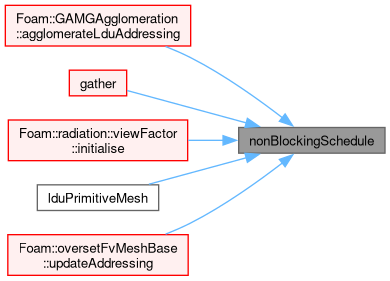

Here is the caller graph for this function:

◆ upperTriOrder()

Foam::labelList upperTriOrder	(	const label	nCells,
		const labelUList &	lower,
		const labelUList &	upper )

static

Calculate upper-triangular order.

Definition at line 234 of file lduPrimitiveMesh.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, UList< T >::last(), DynamicList< T, SizeMin >::resize(), Foam::sortedOrder(), and Foam::Zero.

Referenced by fvMeshPrimitiveLduAddressing::addAddressing(), lduPrimitiveMesh(), and lduPrimitiveMeshAssembly::update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkUpperTriangular()

void checkUpperTriangular	(	const label	size,
		const labelUList &	l,
		const labelUList &	u )

static

Check if in upper-triangular ordering.

Definition at line 39 of file lduPrimitiveMesh.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, forAll, lduAddressing::size(), and UList< T >::size().

Referenced by lduPrimitiveMesh(), and lduPrimitiveMeshAssembly::update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ globalCellCells()

Foam::labelListList globalCellCells	(	const lduMesh &	mesh,
		const globalIndex &	globalNumbering )

static

Calculate global cell-cells.

Definition at line 92 of file lduPrimitiveMesh.C.

References forAll, Foam::identity(), interfaces(), lduAddressing::lduAddressing(), globalIndex::localStart(), lduAddressing::lowerAddr(), mesh(), UPstream::myProcNo(), UPstream::nonBlocking, UPstream::nRequests(), PtrList< T >::set(), List< T >::setSize(), lduAddressing::size(), lduAddressing::upperAddr(), UPstream::waitRequests(), and Foam::Zero.

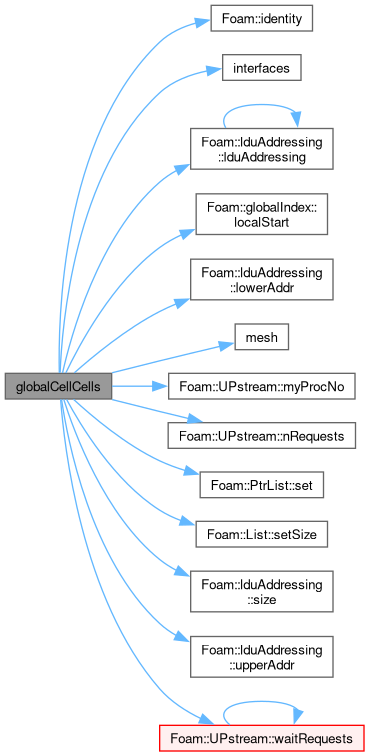

Here is the call graph for this function:

◆ nonBlockingSchedule() [2/2]

template<class ProcPatch>

Foam::lduSchedule nonBlockingSchedule ( const lduInterfacePtrsList & interfaces )

Definition at line 27 of file lduPrimitiveMeshTemplates.C.

References forAll, interfaces(), Foam::isA(), and List< T >::setSize().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/lduMesh/lduPrimitiveMesh.H
src/OpenFOAM/meshes/lduMesh/lduPrimitiveMesh.C
src/OpenFOAM/meshes/lduMesh/lduPrimitiveMeshTemplates.C

Public Member Functions

Static Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ lduPrimitiveMesh() [1/4]

◆ lduPrimitiveMesh() [2/4]

◆ lduPrimitiveMesh() [3/4]

◆ lduPrimitiveMesh() [4/4]

◆ ~lduPrimitiveMesh()

Member Function Documentation

◆ ClassName()

◆ addInterfaces()

◆ hasDb()

◆ lduAddr() [1/2]

◆ lduAddr() [2/2]

◆ interfaces() [1/2]

◆ interfaces() [2/2]

◆ primitiveInterfaces()

◆ rawInterfaces()

◆ comm()

◆ lowerAddr() [1/2]

◆ upperAddr() [1/2]

◆ lowerAddr() [2/2]

◆ upperAddr() [2/2]

◆ patchAddr()

◆ patchSchedule()

◆ mesh()

◆ gather()

◆ nonBlockingSchedule() [1/2]

◆ upperTriOrder()

◆ checkUpperTriangular()

◆ globalCellCells()

◆ nonBlockingSchedule() [2/2]
