Mass transfer Lee model. Simple model driven by field value difference as: More...

#include <Lee.H>

Inheritance diagram for Lee< Thermo, OtherThermo >:

Collaboration diagram for Lee< Thermo, OtherThermo >:

Public Member Functions
	TypeName ("Lee")
	Runtime type information.

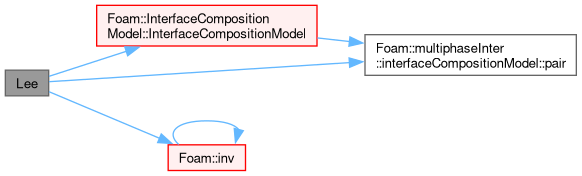

	Lee (const dictionary &dict, const phasePair &pair)
	Construct from components.
virtual	~Lee ()=default
	Destructor.

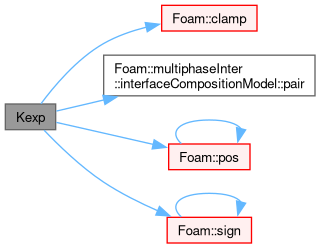

virtual tmp< volScalarField >	Kexp (const volScalarField &field)
	Explicit total mass transfer coefficient.

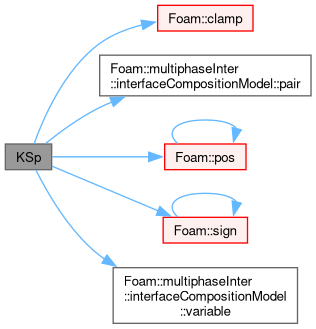

virtual tmp< volScalarField >	KSp (label modelVariable, const volScalarField &field)
	Implicit mass transfer coefficient.
virtual tmp< volScalarField >	KSu (label modelVariable, const volScalarField &field)
	Explicit mass transfer coefficient.
virtual const dimensionedScalar &	Tactivate () const noexcept
	Return T transition between phases.
virtual bool	includeDivU () const noexcept
	Add/subtract alpha*div(U) as a source term for alpha, substituting div(U) = mDot(1/rho1 - 1/rho2).
Public Member Functions inherited from InterfaceCompositionModel< Thermo, OtherThermo >
	InterfaceCompositionModel (const dictionary &dict, const phasePair &pair)
	Construct from components.
virtual	~InterfaceCompositionModel ()=default
	Destructor.
virtual tmp< volScalarField >	dY (const word &speciesName, const volScalarField &Tf) const
	Mass fraction difference between the interface and the field.
virtual tmp< volScalarField >	Yf (const word &speciesName, const volScalarField &Tf) const
	Reference mass fraction for species based models.
virtual tmp< volScalarField >	Dfrom (const word &speciesName) const
	Specie mass diffusivity for pure mixture.
virtual tmp< volScalarField >	Dto (const word &speciesName) const
	Specie mass diffusivity for specie in a multicomponent.
virtual tmp< volScalarField >	L (const word &speciesName, const volScalarField &Tf) const
	Latent heat (to - from)(thermo - otherThermo).
	InterfaceCompositionModel (const dictionary &dict, const phasePair &pair)
	Construct from components.
	~InterfaceCompositionModel ()=default
	Destructor.
virtual tmp< volScalarField >	dY (const word &speciesName, const volScalarField &Tf) const
	Mass fraction difference between the interface and the field.
virtual tmp< volScalarField >	D (const word &speciesName) const
	Mass diffusivity.
virtual tmp< volScalarField >	L (const word &speciesName, const volScalarField &Tf) const
	Latent heat.
virtual void	addMDotL (const volScalarField &K, const volScalarField &Tf, volScalarField &mDotL, volScalarField &mDotLPrime) const
	Add latent heat flow rate to total.
template<class ThermoType>
const Foam::multiComponentMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const multiComponentMixture< ThermoType > &globalThermo) const
template<class ThermoType>
const Foam::pureMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const pureMixture< ThermoType > &globalThermo) const
template<class ThermoType>
Foam::tmp< Foam::volScalarField >	getSpecieMassFraction (const word &speciesName, const multiComponentMixture< ThermoType > &mixture) const
template<class ThermoType>
Foam::tmp< Foam::volScalarField >	getSpecieMassFraction (const word &speciesName, const pureMixture< ThermoType > &mixture) const
template<class ThermoType>
Foam::tmp< Foam::volScalarField >	MwMixture (const pureMixture< ThermoType > &mixture) const
template<class ThermoType>
Foam::tmp< Foam::volScalarField >	MwMixture (const multiComponentMixture< ThermoType > &mixture) const
Public Member Functions inherited from interfaceCompositionModel
	TypeName ("interfaceCompositionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, interfaceCompositionModel, dictionary,(const dictionary &dict, const phasePair &pair),(dict, pair))
	interfaceCompositionModel (const dictionary &dict, const phasePair &pair)
	Construct from a dictionary and a phase pair.
virtual	~interfaceCompositionModel ()=default
	Destructor.
const word	transferSpecie () const
	Return the transferring species name.
const phasePair &	pair () const
	The phase pair.
const multiphaseInterSystem &	fluid () const
	Return the multiphaseInterSystem this interface belongs to.
bool	includeVolChange ()
	Add volume change in pEq.
const word &	variable () const
	Returns the variable on which the model is based.

Additional Inherited Members
Public Types inherited from interfaceCompositionModel
enum	modelVariable { T , P , Y , alpha }
	Enumeration for variable based mass transfer models. More...
Static Public Member Functions inherited from interfaceCompositionModel
static autoPtr< interfaceCompositionModel >	New (const dictionary &dict, const phasePair &pair)
Protected Member Functions inherited from InterfaceCompositionModel< Thermo, OtherThermo >
template<class ThermoType>
const pureMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const pureMixture< ThermoType > &globalThermo) const
	Get a reference to the local thermo for a pure mixture.
template<class ThermoType>
const multiComponentMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const multiComponentMixture< ThermoType > &globalThermo) const
	Get a reference to the local thermo for a multi component mixture.
template<class ThermoType>
tmp< volScalarField >	getSpecieMassFraction (const word &speciesName, const pureMixture< ThermoType > &thermo) const
	Return mass fraction for a pureMixture equal to one.
template<class ThermoType>
tmp< volScalarField >	getSpecieMassFraction (const word &speciesName, const multiComponentMixture< ThermoType > &thermo) const
	Return mass fraction for speciesName.
template<class ThermoType>
tmp< volScalarField >	MwMixture (const pureMixture< ThermoType > &thermo) const
	Return moleculas weight of the mixture for pureMixture [Kg/mol].
template<class ThermoType>
tmp< volScalarField >	MwMixture (const multiComponentMixture< ThermoType > &) const
	Return moleculas weight of the mixture for multiComponentMixture.
template<class ThermoType>
const pureMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const pureMixture< ThermoType > &globalThermo) const
	Get a reference to the local thermo for a pure mixture.
template<class ThermoType>
const multiComponentMixture< ThermoType >::thermoType &	getLocalThermo (const word &speciesName, const multiComponentMixture< ThermoType > &globalThermo) const
	Get a reference to the local thermo for a multi component mixture.
Protected Attributes inherited from InterfaceCompositionModel< Thermo, OtherThermo >
const Thermo &	fromThermo_
	Thermo (from).
const OtherThermo &	toThermo_
	Other Thermo (to).
const dimensionedScalar	Le_
	Lewis number.
const Thermo &	thermo_
	Thermo.
const OtherThermo &	otherThermo_
	Other Thermo.
Protected Attributes inherited from interfaceCompositionModel
modelVariable	modelVariable_
	Enumeration for the model variable.
bool	includeVolChange_
	Add volume change in pEq.
const phasePair &	pair_
	Phase pair.
word	speciesName_
	Names of the transferring specie.
const fvMesh &	mesh_
	Reference to mesh.
Static Protected Attributes inherited from interfaceCompositionModel
static const Enum< modelVariable >	modelVariableNames_
	Selection names for the modelVariable.

Detailed Description

template<class Thermo, class OtherThermo>
class Foam::meltingEvaporationModels::Lee< Thermo, OtherThermo >

Mass transfer Lee model. Simple model driven by field value difference as:

$\‍[ \dot{m} = C \rho \alpha (T - T_{activate})/T_{activate} \‍]$

where C is a model constant.

if C > 0:

$\‍[ \dot{m} = C \rho \alpha (T - T_{activate})/T_{activate} \‍]$

for

$\‍[ T > T_{activate} \‍]$

and

$\‍[ mDot = 0.0 \‍]$

for

$\‍[ T < T_{activate} \‍]$

if C < 0:

$\‍[ \dot{m} = -C \rho \alpha (T_{activate} - T)/T_{activate} \‍]$

for

$\‍[ T < T_{activate} \‍]$

and

$\‍[ \dot{m} = 0.0 \‍]$

for

$\‍[ T > T_{activate} \‍]$

Based on the reference:

W. H. Lee. "A Pressure Iteration Scheme for Two-Phase Modeling". Technical Report LA-UR 79-975. Los Alamos Scientific Laboratory, Los Alamos, New Mexico. 1979.

Usage

Example usage:

    massTransferModel
    (
        (solid to liquid)
        {
            type            Lee;
            C               40;
            Tactivate       302.78;
        }
    );

Where:
