pointPatch with explicitly provided points instead of using the points of a polyPatch. More...

#include <meshPointPatch.H>

Inheritance diagram for meshPointPatch:

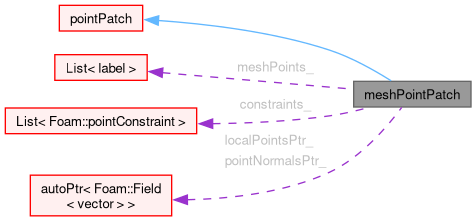

Collaboration diagram for meshPointPatch:

[legend]

Public Member Functions
	TypeName ("meshPoint")
	Runtime type information.
	meshPointPatch (const word &name, const labelUList &meshPoints, const List< pointConstraint > &constraints, const label index, const pointBoundaryMesh &bm, const word &patchType)
	Construct from components.
	meshPointPatch (const word &name, const labelUList &meshPoints, const vectorField &pointNormals, const label index, const pointBoundaryMesh &bm, const word &patchType)
	Construct from single-constraint (i.e. slip, provided normals).
	meshPointPatch (const word &name, const dictionary &dict, const label index, const pointBoundaryMesh &bm, const word &patchType)
	Construct from dictionary.
	meshPointPatch (const meshPointPatch &pp, const pointBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const labelUList &reversePointMap)
	Construct given the original patch and a map.
virtual autoPtr< pointPatch >	clone (const pointBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const labelUList &reversePointMap) const
	Construct and return a subset clone, resetting the point list and boundary mesh.
virtual	~meshPointPatch ()=default
	Destructor.
virtual label	size () const
	Return size.
virtual const labelList &	meshPoints () const
	Return mesh points.
virtual const List< pointConstraint > &	constraints () const
	Return constraints.
virtual const pointField &	localPoints () const
	Return pointField of points in patch.
virtual const vectorField &	pointNormals () const
	Return point unit normals. Assumes single constraint.
virtual void	write (Ostream &) const
	Write the pointPatch data as a dictionary.
Public Member Functions inherited from pointPatch
	TypeName ("basePatch")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, pointPatch, dictionary,(const word &name, const dictionary &dict, const label index, const pointBoundaryMesh &bm, const word &patchType),(name, dict, index, bm, patchType))
	pointPatch (const word &name, const label index, const pointBoundaryMesh &bm, const word &physicalType, const wordList &inGroups)
	Construct from components.
	pointPatch (const word &name, const dictionary &dict, const label index, const pointBoundaryMesh &bm)
	Construct from dictionary.
	pointPatch (const pointPatch &pp, const pointBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const labelUList &reversePointMap)
	Construct given the original patch and a map.
virtual	~pointPatch ()=default
	Destructor.
const pointBoundaryMesh &	boundaryMesh () const
	Return boundaryMesh reference.
virtual bool	coupled () const
	Return true if this patch field is coupled.
virtual const word &	constraintType () const
	Return the constraint type this pointPatch implements.
virtual void	applyConstraint (const label pointi, pointConstraint &) const
	Accumulate the effect of constraint direction of this patch.
Public Member Functions inherited from patchIdentifier
	patchIdentifier (const patchIdentifier &)=default
	Copy construct.
	patchIdentifier (patchIdentifier &&)=default
	Move construct.
patchIdentifier &	operator= (const patchIdentifier &)=default
	Copy assignment.
patchIdentifier &	operator= (patchIdentifier &&)=default
	Move assignment.
virtual	~patchIdentifier ()=default
	Destructor.
	patchIdentifier ()
	Default construct: name="", index=0.
	patchIdentifier (const word &name, const label index)
	Construct from mandatory components.
	patchIdentifier (const word &name, const label index, const word &physicalType, const wordList &inGroups=wordList())
	Construct from components.
	patchIdentifier (const word &name, const dictionary &dict, const label index)
	Construct from dictionary.
	patchIdentifier (const patchIdentifier &ident, const label newIndex)
	Copy construct, resetting the index (if non-negative).
	patchIdentifier (patchIdentifier &&ident, const label newIndex)
	Move construct, resetting the index (if non-negative).
const word &	name () const noexcept
	The patch name.
word &	name () noexcept
	Modifiable patch name.
label	index () const noexcept
	The index of this patch in the boundaryMesh.
label &	index () noexcept
	Modifiable index of this patch in the boundaryMesh.
const word &	physicalType () const noexcept
	The (optional) physical type of the patch.
word &	physicalType () noexcept
	Modifiable (optional) physical type of the patch.
const wordList &	inGroups () const noexcept
	The (optional) groups that the patch belongs to.
wordList &	inGroups () noexcept
	Modifiable (optional) groups that the patch belongs to.
bool	inGroup (const word &name) const
	True if given name is in a group.
void	addGroup (const word &name)
	Add (unique) group for the patch.
void	removeGroup (const word &name)
	Remove group for the patch.
void	write (Ostream &os) const
	Write (physicalType, inGroups) dictionary entries (without surrounding braces).

Protected Member Functions
virtual void	movePoints (PstreamBuffers &, const pointField &)
	Correct patches after moving points.
virtual void	updateMesh (PstreamBuffers &)
	Update of the patch topology.
Protected Member Functions inherited from pointPatch
virtual void	initGeometry (PstreamBuffers &)
	Initialise the calculation of the patch geometry.
virtual void	calcGeometry (PstreamBuffers &)
	Calculate the patch geometry.
virtual void	initMovePoints (PstreamBuffers &, const pointField &)
	Initialise the patches for moving points.
virtual void	initUpdateMesh (PstreamBuffers &)
	Initialise the update of the patch topology.
	pointPatch (const pointPatch &)=delete
	No copy construct.
void	operator= (const pointPatch &)=delete
	No copy assignment.

Protected Attributes
const labelList	meshPoints_
	Explicit mesh points.
const List< pointConstraint >	constraints_
autoPtr< pointField >	localPointsPtr_
	Demand-driven local points.
autoPtr< pointField >	pointNormalsPtr_
	Demand-driven local normals (assumes constructed with pointNormals.

Additional Inherited Members
Static Public Member Functions inherited from pointPatch
static autoPtr< pointPatch >	New (const word &name, const dictionary &dict, const label index, const pointBoundaryMesh &)
	Return a pointer to a new patch created on freestore. Returns null if not found.
Static Public Member Functions inherited from patchIdentifier
static word	defaultName (const label n=-1)
	Default patch name: "patch" or "patchN".

Detailed Description

pointPatch with explicitly provided points instead of using the points of a polyPatch.

Note: does not constrain displacement - is not a constraint patch.

Source files

Definition at line 53 of file meshPointPatch.H.

Constructor & Destructor Documentation

◆ meshPointPatch() [1/4]

meshPointPatch	(	const word &	name,
		const labelUList &	meshPoints,
		const List< pointConstraint > &	constraints,
		const label	index,
		const pointBoundaryMesh &	bm,
		const word &	patchType )

Construct from components.

Definition at line 65 of file meshPointPatch.C.

References constraints(), constraints_, patchIdentifier::index(), meshPoints(), meshPoints_, Foam::name(), pointPatch::pointBoundaryMesh, and pointPatch::pointPatch().

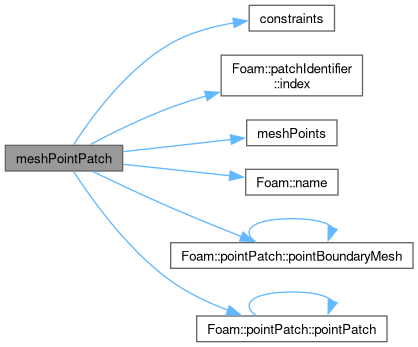

Here is the call graph for this function:

◆ meshPointPatch() [2/4]

meshPointPatch	(	const word &	name,
		const labelUList &	meshPoints,
		const vectorField &	pointNormals,
		const label	index,
		const pointBoundaryMesh &	bm,
		const word &	patchType )

Construct from single-constraint (i.e. slip, provided normals).

Definition at line 89 of file meshPointPatch.C.

References constraints_, patchIdentifier::index(), Foam::makeConstraints(), meshPoints(), meshPoints_, Foam::name(), pointPatch::pointBoundaryMesh, pointNormals(), and pointPatch::pointPatch().

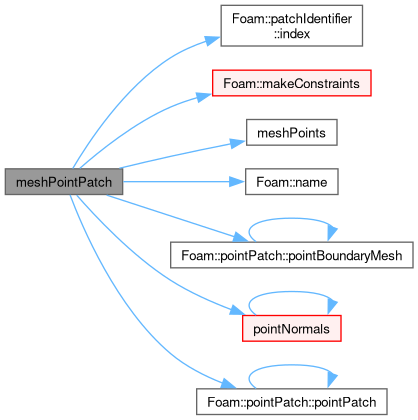

Here is the call graph for this function:

◆ meshPointPatch() [3/4]

meshPointPatch	(	const word &	name,
		const dictionary &	dict,
		const label	index,
		const pointBoundaryMesh &	bm,
		const word &	patchType )

Construct from dictionary.

Definition at line 113 of file meshPointPatch.C.

References constraints_, dict, patchIdentifier::index(), meshPoints_, Foam::name(), pointPatch::pointBoundaryMesh, and pointPatch::pointPatch().

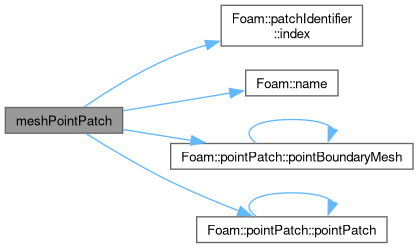

Here is the call graph for this function:

◆ meshPointPatch() [4/4]

meshPointPatch	(	const meshPointPatch &	pp,
		const pointBoundaryMesh &	bm,
		const label	index,
		const labelUList &	mapAddressing,
		const labelUList &	reversePointMap )

Construct given the original patch and a map.

Definition at line 128 of file meshPointPatch.C.

References constraints(), patchIdentifier::index(), meshPoints(), Foam::name(), pointPatch::pointBoundaryMesh, and pp().

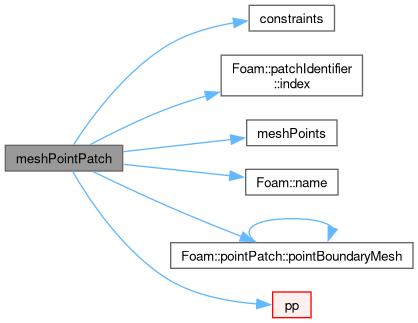

Here is the call graph for this function:

◆ ~meshPointPatch()

virtual ~meshPointPatch ( )

virtualdefault

Destructor.

Member Function Documentation

◆ movePoints()

void movePoints	(	PstreamBuffers &	,
		const pointField &	p )

protectedvirtual

Correct patches after moving points.

Reimplemented from pointPatch.

Definition at line 151 of file meshPointPatch.C.

References localPointsPtr_, and p.

◆ updateMesh()

void updateMesh ( PstreamBuffers & )

protectedvirtual

Update of the patch topology.

Reimplemented from pointPatch.

Definition at line 174 of file meshPointPatch.C.

References localPointsPtr_, and pointNormalsPtr_.

◆ TypeName()

TypeName ( "meshPoint" )

Runtime type information.

References constraints(), dict, patchIdentifier::index(), meshPoints(), Foam::name(), pointPatch::pointBoundaryMesh, pointNormals(), and pp().

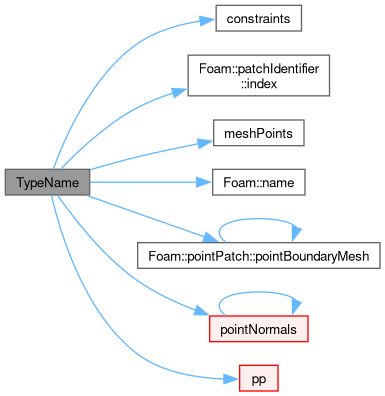

Here is the call graph for this function:

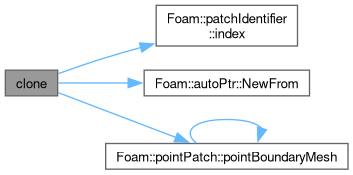

◆ clone()

virtual autoPtr< pointPatch > clone	(	const pointBoundaryMesh &	bm,
		const label	index,
		const labelUList &	mapAddressing,
		const labelUList &	reversePointMap ) const
