patchIdentifier Class Reference

Identifies a patch by name and index, with optional physical type and group information. More...

#include <patchIdentifier.H>

Inheritance diagram for patchIdentifier:

Public Member Functions
	patchIdentifier (const patchIdentifier &)=default
	Copy construct.
	patchIdentifier (patchIdentifier &&)=default
	Move construct.
patchIdentifier &	operator= (const patchIdentifier &)=default
	Copy assignment.
patchIdentifier &	operator= (patchIdentifier &&)=default
	Move assignment.
virtual	~patchIdentifier ()=default
	Destructor.
	patchIdentifier ()
	Default construct: name="", index=0.
	patchIdentifier (const word &name, const label index)
	Construct from mandatory components.
	patchIdentifier (const word &name, const label index, const word &physicalType, const wordList &inGroups=wordList())
	Construct from components.
	patchIdentifier (const word &name, const dictionary &dict, const label index)
	Construct from dictionary.
	patchIdentifier (const patchIdentifier &ident, const label newIndex)
	Copy construct, resetting the index (if non-negative).
	patchIdentifier (patchIdentifier &&ident, const label newIndex)
	Move construct, resetting the index (if non-negative).
const word &	name () const noexcept
	The patch name.
word &	name () noexcept
	Modifiable patch name.
label	index () const noexcept
	The index of this patch in the boundaryMesh.
label &	index () noexcept
	Modifiable index of this patch in the boundaryMesh.
const word &	physicalType () const noexcept
	The (optional) physical type of the patch.
word &	physicalType () noexcept
	Modifiable (optional) physical type of the patch.
const wordList &	inGroups () const noexcept
	The (optional) groups that the patch belongs to.
wordList &	inGroups () noexcept
	Modifiable (optional) groups that the patch belongs to.
bool	inGroup (const word &name) const
	True if given name is in a group.
void	addGroup (const word &name)
	Add (unique) group for the patch.
void	removeGroup (const word &name)
	Remove group for the patch.
void	write (Ostream &os) const
	Write (physicalType, inGroups) dictionary entries (without surrounding braces).

Static Public Member Functions
static word	defaultName (const label n=-1)
	Default patch name: "patch" or "patchN".

Detailed Description

Identifies a patch by name and index, with optional physical type and group information.

Source files

• patchIdentifier.H
• patchIdentifier.C

Definition at line 51 of file patchIdentifier.H.

Constructor & Destructor Documentation

patchIdentifier() [1/8]

patchIdentifier ( const patchIdentifier & )

default

Copy construct.

References patchIdentifier().

Referenced by boundaryPatch::boundaryPatch(), boundaryPatch::boundaryPatch(), faPatch::faPatch(), faPatch::faPatch(), faPatch::faPatch(), operator=(), operator=(), patchIdentifier(), patchIdentifier(), patchIdentifier(), patchIdentifier(), patchIdentifier(), pointPatch::pointPatch(), pointPatch::pointPatch(), pointPatch::pointPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), and ~patchIdentifier().

Here is the call graph for this function:

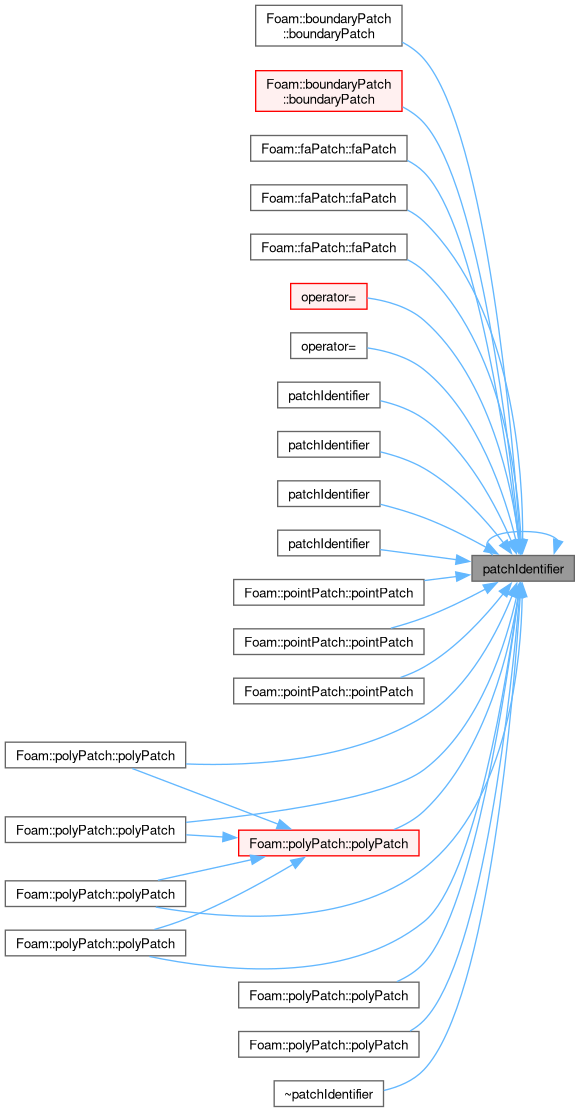

Here is the caller graph for this function:

patchIdentifier() [2/8]

patchIdentifier ( patchIdentifier && )

default

Move construct.

References patchIdentifier().

Here is the call graph for this function:

~patchIdentifier()

virtual ~patchIdentifier ( )

virtualdefault

Destructor.

References dict, index(), inGroups(), name(), patchIdentifier(), and physicalType().

Here is the call graph for this function:

patchIdentifier() [3/8]

patchIdentifier

(

)

Default construct: name="", index=0.

Definition at line 27 of file patchIdentifier.C.

patchIdentifier() [4/8]

patchIdentifier	(	const word &	name,
		const label	index )

Construct from mandatory components.

Definition at line 33 of file patchIdentifier.C.

References index(), and name().

Here is the call graph for this function:

patchIdentifier() [5/8]

patchIdentifier	(	const word &	name,
		const label	index,
		const word &	physicalType,
		const wordList &	inGroups = wordList() )

Construct from components.

Definition at line 44 of file patchIdentifier.C.

References index(), inGroups(), name(), and physicalType().

Here is the call graph for this function:

patchIdentifier() [6/8]

patchIdentifier	(	const word &	name,
		const dictionary &	dict,
		const label	index )

Construct from dictionary.

Definition at line 59 of file patchIdentifier.C.

References dict, index(), name(), and patchIdentifier().

Here is the call graph for this function:

patchIdentifier() [7/8]

patchIdentifier	(	const patchIdentifier &	ident,
		const label	newIndex )

Copy construct, resetting the index (if non-negative).

Definition at line 73 of file patchIdentifier.C.

References patchIdentifier().

Here is the call graph for this function:

patchIdentifier() [8/8]

patchIdentifier	(	patchIdentifier &&	ident,
		const label	newIndex )

Move construct, resetting the index (if non-negative).

Definition at line 88 of file patchIdentifier.C.

References patchIdentifier().

Here is the call graph for this function:

Member Function Documentation

defaultName()

word defaultName ( const label n = -1 )

inlinestatic

Default patch name: "patch" or "patchN".

Definition at line 82 of file patchIdentifier.H.

References n.

Referenced by voxelMeshSearch::makeMesh().

Here is the caller graph for this function:

operator=() [1/2]

patchIdentifier & operator= ( const patchIdentifier & )

default

Copy assignment.

References patchIdentifier().

Referenced by polyPatch::operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

operator=() [2/2]

patchIdentifier & operator= ( patchIdentifier && )

default

Move assignment.

References patchIdentifier().

Here is the call graph for this function:

name() [1/2]

const word & name ( ) const

inlinenoexcept

The patch name.

Definition at line 178 of file patchIdentifier.H.

References Foam::noexcept.

Referenced by cyclicAMIPolyPatch::addAMIFaces(), addGroup(), boundaryMesh::addPatch(), faPatchData::assign(), boundaryPatch::boundaryPatch(), boundaryPatch::boundaryPatch(), symmetryPlanePolyPatch::calcGeometry(), wedgePolyPatch::calcGeometry(), boundaryMesh::changeFaces(), boundaryMesh::changePatchType(), pointPatch::clone(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicAMIPolyPatch::cylindricalCS(), faPatch::declareRunTimeSelectionTable(), pointPatch::declareRunTimeSelectionTable(), polyPatch::declareRunTimeSelectionTable(), polyPatch::declareRunTimeSelectionTable(), boundaryMesh::deletePatch(), extendedCellToCellStencil::extendedCellToCellStencil(), extendedCellToFaceStencil::extendedCellToFaceStencil(), extendedFaceToCellStencil::extendedFaceToCellStencil(), faPatch::faPatch(), faPatch::faPatch(), coupleGroupIdentifier::findOtherPatchID(), genericFaePatchField< Type >::genericFaePatchField(), genericFaePatchField< Type >::genericFaePatchField(), genericFaPatchField< Type >::genericFaPatchField(), genericFaPatchField< Type >::genericFaPatchField(), genericPointPatchField< Type >::genericPointPatchField(), genericPointPatchField< Type >::genericPointPatchField(), zoneDistribute::getCyclicPatches(), particle< Type >::hitCyclicAMIPatch(), inGroup(), cyclicAMIPolyPatch::interpolate(), faPatch::New(), faPatch::New(), pointPatch::New(), polyPatch::New(), polyPatch::New(), polyPatch::New(), cyclicACMIPolyPatch::nonOverlapPatchID(), patchIdentifier(), patchIdentifier(), patchIdentifier(), boundaryMesh::patchify(), pointPatch::pointPatch(), pointPatch::pointPatch(), pointPatch::pointPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), boundaryMesh::read(), removeGroup(), cyclicAMIPolyPatch::resetAMI(), cyclicACMIFvPatch::resetPatchAreas(), cyclicAMIPolyPatch::restoreScaledGeometry(), cyclicACMIPolyPatch::scalePatchFaceAreas(), cyclicACMIPolyPatch::scalePatchFaceAreas(), symmetryFaPatch::symmetryFaPatch(), processorCyclicPolyPatch::tag(), cyclicPolyPatch::transformGlobalFace(), uniformMixedFaPatchField< Type >::uniformMixedFaPatchField(), cyclicACMIPolyPatch::updateAreas(), sixDoFRigidBodyDisplacementPointPatchVectorField::updateCoeffs(), wedgeFaPatch::wedgeFaPatch(), boundaryMesh::writeTriSurface(), AMIWeights::writeWeightField(), and ~patchIdentifier().

name() [2/2]

word & name ( )

inlinenoexcept

Modifiable patch name.

Definition at line 183 of file patchIdentifier.H.

References Foam::noexcept.

index() [1/2]

label index ( ) const

inlinenoexcept

The index of this patch in the boundaryMesh.

Definition at line 188 of file patchIdentifier.H.

References Foam::noexcept.

Referenced by cyclicAMIPolyPatch::addAMIFaces(), boundaryPatch::boundaryPatch(), boundaryPatch::boundaryPatch(), boundaryPatch::boundaryPatch(), faPatch::cfindPatchField(), boundaryMesh::changePatchType(), cyclicACMIPolyPatch::clone(), cyclicACMIPolyPatch::clone(), cyclicAMIPolyPatch::clone(), cyclicAMIPolyPatch::clone(), cyclicPeriodicAMIPolyPatch::clone(), cyclicPeriodicAMIPolyPatch::clone(), cyclicPolyPatch::clone(), cyclicPolyPatch::clone(), cyclicSlipPolyPatch::clone(), cyclicSlipPolyPatch::clone(), emptyFaPatch::clone(), emptyPolyPatch::clone(), emptyPolyPatch::clone(), faPatch::clone(), genericPolyPatch::clone(), genericPolyPatch::clone(), ignoreFaPatch::clone(), mappedPolyPatch::clone(), mappedPolyPatch::clone(), mappedVariableThicknessWallPolyPatch::clone(), mappedVariableThicknessWallPolyPatch::clone(), mappedWallPolyPatch::clone(), mappedWallPolyPatch::clone(), meshPointPatch::clone(), nonuniformTransformCyclicPolyPatch::clone(), nonuniformTransformCyclicPolyPatch::clone(), oldCyclicPolyPatch::clone(), oversetPolyPatch::clone(), oversetPolyPatch::clone(), pointPatch::clone(), polyPatch::clone(), polyPatch::clone(), processorCyclicPolyPatch::clone(), processorCyclicPolyPatch::clone(), processorCyclicPolyPatch::clone(), processorPolyPatch::clone(), processorPolyPatch::clone(), symmetryFaPatch::clone(), symmetryPlanePolyPatch::clone(), symmetryPlanePolyPatch::clone(), symmetryPolyPatch::clone(), symmetryPolyPatch::clone(), wallPolyPatch::clone(), wallPolyPatch::clone(), wedgePolyPatch::clone(), wedgePolyPatch::clone(), coupledFaPatch::coupledFaPatch(), coupledFaPatch::coupledFaPatch(), coupledPolyPatch::coupledPolyPatch(), coupledPolyPatch::coupledPolyPatch(), coupledPolyPatch::coupledPolyPatch(), coupledPolyPatch::coupledPolyPatch(), cyclicACMIPointPatchField< Type >::cyclicACMIPointPatchField(), cyclicACMIPointPatchField< Type >::cyclicACMIPointPatchField(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicACMIPolyPatch::cyclicACMIPolyPatch(), cyclicAMIPointPatchField< Type >::cyclicAMIPointPatchField(), cyclicAMIPointPatchField< Type >::cyclicAMIPointPatchField(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicFaePatchField< Type >::cyclicFaePatchField(), cyclicFaePatchField< Type >::cyclicFaePatchField(), cyclicFaPatch::cyclicFaPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPeriodicAMIPolyPatch::cyclicPeriodicAMIPolyPatch(), cyclicPointPatchField< Type >::cyclicPointPatchField(), cyclicPointPatchField< Type >::cyclicPointPatchField(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicSlipPolyPatch::cyclicSlipPolyPatch(), cyclicSlipPolyPatch::cyclicSlipPolyPatch(), cyclicSlipPolyPatch::cyclicSlipPolyPatch(), cyclicSlipPolyPatch::cyclicSlipPolyPatch(), faPatch::declareRunTimeSelectionTable(), pointPatch::declareRunTimeSelectionTable(), polyPatch::declareRunTimeSelectionTable(), polyPatch::declareRunTimeSelectionTable(), faPatch::deltaCoeffs(), faPatch::edgeCentres(), faPatch::edgeLengths(), emptyFaePatchField< Type >::emptyFaePatchField(), emptyFaePatchField< Type >::emptyFaePatchField(), emptyFaPatch::emptyFaPatch(), emptyFaPatch::emptyFaPatch(), emptyFaPatch::emptyFaPatch(), emptyFaPatch::emptyFaPatch(), emptyPointPatchField< Type >::emptyPointPatchField(), emptyPointPatchField< Type >::emptyPointPatchField(), emptyPolyPatch::emptyPolyPatch(), emptyPolyPatch::emptyPolyPatch(), emptyPolyPatch::emptyPolyPatch(), emptyPolyPatch::emptyPolyPatch(), faPatch::faPatch(), faPatch::faPatch(), faPatch::faPatch(), faPatch::faPatch(), genericPolyPatch::genericPolyPatch(), genericPolyPatch::genericPolyPatch(), genericPolyPatch::genericPolyPatch(), genericPolyPatch::genericPolyPatch(), ignoreFaPatch::ignoreFaPatch(), ignoreFaPatch::ignoreFaPatch(), ignoreFaPatch::ignoreFaPatch(), ignoreFaPatch::ignoreFaPatch(), cyclicAMIPolyPatch::initInterpolateUntransformed(), cyclicAMIPolyPatch::interpolate(), faPatch::lookupPatchField(), faPatch::lPN(), faPatch::magEdgeLengths(), mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), oversetPolyPatch::master(), meshPointPatch::meshPointPatch(), meshPointPatch::meshPointPatch(), meshPointPatch::meshPointPatch(), meshPointPatch::meshPointPatch(), cyclicACMIFvPatch::movePoints(), cyclicFaPatch::neighbPatchID(), cyclicAMIPolyPatch::neighbPolyPatchID(), mappedPolyPatch::neighbPolyPatchID(), mappedWallPolyPatch::neighbPolyPatchID(), faPatch::New(), faPatch::New(), pointPatch::New(), polyPatch::New(), polyPatch::New(), polyPatch::New(), faPatch::ngbPolyPatchFaceNormals(), faPatch::ngbPolyPatchPointNormals(), cyclicACMIPolyPatch::nonOverlapPatchID(), nonuniformTransformCyclicPolyPatch::nonuniformTransformCyclicPolyPatch(), nonuniformTransformCyclicPolyPatch::nonuniformTransformCyclicPolyPatch(), nonuniformTransformCyclicPolyPatch::nonuniformTransformCyclicPolyPatch(), nonuniformTransformCyclicPolyPatch::nonuniformTransformCyclicPolyPatch(), faPatch::offset(), oldCyclicPolyPatch::oldCyclicPolyPatch(), oldCyclicPolyPatch::oldCyclicPolyPatch(), oldCyclicPolyPatch::oldCyclicPolyPatch(), oversetPolyPatch::oversetPolyPatch(), oversetPolyPatch::oversetPolyPatch(), oversetPolyPatch::oversetPolyPatch(), oversetPolyPatch::oversetPolyPatch(), cyclicAMIPolyPatch::owner(), cyclicPolyPatch::owner(), faPatch::patchField(), patchIdentifier(), patchIdentifier(), patchIdentifier(), pointPatch::pointPatch(), pointPatch::pointPatch(), pointPatch::pointPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorCyclicPolyPatch::processorCyclicPolyPatch(), processorFaePatchField< Type >::processorFaePatchField(), processorFaePatchField< Type >::processorFaePatchField(), processorFaPatch::processorFaPatch(), processorFaPatch::processorFaPatch(), processorFaPatch::processorFaPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), faPatch::skewCorrectionVectors(), faPatch::start(), symmetryFaePatchField< Type >::symmetryFaePatchField(), symmetryFaePatchField< Type >::symmetryFaePatchField(), symmetryFaPatch::symmetryFaPatch(), symmetryFaPatch::symmetryFaPatch(), symmetryFaPatch::symmetryFaPatch(), symmetryPlanePointPatchField< Type >::symmetryPlanePointPatchField(), symmetryPlanePointPatchField< Type >::symmetryPlanePointPatchField(), symmetryPlanePolyPatch::symmetryPlanePolyPatch(), symmetryPlanePolyPatch::symmetryPlanePolyPatch(), symmetryPlanePolyPatch::symmetryPlanePolyPatch(), symmetryPlanePolyPatch::symmetryPlanePolyPatch(), symmetryPointPatchField< Type >::symmetryPointPatchField(), symmetryPointPatchField< Type >::symmetryPointPatchField(), symmetryPolyPatch::symmetryPolyPatch(), symmetryPolyPatch::symmetryPolyPatch(), symmetryPolyPatch::symmetryPolyPatch(), symmetryPolyPatch::symmetryPolyPatch(), coupledPolyPatch::TypeName(), cyclicACMIPolyPatch::TypeName(), cyclicAMIPolyPatch::TypeName(), cyclicFaPatch::TypeName(), cyclicPeriodicAMIPolyPatch::TypeName(), cyclicPolyPatch::TypeName(), emptyFaPatch::TypeName(), emptyPolyPatch::TypeName(), genericPolyPatch::TypeName(), ignoreFaPatch::TypeName(), mappedPolyPatch::TypeName(), mappedVariableThicknessWallPolyPatch::TypeName(), mappedWallPolyPatch::TypeName(), meshPointPatch::TypeName(), oldCyclicPolyPatch::TypeName(), oversetPolyPatch::TypeName(), processorCyclicPolyPatch::TypeName(), processorFaPatch::TypeName(), processorPolyPatch::TypeName(), symmetryFaPatch::TypeName(), symmetryPlanePolyPatch::TypeName(), symmetryPolyPatch::TypeName(), wallPolyPatch::TypeName(), wedgeFaPatch::TypeName(), wedgePolyPatch::TypeName(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::updateCoeffs(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs(), humidityTemperatureCoupledMixedFvPatchScalarField::updateCoeffs(), mappedFixedInternalValueFvPatchField< Type >::updateCoeffs(), mappedFlowRateFvPatchVectorField::updateCoeffs(), processorFaPatch::updateMesh(), processorPolyPatch::updateMesh(), LookupField< Type >::value(), wallPolyPatch::wallPolyPatch(), wallPolyPatch::wallPolyPatch(), wallPolyPatch::wallPolyPatch(), wallPolyPatch::wallPolyPatch(), wedgeFaePatchField< Type >::wedgeFaePatchField(), wedgeFaePatchField< Type >::wedgeFaePatchField(), wedgeFaPatch::wedgeFaPatch(), wedgeFaPatchField< Type >::wedgeFaPatchField(), wedgeFaPatchField< Type >::wedgeFaPatchField(), wedgePointPatchField< Type >::wedgePointPatchField(), wedgePointPatchField< Type >::wedgePointPatchField(), wedgePolyPatch::wedgePolyPatch(), wedgePolyPatch::wedgePolyPatch(), wedgePolyPatch::wedgePolyPatch(), wedgePolyPatch::wedgePolyPatch(), faPatch::weights(), and ~patchIdentifier().

index() [2/2]

label & index ( )

inlinenoexcept

Modifiable index of this patch in the boundaryMesh.

Definition at line 193 of file patchIdentifier.H.

References Foam::noexcept.

physicalType() [1/2]

const word & physicalType ( ) const

inlinenoexcept

The (optional) physical type of the patch.

Definition at line 198 of file patchIdentifier.H.

References Foam::noexcept.

Referenced by boundaryMesh::addPatch(), boundaryPatch::boundaryPatch(), boundaryMesh::changeFaces(), polyPatch::declareRunTimeSelectionTable(), boundaryMesh::deletePatch(), facePointPatch::facePointPatch(), facePointPatch::facePointPatch(), patchIdentifier(), boundaryMesh::patchify(), pointPatch::pointPatch(), pointPatch::pointPatch(), polyPatch::polyPatch(), boundaryMesh::read(), boundaryMesh::writeTriSurface(), and ~patchIdentifier().

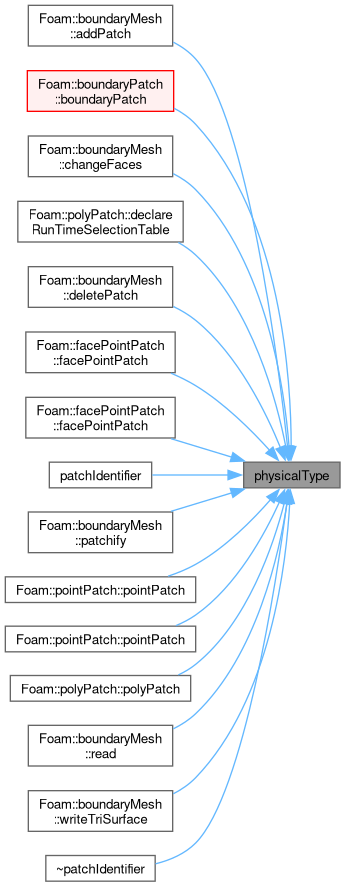

Here is the caller graph for this function:

physicalType() [2/2]

word & physicalType ( )

inlinenoexcept

Modifiable (optional) physical type of the patch.

Definition at line 203 of file patchIdentifier.H.

References Foam::noexcept.

inGroups() [1/2]

const wordList & inGroups ( ) const

inlinenoexcept

The (optional) groups that the patch belongs to.

Definition at line 208 of file patchIdentifier.H.

References Foam::noexcept.

Referenced by polyPatch::declareRunTimeSelectionTable(), facePointPatch::facePointPatch(), facePointPatch::facePointPatch(), patchIdentifier(), pointPatch::pointPatch(), pointPatch::pointPatch(), polyPatch::polyPatch(), and ~patchIdentifier().

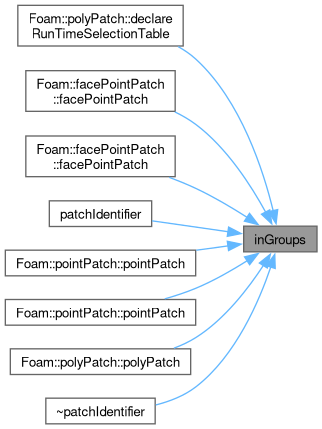

Here is the caller graph for this function:

inGroups() [2/2]

wordList & inGroups ( )

inlinenoexcept

Modifiable (optional) groups that the patch belongs to.

Definition at line 213 of file patchIdentifier.H.

References Foam::noexcept.

inGroup()

bool inGroup ( const word & name ) const

inline

True if given name is in a group.

Definition at line 218 of file patchIdentifier.H.

References name().

Here is the call graph for this function:

addGroup()

void addGroup ( const word & name )

inline

Add (unique) group for the patch.

Definition at line 226 of file patchIdentifier.H.

References name().

Referenced by faPatch::faPatch(), faPatch::faPatch(), mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), oversetPolyPatch::oversetPolyPatch(), oversetPolyPatch::oversetPolyPatch(), polyPatch::polyPatch(), polyPatch::polyPatch(), wallPolyPatch::wallPolyPatch(), and wallPolyPatch::wallPolyPatch().

Here is the call graph for this function:

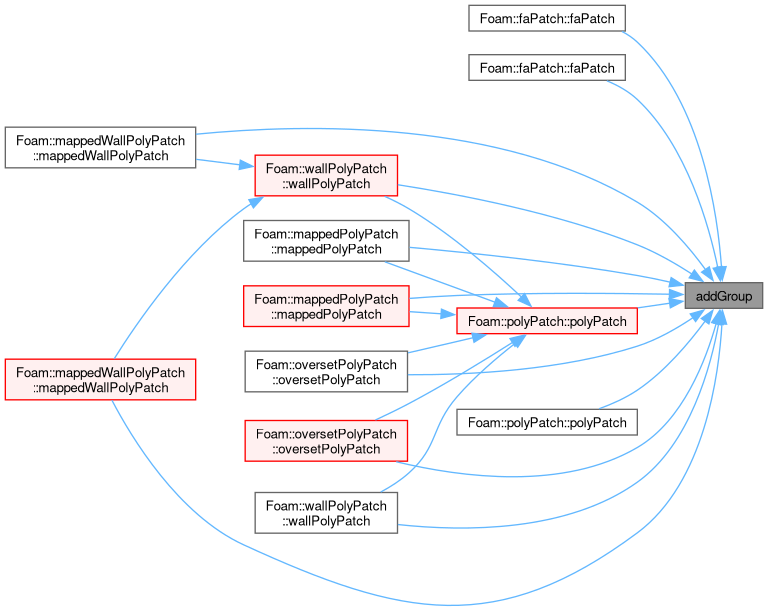

Here is the caller graph for this function:

removeGroup()

void removeGroup

(

const word &

name

)

Remove group for the patch.

Definition at line 105 of file patchIdentifier.C.

References name().

Here is the call graph for this function:

write()

void write

(

Ostream &

os

)

const

Write (physicalType, inGroups) dictionary entries (without surrounding braces).

Definition at line 124 of file patchIdentifier.C.

References os().

Referenced by Foam::operator<<(), boundaryPatch::write(), faPatch::write(), genericPolyPatch::write(), mappedWallPolyPatch::write(), oldCyclicPolyPatch::write(), pointPatch::write(), and polyPatch::write().

Here is the call graph for this function:

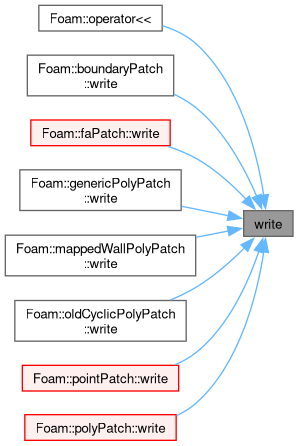

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/meshes/Identifiers/patch/patchIdentifier.H
• src/OpenFOAM/meshes/Identifiers/patch/patchIdentifier.C
