Base class for noise models. More...

#include <noiseModel.H>

Inheritance diagram for noiseModel:

[legend]

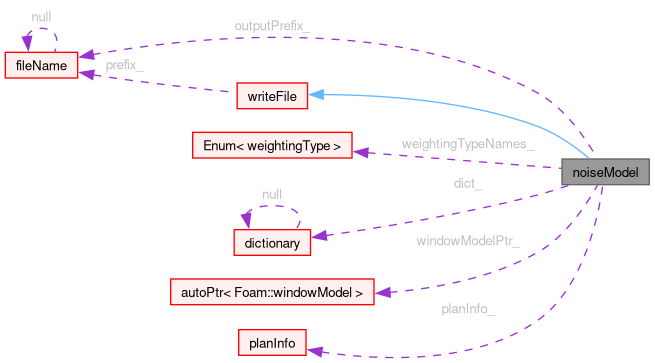

Collaboration diagram for noiseModel:

[legend]

Classes
struct	planInfo
	FFTW planner information. More...
struct	octaveBandInfo
	Octave band information. More...

Public Types
enum class	weightingType { none , dBA , dBB , dBC , dBD }

Public Member Functions
	TypeName ("noiseModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, noiseModel, dictionary,(const dictionary &dict, const objectRegistry &obr),(dict, obr))
	Run time selection table.
	noiseModel (const noiseModel &)=delete
	No copy construct.
void	operator= (const noiseModel &)=delete
	No copy assignment.
	noiseModel (const dictionary &dict, const objectRegistry &obr, const word &name, const bool readFields=true)
	Constructor.
virtual	~noiseModel ()=default
	Destructor.

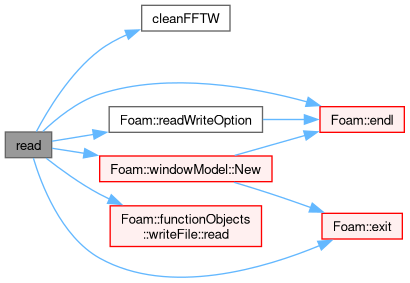

virtual bool	read (const dictionary &dict)
	Read from dictionary.
virtual void	calculate ()=0
	Abstract call to calculate.
tmp< Foam::scalarField >	PSD (const scalarField &PSDf) const
	PSD [dB/Hz].

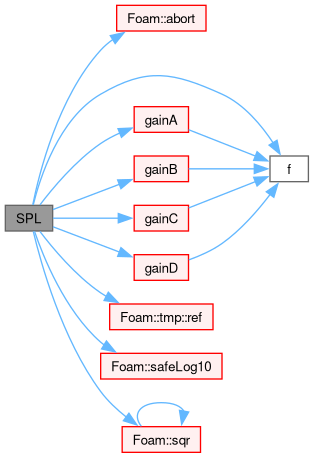

tmp< scalarField >	SPL (const scalarField &Prms2, const scalar f) const
	SPL [dB].
tmp< scalarField >	SPL (const scalarField &Prms2, const scalarField &f) const
	SPL [dB].
void	cleanFFTW ()
	Clean up the FFTW.
void	writeWeightings () const
	Helper function to check weightings.
Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name="undefined", const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName.
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name, const dictionary &dict, const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName and read options from dictionary.
	writeFile (const writeFile &wf)
	Construct copy.
virtual	~writeFile ()=default
	Destructor.
virtual const string &	setExt (const string &ext)
	Set extension.
virtual OFstream &	file ()
	Return access to the file (if only 1).
virtual bool	writeToFile () const
	Flag to allow writing to file.
virtual bool	canWriteToFile () const
	Flag to allow writing to the file.
virtual bool	canResetFile () const
	Flag to allow resetting the file.
virtual bool	canWriteHeader () const
	Flag to allow writing the header.
virtual label	charWidth () const
	Return width of character stream output.
virtual void	writeCommented (Ostream &os, const string &str) const
	Write a commented string to stream.
virtual void	writeTabbed (Ostream &os, const string &str) const
	Write a tabbed string to stream.
virtual void	writeHeader (Ostream &os, const string &str) const
	Write a commented header to stream.
virtual void	writeCurrentTime (Ostream &os) const
	Write the current time to stream.
virtual void	writeBreak (Ostream &os) const
	Write a break marker to the stream.
template<class Type>
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const
	Write a (commented) header property and value pair.
template<class Type>
void	writeValue (Ostream &os, const Type &val) const
	Write a given value to stream with the space delimiter.

Static Public Member Functions
static autoPtr< noiseModel >	New (const dictionary &dict, const objectRegistry &obr)
	Selector.

Static Public Attributes
static const Enum< weightingType >	weightingTypeNames_
Static Public Attributes inherited from writeFile
static label	addChars = 8
	Additional characters for writing.

Protected Member Functions
scalar	checkUniformTimeStep (const scalarList &times) const
	Check and return uniform time step.
bool	validateBounds (const scalarList &p) const
	Return true if all pressure data is within min/max bounds.
fileName	baseFileDir (const label dataseti) const
	Return the base output directory.
void	writeFileHeader (Ostream &os, const string &x, const string &y, const UList< Tuple2< string, token > > &headerValues=UList< Tuple2< string, token > >::null()) const
	Write output file header.
void	writeFreqDataToFile (Ostream &os, const scalarField &f, const scalarField &fx) const

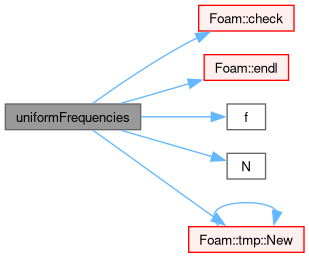

tmp< scalarField >	uniformFrequencies (const scalar deltaT, const bool check) const
	Create a field of equally spaced frequencies for the current set of data - assumes a constant time step.
tmp< scalarField >	octaves (const scalarField &data, const scalarField &f, const labelUList &freqBandIDs) const
	Generate octave data.

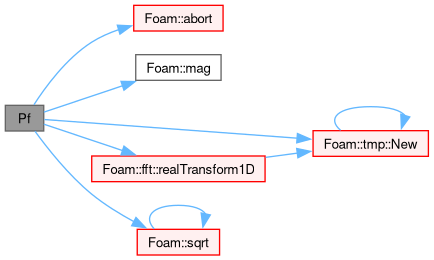

tmp< scalarField >	Pf (const scalarField &p) const
	Return the fft of the given pressure data.
tmp< scalarField >	meanPf (const scalarField &p) const
	Return the multi-window mean fft of the complete pressure data [Pa].
tmp< scalarField >	RMSmeanPf (const scalarField &p) const
	Return the multi-window RMS mean fft of the complete pressure data [Pa].
tmp< scalarField >	PSDf (const scalarField &p, const scalar deltaT) const
	Return the multi-window Power Spectral Density (PSD) of the complete pressure data [Pa^2/Hz].
scalar	RAf (const scalar f) const
	A weighting function.
scalar	gainA (const scalar f) const
	A weighting as gain in dB.
scalar	RBf (const scalar f) const
	B weighting function.
scalar	gainB (const scalar f) const
	B weighting as gain in dB.
scalar	RCf (const scalar f) const
	C weighting function.
scalar	gainC (const scalar f) const
	C weighting as gain in dB.
scalar	RDf (const scalar f) const
	D weighting function.
scalar	gainD (const scalar f) const
	D weighting as gain in dB.
Protected Member Functions inherited from writeFile
void	initStream (Ostream &os) const
	Initialise the output stream for writing.
fileName	baseFileDir () const
	Return the base directory for output.
fileName	baseTimeDir () const
	Return the base directory for the current time value.
fileName	filePath (const fileName &fName) const
	Return the full path for the supplied file name.
virtual autoPtr< OFstream >	newFile (const fileName &fName) const
	Return autoPtr to a new file using file name.
virtual autoPtr< OFstream >	newFileAtTime (const word &name, scalar timeValue) const
	Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	newFileAtStartTime (const word &name) const
	Return autoPtr to a new file using the simulation start time.
virtual void	resetFile (const word &name)
	Reset internal file pointer to new file with new name.
Omanip< int >	valueWidth (const label offset=0) const
	Return the value width when writing to stream with optional offset.
void	operator= (const writeFile &)=delete
	No copy assignment.
virtual autoPtr< OFstream >	createFile (const word &name, scalar timeValue) const
	Deprecated(2022-09) Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	createFile (const word &name) const
	Deprecated(2022-09) Return autoPtr to a new file using the simulation start time.

Static Protected Member Functions
static label	findStartTimeIndex (const instantList &allTimes, const scalar startTime)
	Find and return start time index.

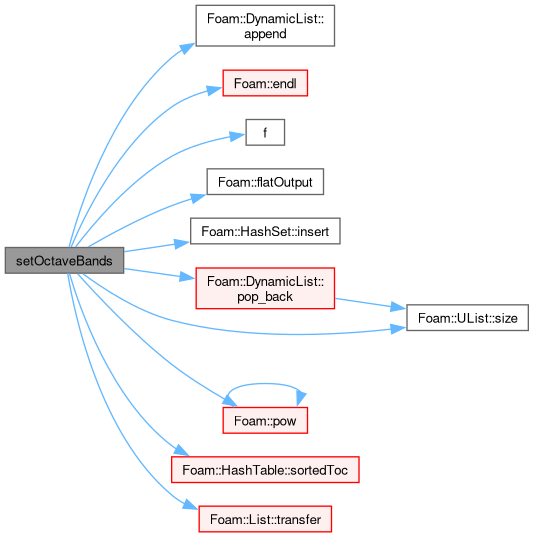

static void	setOctaveBands (const scalarField &f, const scalar fLower, const scalar fUpper, const scalar octave, labelList &fBandIDs, scalarField &fCentre)
	Return a list of the frequency indices wrt f field that correspond to the bands limits for a given octave.

Protected Attributes
const dictionary	dict_
	Copy of dictionary used for construction.
scalar	rhoRef_
	Reference density (to convert from kinematic to static pressure).
label	nSamples_
	Number of samples in sampling window, default = 2^16.
scalar	fLower_
	Lower frequency limit, default = 25Hz.
scalar	fUpper_
	Upper frequency limit, default = 10kHz.
scalar	sampleFreq_
	Prescribed sample frequency.
scalar	startTime_
	Start time, default = 0s.
autoPtr< windowModel >	windowModelPtr_
	Window model.
weightingType	SPLweighting_
	Weighting.
scalar	dBRef_
	Reference for dB calculation, default = 2e-5.
scalar	minPressure_
	Min pressure value.
scalar	maxPressure_
	Min pressure value.
fileName	outputPrefix_
	Output file prefix, default = ''.
bool	writePrmsf_
	Write Prmsf; default = yes.
bool	writeSPL_
	Write SPL; default = yes.
bool	writePSD_
	Write PSD; default = yes.
bool	writePSDf_
	Write PSDf; default = yes.
bool	writeOctaves_
	Write writeOctaves; default = yes.
planInfo	planInfo_
	Plan information for FFTW.
Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_
	Reference to the region objectRegistry.
const fileName	prefix_
	Prefix.
word	fileName_
	Name of file.
autoPtr< OFstream >	filePtr_
	File pointer.
label	writePrecision_
	Write precision.
bool	writeToFile_
	Flag to enable/disable writing to file.
bool	updateHeader_
	Flag to update the header, e.g. on mesh changes. Default is true.
bool	writtenHeader_
	Flag to identify whether the header has been written.
bool	useUserTime_
	Flag to use the specified user time, e.g. CA deg instead of seconds. Default = true.
scalar	startTime_
	Start time value.
string	ext_
	File extension; default = .dat.

Detailed Description

Base class for noise models.

Data is read from a dictionary, e.g.

rhoRef          1;
N               4096;
minFreq         25;
maxFreq         10000;
startTime       0;

outputPrefix    "test1";

SPLweighting    dBA;

// Optional write options dictionary
writeOptions
{
    writePrmsf  no;
    writeSPL    yes;
    writePSD    yes;
    writePSDf   no;
    writeOctaves yes;
}

where

Property	Description	Required	Default value
`rhoRef`	Reference density	no	1
`N`	Number of samples in sampling window	no	65536 (2^16)
`minFreq`	Lower frequency bounds (fl)	no	25
`maxFreq`	Upper frequency bounds (fu)	no	10000
`sampleFreq`	Sample frequency	no	0
`startTime`	Start time	no	0
`outputPrefix`	Prefix applied to output files	no	''
`SPLweighting`	Weighting: dBA, dBB, dBC, DBD	no	none
`dBRef`	Reference for dB calculation	no	2e-5
`writePrmsf`	Write Prmsf data	no	yes
`writeSPL`	Write SPL data	no	yes
`writePSD`	Write PSD data	no	yes
`writePSDf`	Write PSDf data	no	yes
`writeOctaves`	Write octaves data	no	yes

If provided, the sampleFreq is used to define the deltaT between samples. Otherwise the deltaT is determined from the time samples themselves.

Source files

Definition at line 175 of file noiseModel.H.

Member Enumeration Documentation

◆ weightingType

enum class weightingType

strong

Enumerator
none
dBA
dBB
dBC
dBD

Definition at line 181 of file noiseModel.H.

Constructor & Destructor Documentation

◆ noiseModel() [1/2]

noiseModel ( const noiseModel & )

delete

No copy construct.

References noiseModel().

Referenced by declareRunTimeSelectionTable(), noiseModel(), operator=(), pointNoise::pointNoise(), and surfaceNoise::surfaceNoise().

Here is the call graph for this function:

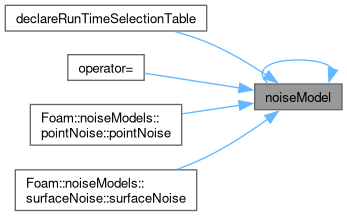

Here is the caller graph for this function:

◆ noiseModel() [2/2]

noiseModel	(	const dictionary &	dict,
		const objectRegistry &	obr,
		const word &	name,
		const bool	readFields = true )

Constructor.

Definition at line 604 of file noiseModel.C.

References dBRef_, dict, dict_, e, fLower_, fUpper_, maxPressure_, minPressure_, Foam::name(), nSamples_, outputPrefix_, planInfo_, read(), Foam::readFields(), rhoRef_, sampleFreq_, SPLweighting_, startTime_, windowModelPtr_, writeFile::writeFile(), writeOctaves_, writePrmsf_, writePSD_, writePSDf_, writeSPL_, and writeWeightings().

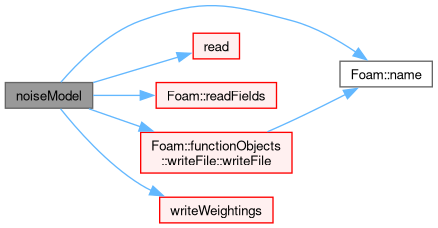

Here is the call graph for this function:

◆ ~noiseModel()

virtual ~noiseModel ( )

virtualdefault

Destructor.

References dict.

Member Function Documentation

◆ checkUniformTimeStep()

Foam::scalar checkUniformTimeStep ( const scalarList & times ) const

protected

Check and return uniform time step.

Definition at line 176 of file noiseModel.C.

References UList< T >::back(), e, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, UList< T >::front(), Foam::mag(), UList< T >::size(), and WarningInFunction.

Referenced by surfaceNoise::initialise(), and pointNoise::processData().

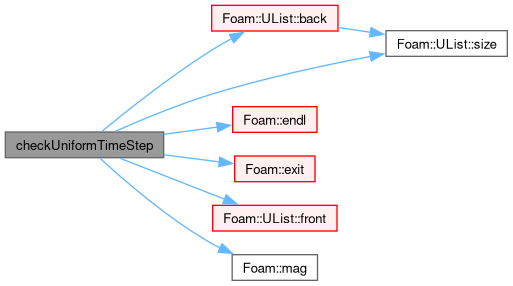

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validateBounds()

bool validateBounds ( const scalarList & p ) const

protected

Return true if all pressure data is within min/max bounds.

Definition at line 216 of file noiseModel.C.

References Foam::endl(), forAll, maxPressure_, minPressure_, Foam::nl, p, and WarningInFunction.

Referenced by pointNoise::processData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findStartTimeIndex()

label findStartTimeIndex	(	const instantList &	allTimes,
		const scalar	startTime )

inlinestaticprotected

Find and return start time index.

Definition at line 349 of file noiseModel.H.

References instant::findStart(), findStartTimeIndex(), and startTime.

Referenced by findStartTimeIndex().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ baseFileDir()

Foam::fileName baseFileDir ( const label dataseti ) const

protected

Return the base output directory.

Definition at line 238 of file noiseModel.C.

References Foam::name(), outputPrefix_, and Foam::type().

Here is the call graph for this function:

◆ writeFileHeader()

void writeFileHeader	(	Ostream &	os,
		const string &	x,
		const string &	y,
		const UList< Tuple2< string, token > > &	headerValues = UList<Tuple2<string, token>>::null() ) const

protected

Write output file header.

Definition at line 249 of file noiseModel.C.

References dBRef_, fLower_, fUpper_, Foam::nl, os(), windowModelPtr_, writeFile::writeCommented(), Foam::writeHeader(), writeFile::writeHeaderValue(), writeFile::writeTabbed(), x, and y.

Referenced by surfaceNoise::calculate(), and pointNoise::processData().

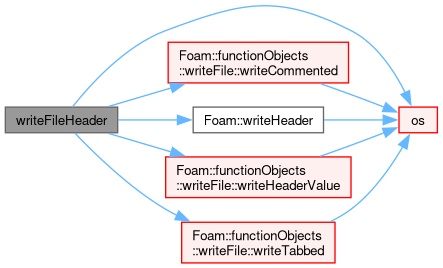

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeFreqDataToFile()

void writeFreqDataToFile	(	Ostream &	os,
		const scalarField &	f,
		const scalarField &	fx ) const

protected

Definition at line 277 of file noiseModel.C.

References f(), fLower_, forAll, fUpper_, Foam::nl, os(), and Foam::tab.

Referenced by surfaceNoise::calculate(), and pointNoise::processData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ uniformFrequencies()

Foam::tmp< Foam::scalarField > uniformFrequencies	(	const scalar	deltaT,
		const bool	check ) const

protected

Create a field of equally spaced frequencies for the current set of data - assumes a constant time step.

Definition at line 294 of file noiseModel.C.

References Foam::check(), Foam::endl(), f(), fLower_, forAll, fUpper_, N(), tmp< T >::New(), WarningInFunction, windowModelPtr_, and Foam::Zero.

Referenced by surfaceNoise::calculate(), and pointNoise::processData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setOctaveBands()

void setOctaveBands	(	const scalarField &	f,
		const scalar	fLower,
		const scalar	fUpper,
		const scalar	octave,
		labelList &	fBandIDs,
		scalarField &	fCentre )

staticprotected

Return a list of the frequency indices wrt f field that correspond to the bands limits for a given octave.

Definition at line 47 of file noiseModel.C.

References DynamicList< T, SizeMin >::append(), Foam::endl(), f(), Foam::flatOutput(), forAll, HashSet< Key, Hash >::insert(), DynamicList< T, SizeMin >::pop_back(), Foam::pow(), UList< T >::size(), HashTable< T, Key, Hash >::sortedToc(), List< T >::transfer(), and WarningInFunction.

Referenced by surfaceNoise::calculate(), and pointNoise::processData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ octaves()

Foam::tmp< Foam::scalarField > octaves	(	const scalarField &	data,
		const scalarField &	f,
		const labelUList &	freqBandIDs ) const

protected

Generate octave data.

Definition at line 331 of file noiseModel.C.

References Foam::endl(), f(), bitSet::flip(), tmp< T >::New(), bitSet::set(), PackedList< Width >::size(), UList< T >::size(), bitSet::sortedToc(), WarningInFunction, and Foam::Zero.

Referenced by surfaceNoise::calculate(), and pointNoise::processData().

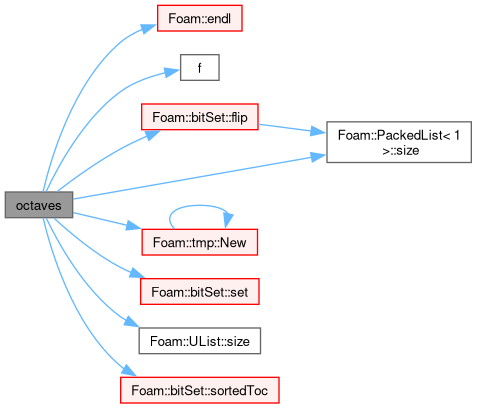

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Pf()

Foam::tmp< Foam::scalarField > Pf ( const scalarField & p ) const

protected

Return the fft of the given pressure data.

Definition at line 383 of file noiseModel.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::mag(), n, tmp< T >::New(), p, planInfo_, fft::realTransform1D(), and Foam::sqrt().

Referenced by meanPf(), PSDf(), and RMSmeanPf().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ meanPf()

Foam::tmp< Foam::scalarField > meanPf ( const scalarField & p ) const

protected

Return the multi-window mean fft of the complete pressure data [Pa].

Definition at line 426 of file noiseModel.C.

References meanPf(), N(), tmp< T >::New(), p, Pf(), windowModelPtr_, and Foam::Zero.

Referenced by meanPf().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RMSmeanPf()

Foam::tmp< Foam::scalarField > RMSmeanPf ( const scalarField & p ) const

protected

Return the multi-window RMS mean fft of the complete pressure data [Pa].

Definition at line 446 of file noiseModel.C.

References N(), p, Pf(), Foam::sqr(), Foam::sqrt(), windowModelPtr_, and Foam::Zero.

Referenced by surfaceNoise::calculate(), and pointNoise::processData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PSDf()

Foam::tmp< Foam::scalarField > PSDf	(	const scalarField &	p,
		const scalar	deltaT ) const

protected

Return the multi-window Power Spectral Density (PSD) of the complete pressure data [Pa^2/Hz].

Definition at line 465 of file noiseModel.C.

References Foam::average(), Foam::endl(), N(), tmp< T >::New(), p, Pf(), Foam::Pout, Foam::sqr(), windowModelPtr_, and Foam::Zero.

Referenced by calculate(), surfaceNoise::calculate(), pointNoise::processData(), and PSD().

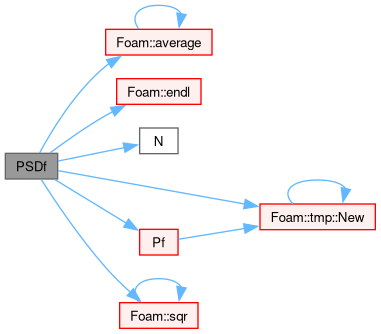

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RAf()

Foam::scalar RAf ( const scalar f ) const

protected

A weighting function.

Definition at line 501 of file noiseModel.C.

References f(), Foam::sqr(), and Foam::sqrt().

Referenced by gainA().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gainA()

Foam::scalar gainA ( const scalar f ) const

protected

A weighting as gain in dB.

Definition at line 518 of file noiseModel.C.

References f(), Foam::log10(), and RAf().

Referenced by SPL(), SPL(), and writeWeightings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RBf()

Foam::scalar RBf ( const scalar f ) const

protected

B weighting function.

Definition at line 529 of file noiseModel.C.

References f(), Foam::sqr(), and Foam::sqrt().

Referenced by gainB().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gainB()

Foam::scalar gainB ( const scalar f ) const

protected

B weighting as gain in dB.

Definition at line 545 of file noiseModel.C.

References f(), Foam::log10(), and RBf().

Referenced by SPL(), SPL(), and writeWeightings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RCf()

Foam::scalar RCf ( const scalar f ) const

protected

C weighting function.

Definition at line 556 of file noiseModel.C.

References f(), and Foam::sqr().

Referenced by gainC().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gainC()

Foam::scalar gainC ( const scalar f ) const

protected

C weighting as gain in dB.

Definition at line 567 of file noiseModel.C.

References f(), Foam::log10(), and RCf().

Referenced by SPL(), SPL(), and writeWeightings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RDf()

Foam::scalar RDf ( const scalar f ) const

protected

D weighting function.

Definition at line 578 of file noiseModel.C.

References f(), Foam::sqr(), and Foam::sqrt().

Referenced by gainD().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gainD()

Foam::scalar gainD ( const scalar f ) const

protected

D weighting as gain in dB.

Definition at line 591 of file noiseModel.C.

References f(), Foam::log10(), and RDf().

Referenced by SPL(), SPL(), and writeWeightings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "noiseModel" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		noiseModel	,
		dictionary	,
		(const dictionary &dict, const objectRegistry &obr)	,
		(dict, obr)	)

Run time selection table.

References dict, and noiseModel().

Here is the call graph for this function:

◆ operator=()

void operator= ( const noiseModel & )

delete

No copy assignment.

References dict, Foam::name(), noiseModel(), and Foam::readFields().

Here is the call graph for this function:

◆ New()

Foam::autoPtr< Foam::noiseModel > New	(	const dictionary &	dict,
		const objectRegistry &	obr )

static

Selector.

Definition at line 25 of file noiseModelNew.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and Foam::Info.

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read from dictionary.

Reimplemented from writeFile.

Reimplemented in pointNoise, and surfaceNoise.

Definition at line 649 of file noiseModel.C.

References cleanFFTW(), dBRef_, dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, fLower_, fUpper_, Foam::Info, maxPressure_, minPressure_, windowModel::New(), Foam::nl, nSamples_, outputPrefix_, planInfo_, writeFile::read(), Foam::readWriteOption(), rhoRef_, sampleFreq_, SPLweighting_, startTime_, weightingTypeNames_, windowModelPtr_, writeOctaves_, writePrmsf_, writePSD_, writePSDf_, and writeSPL_.

Referenced by noiseModel(), pointNoise::read(), and surfaceNoise::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculate()

virtual void calculate ( )

pure virtual

Abstract call to calculate.

Implemented in pointNoise, and surfaceNoise.

References f(), and PSDf().

Here is the call graph for this function:

◆ PSD()

Foam::tmp< Foam::scalarField > PSD ( const scalarField & PSDf ) const

PSD [dB/Hz].

Definition at line 757 of file noiseModel.C.

References dBRef_, PSDf(), Foam::safeLog10(), and Foam::sqr().

Referenced by surfaceNoise::calculate(), and pointNoise::processData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SPL() [1/2]

Foam::tmp< Foam::scalarField > SPL	(	const scalarField &	Prms2,
		const scalar	f ) const

SPL [dB].

Definition at line 766 of file noiseModel.C.

References Foam::abort(), dBA, dBB, dBC, dBD, dBRef_, f(), Foam::FatalError, FatalErrorInFunction, gainA(), gainB(), gainC(), gainD(), none, tmp< T >::ref(), Foam::safeLog10(), SPLweighting_, Foam::sqr(), and weightingTypeNames_.

Referenced by surfaceNoise::calculate(), and pointNoise::processData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SPL() [2/2]

Foam::tmp< Foam::scalarField > SPL	(	const scalarField &	Prms2,
		const scalarField &	f ) const

SPL [dB].

Definition at line 813 of file noiseModel.C.

References Foam::abort(), dBA, dBB, dBC, dBD, dBRef_, f(), Foam::FatalError, FatalErrorInFunction, forAll, gainA(), gainB(), gainC(), gainD(), none, tmp< T >::ref(), Foam::safeLog10(), SPLweighting_, Foam::sqr(), and weightingTypeNames_.

Here is the call graph for this function:

◆ cleanFFTW()

void cleanFFTW ( )

Clean up the FFTW.

Definition at line 872 of file noiseModel.C.

References planInfo_.

Referenced by read().

Here is the caller graph for this function:

◆ writeWeightings()

void writeWeightings ( ) const

Helper function to check weightings.

Definition at line 883 of file noiseModel.C.

References f(), gainA(), gainB(), gainC(), gainD(), and Foam::nl.

Referenced by noiseModel().

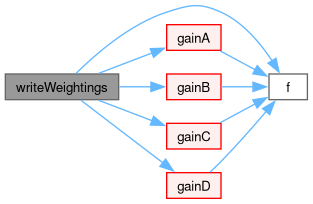

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ weightingTypeNames_

const Foam::Enum< Foam::noiseModel::weightingType > weightingTypeNames_

static

Definition at line 190 of file noiseModel.H.

Referenced by pointNoise::processData(), read(), SPL(), and SPL().

◆ dict_

const dictionary dict_

protected

Copy of dictionary used for construction.

Definition at line 228 of file noiseModel.H.

Referenced by pointNoise::calculate(), and noiseModel().

◆ rhoRef_

scalar rhoRef_

protected

Reference density (to convert from kinematic to static pressure).

Definition at line 233 of file noiseModel.H.

Referenced by noiseModel(), pointNoise::processData(), read(), and surfaceNoise::readSurfaceData().

◆ nSamples_

label nSamples_

protected

Number of samples in sampling window, default = 2^16.

Definition at line 238 of file noiseModel.H.

Referenced by noiseModel(), and read().

◆ fLower_

scalar fLower_

protected

Lower frequency limit, default = 25Hz.

Definition at line 243 of file noiseModel.H.

Referenced by surfaceNoise::calculate(), noiseModel(), pointNoise::processData(), read(), uniformFrequencies(), writeFileHeader(), and writeFreqDataToFile().

◆ fUpper_

scalar fUpper_

protected

Upper frequency limit, default = 10kHz.

Definition at line 248 of file noiseModel.H.

Referenced by surfaceNoise::calculate(), noiseModel(), pointNoise::processData(), read(), uniformFrequencies(), writeFileHeader(), and writeFreqDataToFile().

◆ sampleFreq_

scalar sampleFreq_

protected

Prescribed sample frequency.

Definition at line 253 of file noiseModel.H.

Referenced by surfaceNoise::initialise(), noiseModel(), pointNoise::processData(), and read().

◆ startTime_

scalar startTime_

protected

Start time, default = 0s.

Definition at line 258 of file noiseModel.H.

Referenced by pointNoise::filterTimeData(), surfaceNoise::initialise(), noiseModel(), and read().

◆ windowModelPtr_

autoPtr<windowModel> windowModelPtr_

protected

Window model.

Definition at line 263 of file noiseModel.H.

Referenced by surfaceNoise::calculate(), surfaceNoise::initialise(), meanPf(), noiseModel(), pointNoise::processData(), PSDf(), read(), RMSmeanPf(), uniformFrequencies(), and writeFileHeader().

◆ SPLweighting_

weightingType SPLweighting_

protected

Weighting.

Definition at line 268 of file noiseModel.H.

Referenced by noiseModel(), pointNoise::processData(), read(), SPL(), and SPL().

◆ dBRef_

scalar dBRef_

protected

Reference for dB calculation, default = 2e-5.

Definition at line 273 of file noiseModel.H.

Referenced by noiseModel(), PSD(), read(), SPL(), SPL(), and writeFileHeader().

◆ minPressure_

scalar minPressure_

protected

Min pressure value.

Definition at line 281 of file noiseModel.H.

Referenced by noiseModel(), read(), and validateBounds().

◆ maxPressure_

scalar maxPressure_

protected

Min pressure value.

Definition at line 286 of file noiseModel.H.

Referenced by noiseModel(), read(), and validateBounds().

◆ outputPrefix_

fileName outputPrefix_

protected

Output file prefix, default = ''.

Definition at line 294 of file noiseModel.H.

Referenced by baseFileDir(), noiseModel(), and read().

◆ writePrmsf_

bool writePrmsf_

protected

Write Prmsf; default = yes.

Definition at line 299 of file noiseModel.H.

Referenced by surfaceNoise::calculate(), noiseModel(), pointNoise::processData(), and read().

◆ writeSPL_

bool writeSPL_

protected

Write SPL; default = yes.

Definition at line 304 of file noiseModel.H.

Referenced by surfaceNoise::calculate(), noiseModel(), pointNoise::processData(), and read().

◆ writePSD_

bool writePSD_

protected

Write PSD; default = yes.

Definition at line 309 of file noiseModel.H.

Referenced by surfaceNoise::calculate(), noiseModel(), pointNoise::processData(), and read().

◆ writePSDf_

bool writePSDf_

protected

Write PSDf; default = yes.

Definition at line 314 of file noiseModel.H.

Referenced by surfaceNoise::calculate(), noiseModel(), pointNoise::processData(), and read().

◆ writeOctaves_

bool writeOctaves_

protected

Write writeOctaves; default = yes.

Definition at line 319 of file noiseModel.H.

Referenced by surfaceNoise::calculate(), noiseModel(), pointNoise::processData(), and read().

◆ planInfo_

planInfo planInfo_

mutableprotected

Plan information for FFTW.

Definition at line 327 of file noiseModel.H.

Referenced by cleanFFTW(), noiseModel(), Pf(), and read().

The documentation for this class was generated from the following files:

src/randomProcesses/noise/noiseModels/noiseModel/noiseModel.H
src/randomProcesses/noise/noiseModels/noiseModel/noiseModel.C
src/randomProcesses/noise/noiseModels/noiseModel/noiseModelNew.C

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ weightingType

Constructor & Destructor Documentation

◆ noiseModel() [1/2]

◆ noiseModel() [2/2]

◆ ~noiseModel()

Member Function Documentation

◆ checkUniformTimeStep()

◆ validateBounds()

◆ findStartTimeIndex()

◆ baseFileDir()

◆ writeFileHeader()

◆ writeFreqDataToFile()

◆ uniformFrequencies()

◆ setOctaveBands()

◆ octaves()

◆ Pf()

◆ meanPf()

◆ RMSmeanPf()

◆ PSDf()

◆ RAf()

◆ gainA()

◆ RBf()

◆ gainB()

◆ RCf()

◆ gainC()

◆ RDf()

◆ gainD()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ operator=()

◆ New()

◆ read()

◆ calculate()

◆ PSD()

◆ SPL() [1/2]

◆ SPL() [2/2]

◆ cleanFFTW()

◆ writeWeightings()

Member Data Documentation

◆ weightingTypeNames_

◆ dict_

◆ rhoRef_

◆ nSamples_

◆ fLower_

◆ fUpper_

◆ sampleFreq_

◆ startTime_

◆ windowModelPtr_

◆ SPLweighting_

◆ dBRef_

◆ minPressure_

◆ maxPressure_

◆ outputPrefix_

◆ writePrmsf_

◆ writeSPL_

◆ writePSD_

◆ writePSDf_

◆ writeOctaves_

◆ planInfo_
