Perform noise analysis on surface-based pressure data. More...

#include <surfaceNoise.H>

Inheritance diagram for surfaceNoise:

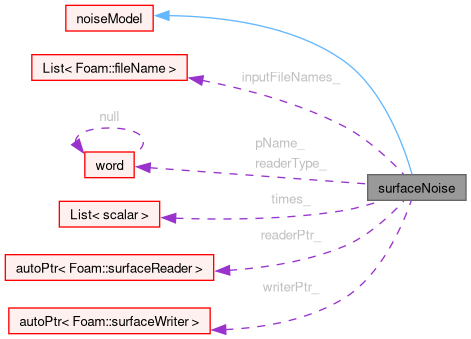

Collaboration diagram for surfaceNoise:

[legend]

Public Member Functions
	TypeName ("surfaceNoise")
	Runtime type information.
	surfaceNoise (const dictionary &dict, const objectRegistry &obr, const word &name=typeName, const bool readFields=true)
	Constructor.
virtual	~surfaceNoise ()=default
	Destructor.

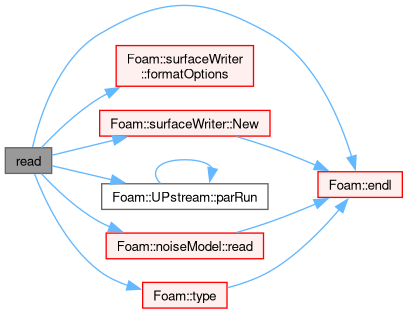

virtual bool	read (const dictionary &dict)
	Read from dictionary.

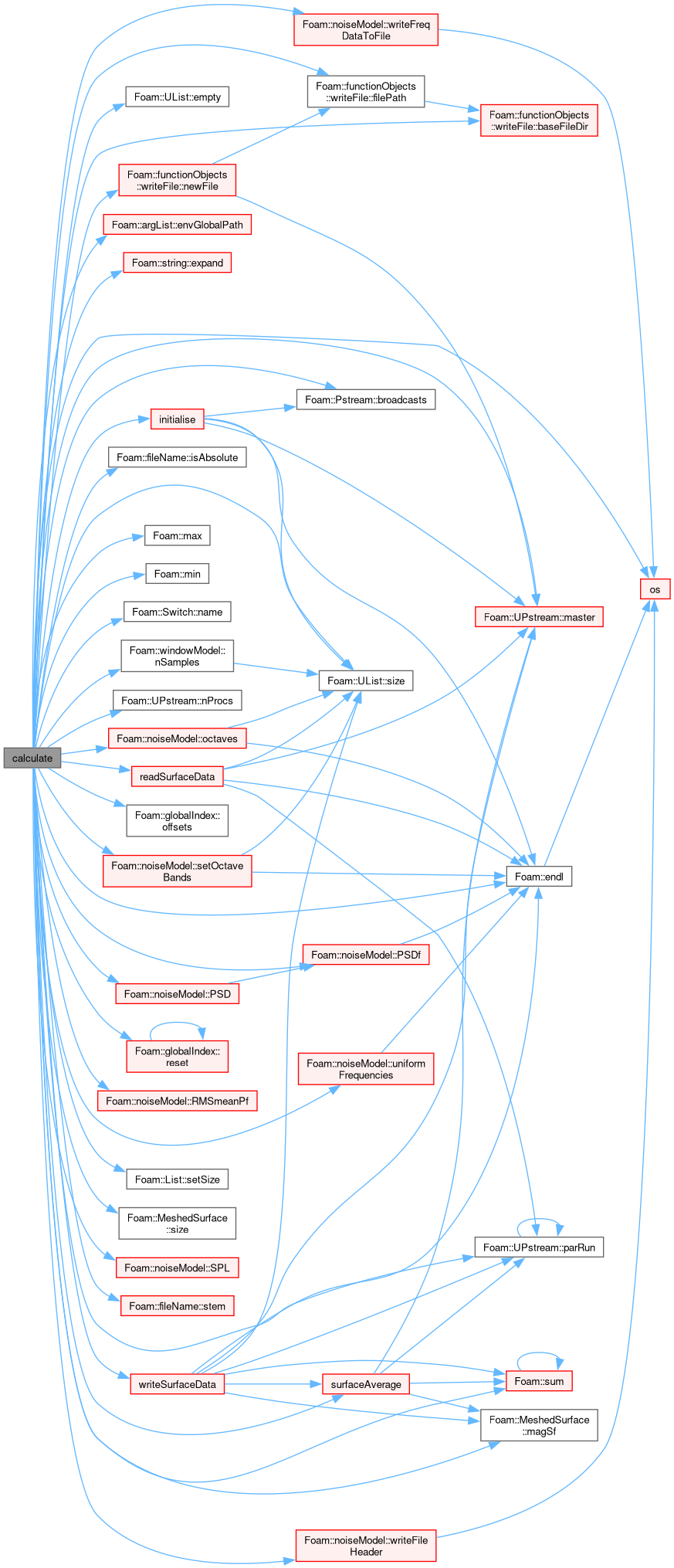

virtual void	calculate ()
	Calculate.
Public Member Functions inherited from noiseModel
	TypeName ("noiseModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, noiseModel, dictionary,(const dictionary &dict, const objectRegistry &obr),(dict, obr))
	Run time selection table.
	noiseModel (const noiseModel &)=delete
	No copy construct.
void	operator= (const noiseModel &)=delete
	No copy assignment.
	noiseModel (const dictionary &dict, const objectRegistry &obr, const word &name, const bool readFields=true)
	Constructor.
virtual	~noiseModel ()=default
	Destructor.
tmp< Foam::scalarField >	PSD (const scalarField &PSDf) const
	PSD [dB/Hz].
tmp< scalarField >	SPL (const scalarField &Prms2, const scalar f) const
	SPL [dB].
tmp< scalarField >	SPL (const scalarField &Prms2, const scalarField &f) const
	SPL [dB].
void	cleanFFTW ()
	Clean up the FFTW.
void	writeWeightings () const
	Helper function to check weightings.
Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name="undefined", const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName.
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name, const dictionary &dict, const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName and read options from dictionary.
	writeFile (const writeFile &wf)
	Construct copy.
virtual	~writeFile ()=default
	Destructor.
virtual const string &	setExt (const string &ext)
	Set extension.
virtual OFstream &	file ()
	Return access to the file (if only 1).
virtual bool	writeToFile () const
	Flag to allow writing to file.
virtual bool	canWriteToFile () const
	Flag to allow writing to the file.
virtual bool	canResetFile () const
	Flag to allow resetting the file.
virtual bool	canWriteHeader () const
	Flag to allow writing the header.
virtual label	charWidth () const
	Return width of character stream output.
virtual void	writeCommented (Ostream &os, const string &str) const
	Write a commented string to stream.
virtual void	writeTabbed (Ostream &os, const string &str) const
	Write a tabbed string to stream.
virtual void	writeHeader (Ostream &os, const string &str) const
	Write a commented header to stream.
virtual void	writeCurrentTime (Ostream &os) const
	Write the current time to stream.
virtual void	writeBreak (Ostream &os) const
	Write a break marker to the stream.
template<class Type>
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const
	Write a (commented) header property and value pair.
template<class Type>
void	writeValue (Ostream &os, const Type &val) const
	Write a given value to stream with the space delimiter.

Protected Member Functions
void	initialise (const fileName &fName)
	Initialise.
void	readSurfaceData (const globalIndex &procFaceAddr, List< scalarField > &pData)
	Read surface data.
scalar	surfaceAverage (const scalarField &data, const globalIndex &procFaceAddr) const
	Calculate the area average value.
scalar	writeSurfaceData (const fileName &outDirBase, const word &fName, const word &title, const scalar freq, const scalarField &data, const globalIndex &procFaceAddr, const bool writeSurface) const
	Write surface data to file.
Protected Member Functions inherited from noiseModel
scalar	checkUniformTimeStep (const scalarList &times) const
	Check and return uniform time step.
bool	validateBounds (const scalarList &p) const
	Return true if all pressure data is within min/max bounds.
fileName	baseFileDir (const label dataseti) const
	Return the base output directory.
void	writeFileHeader (Ostream &os, const string &x, const string &y, const UList< Tuple2< string, token > > &headerValues=UList< Tuple2< string, token > >::null()) const
	Write output file header.
void	writeFreqDataToFile (Ostream &os, const scalarField &f, const scalarField &fx) const
tmp< scalarField >	uniformFrequencies (const scalar deltaT, const bool check) const
	Create a field of equally spaced frequencies for the current set of data - assumes a constant time step.
tmp< scalarField >	octaves (const scalarField &data, const scalarField &f, const labelUList &freqBandIDs) const
	Generate octave data.
tmp< scalarField >	Pf (const scalarField &p) const
	Return the fft of the given pressure data.
tmp< scalarField >	meanPf (const scalarField &p) const
	Return the multi-window mean fft of the complete pressure data [Pa].
tmp< scalarField >	RMSmeanPf (const scalarField &p) const
	Return the multi-window RMS mean fft of the complete pressure data [Pa].
tmp< scalarField >	PSDf (const scalarField &p, const scalar deltaT) const
	Return the multi-window Power Spectral Density (PSD) of the complete pressure data [Pa^2/Hz].
scalar	RAf (const scalar f) const
	A weighting function.
scalar	gainA (const scalar f) const
	A weighting as gain in dB.
scalar	RBf (const scalar f) const
	B weighting function.
scalar	gainB (const scalar f) const
	B weighting as gain in dB.
scalar	RCf (const scalar f) const
	C weighting function.
scalar	gainC (const scalar f) const
	C weighting as gain in dB.
scalar	RDf (const scalar f) const
	D weighting function.
scalar	gainD (const scalar f) const
	D weighting as gain in dB.
Protected Member Functions inherited from writeFile
void	initStream (Ostream &os) const
	Initialise the output stream for writing.
fileName	baseFileDir () const
	Return the base directory for output.
fileName	baseTimeDir () const
	Return the base directory for the current time value.
fileName	filePath (const fileName &fName) const
	Return the full path for the supplied file name.
virtual autoPtr< OFstream >	newFile (const fileName &fName) const
	Return autoPtr to a new file using file name.
virtual autoPtr< OFstream >	newFileAtTime (const word &name, scalar timeValue) const
	Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	newFileAtStartTime (const word &name) const
	Return autoPtr to a new file using the simulation start time.
virtual void	resetFile (const word &name)
	Reset internal file pointer to new file with new name.
Omanip< int >	valueWidth (const label offset=0) const
	Return the value width when writing to stream with optional offset.
void	operator= (const writeFile &)=delete
	No copy assignment.
virtual autoPtr< OFstream >	createFile (const word &name, scalar timeValue) const
	Deprecated(2022-09) Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	createFile (const word &name) const
	Deprecated(2022-09) Return autoPtr to a new file using the simulation start time.

Protected Attributes
List< fileName >	inputFileNames_
	Input file names.
word	pName_
	Name of pressure field.
label	pIndex_
	Index of pressure field in reader field list.
scalarList	times_
	Sample times.
scalar	deltaT_
	Time step (constant).
label	startTimeIndex_
	Start time index.
label	nFaces_
	Global number of surface faces.
label	fftWriteInterval_
	Frequency data output interval, default = 1.
bool	areaAverage_
	Apply area average; default = no (ensemble average) for backwards compatibility.
bool	useBroadcast_
	Use broadcast to send entire field to sub-ranks.
UPstream::commsTypes	commType_
	Communication type (for sending/receiving fields).
word	readerType_
	Reader type.
autoPtr< surfaceReader >	readerPtr_
	Pointer to the surface reader.
autoPtr< surfaceWriter >	writerPtr_
	Pointer to the surface writer.
Protected Attributes inherited from noiseModel
const dictionary	dict_
	Copy of dictionary used for construction.
scalar	rhoRef_
	Reference density (to convert from kinematic to static pressure).
label	nSamples_
	Number of samples in sampling window, default = 2^16.
scalar	fLower_
	Lower frequency limit, default = 25Hz.
scalar	fUpper_
	Upper frequency limit, default = 10kHz.
scalar	sampleFreq_
	Prescribed sample frequency.
scalar	startTime_
	Start time, default = 0s.
autoPtr< windowModel >	windowModelPtr_
	Window model.
weightingType	SPLweighting_
	Weighting.
scalar	dBRef_
	Reference for dB calculation, default = 2e-5.
scalar	minPressure_
	Min pressure value.
scalar	maxPressure_
	Min pressure value.
fileName	outputPrefix_
	Output file prefix, default = ''.
bool	writePrmsf_
	Write Prmsf; default = yes.
bool	writeSPL_
	Write SPL; default = yes.
bool	writePSD_
	Write PSD; default = yes.
bool	writePSDf_
	Write PSDf; default = yes.
bool	writeOctaves_
	Write writeOctaves; default = yes.
planInfo	planInfo_
	Plan information for FFTW.
Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_
	Reference to the region objectRegistry.
const fileName	prefix_
	Prefix.
word	fileName_
	Name of file.
autoPtr< OFstream >	filePtr_
	File pointer.
label	writePrecision_
	Write precision.
bool	writeToFile_
	Flag to enable/disable writing to file.
bool	updateHeader_
	Flag to update the header, e.g. on mesh changes. Default is true.
bool	writtenHeader_
	Flag to identify whether the header has been written.
bool	useUserTime_
	Flag to use the specified user time, e.g. CA deg instead of seconds. Default = true.
scalar	startTime_
	Start time value.
string	ext_
	File extension; default = .dat.

Additional Inherited Members
Public Types inherited from noiseModel
enum class	weightingType { none , dBA , dBB , dBC , dBD }
Static Public Member Functions inherited from noiseModel
static autoPtr< noiseModel >	New (const dictionary &dict, const objectRegistry &obr)
	Selector.
Static Public Attributes inherited from noiseModel
static const Enum< weightingType >	weightingTypeNames_
Static Public Attributes inherited from writeFile
static label	addChars = 8
	Additional characters for writing.
Static Protected Member Functions inherited from noiseModel
static label	findStartTimeIndex (const instantList &allTimes, const scalar startTime)
	Find and return start time index.
static void	setOctaveBands (const scalarField &f, const scalar fLower, const scalar fUpper, const scalar octave, labelList &fBandIDs, scalarField &fCentre)
	Return a list of the frequency indices wrt f field that correspond to the bands limits for a given octave.

Detailed Description

Perform noise analysis on surface-based pressure data.

Input data is read from a dictionary, e.g.

// Pressure reference
pRef            0;

// Number of samples in sampling window, default = 2^16 (=65536)
N               4096;

// Lower frequency bounds
fl              25;

// Upper frequency bounds
fu              25;

// Start time
startTime       0;

windowModel     <modelType>
<modelType>Coeffs
{
    ...
}

// Input file
file            "postProcessing/faceSource1/surface/patch/patch.case";
//files           ("postProcessing/faceSource1/surface/patch/patch.case");

// Write interval for FFT data, default = 1
fftWriteInterval 100;

// Area-weighted averaging switch, default = no (ensemble) for backwards
// compatibility
areaAverage     yes;

// Surface reader
reader          ensight;

// Surface writer
writer          ensight;  // none

// Collate times for ensight output - ensures geometry is only written once
writeOptions
{
    ensight
    {
        collateTimes true;
    }

    // Write Prmsf; default = yes
    writePrmsf  no;

    // Write SPL; default = yes
    writeSPL    yes;

    // Write PSD; default = yes
    writePSD    yes;

    // Write PSDf; default = yes
    writePSDf   no;

    // Write writeOctaves; default = yes
    writeOctaves yes;
}

Communication Options

Property	Description	Type	Req'd	Dflt
`commsType`	Communication type for send/receive field	word	no	scheduled
`broadcast`	(Experimental) broadcast all fields	bool	no	false

Source files

See also: noiseModel.H

Definition at line 151 of file surfaceNoise.H.

Constructor & Destructor Documentation

◆ surfaceNoise()

surfaceNoise	(	const dictionary &	dict,
		const objectRegistry &	obr,
		const word &	name = typeName,
		const bool	readFields = true )

Constructor.

Definition at line 421 of file surfaceNoise.C.

References areaAverage_, commType_, deltaT_, dict, fftWriteInterval_, inputFileNames_, Foam::name(), nFaces_, noiseModel::noiseModel(), pIndex_, pName_, read(), readerPtr_, readerType_, Foam::readFields(), startTimeIndex_, times_, useBroadcast_, and writerPtr_.

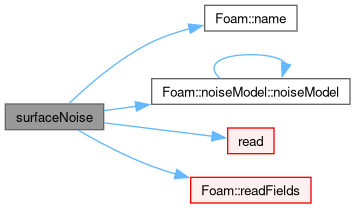

Here is the call graph for this function:

◆ ~surfaceNoise()

virtual ~surfaceNoise ( )

virtualdefault

Destructor.

References dict.

Member Function Documentation

◆ initialise()

void initialise ( const fileName & fName )

protected

Initialise.

Definition at line 42 of file surfaceNoise.C.

References Pstream::broadcasts(), noiseModel::checkUniformTimeStep(), deltaT_, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, writeFile::fileObr_, UList< T >::find(), instant::findStart(), forAll, Foam::Info, UPstream::master(), surfaceReader::New(), PrimitivePatch< FaceList, PointField >::nFaces(), nFaces_, pIndex_, pName_, readerPtr_, readerType_, noiseModel::sampleFreq_, UList< T >::size(), noiseModel::startTime_, startTimeIndex_, times_, noiseModel::windowModelPtr_, and UPstream::worldComm.

Referenced by calculate().

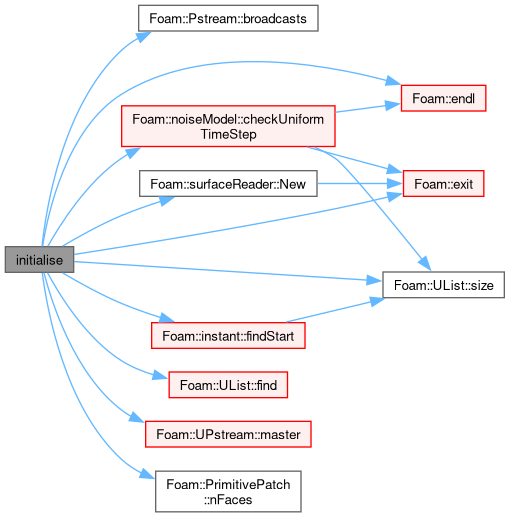

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readSurfaceData()

void readSurfaceData	(	const globalIndex &	procFaceAddr,
		List< scalarField > &	pData )

protected

Read surface data.

Definition at line 125 of file surfaceNoise.C.

References Foam::average(), UPstream::broadcast, commType_, Foam::endl(), forAll, Foam::Info, globalIndex::localSize(), UPstream::master(), UPstream::msgType(), Foam::nl, UPstream::parRun(), pIndex_, globalIndex::range(), readerPtr_, List< T >::resize(), List< T >::resize_nocopy(), Foam::returnReduce(), noiseModel::rhoRef_, globalIndex::scatter(), UList< T >::size(), Field< Type >::slice(), startTimeIndex_, times_, useBroadcast_, and UPstream::worldComm.

Referenced by calculate().

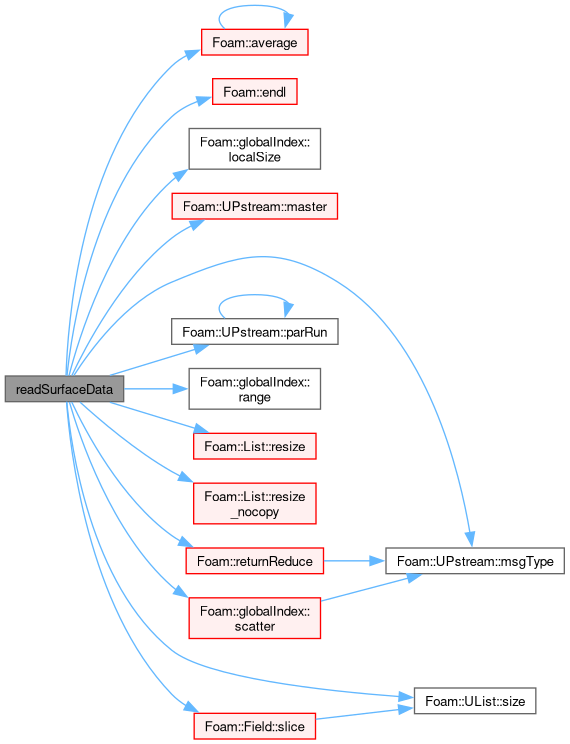

Here is the call graph for this function:

Here is the caller graph for this function:

◆ surfaceAverage()

scalar surfaceAverage	(	const scalarField &	data,
		const globalIndex &	procFaceAddr ) const

protected

Calculate the area average value.

Definition at line 251 of file surfaceNoise.C.

References areaAverage_, UPstream::broadcast, commType_, globalIndex::gather(), MeshedSurface< Face >::magSf(), UPstream::master(), UPstream::msgType(), nFaces_, UPstream::parRun(), readerPtr_, Foam::reduce(), Foam::sum(), and UPstream::worldComm.

Referenced by calculate(), and writeSurfaceData().

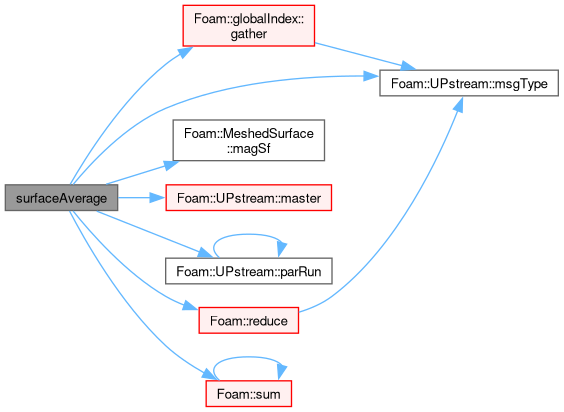

Here is the call graph for this function:

Here is the caller graph for this function:

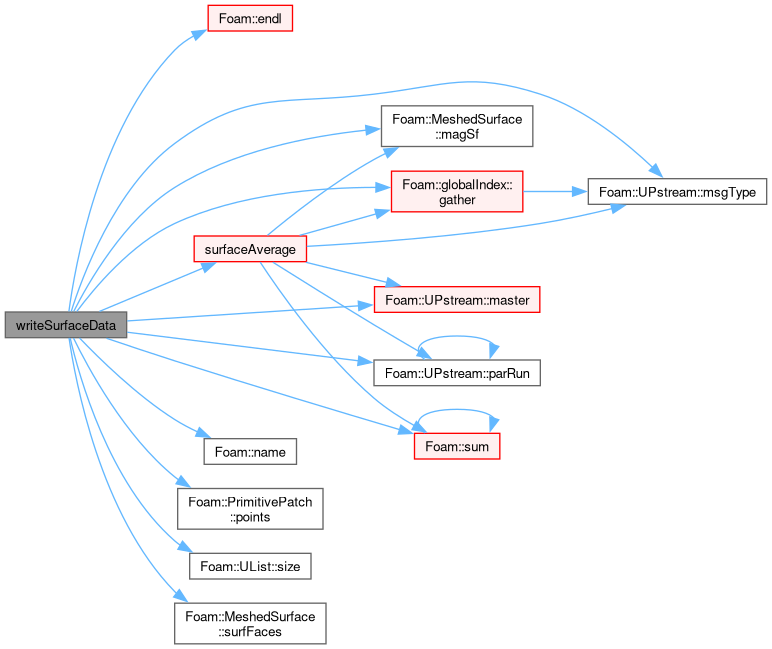

◆ writeSurfaceData()

scalar writeSurfaceData	(	const fileName &	outDirBase,
		const word &	fName,
		const word &	title,
		const scalar	freq,
		const scalarField &	data,
		const globalIndex &	procFaceAddr,
		const bool	writeSurface ) const
