This temperature boundary condition averages the temperature over the "outlet" patch specified by name "outletPatchName" and applies an extra heat source. This is set as a uniform temperature value on this patch. Additionally TMin/TMax limits can be applied. More...

#include <outletMappedUniformInletHeatAdditionFvPatchField.H>

Inheritance diagram for outletMappedUniformInletHeatAdditionFvPatchField:

[legend]

Collaboration diagram for outletMappedUniformInletHeatAdditionFvPatchField:

[legend]

Public Member Functions
	TypeName ("outletMappedUniformInletHeatAddition")
	Runtime type information.
	outletMappedUniformInletHeatAdditionFvPatchField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	outletMappedUniformInletHeatAdditionFvPatchField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	outletMappedUniformInletHeatAdditionFvPatchField (const outletMappedUniformInletHeatAdditionFvPatchField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping onto a new patch.
	outletMappedUniformInletHeatAdditionFvPatchField (const outletMappedUniformInletHeatAdditionFvPatchField &)
	Construct as copy.
	outletMappedUniformInletHeatAdditionFvPatchField (const outletMappedUniformInletHeatAdditionFvPatchField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
const word &	outletPatchName () const
	Name of the outlet patch to be mapped.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.

Detailed Description

This temperature boundary condition averages the temperature over the "outlet" patch specified by name "outletPatchName" and applies an extra heat source. This is set as a uniform temperature value on this patch. Additionally TMin/TMax limits can be applied.

Patch usage

Property	Description	Required	Default value
`outletPatch`	name of outlet patch	yes
`Q`	Heat addition	yes
`phi`	flux field name	no	phi
`TMin`	min temperature limit	no	0.0
`TMax`	max temperature limit	no	5000.0

Example of the boundary condition specification:

    myPatch
    {
        type            outletMappedUniformInletHeatAddition;
        outletPatch     aPatch;
        Q               10;     // Heat addition in W
        phi             phi;
        value           uniform 0;
    }

See also: Foam::fixedValueFvPatchField

Source files

Definition at line 110 of file outletMappedUniformInletHeatAdditionFvPatchField.H.

Constructor & Destructor Documentation

◆ outletMappedUniformInletHeatAdditionFvPatchField() [1/5]

outletMappedUniformInletHeatAdditionFvPatchField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 29 of file outletMappedUniformInletHeatAdditionFvPatchField.C.

References p.

Referenced by outletMappedUniformInletHeatAdditionFvPatchField(), outletMappedUniformInletHeatAdditionFvPatchField(), outletMappedUniformInletHeatAdditionFvPatchField(), and TypeName().

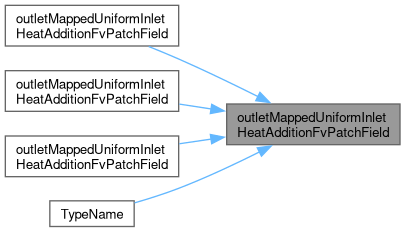

Here is the caller graph for this function:

◆ outletMappedUniformInletHeatAdditionFvPatchField() [2/5]

outletMappedUniformInletHeatAdditionFvPatchField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 63 of file outletMappedUniformInletHeatAdditionFvPatchField.C.

References dict, Foam::New(), and p.

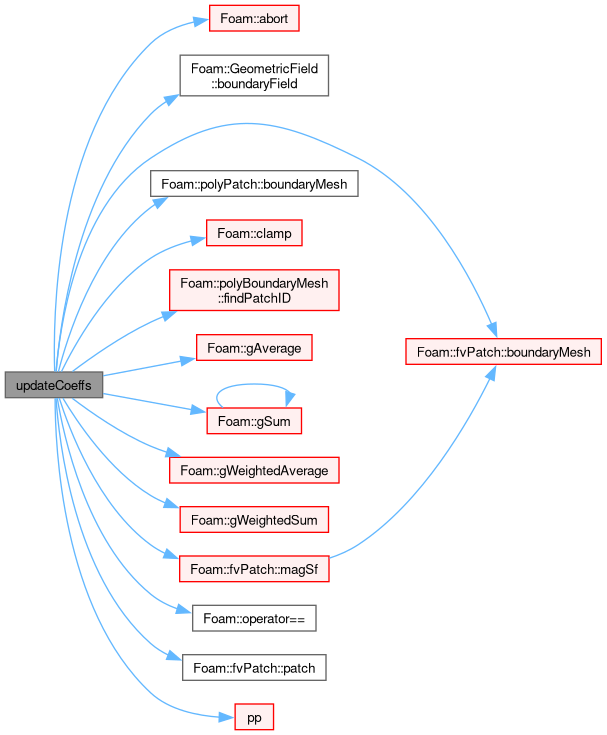

Here is the call graph for this function:

◆ outletMappedUniformInletHeatAdditionFvPatchField() [3/5]

outletMappedUniformInletHeatAdditionFvPatchField	(	const outletMappedUniformInletHeatAdditionFvPatchField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping onto a new patch.

Definition at line 45 of file outletMappedUniformInletHeatAdditionFvPatchField.C.

References clone(), outletMappedUniformInletHeatAdditionFvPatchField(), and p.

Here is the call graph for this function:

◆ outletMappedUniformInletHeatAdditionFvPatchField() [4/5]

outletMappedUniformInletHeatAdditionFvPatchField ( const outletMappedUniformInletHeatAdditionFvPatchField & ptf )

Construct as copy.

Definition at line 81 of file outletMappedUniformInletHeatAdditionFvPatchField.C.

References clone(), and outletMappedUniformInletHeatAdditionFvPatchField().

Here is the call graph for this function:

◆ outletMappedUniformInletHeatAdditionFvPatchField() [5/5]

outletMappedUniformInletHeatAdditionFvPatchField	(	const outletMappedUniformInletHeatAdditionFvPatchField &	ptf,
		const DimensionedField< scalar, volMesh > &	iF )
