Transport of regions for use in PatchEdgeFaceWave. More...

#include <patchEdgeFaceRegions.H>

Public Member Functions
	patchEdgeFaceRegions ()
	Default construct.
	patchEdgeFaceRegions (const labelList &regions)
	Construct from regions.
	patchEdgeFaceRegions (const labelPair &regions)
	Construct from regions (on edge).
const labelList &	regions () const
labelList &	regions ()
template<class TrackingData>
bool	valid (TrackingData &td) const
	Changed or contains original (invalid) value.
template<class Patch, class TrackingData>
void	transform (const polyMesh &mesh, const Patch &patch, const tensor &rotTensor, const scalar tol, TrackingData &td)
	Apply rotation matrix.
template<class Patch, class TrackingData>
bool	updateEdge (const polyMesh &mesh, const Patch &patch, const label edgeI, const label facei, const patchEdgeFaceRegions &faceInfo, const scalar tol, TrackingData &td)
	Influence of face on edge.
template<class Patch, class TrackingData>
bool	updateEdge (const polyMesh &mesh, const Patch &patch, const patchEdgeFaceRegions &edgeInfo, const bool sameOrientation, const scalar tol, TrackingData &td)
	New information for edge (from e.g. coupled edge).
template<class Patch, class TrackingData>
bool	updateFace (const polyMesh &mesh, const Patch &patch, const label facei, const label edgeI, const patchEdgeFaceRegions &edgeInfo, const scalar tol, TrackingData &td)
	Influence of edge on face.
template<class TrackingData>
bool	equal (const patchEdgeFaceRegions &, TrackingData &) const
	Test for equality, with TrackingData.
bool	operator== (const patchEdgeFaceRegions &) const
	Test for equality.
bool	operator!= (const patchEdgeFaceRegions &) const
	Test for inequality.

Friends
Ostream &	operator<< (Ostream &, const patchEdgeFaceRegions &)
Istream &	operator>> (Istream &, patchEdgeFaceRegions &)

Detailed Description

Transport of regions for use in PatchEdgeFaceWave.

Set element to -1 to denote blocked.

Source files

Definition at line 59 of file patchEdgeFaceRegions.H.

Constructor & Destructor Documentation

◆ patchEdgeFaceRegions() [1/3]

patchEdgeFaceRegions ( )

inline

Default construct.

Definition at line 26 of file patchEdgeFaceRegionsI.H.

Referenced by equal(), operator!=(), operator<<, operator==(), operator>>, updateEdge(), updateEdge(), and updateFace().

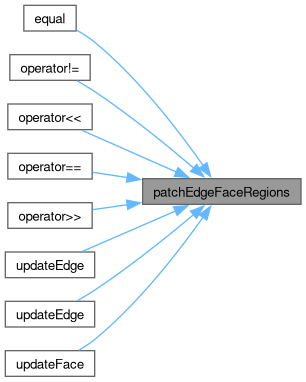

Here is the caller graph for this function:

◆ patchEdgeFaceRegions() [2/3]

patchEdgeFaceRegions ( const labelList & regions )

inline

Construct from regions.

Definition at line 30 of file patchEdgeFaceRegionsI.H.

References regions().

Here is the call graph for this function:

◆ patchEdgeFaceRegions() [3/3]

patchEdgeFaceRegions ( const labelPair & regions )

inline

Construct from regions (on edge).

Definition at line 39 of file patchEdgeFaceRegionsI.H.

References regions().

Here is the call graph for this function:

Member Function Documentation

◆ regions() [1/2]

const labelList & regions ( ) const

inline

Definition at line 92 of file patchEdgeFaceRegions.H.

Referenced by patchEdgeFaceRegions(), and patchEdgeFaceRegions().

Here is the caller graph for this function:

◆ regions() [2/2]

labelList & regions ( )

inline

Definition at line 96 of file patchEdgeFaceRegions.H.

◆ valid()

template<class TrackingData>

bool valid ( TrackingData & td ) const

inline

Changed or contains original (invalid) value.

Definition at line 54 of file patchEdgeFaceRegionsI.H.

References Foam::labelMax, and td().

Referenced by updateEdge(), updateEdge(), and updateFace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transform()

template<class Patch, class TrackingData>

void transform	(	const polyMesh &	mesh,
		const Patch &	patch,
		const tensor &	rotTensor,
		const scalar	tol,
		TrackingData &	td )

inline

Apply rotation matrix.

Definition at line 61 of file patchEdgeFaceRegionsI.H.

References mesh, and td().

Here is the call graph for this function:

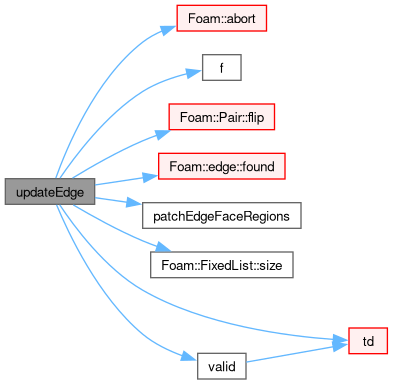

◆ updateEdge() [1/2]

template<class Patch, class TrackingData>

bool updateEdge	(	const polyMesh &	mesh,
		const Patch &	patch,
		const label	edgeI,
		const label	facei,
		const patchEdgeFaceRegions &	faceInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of face on edge.

Definition at line 73 of file patchEdgeFaceRegionsI.H.

References Foam::abort(), e, f(), Foam::FatalError, FatalErrorInFunction, Pair< T >::flip(), forAll, edge::found(), Foam::labelMax, mesh, patchEdgeFaceRegions(), FixedList< T, N >::size(), td(), and valid().

Here is the call graph for this function:

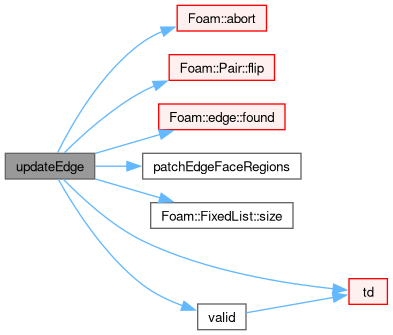

◆ updateEdge() [2/2]

template<class Patch, class TrackingData>

bool updateEdge	(	const polyMesh &	mesh,
		const Patch &	patch,
		const patchEdgeFaceRegions &	edgeInfo,
		const bool	sameOrientation,
		const scalar	tol,
		TrackingData &	td )

inline

New information for edge (from e.g. coupled edge).

Definition at line 130 of file patchEdgeFaceRegionsI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, Pair< T >::flip(), forAll, edge::found(), Foam::labelMax, mesh, patchEdgeFaceRegions(), FixedList< T, N >::size(), td(), and valid().

Here is the call graph for this function:

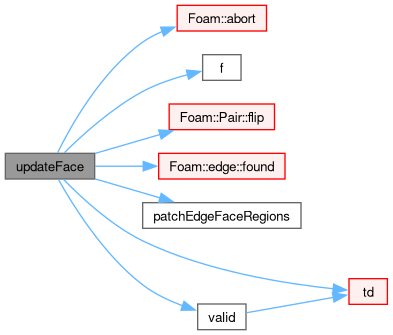

◆ updateFace()

template<class Patch, class TrackingData>

bool updateFace	(	const polyMesh &	mesh,
		const Patch &	patch,
		const label	facei,
		const label	edgeI,
		const patchEdgeFaceRegions &	edgeInfo,
		const scalar	tol,
		TrackingData &	td )
