Transport of orientation for use in PatchEdgeFaceWave. More...

#include <patchFaceOrientation.H>

Public Member Functions
	patchFaceOrientation ()
	Default construct.
	patchFaceOrientation (const label)
	Construct from components.
label	flipStatus () const
	Orientation.
void	flip ()
	Reverse the orientation.
template<class TrackingData>
bool	valid (TrackingData &td) const
	Changed or contains original (invalid) value.
template<class TrackingData>
void	transform (const polyMesh &mesh, const indirectPrimitivePatch &patch, const tensor &rotTensor, const scalar tol, TrackingData &td)
	Apply rotation matrix.
template<class TrackingData>
bool	updateEdge (const polyMesh &mesh, const indirectPrimitivePatch &patch, const label edgeI, const label facei, const patchFaceOrientation &faceInfo, const scalar tol, TrackingData &td)
	Influence of face on edge.
template<class TrackingData>
bool	updateEdge (const polyMesh &mesh, const indirectPrimitivePatch &patch, const patchFaceOrientation &edgeInfo, const bool sameOrientation, const scalar tol, TrackingData &td)
	New information for edge (from e.g. coupled edge).
template<class TrackingData>
bool	updateFace (const polyMesh &mesh, const indirectPrimitivePatch &patch, const label facei, const label edgeI, const patchFaceOrientation &edgeInfo, const scalar tol, TrackingData &td)
	Influence of edge on face.
template<class TrackingData>
bool	equal (const patchFaceOrientation &, TrackingData &) const
	Test for equality, with TrackingData.
bool	operator== (const patchFaceOrientation &) const
	Test for equality.
bool	operator!= (const patchFaceOrientation &) const
	Test for equality.

Friends
Ostream &	operator<< (Ostream &, const patchFaceOrientation &)
Istream &	operator>> (Istream &, patchFaceOrientation &)

Detailed Description

Transport of orientation for use in PatchEdgeFaceWave.

Source files

Definition at line 56 of file patchFaceOrientation.H.

Constructor & Destructor Documentation

◆ patchFaceOrientation() [1/2]

patchFaceOrientation ( )

inline

Default construct.

Definition at line 28 of file patchFaceOrientationI.H.

Referenced by equal(), operator!=(), operator<<, operator==(), operator>>, updateEdge(), updateEdge(), and updateFace().

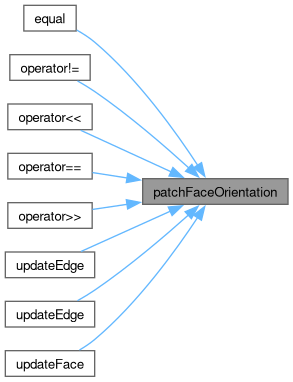

Here is the caller graph for this function:

◆ patchFaceOrientation() [2/2]

patchFaceOrientation ( const label flipStatus )

inline

Construct from components.

Definition at line 34 of file patchFaceOrientationI.H.

References flipStatus().

Here is the call graph for this function:

Member Function Documentation

◆ flipStatus()

label flipStatus ( ) const

inline

Orientation.

Definition at line 87 of file patchFaceOrientation.H.

Referenced by patchFaceOrientation().

Here is the caller graph for this function:

◆ flip()

void flip ( )

inline

Reverse the orientation.

Definition at line 45 of file patchFaceOrientationI.H.

References orientedSurface::FLIP, and orientedSurface::NOFLIP.

Referenced by updateEdge(), updateEdge(), and updateFace().

Here is the caller graph for this function:

◆ valid()

template<class TrackingData>

bool valid ( TrackingData & td ) const

inline

Changed or contains original (invalid) value.

Definition at line 59 of file patchFaceOrientationI.H.

References td(), and orientedSurface::UNVISITED.

Referenced by updateEdge(), updateEdge(), and updateFace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transform()

template<class TrackingData>

void transform	(	const polyMesh &	mesh,
		const indirectPrimitivePatch &	patch,
		const tensor &	rotTensor,
		const scalar	tol,
		TrackingData &	td )

inline

Apply rotation matrix.

Definition at line 66 of file patchFaceOrientationI.H.

References mesh, and td().

Here is the call graph for this function:

◆ updateEdge() [1/2]

template<class TrackingData>

bool updateEdge	(	const polyMesh &	mesh,
		const indirectPrimitivePatch &	patch,
		const label	edgeI,
		const label	facei,
		const patchFaceOrientation &	faceInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of face on edge.

Definition at line 78 of file patchFaceOrientationI.H.

References e, f(), flip(), mesh, patchFaceOrientation(), td(), and valid().

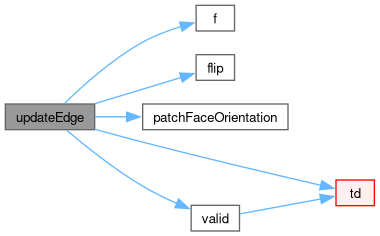

Here is the call graph for this function:

◆ updateEdge() [2/2]

template<class TrackingData>

bool updateEdge	(	const polyMesh &	mesh,
		const indirectPrimitivePatch &	patch,
		const patchFaceOrientation &	edgeInfo,
		const bool	sameOrientation,
		const scalar	tol,
		TrackingData &	td )

inline

New information for edge (from e.g. coupled edge).

Definition at line 116 of file patchFaceOrientationI.H.

References flip(), mesh, patchFaceOrientation(), td(), and valid().

Here is the call graph for this function:

◆ updateFace()

template<class TrackingData>

bool updateFace	(	const polyMesh &	mesh,
		const indirectPrimitivePatch &	patch,
		const label	facei,
		const label	edgeI,
		const patchFaceOrientation &	edgeInfo,
		const scalar	tol,
		TrackingData &	td )
