This boundary condition provides a phase-based hydrostatic pressure condition, calculated as: More...

#include <phaseHydrostaticPressureFvPatchScalarField.H>

Inheritance diagram for phaseHydrostaticPressureFvPatchScalarField:

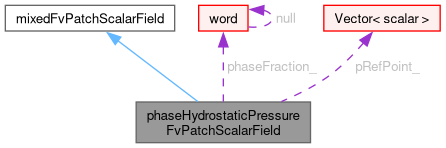

Collaboration diagram for phaseHydrostaticPressureFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("phaseHydrostaticPressure")
	Runtime type information.
	phaseHydrostaticPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	phaseHydrostaticPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	phaseHydrostaticPressureFvPatchScalarField (const phaseHydrostaticPressureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given.
	phaseHydrostaticPressureFvPatchScalarField (const phaseHydrostaticPressureFvPatchScalarField &)
	Construct as copy.
	phaseHydrostaticPressureFvPatchScalarField (const phaseHydrostaticPressureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual bool	assignable () const
	True: this patch field is altered by assignment.
const word &	phaseFraction () const
	Return the phaseFraction.
word &	phaseFraction ()
	Return reference to the phaseFraction to allow adjustment.
scalar	rho () const
	Return the constant density in the far-field.
scalar &	rho ()
	Return reference to the constant density in the far-field.
scalar	pRefValue () const
	Return the reference pressure.
scalar &	pRefValue ()
	Return reference to the reference pressure to allow adjustment.
const vector &	pRefPoint () const
	Return the pressure reference location.
vector &	pRefPoint ()
	Return reference to the pressure reference location.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.
virtual void	operator= (const fvPatchScalarField &pvf)

Protected Attributes
word	phaseFraction_
	Name of phase-fraction field.
scalar	rho_
	Constant density in the far-field.
scalar	pRefValue_
	Reference pressure.
vector	pRefPoint_
	Reference pressure location.

Detailed Description

This boundary condition provides a phase-based hydrostatic pressure condition, calculated as:

$\‍[ p_{hyd} = p_{ref} + \rho g (x - x_{ref}) \‍]$

where

$p_{hyd}$	=	hyrostatic pressure [Pa]
$p_{ref}$	=	reference pressure [Pa]
$x_{ref}$	=	reference point in Cartesian coordinates
$\rho$	=	density (assumed uniform)
	=	acceleration due to gravity [m/s2]

The values are assigned according to the phase-fraction field:

1: apply $p_{hyd}$
0: apply a zero-gradient condition

Usage

Property	Description	Required	Default value
`phaseFraction`	phase-fraction field name	no	alpha
`rho`	density field name	no	rho
`pRefValue`	reference pressure [Pa]	yes
`pRefPoint`	reference pressure location	yes

Example of the boundary condition specification:

    <patchName>
    {
        type            phaseHydrostaticPressure;
        phaseFraction   alpha1;
        rho             rho;
        pRefValue       1e5;
        pRefPoint       (0 0 0);
        value           uniform 0; // optional initial value
    }

See also: Foam::mixedFvPatchScalarField

Source files

Definition at line 137 of file phaseHydrostaticPressureFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ phaseHydrostaticPressureFvPatchScalarField() [1/5]

phaseHydrostaticPressureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 31 of file phaseHydrostaticPressureFvPatchScalarField.C.

References p, phaseFraction_, pRefPoint_, pRefValue_, rho_, and Foam::Zero.

Referenced by phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), and TypeName().

Here is the caller graph for this function:

◆ phaseHydrostaticPressureFvPatchScalarField() [2/5]

phaseHydrostaticPressureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 50 of file phaseHydrostaticPressureFvPatchScalarField.C.

References dict, fvPatchField< scalar >::operator=(), p, phaseFraction_, pRefPoint_, pRefValue_, fvPatchFieldBase::readDict(), and rho_.

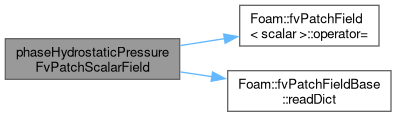

Here is the call graph for this function:

◆ phaseHydrostaticPressureFvPatchScalarField() [3/5]

phaseHydrostaticPressureFvPatchScalarField	(	const phaseHydrostaticPressureFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given.

phaseHydrostaticPressureFvPatchScalarField onto a new patch

Definition at line 78 of file phaseHydrostaticPressureFvPatchScalarField.C.

References p, phaseFraction_, phaseHydrostaticPressureFvPatchScalarField(), pRefPoint_, pRefValue_, and rho_.

Here is the call graph for this function:

◆ phaseHydrostaticPressureFvPatchScalarField() [4/5]

phaseHydrostaticPressureFvPatchScalarField ( const phaseHydrostaticPressureFvPatchScalarField & ptf )

Construct as copy.

Definition at line 95 of file phaseHydrostaticPressureFvPatchScalarField.C.

References phaseFraction_, and phaseHydrostaticPressureFvPatchScalarField().

Here is the call graph for this function:

◆ phaseHydrostaticPressureFvPatchScalarField() [5/5]

phaseHydrostaticPressureFvPatchScalarField	(	const phaseHydrostaticPressureFvPatchScalarField &	ptf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 106 of file phaseHydrostaticPressureFvPatchScalarField.C.

References phaseFraction_, phaseHydrostaticPressureFvPatchScalarField(), pRefPoint_, pRefValue_, and rho_.

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "phaseHydrostaticPressure" )

Runtime type information.

References phaseHydrostaticPressureFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 229 of file phaseHydrostaticPressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 237 of file phaseHydrostaticPressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ assignable()

virtual bool assignable ( ) const

inlinevirtual

True: this patch field is altered by assignment.

Definition at line 251 of file phaseHydrostaticPressureFvPatchScalarField.H.

◆ phaseFraction() [1/2]

const word & phaseFraction ( ) const

inline

Return the phaseFraction.

Definition at line 259 of file phaseHydrostaticPressureFvPatchScalarField.H.

References phaseFraction_.

◆ phaseFraction() [2/2]

word & phaseFraction ( )

inline

Return reference to the phaseFraction to allow adjustment.

Definition at line 267 of file phaseHydrostaticPressureFvPatchScalarField.H.

References phaseFraction_.

◆ rho() [1/2]

scalar rho ( ) const

inline

Return the constant density in the far-field.

Definition at line 275 of file phaseHydrostaticPressureFvPatchScalarField.H.

References rho_.

◆ rho() [2/2]

scalar & rho ( )

inline

Return reference to the constant density in the far-field.

to allow adjustment

Definition at line 285 of file phaseHydrostaticPressureFvPatchScalarField.H.

References rho_.

◆ pRefValue() [1/2]

scalar pRefValue ( ) const

inline

Return the reference pressure.

Definition at line 293 of file phaseHydrostaticPressureFvPatchScalarField.H.

References pRefValue_.

◆ pRefValue() [2/2]

scalar & pRefValue ( )

inline

Return reference to the reference pressure to allow adjustment.

Definition at line 301 of file phaseHydrostaticPressureFvPatchScalarField.H.

References pRefValue_.

◆ pRefPoint() [1/2]

const vector & pRefPoint ( ) const

inline

Return the pressure reference location.

Definition at line 309 of file phaseHydrostaticPressureFvPatchScalarField.H.

References pRefPoint_.

◆ pRefPoint() [2/2]

vector & pRefPoint ( )

inline

Return reference to the pressure reference location.

to allow adjustment

Definition at line 319 of file phaseHydrostaticPressureFvPatchScalarField.H.

References pRefPoint_.

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 123 of file phaseHydrostaticPressureFvPatchScalarField.C.

References Foam::clamp(), g, gravity::New(), phaseFraction_, pRefPoint_, pRefValue_, and rho_.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 149 of file phaseHydrostaticPressureFvPatchScalarField.C.

References os(), phaseFraction_, pRefPoint_, pRefValue_, rho_, fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

◆ operator=()

void operator= ( const fvPatchScalarField & pvf )

virtual

Definition at line 162 of file phaseHydrostaticPressureFvPatchScalarField.C.

References Foam::lerp().

Here is the call graph for this function:

Member Data Documentation

◆ phaseFraction_

word phaseFraction_

protected

Name of phase-fraction field.

Definition at line 149 of file phaseHydrostaticPressureFvPatchScalarField.H.

Referenced by phaseFraction(), phaseFraction(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), updateCoeffs(), and write().

◆ rho_

scalar rho_

protected

Constant density in the far-field.

Definition at line 154 of file phaseHydrostaticPressureFvPatchScalarField.H.

Referenced by phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), rho(), rho(), updateCoeffs(), and write().

◆ pRefValue_

scalar pRefValue_

protected

Reference pressure.

Definition at line 159 of file phaseHydrostaticPressureFvPatchScalarField.H.

Referenced by phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), pRefValue(), pRefValue(), updateCoeffs(), and write().

◆ pRefPoint_

vector pRefPoint_

protected

Reference pressure location.

Definition at line 164 of file phaseHydrostaticPressureFvPatchScalarField.H.

Referenced by phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), phaseHydrostaticPressureFvPatchScalarField(), pRefPoint(), pRefPoint(), updateCoeffs(), and write().

The documentation for this class was generated from the following files:

src/finiteVolume/fields/fvPatchFields/derived/phaseHydrostaticPressure/phaseHydrostaticPressureFvPatchScalarField.H
src/finiteVolume/fields/fvPatchFields/derived/phaseHydrostaticPressure/phaseHydrostaticPressureFvPatchScalarField.C
