Geometric Element Transformation Method (GETMe) point smoother. Points are moved in a direction normal to the face of the dual element. This tends to orthogonalise elements. This method can "push" as well as "pull". More...

#include <geometricElementTransformPointSmoother.H>

Inheritance diagram for geometricElementTransformPointSmoother:

[legend]

Collaboration diagram for geometricElementTransformPointSmoother:

[legend]

Public Member Functions
	TypeName ("geometricElementTransform")
	Runtime type information.
	geometricElementTransformPointSmoother (const polyMesh &mesh, const dictionary &dict)
	Construct from a dictionary and a mesh.
virtual	~geometricElementTransformPointSmoother ()=default
	Destructor.
virtual void	calculate (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes, vectorField &pointDisplacement) const
	Calculate the point displacements.
Public Member Functions inherited from pointSmoother
	TypeName ("pointSmoother")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, pointSmoother, dictionary,(const polyMesh &mesh, const dictionary &dict),(mesh, dict))
	pointSmoother (const polyMesh &mesh, const dictionary &)
	Construct from a dictionary and a point displacement field.
virtual	~pointSmoother ()=default
	Destructor.
const polyMesh &	mesh () const noexcept
	Access the mesh.
void	update (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes, pointVectorField &pointDisplacement, const bool correctBCs=true) const
	Update the point displacements and apply constraints.
void	update (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const polyMeshGeometry &meshGeometry, pointVectorField &pointDisplacement, const bool correctBCs=true) const
	Update the point displacements and apply constraints.
virtual void	calculate (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const polyMeshGeometry &meshGeometry, vectorField &pointDisplacement) const
	Update the point displacements.
virtual tmp< scalarField >	faceQuality (const pointField &points, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes) const
	Check element quality: 1 = best, 0 = invalid. (also negative?) Topology from mesh, point locations supplied. Move to motionSolver level?
virtual tmp< scalarField >	cellQuality (const pointField &points, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes) const
	Check element quality: 1 = best, 0 = invalid. Topology from mesh, point locations supplied. Move to motionSolver level?

Static Public Member Functions
static tmp< scalarField >	cellQuality (const polyMesh &mesh, const pointField &currentPoints)
Static Public Member Functions inherited from pointSmoother
static autoPtr< pointSmoother >	New (const word &pointSmootherType, const polyMesh &mesh, const dictionary &dict)
	Construct given type.
static autoPtr< pointSmoother >	New (const polyMesh &mesh, const dictionary &dict)
	Construct with type looked up from dictionary.

Additional Inherited Members
Protected Member Functions inherited from pointSmoother
bool	isInternalOrProcessorFace (const label faceI) const
	Test if the given face is internal or on a processor boundary.
bitSet	pointsToMove (const labelList &facesToMove, const bool moveInternalFaces) const
	Get list of the points to be moved.
template<class weightType>
void	reset (const labelList &facesToMove, Field< weightType > &weights, vectorField &pointDisplacement, const bool resetInternalFaces=true) const
	Reset the relevant weights and displacements to zero.
template<class weightType>
void	average (const labelList &facesToMove, Field< weightType > &weights, vectorField &pointDisplacement) const
	Average the displacements using the weights provided.

Detailed Description

Geometric Element Transformation Method (GETMe) point smoother. Points are moved in a direction normal to the face of the dual element. This tends to orthogonalise elements. This method can "push" as well as "pull".

The original references for this method only formulate it for a limited variety of specific polyhedra. This version is written for arbitrary polyhedra, and most closely follows the following reference:

    "Fast smoothing of mixed volume meshes based on the effective geometric
    element transformation method"
    Dimitris Vartziotis, Joachim Wipper,
    Comput. Methods Appl. Mech. Engrg. 201-204 (2012) 65-81

This implementation does not include the various specific measures employed in the referred article to improve the quality of types of irregular polyhedra. It also does not use the same quality criteria as these are only suitable for cell vertices with exactly three connecting edges.

Source files

Definition at line 69 of file geometricElementTransformPointSmoother.H.

Constructor & Destructor Documentation

◆ geometricElementTransformPointSmoother()

geometricElementTransformPointSmoother	(	const polyMesh &	mesh,
		const dictionary &	dict )

Construct from a dictionary and a mesh.

Definition at line 104 of file geometricElementTransformPointSmoother.C.

References dict, and pointSmoother::mesh().

Here is the call graph for this function:

◆ ~geometricElementTransformPointSmoother()

virtual ~geometricElementTransformPointSmoother ( )

virtualdefault

Destructor.

References pointSmoother::mesh().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "geometricElementTransform" )

Runtime type information.

References dict, and pointSmoother::mesh().

Here is the call graph for this function:

◆ calculate()

void calculate	(	const labelList &	facesToMove,
		const pointField &	oldPoints,
		const pointField &	currentPoints,
		const pointField &	faceCentres,
		const vectorField &	faceAreas,
		const pointField &	cellCentres,
		const scalarField &	cellVolumes,
		vectorField &	pointDisplacement ) const

virtual

Calculate the point displacements.

Implements pointSmoother.

Definition at line 121 of file geometricElementTransformPointSmoother.C.

References Foam::average(), cellPointConnectivity::cellPointFaces(), cellPointConnectivity::cellPointPoints(), cells, cell::edges(), forAll, HashSet< Key, Hash >::insert(), pointSmoother::isInternalOrProcessorFace(), cell::labels(), Foam::mag(), Foam::max(), pointSmoother::mesh(), mesh, MeshObject< Mesh, MeshObjectType, Type >::New(), nPoints, pFaces, reset(), UList< T >::size(), Foam::sqrt(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.

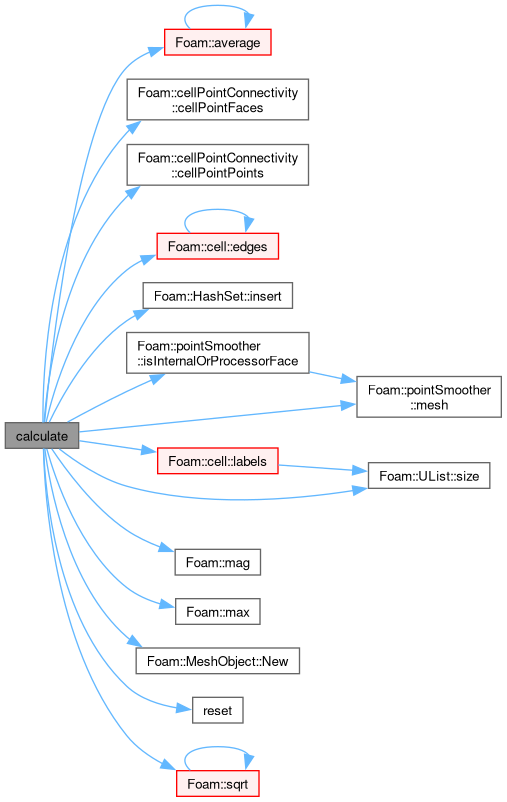

Here is the call graph for this function:

◆ cellQuality()

Foam::tmp< Foam::scalarField > cellQuality	(	const polyMesh &	mesh,
		const pointField &	currentPoints )

static

Definition at line 446 of file geometricElementTransformPointSmoother.C.

References fld(), forAll, pointSmoother::mesh(), MeshObject< Mesh, MeshObjectType, Type >::New(), tmp< T >::New(), and tmp< T >::ref().

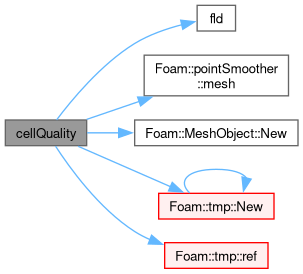

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/dynamicMesh/motionSolvers/displacement/pointSmoothing/pointSmoothers/geometricElementTransformPointSmoother/geometricElementTransformPointSmoother.H
src/dynamicMesh/motionSolvers/displacement/pointSmoothing/pointSmoothers/geometricElementTransformPointSmoother/geometricElementTransformPointSmoother.C
