Abstract base class for point smoothing methods. Handles parallel communication via reset and average functions. More...

#include <pointSmoother.H>

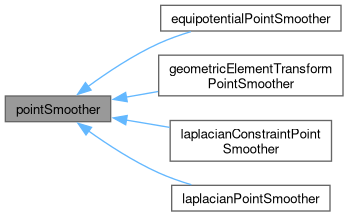

Inheritance diagram for pointSmoother:

[legend]

Public Member Functions
	TypeName ("pointSmoother")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, pointSmoother, dictionary,(const polyMesh &mesh, const dictionary &dict),(mesh, dict))
	pointSmoother (const polyMesh &mesh, const dictionary &)
	Construct from a dictionary and a point displacement field.
virtual	~pointSmoother ()=default
	Destructor.
const polyMesh &	mesh () const noexcept
	Access the mesh.
void	update (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes, pointVectorField &pointDisplacement, const bool correctBCs=true) const
	Update the point displacements and apply constraints.
void	update (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const polyMeshGeometry &meshGeometry, pointVectorField &pointDisplacement, const bool correctBCs=true) const
	Update the point displacements and apply constraints.
virtual void	calculate (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes, vectorField &pointDisplacement) const =0
	Calculate the point displacement.
virtual void	calculate (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const polyMeshGeometry &meshGeometry, vectorField &pointDisplacement) const
	Update the point displacements.
virtual tmp< scalarField >	faceQuality (const pointField &points, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes) const
	Check element quality: 1 = best, 0 = invalid. (also negative?) Topology from mesh, point locations supplied. Move to motionSolver level?
virtual tmp< scalarField >	cellQuality (const pointField &points, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes) const
	Check element quality: 1 = best, 0 = invalid. Topology from mesh, point locations supplied. Move to motionSolver level?

Static Public Member Functions
static autoPtr< pointSmoother >	New (const word &pointSmootherType, const polyMesh &mesh, const dictionary &dict)
	Construct given type.
static autoPtr< pointSmoother >	New (const polyMesh &mesh, const dictionary &dict)
	Construct with type looked up from dictionary.

Protected Member Functions
bool	isInternalOrProcessorFace (const label faceI) const
	Test if the given face is internal or on a processor boundary.
bitSet	pointsToMove (const labelList &facesToMove, const bool moveInternalFaces) const
	Get list of the points to be moved.
template<class weightType>
void	reset (const labelList &facesToMove, Field< weightType > &weights, vectorField &pointDisplacement, const bool resetInternalFaces=true) const
	Reset the relevant weights and displacements to zero.
template<class weightType>
void	average (const labelList &facesToMove, Field< weightType > &weights, vectorField &pointDisplacement) const
	Average the displacements using the weights provided.

Detailed Description

Abstract base class for point smoothing methods. Handles parallel communication via reset and average functions.

Source files

Definition at line 50 of file pointSmoother.H.

Constructor & Destructor Documentation

◆ pointSmoother()

pointSmoother	(	const polyMesh &	mesh,
		const dictionary &	dict )

Construct from a dictionary and a point displacement field.

Definition at line 91 of file pointSmoother.C.

References dict, mesh(), and pp().

Here is the call graph for this function:

◆ ~pointSmoother()

virtual ~pointSmoother ( )

virtualdefault

Destructor.

Member Function Documentation

◆ isInternalOrProcessorFace()

bool isInternalOrProcessorFace ( const label faceI ) const

protected

Test if the given face is internal or on a processor boundary.

Definition at line 36 of file pointSmoother.C.

References mesh(), and patchID.

Referenced by equipotentialPointSmoother::calculate(), geometricElementTransformPointSmoother::calculate(), laplacianPointSmoother::calculate(), and pointsToMove().

Here is the call graph for this function:

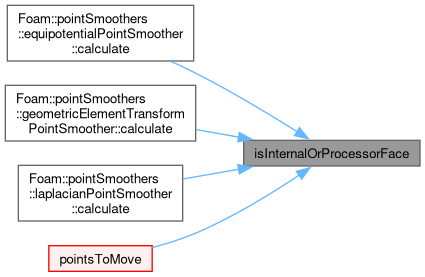

Here is the caller graph for this function:

◆ pointsToMove()

Foam::bitSet pointsToMove	(	const labelList &	facesToMove,
		const bool	moveInternalFaces ) const

protected

Get list of the points to be moved.

Definition at line 61 of file pointSmoother.C.

References isInternalOrProcessorFace(), mesh, nPoints, bitSet::set(), syncTools::syncPointList(), and U.

Referenced by average(), laplacianConstraintPointSmoother::calculate(), and reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset()

template<class weightType>

void reset	(	const labelList &	facesToMove,
		Field< weightType > &	weights,
		vectorField &	pointDisplacement,
		const bool	resetInternalFaces = true ) const

protected

Reset the relevant weights and displacements to zero.

Definition at line 27 of file pointSmootherTemplates.C.

References pointsToMove(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Here is the call graph for this function:

◆ average()

template<class weightType>

void average	(	const labelList &	facesToMove,
		Field< weightType > &	weights,
		vectorField &	pointDisplacement ) const

protected

Average the displacements using the weights provided.

Definition at line 49 of file pointSmootherTemplates.C.

References mesh, pointsToMove(), syncTools::syncPointList(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Here is the call graph for this function:

◆ TypeName()

TypeName ( "pointSmoother" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		pointSmoother	,
		dictionary	,
		(const polyMesh &mesh, const dictionary &dict)	,
		(mesh, dict)	)

References dict, and mesh().

Here is the call graph for this function:

◆ New() [1/2]

Foam::autoPtr< Foam::pointSmoother > New	(	const word &	pointSmootherType,
		const polyMesh &	mesh,
		const dictionary &	dict )

static

Construct given type.

Definition at line 112 of file pointSmoother.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, and mesh().

Here is the call graph for this function:

◆ New() [2/2]

Foam::autoPtr< Foam::pointSmoother > New	(	const polyMesh &	mesh,
		const dictionary &	dict )

static

Construct with type looked up from dictionary.

Definition at line 139 of file pointSmoother.C.

References dict, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, mesh(), and Foam::New().

Here is the call graph for this function:

◆ mesh()

const polyMesh & mesh ( ) const

inlinenoexcept

Access the mesh.

Definition at line 182 of file pointSmoother.H.

References Foam::noexcept.

Referenced by geometricElementTransformPointSmoother::calculate(), geometricElementTransformPointSmoother::cellQuality(), declareRunTimeSelectionTable(), equipotentialPointSmoother::equipotentialPointSmoother(), geometricElementTransformPointSmoother::geometricElementTransformPointSmoother(), isInternalOrProcessorFace(), laplacianConstraintPointSmoother::laplacianConstraintPointSmoother(), laplacianPointSmoother::laplacianPointSmoother(), New(), New(), pointSmoother(), equipotentialPointSmoother::TypeName(), geometricElementTransformPointSmoother::TypeName(), laplacianConstraintPointSmoother::TypeName(), laplacianPointSmoother::TypeName(), and geometricElementTransformPointSmoother::~geometricElementTransformPointSmoother().

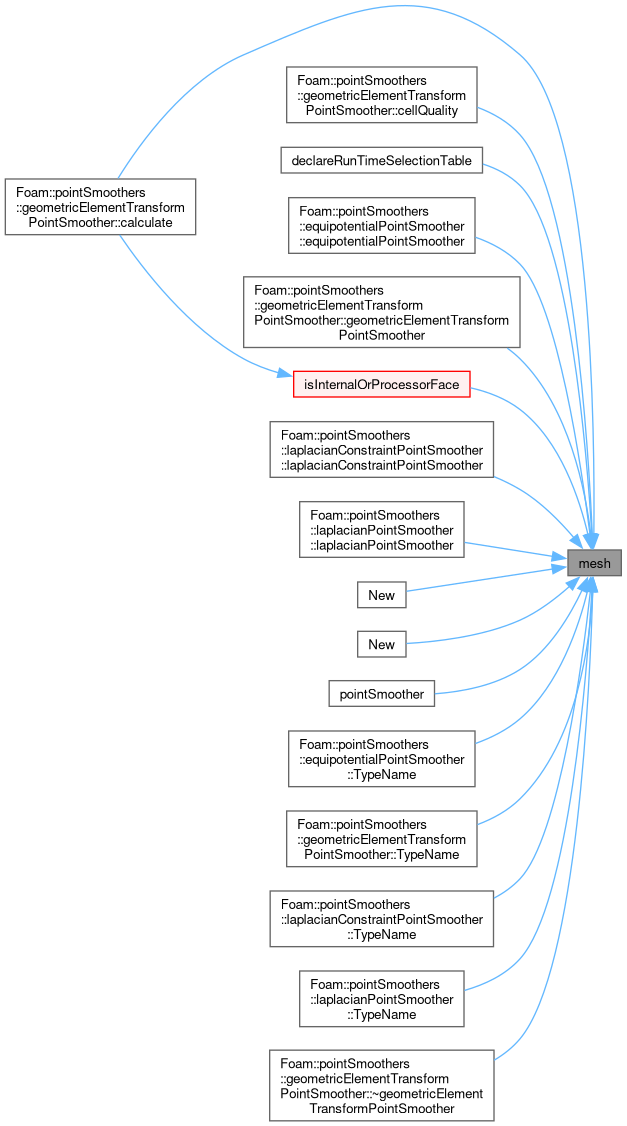

Here is the caller graph for this function:

◆ update() [1/2]

void update	(	const labelList &	facesToMove,
		const pointField &	oldPoints,
		const pointField &	currentPoints,
		const pointField &	faceCentres,
		const vectorField &	faceAreas,
		const pointField &	cellCentres,
		const scalarField &	cellVolumes,
		pointVectorField &	pointDisplacement,
		const bool	correctBCs = true ) const

Update the point displacements and apply constraints.

Definition at line 153 of file pointSmoother.C.

References calculate(), pointConstraints::constrainDisplacement(), mesh, MeshObject< pointMesh, UpdateableMeshObject, pointConstraints >::New(), and GeometricField< Type, PatchField, GeoMesh >::ref().

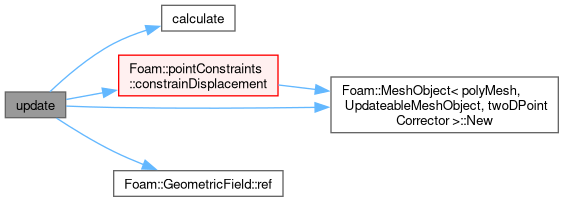

Here is the call graph for this function:

◆ update() [2/2]

void update	(	const labelList &	facesToMove,
		const pointField &	oldPoints,
		const pointField &	currentPoints,
		const polyMeshGeometry &	meshGeometry,
		pointVectorField &	pointDisplacement,
		const bool	correctBCs = true ) const

inline

Update the point displacements and apply constraints.

Definition at line 206 of file pointSmoother.H.

References polyMeshGeometry::cellCentres(), polyMeshGeometry::cellVolumes(), polyMeshGeometry::faceAreas(), polyMeshGeometry::faceCentres(), and update().

Here is the call graph for this function:

◆ calculate() [1/2]

virtual void calculate	(	const labelList &	facesToMove,
		const pointField &	oldPoints,
		const pointField &	currentPoints,
		const pointField &	faceCentres,
		const vectorField &	faceAreas,
		const pointField &	cellCentres,
		const scalarField &	cellVolumes,
		vectorField &	pointDisplacement ) const

pure virtual

Calculate the point displacement.

Implemented in equipotentialPointSmoother, geometricElementTransformPointSmoother, laplacianConstraintPointSmoother, and laplacianPointSmoother.

Referenced by calculate(), and update().

Here is the caller graph for this function:

◆ calculate() [2/2]

virtual void calculate	(	const labelList &	facesToMove,
		const pointField &	oldPoints,
		const pointField &	currentPoints,
		const polyMeshGeometry &	meshGeometry,
		vectorField &	pointDisplacement ) const

inlinevirtual

Update the point displacements.

Definition at line 248 of file pointSmoother.H.

References calculate(), polyMeshGeometry::cellCentres(), polyMeshGeometry::cellVolumes(), polyMeshGeometry::faceAreas(), and polyMeshGeometry::faceCentres().

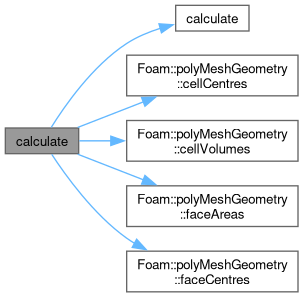

Here is the call graph for this function:

◆ faceQuality()

Foam::tmp< Foam::scalarField > faceQuality	(	const pointField &	points,
		const pointField &	faceCentres,
		const vectorField &	faceAreas,
		const pointField &	cellCentres,
		const scalarField &	cellVolumes ) const

virtual

Check element quality: 1 = best, 0 = invalid. (also negative?) Topology from mesh, point locations supplied. Move to motionSolver level?

Definition at line 198 of file pointSmoother.C.

References polyMeshTools::faceOrthogonality(), mesh, and points.

Referenced by cellQuality().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cellQuality()

Foam::tmp< Foam::scalarField > cellQuality	(	const pointField &	points,
		const pointField &	faceCentres,
		const vectorField &	faceAreas,
		const pointField &	cellCentres,
		const scalarField &	cellVolumes ) const

virtual

Check element quality: 1 = best, 0 = invalid. Topology from mesh, point locations supplied. Move to motionSolver level?

Definition at line 229 of file pointSmoother.C.

References polyMesh::faceNeighbour(), polyMesh::faceOwner(), faceQuality(), forAll, mesh, Foam::min(), tmp< T >::New(), primitiveMesh::nInternalFaces(), and points.

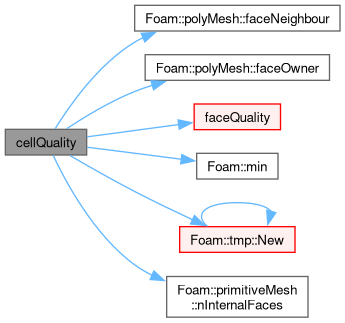

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/dynamicMesh/motionSolvers/displacement/pointSmoothing/pointSmoothers/pointSmoother/pointSmoother.H
src/dynamicMesh/motionSolvers/displacement/pointSmoothing/pointSmoothers/pointSmoother/pointSmoother.C
src/dynamicMesh/motionSolvers/displacement/pointSmoothing/pointSmoothers/pointSmoother/pointSmootherTemplates.C
