laplacianConstraintPointSmoother Class Reference

#include <laplacianConstraintPointSmoother.H>

Inheritance diagram for laplacianConstraintPointSmoother:

Collaboration diagram for laplacianConstraintPointSmoother:

Public Member Functions
	TypeName ("laplacianConstraint")
	Runtime type information.
	laplacianConstraintPointSmoother (const polyMesh &mesh, const dictionary &dict)
	Construct from a dictionary and a polyMesh.
virtual	~laplacianConstraintPointSmoother ()=default
	Destructor.
virtual void	calculate (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes, vectorField &pointDisplacement) const
	Calculate the point displacement.
Public Member Functions inherited from pointSmoother
	TypeName ("pointSmoother")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, pointSmoother, dictionary,(const polyMesh &mesh, const dictionary &dict),(mesh, dict))
	pointSmoother (const polyMesh &mesh, const dictionary &)
	Construct from a dictionary and a point displacement field.
virtual	~pointSmoother ()=default
	Destructor.
const polyMesh &	mesh () const noexcept
	Access the mesh.
void	update (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes, pointVectorField &pointDisplacement, const bool correctBCs=true) const
	Update the point displacements and apply constraints.
void	update (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const polyMeshGeometry &meshGeometry, pointVectorField &pointDisplacement, const bool correctBCs=true) const
	Update the point displacements and apply constraints.
virtual void	calculate (const labelList &facesToMove, const pointField &oldPoints, const pointField &currentPoints, const polyMeshGeometry &meshGeometry, vectorField &pointDisplacement) const
	Update the point displacements.
virtual tmp< scalarField >	faceQuality (const pointField &points, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes) const
	Check element quality: 1 = best, 0 = invalid. (also negative?) Topology from mesh, point locations supplied. Move to motionSolver level?
virtual tmp< scalarField >	cellQuality (const pointField &points, const pointField &faceCentres, const vectorField &faceAreas, const pointField &cellCentres, const scalarField &cellVolumes) const
	Check element quality: 1 = best, 0 = invalid. Topology from mesh, point locations supplied. Move to motionSolver level?

Additional Inherited Members
Static Public Member Functions inherited from pointSmoother
static autoPtr< pointSmoother >	New (const word &pointSmootherType, const polyMesh &mesh, const dictionary &dict)
	Construct given type.
static autoPtr< pointSmoother >	New (const polyMesh &mesh, const dictionary &dict)
	Construct with type looked up from dictionary.
Protected Member Functions inherited from pointSmoother
bool	isInternalOrProcessorFace (const label faceI) const
	Test if the given face is internal or on a processor boundary.
bitSet	pointsToMove (const labelList &facesToMove, const bool moveInternalFaces) const
	Get list of the points to be moved.
template<class weightType>
void	reset (const labelList &facesToMove, Field< weightType > &weights, vectorField &pointDisplacement, const bool resetInternalFaces=true) const
	Reset the relevant weights and displacements to zero.
template<class weightType>
void	average (const labelList &facesToMove, Field< weightType > &weights, vectorField &pointDisplacement) const
	Average the displacements using the weights provided.

Detailed Description

Definition at line 50 of file laplacianConstraintPointSmoother.H.

Constructor & Destructor Documentation

laplacianConstraintPointSmoother()

laplacianConstraintPointSmoother	(	const polyMesh &	mesh,
		const dictionary &	dict )

Construct from a dictionary and a polyMesh.

Definition at line 46 of file laplacianConstraintPointSmoother.C.

References dict, and pointSmoother::mesh().

Here is the call graph for this function:

~laplacianConstraintPointSmoother()

virtual ~laplacianConstraintPointSmoother ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"laplacianConstraint"

)

Runtime type information.

References dict, and pointSmoother::mesh().

Here is the call graph for this function:

calculate()

void calculate ( const labelList & facesToMove, const pointField & oldPoints, const pointField & currentPoints, const pointField & faceCentres, const vectorField & faceAreas, const pointField & cellCentres, const scalarField & cellVolumes, vectorField & pointDisplacement ) const

virtual

Calculate the point displacement.

Implements pointSmoother.

Definition at line 59 of file laplacianConstraintPointSmoother.C.

References Foam::average(), Tuple2< T1, T2 >::first(), UList< T >::first(), forAll, Foam::isA(), mesh, MeshObject< polyMesh, UpdateableMeshObject, pointMesh >::New(), nPoints, pointSmoother::pointsToMove(), pp(), reset(), and Foam::Zero.

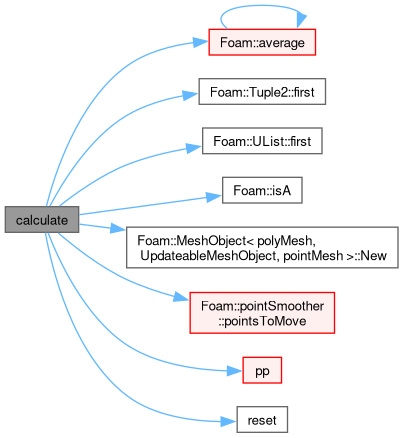

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/dynamicMesh/motionSolvers/displacement/pointSmoothing/pointSmoothers/laplacianPointSmoother/laplacianConstraintPointSmoother.H
• src/dynamicMesh/motionSolvers/displacement/pointSmoothing/pointSmoothers/laplacianPointSmoother/laplacianConstraintPointSmoother.C
