This velocity inlet boundary condition is applied to patches where the pressure is specified. The inflow velocity is obtained from the flux with the specified inlet direction" direction. More...

#include <pressureDirectedInletVelocityFvPatchVectorField.H>

Inheritance diagram for pressureDirectedInletVelocityFvPatchVectorField:

[legend]

Collaboration diagram for pressureDirectedInletVelocityFvPatchVectorField:

[legend]

Public Member Functions
	TypeName ("pressureDirectedInletVelocity")
	Runtime type information.
	pressureDirectedInletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
	Construct from patch and internal field.
	pressureDirectedInletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	pressureDirectedInletVelocityFvPatchVectorField (const pressureDirectedInletVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given.
	pressureDirectedInletVelocityFvPatchVectorField (const pressureDirectedInletVelocityFvPatchVectorField &)
	Construct as copy.
	pressureDirectedInletVelocityFvPatchVectorField (const pressureDirectedInletVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< vector > >	clone (const DimensionedField< vector, volMesh > &iF) const
	Clone with an internal field reference.
virtual bool	assignable () const
	True: this patch field is altered by assignment.
const word &	rhoName () const
	Return the name of rho.
word &	rhoName ()
	Return reference to the name of rho to allow adjustment.
const word &	phiName () const
	Return the name of phi.
word &	phiName ()
	Return reference to the name of phi to allow adjustment.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchVectorField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.
virtual void	operator= (const fvPatchField< vector > &pvf)

Detailed Description

This velocity inlet boundary condition is applied to patches where the pressure is specified. The inflow velocity is obtained from the flux with the specified inlet direction" direction.

Usage

Property	Description	Required	Default value
`phi`	flux field name	no	phi
`rho`	density field name	no	rho
`inletDirection`	inlet direction per patch face	yes

Example of the boundary condition specification:

    <patchName>
    {
        type            pressureDirectedInletVelocity;
        phi             phi;
        rho             rho;
        inletDirection  uniform (1 0 0);
        value           uniform 0;
    }

Note: If reverse flow is possible or expected use the pressureDirectedInletOutletVelocityFvPatchVectorField condition instead.

See also: Foam::fixedValueFvPatchField Foam::pressureDirectedInletOutletVelocityFvPatchVectorField

Source files

Definition at line 101 of file pressureDirectedInletVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ pressureDirectedInletVelocityFvPatchVectorField() [1/5]

pressureDirectedInletVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 31 of file pressureDirectedInletVelocityFvPatchVectorField.C.

References p.

Referenced by pressureDirectedInletVelocityFvPatchVectorField(), pressureDirectedInletVelocityFvPatchVectorField(), pressureDirectedInletVelocityFvPatchVectorField(), rmap(), and TypeName().

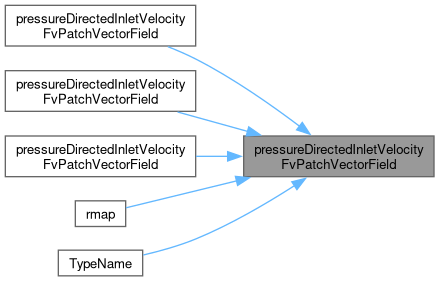

Here is the caller graph for this function:

◆ pressureDirectedInletVelocityFvPatchVectorField() [2/5]

pressureDirectedInletVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 61 of file pressureDirectedInletVelocityFvPatchVectorField.C.

References dict, and p.

◆ pressureDirectedInletVelocityFvPatchVectorField() [3/5]

pressureDirectedInletVelocityFvPatchVectorField	(	const pressureDirectedInletVelocityFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given.

pressureDirectedInletVelocityFvPatchVectorField onto a new patch

Definition at line 45 of file pressureDirectedInletVelocityFvPatchVectorField.C.

References p, and pressureDirectedInletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ pressureDirectedInletVelocityFvPatchVectorField() [4/5]

pressureDirectedInletVelocityFvPatchVectorField ( const pressureDirectedInletVelocityFvPatchVectorField & pivpvf )

Construct as copy.

Definition at line 76 of file pressureDirectedInletVelocityFvPatchVectorField.C.

References pressureDirectedInletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ pressureDirectedInletVelocityFvPatchVectorField() [5/5]

pressureDirectedInletVelocityFvPatchVectorField	(	const pressureDirectedInletVelocityFvPatchVectorField &	pivpvf,
		const DimensionedField< vector, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 89 of file pressureDirectedInletVelocityFvPatchVectorField.C.

References pressureDirectedInletVelocityFvPatchVectorField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "pressureDirectedInletVelocity" )

Runtime type information.

References pressureDirectedInletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 186 of file pressureDirectedInletVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 194 of file pressureDirectedInletVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ assignable()

virtual bool assignable ( ) const

inlinevirtual

True: this patch field is altered by assignment.

Definition at line 208 of file pressureDirectedInletVelocityFvPatchVectorField.H.

◆ rhoName() [1/2]

const word & rhoName ( ) const

inline

Return the name of rho.

Definition at line 216 of file pressureDirectedInletVelocityFvPatchVectorField.H.

◆ rhoName() [2/2]

word & rhoName ( )

inline

Return reference to the name of rho to allow adjustment.

Definition at line 224 of file pressureDirectedInletVelocityFvPatchVectorField.H.

◆ phiName() [1/2]

const word & phiName ( ) const

inline

Return the name of phi.

Definition at line 232 of file pressureDirectedInletVelocityFvPatchVectorField.H.

◆ phiName() [2/2]

word & phiName ( )

inline

Return reference to the name of phi to allow adjustment.

Definition at line 240 of file pressureDirectedInletVelocityFvPatchVectorField.H.

◆ autoMap()

void autoMap ( const fvPatchFieldMapper & m )

virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 105 of file pressureDirectedInletVelocityFvPatchVectorField.C.

◆ rmap()

void rmap	(	const fvPatchVectorField &	ptf,
		const labelList &	addr )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 115 of file pressureDirectedInletVelocityFvPatchVectorField.C.

References pressureDirectedInletVelocityFvPatchVectorField(), and Foam::refCast().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 130 of file pressureDirectedInletVelocityFvPatchVectorField.C.

References Foam::dimMass, Foam::dimTime, Foam::dimVolume, Foam::exit(), Foam::FatalError, FatalErrorInFunction, n, and Foam::operator==().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 166 of file pressureDirectedInletVelocityFvPatchVectorField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

◆ operator=()

void operator= ( const fvPatchField< vector > & pvf )

virtual

Definition at line 181 of file pressureDirectedInletVelocityFvPatchVectorField.C.

References fvPatchField< Type >::operator=().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/finiteVolume/fields/fvPatchFields/derived/pressureDirectedInletVelocity/pressureDirectedInletVelocityFvPatchVectorField.H
src/finiteVolume/fields/fvPatchFields/derived/pressureDirectedInletVelocity/pressureDirectedInletVelocityFvPatchVectorField.C
