This boundary condition provides static pressure condition for p_rgh, calculated as: More...

#include <prghTotalPressureFvPatchScalarField.H>

Inheritance diagram for prghTotalPressureFvPatchScalarField:

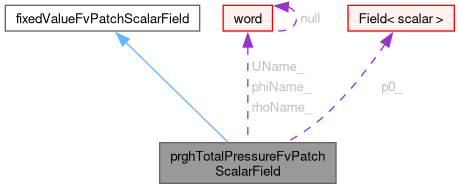

Collaboration diagram for prghTotalPressureFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("prghTotalPressure")
	Runtime type information.
	prghTotalPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	prghTotalPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	prghTotalPressureFvPatchScalarField (const prghTotalPressureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given.
	prghTotalPressureFvPatchScalarField (const prghTotalPressureFvPatchScalarField &)
	Construct as copy.
	prghTotalPressureFvPatchScalarField (const prghTotalPressureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
const scalarField &	p0 () const
	Return the total pressure.
scalarField &	p0 ()
	Return reference to the total pressure to allow adjustment.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.

Protected Attributes
word	UName_
	Name of the velocity field.
word	phiName_
	Name of the flux transporting the field.
word	rhoName_
	Name of phase-fraction field.
scalarField	p0_
	Total pressure.

Detailed Description

This boundary condition provides static pressure condition for p_rgh, calculated as:

$\‍[ p_rgh = p - \rho g.(h - hRef) \‍]$

$\‍[ p = p0 - 0.5 \rho |U|^2 \‍]$

where

	=	Pseudo hydrostatic pressure [Pa]
	=	Static pressure [Pa]
	=	Total pressure [Pa]
	=	Height in the opposite direction to gravity
	=	Reference height in the opposite direction to gravity
$\rho$	=	Density
	=	Acceleration due to gravity [m/s^2]

Usage

Property	Description	Required	Default value
`U`	Velocity field name	no	U
`phi`	Flux field name	no	phi
`rho`	Density field name	no	rho
`p0`	Total pressure	yes

Example of the boundary condition specification:

    <patchName>
    {
        type            prghTotalPressure;
        p0              uniform 0;
    }

See also: Foam::fixedValueFvPatchScalarField

Source files

Definition at line 143 of file prghTotalPressureFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ prghTotalPressureFvPatchScalarField() [1/5]

prghTotalPressureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 31 of file prghTotalPressureFvPatchScalarField.C.

References p, p0_, phiName_, rhoName_, UName_, and Foam::Zero.

Referenced by prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), rmap(), and TypeName().

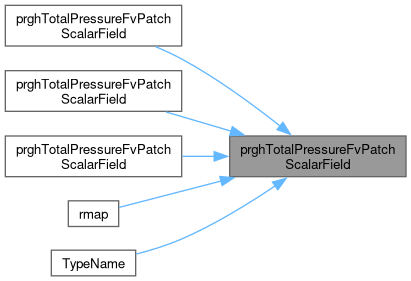

Here is the caller graph for this function:

◆ prghTotalPressureFvPatchScalarField() [2/5]

prghTotalPressureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 45 of file prghTotalPressureFvPatchScalarField.C.

References dict, fvPatchField< Type >::operator=(), p, p0_, phiName_, rhoName_, and UName_.

Here is the call graph for this function:

◆ prghTotalPressureFvPatchScalarField() [3/5]

prghTotalPressureFvPatchScalarField	(	const prghTotalPressureFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given.

prghTotalPressureFvPatchScalarField onto a new patch

Definition at line 65 of file prghTotalPressureFvPatchScalarField.C.

References p, p0_, phiName_, prghTotalPressureFvPatchScalarField(), rhoName_, and UName_.

Here is the call graph for this function:

◆ prghTotalPressureFvPatchScalarField() [4/5]

prghTotalPressureFvPatchScalarField ( const prghTotalPressureFvPatchScalarField & ptf )

Construct as copy.

Definition at line 81 of file prghTotalPressureFvPatchScalarField.C.

References p0_, phiName_, prghTotalPressureFvPatchScalarField(), rhoName_, and UName_.

Here is the call graph for this function:

◆ prghTotalPressureFvPatchScalarField() [5/5]

prghTotalPressureFvPatchScalarField	(	const prghTotalPressureFvPatchScalarField &	ptf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 94 of file prghTotalPressureFvPatchScalarField.C.

References p0_, phiName_, prghTotalPressureFvPatchScalarField(), rhoName_, and UName_.

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "prghTotalPressure" )

Runtime type information.

References prghTotalPressureFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 235 of file prghTotalPressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 243 of file prghTotalPressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ p0() [1/2]

const scalarField & p0 ( ) const

inline

Return the total pressure.

Definition at line 259 of file prghTotalPressureFvPatchScalarField.H.

References p0_.

◆ p0() [2/2]

scalarField & p0 ( )

inline

Return reference to the total pressure to allow adjustment.

Definition at line 267 of file prghTotalPressureFvPatchScalarField.H.

References p0_.

◆ autoMap()

void autoMap ( const fvPatchFieldMapper & m )

virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 110 of file prghTotalPressureFvPatchScalarField.C.

References p0_.

◆ rmap()

void rmap	(	const fvPatchScalarField &	ptf,
		const labelList &	addr )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 120 of file prghTotalPressureFvPatchScalarField.C.

References p0_, prghTotalPressureFvPatchScalarField(), and Foam::refCast().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 135 of file prghTotalPressureFvPatchScalarField.C.

References Foam::cmptMag(), Foam::dimLength, g, Foam::mag(), Foam::magSqr(), Foam::neg(), gravity::New(), p0_, phiName_, rhoName_, and UName_.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 175 of file prghTotalPressureFvPatchScalarField.C.

References os(), p0_, phiName_, rhoName_, UName_, fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

Member Data Documentation

◆ UName_

word UName_

protected

Name of the velocity field.

Definition at line 155 of file prghTotalPressureFvPatchScalarField.H.

Referenced by prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), updateCoeffs(), and write().

◆ phiName_

word phiName_

protected

Name of the flux transporting the field.

Definition at line 160 of file prghTotalPressureFvPatchScalarField.H.

Referenced by prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), updateCoeffs(), and write().

◆ rhoName_

word rhoName_

protected

Name of phase-fraction field.

Definition at line 165 of file prghTotalPressureFvPatchScalarField.H.

Referenced by prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), updateCoeffs(), and write().

◆ p0_

scalarField p0_

protected

Total pressure.

Definition at line 170 of file prghTotalPressureFvPatchScalarField.H.

Referenced by autoMap(), p0(), p0(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), prghTotalPressureFvPatchScalarField(), rmap(), updateCoeffs(), and write().

The documentation for this class was generated from the following files:

src/finiteVolume/fields/fvPatchFields/derived/prghTotalPressure/prghTotalPressureFvPatchScalarField.H
src/finiteVolume/fields/fvPatchFields/derived/prghTotalPressure/prghTotalPressureFvPatchScalarField.C
