Container class to provide injection data for reacting multiphase parcels. More...

#include <reactingMultiphaseParcelInjectionData.H>

Inheritance diagram for reactingMultiphaseParcelInjectionData:

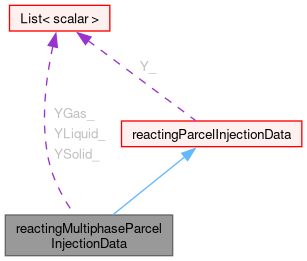

Collaboration diagram for reactingMultiphaseParcelInjectionData:

[legend]

Public Member Functions
	TypeName ("reactingMultiphaseParcelInjectionData")
	Runtime type information.
	reactingMultiphaseParcelInjectionData ()
	Null constructor.
	reactingMultiphaseParcelInjectionData (const dictionary &dict)
	Construct from dictionary.
	reactingMultiphaseParcelInjectionData (Istream &is)
	Construct from Istream.
virtual	~reactingMultiphaseParcelInjectionData ()
	Destructor.
const scalarList &	YGas () const
	Return const access to the list of gaseous mass fractions.
const scalarList &	YLiquid () const
	Return const access to the list of liquid mass fractions.
const scalarList &	YSolid () const
	Return const access to the list of solid mass fractions.
scalarList &	YGas ()
	Return access to the gaseous mass fractions.
scalarList &	YLiquid ()
	Return access to the liquid mass fractions.
scalarList &	YSolid ()
	Return access to the solid mass fractions.
Public Member Functions inherited from reactingParcelInjectionData
	TypeName ("reactingParcelInjectionData")
	Runtime type information.
	reactingParcelInjectionData ()
	Null constructor.
	reactingParcelInjectionData (const dictionary &dict)
	Construct from dictionary.
	reactingParcelInjectionData (Istream &is)
	Construct from Istream.
virtual	~reactingParcelInjectionData ()
	Destructor.
const scalarList &	Y () const
	Return const access to the list of mass fractions.
scalarList &	Y ()
	Return access to the mass fractions.
Public Member Functions inherited from thermoParcelInjectionData
	TypeName ("thermoParcelInjectionData")
	Runtime type information.
	thermoParcelInjectionData ()
	Null constructor.
	thermoParcelInjectionData (const dictionary &dict)
	Construct from dictionary.
	thermoParcelInjectionData (Istream &is)
	Construct from Istream.
virtual	~thermoParcelInjectionData ()
	Destructor.
scalar	T () const
	Return const access to the temperature.
scalar	Cp () const
	Return const access to the specific heat capacity.
scalar &	T ()
	Return access to the temperature.
scalar &	Cp ()
	Return access to the specific heat capacity.
Public Member Functions inherited from kinematicParcelInjectionData
	TypeName ("kinematicParcelInjectionData")
	Runtime type information.
	kinematicParcelInjectionData ()
	Null constructor.
	kinematicParcelInjectionData (const dictionary &dict)
	Construct from dictionary.
	kinematicParcelInjectionData (Istream &is)
	Construct from Istream.
virtual	~kinematicParcelInjectionData ()
	Destructor.
const point &	x () const
	Return const access to the position.
const vector &	U () const
	Return const access to the velocity.
scalar	d () const
	Return const access to the diameter.
scalar	rho () const
	Return const access to the density.
scalar	mDot () const
	Return const access to the mass flow rate.
point &	x ()
	Return access to the position.
vector &	U ()
	Return access to the velocity.
scalar &	d ()
	Return access to the diameter.
scalar &	rho ()
	Return access to the density.
scalar &	mDot ()
	Return access to the mass flow rate.

Protected Attributes
scalarList	YGas_
	List of gaseous mass fractions.
scalarList	YLiquid_
	List of liquid mass fractions.
scalarList	YSolid_
	List of solid mass fractions.
Protected Attributes inherited from reactingParcelInjectionData
scalarList	Y_
	List of mass fractions.
Protected Attributes inherited from thermoParcelInjectionData
scalar	T_
	Temperature [K].
scalar	Cp_
	Specific heat capacity [J/kg/K].
Protected Attributes inherited from kinematicParcelInjectionData
point	x_
	Position [m].
vector	U_
	Velocity [m/s].
scalar	d_
	Diameter [m].
scalar	rho_
	Density [kg/m3].
scalar	mDot_
	Mass flow rate [kg/s].

Friends
Ostream &	operator<< (Ostream &os, const reactingMultiphaseParcelInjectionData &data)
	Ostream operator.
Istream &	operator>> (Istream &is, reactingMultiphaseParcelInjectionData &data)
	Istream operator.

Detailed Description

Container class to provide injection data for reacting multiphase parcels.

Source files

Definition at line 64 of file reactingMultiphaseParcelInjectionData.H.

Constructor & Destructor Documentation

◆ reactingMultiphaseParcelInjectionData() [1/3]

reactingMultiphaseParcelInjectionData ( )

Null constructor.

Definition at line 32 of file reactingMultiphaseParcelInjectionData.C.

References reactingParcelInjectionData::reactingParcelInjectionData(), YGas_, YLiquid_, and YSolid_.

Referenced by operator<<, and operator>>.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reactingMultiphaseParcelInjectionData() [2/3]

reactingMultiphaseParcelInjectionData ( const dictionary & dict )

Construct from dictionary.

Definition at line 42 of file reactingMultiphaseParcelInjectionData.C.

References dict, reactingParcelInjectionData::reactingParcelInjectionData(), YGas_, YLiquid_, and YSolid_.

Here is the call graph for this function:

◆ reactingMultiphaseParcelInjectionData() [3/3]

reactingMultiphaseParcelInjectionData ( Istream & is )

Construct from Istream.

Definition at line 25 of file reactingMultiphaseParcelInjectionDataIO.C.

References IOstream::check(), FUNCTION_NAME, reactingParcelInjectionData::reactingParcelInjectionData(), YGas_, YLiquid_, and YSolid_.

Here is the call graph for this function:

◆ ~reactingMultiphaseParcelInjectionData()

~reactingMultiphaseParcelInjectionData ( )

virtual

Destructor.

Definition at line 56 of file reactingMultiphaseParcelInjectionData.C.

Member Function Documentation

◆ TypeName()

TypeName ( "reactingMultiphaseParcelInjectionData" )

Runtime type information.

References dict.

◆ YGas() [1/2]

const Foam::scalarList & YGas ( ) const

inline

Return const access to the list of gaseous mass fractions.

Definition at line 26 of file reactingMultiphaseParcelInjectionDataI.H.

References YGas_.

◆ YLiquid() [1/2]

const Foam::scalarList & YLiquid ( ) const

inline

Return const access to the list of liquid mass fractions.

Definition at line 33 of file reactingMultiphaseParcelInjectionDataI.H.

References YLiquid_.

◆ YSolid() [1/2]

const Foam::scalarList & YSolid ( ) const

inline

Return const access to the list of solid mass fractions.

Definition at line 40 of file reactingMultiphaseParcelInjectionDataI.H.

References YSolid_.

◆ YGas() [2/2]

Foam::scalarList & YGas ( )

inline

Return access to the gaseous mass fractions.

Definition at line 46 of file reactingMultiphaseParcelInjectionDataI.H.

References YGas_.

◆ YLiquid() [2/2]

Foam::scalarList & YLiquid ( )

inline

Return access to the liquid mass fractions.

Definition at line 52 of file reactingMultiphaseParcelInjectionDataI.H.

References YLiquid_.

◆ YSolid() [2/2]

Foam::scalarList & YSolid ( )

inline

Return access to the solid mass fractions.

Definition at line 58 of file reactingMultiphaseParcelInjectionDataI.H.

References YSolid_.

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const reactingMultiphaseParcelInjectionData &	data )

friend

Ostream operator.

References os(), and reactingMultiphaseParcelInjectionData().

◆ operator>>

Istream & operator>>	(	Istream &	is,
		reactingMultiphaseParcelInjectionData &	data )

friend

Istream operator.

References reactingMultiphaseParcelInjectionData().

Member Data Documentation

◆ YGas_

scalarList YGas_

protected

List of gaseous mass fractions.

Definition at line 75 of file reactingMultiphaseParcelInjectionData.H.

Referenced by reactingMultiphaseParcelInjectionData(), reactingMultiphaseParcelInjectionData(), reactingMultiphaseParcelInjectionData(), YGas(), and YGas().

◆ YLiquid_

scalarList YLiquid_

protected

List of liquid mass fractions.

Definition at line 80 of file reactingMultiphaseParcelInjectionData.H.

Referenced by reactingMultiphaseParcelInjectionData(), reactingMultiphaseParcelInjectionData(), reactingMultiphaseParcelInjectionData(), YLiquid(), and YLiquid().

◆ YSolid_

scalarList YSolid_

protected

List of solid mass fractions.

Definition at line 85 of file reactingMultiphaseParcelInjectionData.H.

Referenced by reactingMultiphaseParcelInjectionData(), reactingMultiphaseParcelInjectionData(), reactingMultiphaseParcelInjectionData(), YSolid(), and YSolid().

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/ReactingMultiphase/InjectionModel/ReactingMultiphaseLookupTableInjection/reactingMultiphaseParcelInjectionData.H
src/lagrangian/intermediate/submodels/ReactingMultiphase/InjectionModel/ReactingMultiphaseLookupTableInjection/reactingMultiphaseParcelInjectionData.C
src/lagrangian/intermediate/submodels/ReactingMultiphase/InjectionModel/ReactingMultiphaseLookupTableInjection/reactingMultiphaseParcelInjectionDataI.H
src/lagrangian/intermediate/submodels/ReactingMultiphase/InjectionModel/ReactingMultiphaseLookupTableInjection/reactingMultiphaseParcelInjectionDataIO.C
