Curvature film separation model. More...

#include <curvatureSeparation.H>

Inheritance diagram for curvatureSeparation:

Collaboration diagram for curvatureSeparation:

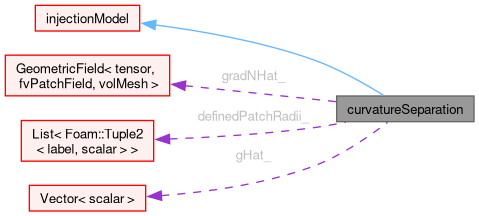

[legend]

Public Member Functions
	TypeName ("curvatureSeparation")
	Runtime type information.
	curvatureSeparation (surfaceFilmRegionModel &film, const dictionary &dict)
	Construct from surface film model.
virtual	~curvatureSeparation ()
	Destructor.
virtual void	correct (scalarField &availableMass, scalarField &massToInject, scalarField &diameterToInject)
	Correct.
Public Member Functions inherited from injectionModel
	TypeName ("injectionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, injectionModel, dictionary,(surfaceFilmRegionModel &film, const dictionary &dict),(film, dict))
	injectionModel (surfaceFilmRegionModel &film)
	Construct null.
	injectionModel (const word &modelType, surfaceFilmRegionModel &film, const dictionary &dict)
	Construct from type name, dictionary and surface film model.
virtual	~injectionModel ()
	Destructor.
virtual scalar	injectedMassTotal () const
	Return the total mass injected.
virtual void	patchInjectedMassTotals (scalarField &patchMasses) const
	Accumulate the total mass injected for the patches into the.
Public Member Functions inherited from filmSubModelBase
	filmSubModelBase (surfaceFilmRegionModel &film)
	Construct null.
	filmSubModelBase (surfaceFilmRegionModel &film, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from film film without name.
	filmSubModelBase (const word &modelName, surfaceFilmRegionModel &film, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from film film with name.
virtual	~filmSubModelBase ()
	Destructor.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
const surfaceFilmRegionModel &	film () const
	Return const access to the film surface film model.
surfaceFilmRegionModel &	film ()
	Return the reference to the film surface film model.
template<class FilmType>
const FilmType &	filmType () const
Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
virtual fileName	localPath () const
	Output directory.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.
virtual void	write (Ostream &os) const
	Write.

Protected Member Functions
tmp< volScalarField >	calcInvR1 (const volVectorField &U) const
	Calculate local (inverse) radius of curvature.
tmp< scalarField >	calcCosAngle (const surfaceScalarField &phi) const
	Calculate the cosine of the angle between gravity vector and.
Protected Member Functions inherited from injectionModel
void	addToInjectedMass (const scalar dMass)
	Add to injected mass.
void	correct ()
	Correct.
Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line.

Protected Attributes
volTensorField	gradNHat_
	Gradient of surface normals.
scalar	deltaByR1Min_
	Minimum gravity driven film thickness (non-dimensionalised delta/R1).
List< Tuple2< label, scalar > >	definedPatchRadii_
	List of radii for patches - if patch not defined, radius.
scalar	magG_
	Magnitude of gravity vector.
vector	gHat_
	Direction of gravity vector.
Protected Attributes inherited from filmSubModelBase
surfaceFilmRegionModel &	filmModel_
	Reference to the film surface film model.
Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Additional Inherited Members
Static Public Member Functions inherited from injectionModel
static autoPtr< injectionModel >	New (surfaceFilmRegionModel &film, const dictionary &dict, const word &mdoelType)
	Return a reference to the selected injection model.
Public Attributes inherited from subModelBase
bool	log
	Flag to write log into Info.

Detailed Description

Curvature film separation model.

Assesses film curvature via the mesh geometry and calculates a force balance of the form:

F_sum = F_inertial + F_body + F_surface

If F_sum < 0, the film separates. Similarly, if F_sum > 0 the film will remain attached.

Based on description given by Owen and D. J. Ryley. The flow of thin liquid films around corners. International Journal of Multiphase Flow, 11(1):51-62, 1985.

Source files

Definition at line 64 of file curvatureSeparation.H.

Constructor & Destructor Documentation

◆ curvatureSeparation()

curvatureSeparation	(	surfaceFilmRegionModel &	film,
		const dictionary &	dict )

Construct from surface film model.

Definition at line 212 of file curvatureSeparation.C.

References DynamicList< T, SizeMin >::append(), subModelBase::coeffDict_, definedPatchRadii_, deltaByR1Min_, subModelBase::dict(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, filmSubModelBase::film(), Foam::findIndices(), forAll, forAllReverse, HashTable< T, Key, Hash >::found(), g, gHat_, gradNHat_, HashSet< Key, Hash >::insert(), Foam::mag(), magG_, patchIDs, UList< T >::size(), and Foam::Zero.

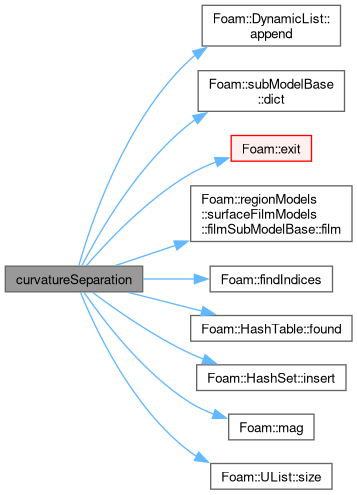

Here is the call graph for this function:

◆ ~curvatureSeparation()

~curvatureSeparation ( )

virtual

Destructor.

Definition at line 264 of file curvatureSeparation.C.

Member Function Documentation

◆ calcInvR1()

tmp< volScalarField > calcInvR1 ( const volVectorField & U ) const

protected

Calculate local (inverse) radius of curvature.

Definition at line 54 of file curvatureSeparation.C.

References definedPatchRadii_, Foam::dimVelocity, e, filmSubModelBase::film(), forAll, gradNHat_, Foam::mag(), Foam::max(), mesh, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, pbm, regionModel::regionMesh(), and U.

Referenced by correct().

Here is the call graph for this function:

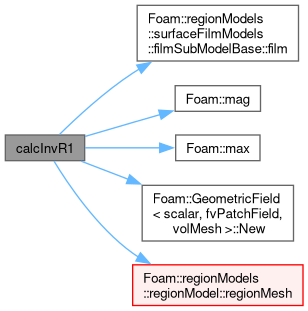

Here is the caller graph for this function:

◆ calcCosAngle()

tmp< scalarField > calcCosAngle ( const surfaceScalarField & phi ) const

protected

Calculate the cosine of the angle between gravity vector and.

cell out flow direction

Definition at line 107 of file curvatureSeparation.C.

References Foam::clamp(), Foam::dimless, filmSubModelBase::film(), forAll, gHat_, mesh, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, fvsPatchFieldBase::patch(), phi, pp(), regionModel::regionMesh(), Foam::Zero, and fvPatchFieldBase::zeroGradientType().

Referenced by correct().

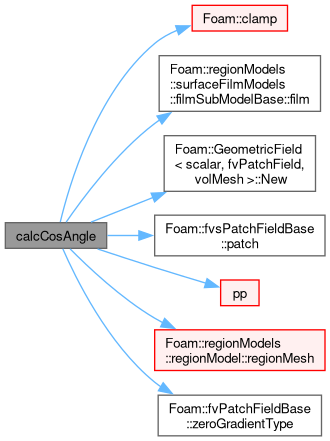

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "curvatureSeparation" )

Runtime type information.

References subModelBase::dict(), and filmSubModelBase::film().

Here is the call graph for this function:

◆ correct()

void correct	(	scalarField &	availableMass,
		scalarField &	massToInject,
		scalarField &	diameterToInject )

virtual

Correct.

Implements injectionModel.

Definition at line 270 of file curvatureSeparation.C.

References injectionModel::addToInjectedMass(), calcCosAngle(), calcInvR1(), injectionModel::correct(), delta, deltaByR1Min_, Foam::dimForce, e, filmSubModelBase::film(), forAll, magG_, Foam::magSqr(), mesh, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, phi, Foam::refCast(), rho, sigma(), Foam::sqr(), Foam::sum(), U, Foam::Zero, and fvPatchFieldBase::zeroGradientType().

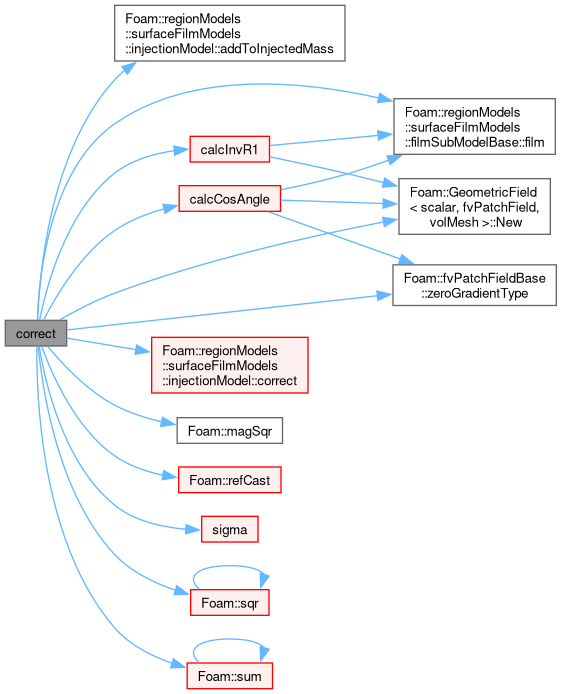

Here is the call graph for this function:

Member Data Documentation

◆ gradNHat_

volTensorField gradNHat_

protected

Gradient of surface normals.

Definition at line 90 of file curvatureSeparation.H.

Referenced by calcInvR1(), and curvatureSeparation().

◆ deltaByR1Min_

scalar deltaByR1Min_

protected

Minimum gravity driven film thickness (non-dimensionalised delta/R1).

Definition at line 95 of file curvatureSeparation.H.

Referenced by correct(), and curvatureSeparation().

◆ definedPatchRadii_

List<Tuple2<label, scalar> > definedPatchRadii_

protected

List of radii for patches - if patch not defined, radius.

calculated based on mesh geometry

Definition at line 102 of file curvatureSeparation.H.

Referenced by calcInvR1(), and curvatureSeparation().

◆ magG_

scalar magG_

protected

Magnitude of gravity vector.

Definition at line 107 of file curvatureSeparation.H.

Referenced by correct(), and curvatureSeparation().

◆ gHat_

vector gHat_

protected

Direction of gravity vector.

Definition at line 112 of file curvatureSeparation.H.

Referenced by calcCosAngle(), and curvatureSeparation().

The documentation for this class was generated from the following files:

src/regionModels/surfaceFilmModels/submodels/kinematic/injectionModel/curvatureSeparation/curvatureSeparation.H
src/regionModels/surfaceFilmModels/submodels/kinematic/injectionModel/curvatureSeparation/curvatureSeparation.C
