removeCells Class Reference

Given list of cells to remove, insert all the topology changes. More...

#include <removeCells.H>

Public Member Functions

 ClassName ("removeCells")
 Runtime type information.
 removeCells (const polyMesh &mesh, const bool syncPar=true)
 Construct from mesh. Parallel synchronized by default.
 ~removeCells ()=default
 Destructor.
labelList getExposedFaces (const bitSet &removedCell) const
 Get labels of faces exposed after cells removal.
labelList getExposedFaces (const labelUList &cellsToRemove) const
 Get labels of faces exposed after cells removal.
void setRefinement (const bitSet &removedCell, const labelUList &facesToExpose, const labelUList &patchIDs, polyTopoChange &) const
 Play commands into polyTopoChange to remove cells.
void setRefinement (const labelUList &cellsToRemove, const labelUList &facesToExpose, const labelUList &patchIDs, polyTopoChange &) const
 Play commands into polyTopoChange to remove cells.
void updateMesh (const mapPolyMesh &)
 Force recalculation of locally stored data on topological change.

Detailed Description

Given list of cells to remove, insert all the topology changes.

Works in two passes:

  • get faces that will become boundary faces
  • given these faces and the patches they have to go into make the changes.
Source files

Definition at line 59 of file removeCells.H.

Constructor & Destructor Documentation

◆ removeCells()

removeCells ( const polyMesh & mesh,
const bool syncPar = true )
explicit

Construct from mesh. Parallel synchronized by default.

Definition at line 67 of file removeCells.C.

References mesh.

◆ ~removeCells()

~removeCells ( )
default

Destructor.

References patchIDs.

Member Function Documentation

◆ ClassName()

ClassName ( "removeCells" )

Runtime type information.

References mesh.

◆ getExposedFaces() [1/2]

Foam::labelList getExposedFaces ( const bitSet & removedCell) const

Get labels of faces exposed after cells removal.

These are

  • internal faces that become boundary faces
  • coupled faces that become uncoupled (since one of the sides gets deleted)

Definition at line 76 of file removeCells.C.

References DynamicList< T, SizeMin >::append(), forAll, patches, pp(), syncTools::syncBoundaryFaceList(), and Foam::Zero.

Referenced by fvMeshSubsetter::getExposedFaces(), fvMeshSubsetter::getExposedFaces(), getExposedFaces(), meshRefinement::removeGapCells(), and meshRefinement::splitMeshRegions().

Here is the call graph for this function:

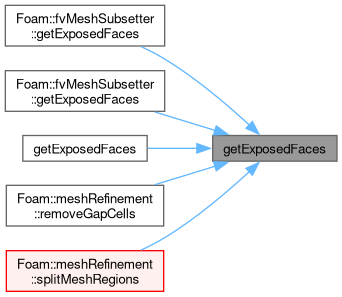

Here is the caller graph for this function:

◆ getExposedFaces() [2/2]

Foam::labelList getExposedFaces ( const labelUList & cellsToRemove) const

Get labels of faces exposed after cells removal.

These are

  • internal faces that become boundary faces
  • coupled faces that become uncoupled (since one of the sides gets deleted)

Definition at line 472 of file removeCells.C.

References getExposedFaces().

Here is the call graph for this function:

◆ setRefinement() [1/2]

void setRefinement ( const bitSet & removedCell,
const labelUList & facesToExpose,
const labelUList & patchIDs,
polyTopoChange & meshMod ) const

Play commands into polyTopoChange to remove cells.

patchIDs is for every element in facesToExpose (see above) the patch it has to go into. This cannot be a coupled patch!

Definition at line 180 of file removeCells.C.

References Foam::abort(), coupled, Foam::endl(), f(), Foam::FatalError, FatalErrorInFunction, faceZone::flipMap(), forAll, Foam::nl, patches, pp(), polyTopoChange::setAction(), UList< T >::size(), WarningInFunction, faceZone::whichFace(), ZoneMesh< ZoneType, MeshType >::whichZone(), and Foam::Zero.

Referenced by meshRefinement::doRemoveCells(), and setRefinement().

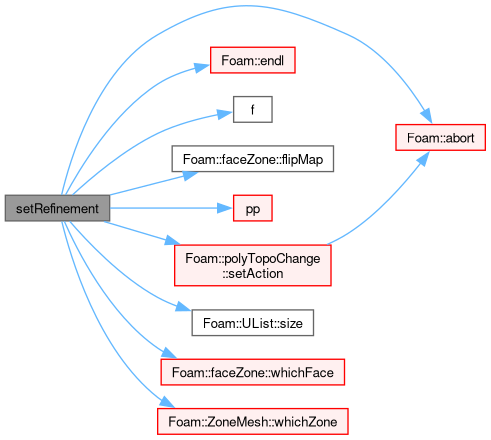

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setRefinement() [2/2]

void setRefinement ( const labelUList & cellsToRemove,
const labelUList & facesToExpose,
const labelUList & patchIDs,
polyTopoChange & meshMod ) const

Play commands into polyTopoChange to remove cells.

patchIDs is for every element in facesToExpose (see above) the patch it has to go into. This cannot be a coupled patch!

Definition at line 483 of file removeCells.C.

References setRefinement().

Here is the call graph for this function:

◆ updateMesh()

void updateMesh ( const mapPolyMesh & )
inline

Force recalculation of locally stored data on topological change.

Definition at line 149 of file removeCells.H.

Referenced by meshRefinement::doRemoveCells().

Here is the caller graph for this function:
The documentation for this class was generated from the following files:
