This boundary condition provides a total pressure condition for patches in a rotating frame. More...

#include <rotatingTotalPressureFvPatchScalarField.H>

Inheritance diagram for rotatingTotalPressureFvPatchScalarField:

Collaboration diagram for rotatingTotalPressureFvPatchScalarField:

Public Member Functions
	TypeName ("rotatingTotalPressure")
	Runtime type information.
	rotatingTotalPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	rotatingTotalPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	rotatingTotalPressureFvPatchScalarField (const rotatingTotalPressureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given rotatingTotalPressureFvPatchScalarField.
	rotatingTotalPressureFvPatchScalarField (const rotatingTotalPressureFvPatchScalarField &)
	Construct as copy.
	rotatingTotalPressureFvPatchScalarField (const rotatingTotalPressureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.
Public Member Functions inherited from totalPressureFvPatchScalarField
	TypeName ("totalPressure")
	Runtime type information.
	totalPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	totalPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	totalPressureFvPatchScalarField (const totalPressureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given totalPressureFvPatchScalarField.
	totalPressureFvPatchScalarField (const totalPressureFvPatchScalarField &)
	Construct as copy.
	totalPressureFvPatchScalarField (const totalPressureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
const word &	UName () const
	Return the name of the velocity field.
word &	UName ()
	Return reference to the name of the velocity field.
const word &	phiName () const
	Return the name of the flux field.
word &	phiName ()
	Return reference to the name of the flux field.
const word &	rhoName () const
	Return the name of the density field.
word &	rhoName ()
	Return reference to the name of the density field.
const word &	psiName () const
	Return the name of the compressibility field.
word &	psiName ()
	Return reference to the name of the compressibility field.
scalar	gamma () const
	Return the heat capacity ratio.
scalar &	gamma ()
	Return reference to the heat capacity ratio to allow adjustment.
const scalarField &	p0 () const
	Return the total pressure.
scalarField &	p0 ()
	Return reference to the total pressure to allow adjustment.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	updateCoeffs (const scalarField &p0p, const vectorField &Up)
	Update the coefficients associated with the patch field.

Detailed Description

This boundary condition provides a total pressure condition for patches in a rotating frame.

Usage

Property	Description	Required	Default value
`U`	velocity field name	no	U
`phi`	flux field name	no	phi
`rho`	density field name	no	none
`psi`	compressibility field name	no	none
`gamma`	ratio of specific heats (Cp/Cv)	yes
`p0`	static pressure reference	yes
`omega`	angular velocty of the frame [rad/s]	yes

Example of the boundary condition specification:

    <patchName>
    {
        type            rotatingTotalPressure;
        U               U;
        phi             phi;
        rho             rho;
        psi             psi;
        gamma           1.4;
        p0              uniform 1e5;
        omega           100;
    }

The omega entry is a Function1 type, able to describe time varying functions.

See also: Foam::totalPressureFvPatchScalarField Foam::Function1Types

Source files

Definition at line 125 of file rotatingTotalPressureFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ rotatingTotalPressureFvPatchScalarField() [1/5]

rotatingTotalPressureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 30 of file rotatingTotalPressureFvPatchScalarField.C.

References p, and totalPressureFvPatchScalarField::totalPressureFvPatchScalarField().

Referenced by rotatingTotalPressureFvPatchScalarField(), rotatingTotalPressureFvPatchScalarField(), rotatingTotalPressureFvPatchScalarField(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rotatingTotalPressureFvPatchScalarField() [2/5]

rotatingTotalPressureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 56 of file rotatingTotalPressureFvPatchScalarField.C.

References dict, Foam::New(), p, and totalPressureFvPatchScalarField::totalPressureFvPatchScalarField().

Here is the call graph for this function:

◆ rotatingTotalPressureFvPatchScalarField() [3/5]

rotatingTotalPressureFvPatchScalarField	(	const rotatingTotalPressureFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given rotatingTotalPressureFvPatchScalarField.

onto a new patch

Definition at line 42 of file rotatingTotalPressureFvPatchScalarField.C.

References clone(), p, rotatingTotalPressureFvPatchScalarField(), and totalPressureFvPatchScalarField::totalPressureFvPatchScalarField().

Here is the call graph for this function:

◆ rotatingTotalPressureFvPatchScalarField() [4/5]

rotatingTotalPressureFvPatchScalarField ( const rotatingTotalPressureFvPatchScalarField & rtppsf )

Construct as copy.

Definition at line 69 of file rotatingTotalPressureFvPatchScalarField.C.

References clone(), rotatingTotalPressureFvPatchScalarField(), and totalPressureFvPatchScalarField::totalPressureFvPatchScalarField().

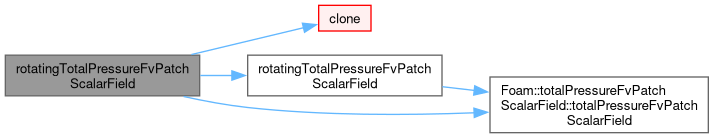

Here is the call graph for this function:

◆ rotatingTotalPressureFvPatchScalarField() [5/5]

rotatingTotalPressureFvPatchScalarField	(	const rotatingTotalPressureFvPatchScalarField &	rtppsf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 80 of file rotatingTotalPressureFvPatchScalarField.C.

References clone(), rotatingTotalPressureFvPatchScalarField(), and totalPressureFvPatchScalarField::totalPressureFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "rotatingTotalPressure" )

Runtime type information.

References rotatingTotalPressureFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Reimplemented from totalPressureFvPatchScalarField.

Definition at line 199 of file rotatingTotalPressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Referenced by rotatingTotalPressureFvPatchScalarField(), rotatingTotalPressureFvPatchScalarField(), and rotatingTotalPressureFvPatchScalarField().

Here is the call graph for this function:

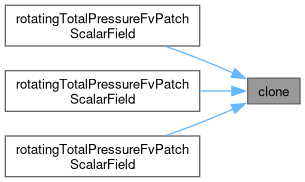

Here is the caller graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Reimplemented from totalPressureFvPatchScalarField.

Definition at line 207 of file rotatingTotalPressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Reimplemented from totalPressureFvPatchScalarField.

Definition at line 94 of file rotatingTotalPressureFvPatchScalarField.C.

References Foam::mag(), om, p0, UName(), and totalPressureFvPatchScalarField::updateCoeffs().

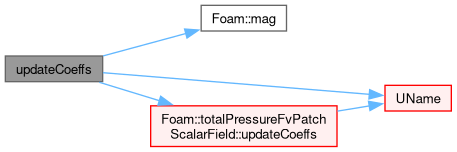

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from totalPressureFvPatchScalarField.

Definition at line 118 of file rotatingTotalPressureFvPatchScalarField.C.

References os(), and totalPressureFvPatchScalarField::write().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/finiteVolume/fields/fvPatchFields/derived/rotatingTotalPressure/rotatingTotalPressureFvPatchScalarField.H
src/finiteVolume/fields/fvPatchFields/derived/rotatingTotalPressure/rotatingTotalPressureFvPatchScalarField.C
